1. Wprowadzenie i koniecview
Thank you for choosing the EWEADN V102 Wired Keyboard. This 98-key compact keyboard is designed for both gaming and productivity, offering a blend of functionality, comfort, and dynamic aesthetics. It features a dedicated media knob, an integrated display screen, and customizable RGB backlighting. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new keyboard.

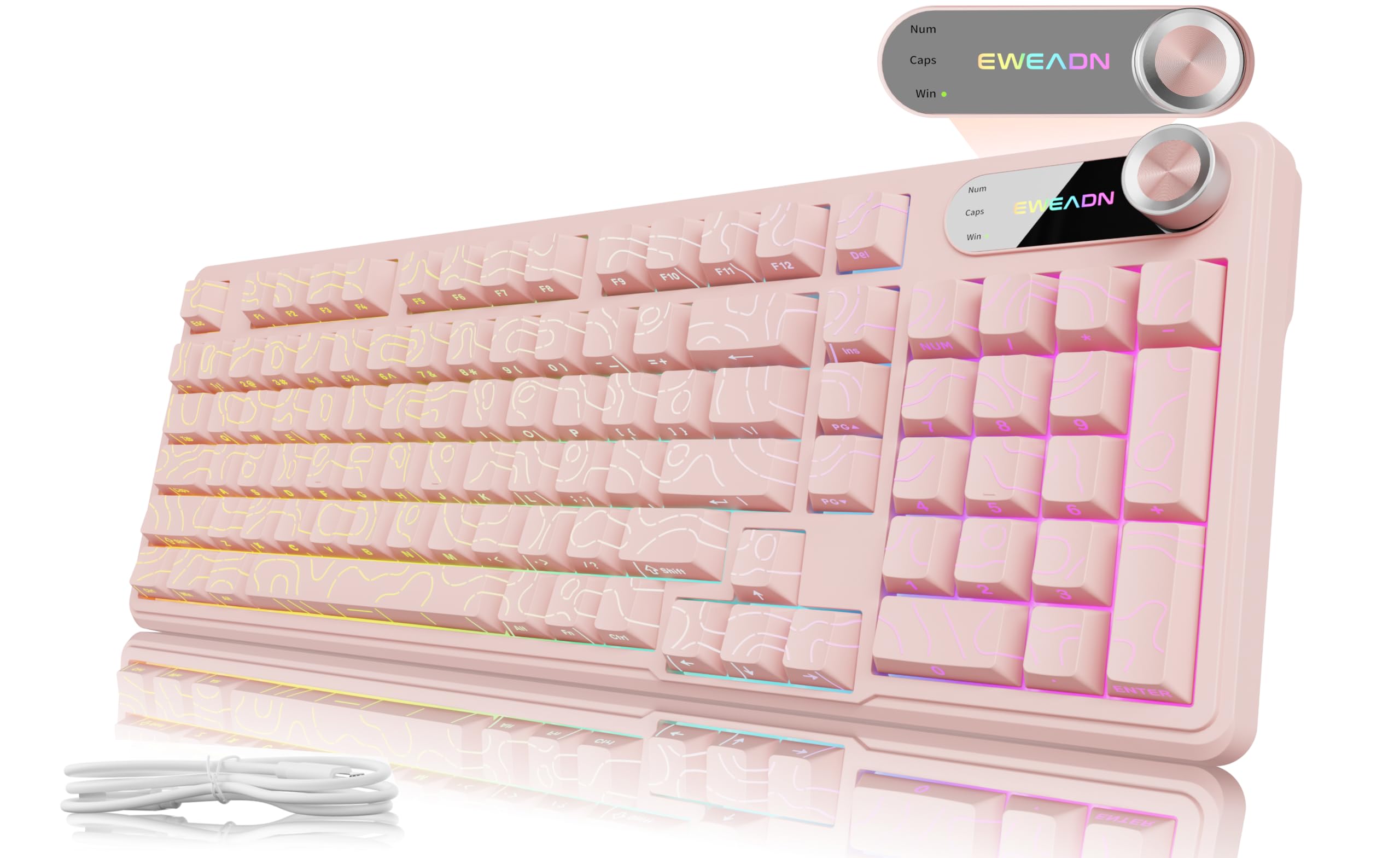

Figure 1: EWEADN V102 Wired Keyboard, Light Pink variant.
2. Co znajduje się w pudełku
Sprawdź zawartość paczki, aby upewnić się, że znajdują się w niej wszystkie elementy:
- EWEADN V102 Keyboard x 1
- Kabel USB typu C x 1
- Instrukcja obsługi x 1
Figure 2: Included USB Type-C cable for keyboard connection.
3. Instrukcje konfiguracji
- Podłącz klawiaturę: Plug the USB Type-C cable into the port on the keyboard and the other end into an available USB port on your computer or device. The keyboard is plug-and-play, requiring no additional drivers for basic functionality.
- Dostosuj kąt pisania: Klawiatura posiada 2-stage adjustable feet on the underside. Flip them out to achieve your preferred typing angle for enhanced comfort.
- Zgodność systemu: The EWEADN V102 is compatible with Windows, Mac, Android, iOS, Xbox, PS4, and PS5. For Mac users, switch to Mac layout by pressing FN + S. For Windows, press FN + A.
Figure 3: Dual-System Connection for Windows and Mac layouts.
Figure 4: Adjustable typing angles for ergonomic comfort.
4. Instrukcja obsługi
4.1. Dedykowane pokrętło i wyświetlacz
The smart rotary knob and built-in display screen provide intuitive control and real-time status updates:
- Backlight Mode Control: Press the knob once to cycle through 12 different RGB backlight modes.
- Regulacja jasności: Rotate the knob to adjust the backlight brightness (5 levels).
- Tryb multimedialny: Trzymać FN + pokrętło to switch to multimedia mode. In this mode, rotating the knob controls volume, and pressing it mutes/unmutes audio.
- Ekran wyświetlacza: The screen shows the EWEADN logo and indicators for Caps Lock, Num Lock, and Win Lock status.
Figure 5: Smart Screen Display showing keyboard status.
Figure 6: Multi-Function Control Knob for lighting and multimedia.
4.2. Dynamic RGB Backlighting
Customize your keyboard's lighting with these shortcuts:
- Przełącz podświetlenie: Naciskać FN + Backspace Aby włączyć/wyłączyć podświetlenie.
- Zmień efekty oświetlenia: Naciskać FN + IN to cycle through 12 stunning RGB lighting effects.
- Dostosuj jasność: Naciskać FN + PGUP aby zwiększyć jasność, FN + PGDN aby zmniejszyć jasność (5 poziomów).
- Dostosuj prędkość oświetlenia: Naciskać FN + "-" to decrease speed, FN + "+" to increase speed (5 levels).
Figure 7: RGB Backlight controls and effects.
4.3. 98-Key Compact Layout
The 98% layout provides a full-featured experience, including a numeric keypad, while maintaining a compact footprint to save desk space.
Figure 8: Compact 98-key layout for efficiency.
5. Konserwacja
5.1. Spill Resistant Design
The EWEADN V102 keyboard features a spill-resistant design to protect against accidental liquid spills. In case of a spill, gently wipe the liquid off the surface and allow the keyboard to air dry completely before continued use. Avoid submerging the keyboard in water.
Figure 9: Spill-resistant design for enhanced durability.
6. Rozwiązywanie Problemów
If you encounter any issues with your EWEADN V102 keyboard, please refer to the following common troubleshooting steps:
- Klawiatura nie odpowiada: Ensure the USB Type-C cable is securely connected to both the keyboard and your device. Try plugging it into a different USB port.
- Podświetlenie nie działa: Sprawdź, czy podświetlenie jest wyłączone za pomocą FN + Backspace. Dostosuj jasność za pomocą FN + PGUP/PGDN.
- Nieprawidłowy układ klawiszy (Mac/Windows): Verify that the correct system layout is selected (FN + A dla systemu Windows, FN + S (dla komputerów Mac).
- Funkcjonalność pokrętła: If the knob is not controlling lighting or multimedia as expected, ensure you are in the correct mode (press or hold FN + pokrętło to switch).
- Połączenie przerywane: Ensure the cable is not damaged and try connecting directly to your device without any hubs or adapters.
If the problem persists after trying these steps, please contact EWEADN customer support for further assistance.
7. Specyfikacje
| Marka | EWEADN |
| Model | V102 |
| Układ | 98-klawiszowy kompaktowy |
| Łączność | Przewodowy (USB typu C) |
| Podświetlenie | Dynamiczny RGB (12 efektów, 5 poziomów jasności, 5 poziomów prędkości) |
| Cechy specjalne | Dedicated Media Knob, Display Screen (Caps/Num/Win Lock), Spill Resistant, Adjustable Typing Angles |
| Kompatybilne urządzenia | Laptop, PC (Windows, Mac, Android, iOS, Xbox, PS4, PS5) |
| Waga przedmiotu | 2.25 funta |
| Wymiary opakowania | 17.56 x 6.97 x 2.36 cala |
| Tworzywo | Plastikowy |
8. Gwarancja i wsparcie
Your EWEADN V102 keyboard is covered by a return policy allowing returns or replacements within 30 days of purchase. For any product inquiries, technical support, or warranty claims, please contact EWEADN customer service.
- Wsparcie e-mailowe: eweadnkeyboard@outlook.com
- Wsparcie online: Visit the EWEADN Store on Amazon and click 'Ask a question'.
Figure 10: EWEADN Customer Support Information.
