Spatium Water Bike 2.0 Inflatable Pedal Boat Instruction Manual

1. Wprowadzenie

Thank you for choosing the Spatium Water Bike 2.0. This inflatable pedal boat is designed for water sports enthusiasts, offering a unique and stable way to enjoy lakes, rivers, and calm ocean waters. This manual provides essential information for the safe and effective assembly, operation, and maintenance of your water bike.

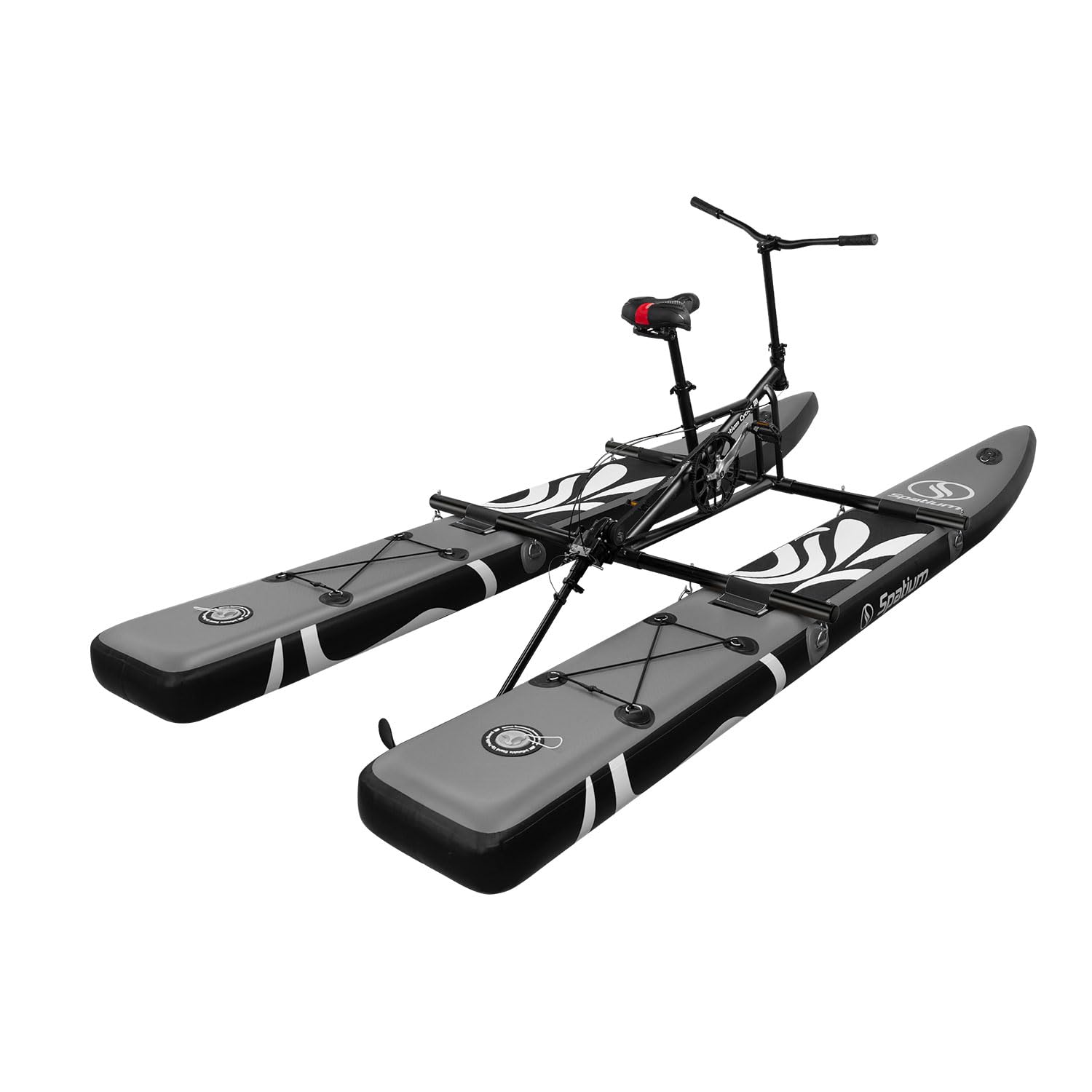

Image 1: Spatium Water Bike 2.0 Inflatable Pedal Boat.

2. Informacje dotyczące bezpieczeństwa

OSTRZEŻENIE: Nieprzestrzeganie tych wytycznych bezpieczeństwa może spowodować poważne obrażenia lub śmierć.

• Always wear a life jacket when operating the water bike.
• Do not swim or operate the water bike in windy or rough waters.
• When using the propeller, always ensure the propeller safety cable is securely attached to the suspension hole on the back of the gearbox.
• Ensure all components are correctly assembled and secured before each use.
• The water bike is designed to carry one adult weighing up to 130 kg. Do not exceed this weight limit.
• Regularly inspect all parts for wear, damage, or loose connections.

3. Zawartość opakowania

Sprawdź, czy w opakowaniu znajdują się wszystkie poniższe elementy:

• Bicycle Body Frame (1)
• Bicycle Handle (1)
• Aluminum Alloy Rods (4)
• Bicycle Seat (1)
• Manual Two-Way Pump (1)
• Screw Kit (1)
• Bicycle Pedals (2)
• Inflatable Pontoons (2)
• Repair Kit (1)
• Plecak (1)
• Detachable Propeller (1)
• Buckles (2)
• Mat (1)

Image 2: Included accessories for the Spatium Water Bike 2.0.

4. Instalacja i montaż

Follow these steps to assemble your Spatium Water Bike 2.0:

1. Assemble the Bicycle Frame: Connect the aluminum alloy rods to the main bicycle frame. Ensure all connections are secure using the provided screws and tools.
2. Install the Seat and Handlebar: Attach the bicycle seat to the frame and assemble the handlebar, securing it firmly.
3. Zamontuj pedały: Install the pedals onto the crank arms, tightening them clockwise with the provided wrench.
4. Secure Gearbox Limit Screws: Ensure the gearbox limit screws are properly secured to prevent movement.
5. Attach Propeller Blades: Carefully attach the propeller blades to the propeller unit, ensuring they are firmly screwed in.
6. Install Propeller Unit: Connect the assembled propeller unit to the main frame. Ensure the safety cable is attached.
7. Partially Inflate Pontoons: Use the manual pump to partially inflate the two pontoons. This makes it easier to attach them to the frame.
8. Assemble Pontoons with Frame: Slide the pontoons onto the frame's crossbars. Use the provided carabiners to clip the pontoons to the deck pad rings on both sides.
9. Fully Inflate Pontoons: Inflate the pontoons fully to 12-14 PSI. If using dark-colored pontoons in summer, do not exceed 12 PSI to prevent over-expansion.

Filmy instruktażowe:

Image 3: Visual guide for the installation of the Spatium Water Bike 2.0.

5. Instrukcja obsługi

The Spatium Water Bike 2.0 offers a stable and enjoyable water experience. Here are key operating features:

• Stabilność: The double-body pontoon design provides excellent stability, allowing for free movement even in small waves. It can support an adult up to 130 kg.
• Napęd: The propeller is driven by a pedal power system. Pedal forward to move forward, and use the handlebar to steer.
• Prędkość: Achieve cruise speeds of 6-8 km/h depending on pedaling effort and water conditions.
• Ruchliwość: The propeller features a lifting design, making it suitable for various water depths.
• Ruchliwość: The bike frame is detachable and weighs only 21 kg, fitting easily into a car boot. The inflatable pontoons can be deflated and stored in a backpack.

Obraz 4: Koniecview of the Spatium Water Bike 2.0 frame and features.

6. Konserwacja

Proper maintenance ensures the longevity and performance of your water bike:

• After Seawater Use: After use in seawater, thoroughly rinse all components with fresh water and wipe them dry completely. Store in a cool, dry place.
• rura Clamp Wzmocnienie: Periodically reinforce the pipe clamp parts to ensure secure connections.
• Rear Gear Maintenance: The rear gear should be maintained with oil to ensure smooth operation.
• Pontoon Storage: Before rolling up and storing the pontoons, ensure they are completely dry. Avoid storing them in extremely cold or hot conditions, as this can affect the material and cause damage.
• Trwałość materiału: The bracket and driving parts are made of high-strength aluminum alloy and stainless steel, designed to resist rust and corrosion in both seawater and freshwater.

7. Rozwiązywanie Problemów

W tej sekcji omówiono typowe problemy, na które możesz natrafić:

• Loss of Stability: Ensure pontoons are inflated to the correct PSI (12-14 PSI, max 12 PSI for dark colors in summer). Check all frame connections for tightness.
• Trudność pedałowania: Inspect the drive belt for any obstructions or damage. Ensure pedals are securely attached and lubricated. Check the propeller for entanglement.
• Problemy ze sterowaniem: Verify that the handlebar is securely attached and the steering cables are properly connected and tensioned.
• Propeller Not Engaging: Check the propeller unit for proper installation and ensure the safety cable is not interfering with its operation.
• Air Leakage from Pontoons: Use the repair kit to patch any small punctures. For larger damage, contact customer support.

8. Specyfikacje

9. Gwarancja i wsparcie

Gwarancja jakości: We offer a one-year warranty and free upgrade service for product parts. Shipping for parts will be handled through our dealers in the local market or by post from China.

Obsługa klienta: For any questions, issues, or warranty claims, please contact the seller, Ranzhi, directly through your purchase platform. They offer 30-day easy returns and dedicated customer support.
