1. Ważne informacje dotyczące bezpieczeństwa
Please read this user manual carefully before operating the Devoko Electric Recliner Chair. Improper handling may cause injury. Ensure the chair is placed on a stable surface and is not overloaded. Children should not use the chair unsupervised.
Nośność: The chair has a maximum load capacity of 136 kg (approximately 300 lbs).
Bezpieczeństwo elektryczne: Ensure the power cord is not pinched or damaged. Do not operate the chair if the cord or plug is damaged. Keep liquids away from electrical components.
Ruch: The backrest and footrest adjust simultaneously. Do not attempt to force the chair into positions it is not designed for. Keep hands and feet clear of moving parts during operation.
2. Składniki produktu
Przed montażem upewnij się, że wszystkie elementy są obecne i nieuszkodzone. Opakowanie zazwyczaj zawiera:
- 1x Footrest section
- 1x Seat section
- 1x Backrest section
- 1x Accessory box (containing power adapter, remote control, screws, and tools)
- 2x Podłokietniki
Obraz: Ponadview of the Devoko Electric Recliner Chair components before assembly.
3. Instrukcja montażu
The Devoko Electric Recliner Chair is designed for simple assembly, typically taking around 30 minutes without specialized tools. All necessary tools are included.
- Rozpakuj komponenty: Ostrożnie wyjmij wszystkie części z opakowania. Połóż je na miękkiej, czystej powierzchni, aby zapobiec zarysowaniom.
- Dołącz podłokietniki: Slide the armrests onto the metal brackets on the sides of the seat base until they click into place. Ensure they are securely fastened.
- Montaż oparcia: Align the backrest with the corresponding slots on the seat base. Push down firmly until the backrest locks into position.
- Podłącz zasilanie: Locate the power cable from the chair and connect it to the provided power adapter. Plug the adapter into a standard electrical outlet.
- Kontrola końcowa: Ensure all connections are secure and the chair is stable before use.

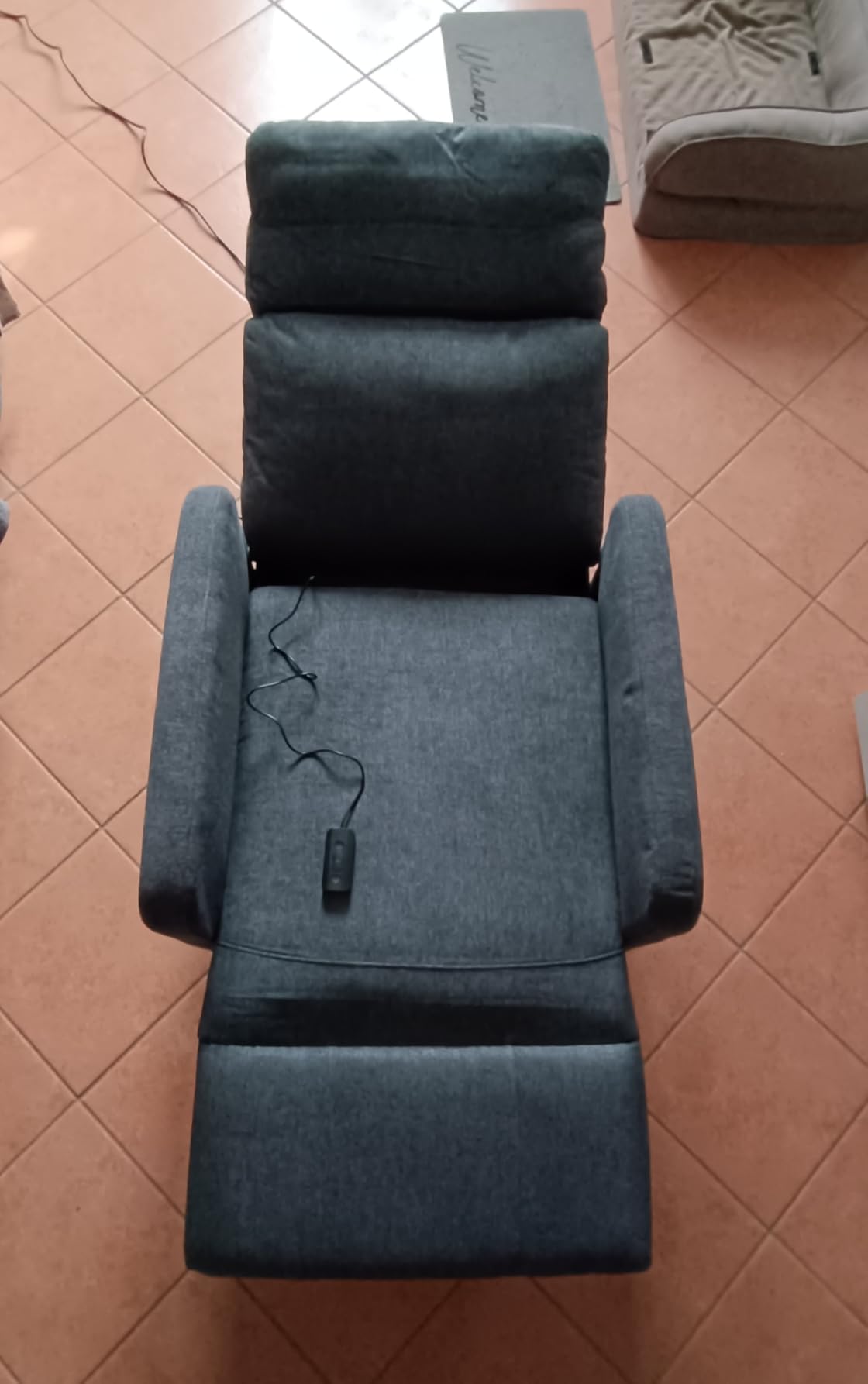

Image: Visual guide illustrating the straightforward assembly process.
4. Instrukcja obsługi
The Devoko Electric Recliner Chair features an easy-to-use remote control for personalized adjustment of the backrest and footrest.
4.1 Funkcje zdalnego sterowania
Image: A person comfortably seated in the recliner, using the remote control. Inset shows a close-up of the remote.
- Recline Button (Up Arrow): Press and hold to recline the backrest and raise the footrest. Release to stop at the desired position.
- Upright Button (Down Arrow): Press and hold to bring the backrest to an upright position and lower the footrest. Release to stop at the desired position.
- Mode Selection (Short Press): Some models may have preset positions. A short press might cycle through these. For continuous adjustment, use the up/down arrows.
Notatka: The backrest and footrest adjust simultaneously. It is not possible to adjust only the footrest independently.
Image: Visual representation of the chair's reclining function and how to use the remote control for adjustment.
4.2 Reclining Angles
The chair offers continuous reclining adjustment from 90° (upright) to 165° (fully reclined), allowing you to find your preferred position for reading, resting, or napping.
Image: Diagrams demonstrating the range of reclining positions available with the electric mechanism.
5. Konserwacja i pielęgnacja
Proper care will extend the life and appearance of your Devoko Electric Recliner Chair.
- Czyszczenie: The PU leather upholstery is water-repellent and easy to clean. Wipe spills immediately with a soft, damp Ściereczka. Do ogólnego czyszczenia użyj łagodnego roztworu mydła i wytrzyj do sucha. Unikaj silnych środków chemicznych i ściernych środków czyszczących.
- Rama: Okresowo sprawdzaj wszystkie śruby i połączenia, aby upewnić się, że są dobrze dokręcone. W razie potrzeby dokręć.
- Elementy elektryczne: Keep the power cord and adapter dry and away from heat sources. Do not attempt to repair electrical components yourself.
- Umieszczenie: Avoid direct sunlight and excessive heat, which can cause the material to fade or crack over time.
Image: Features of the chair's PU leather material, highlighting its durability and ease of maintenance.
6. Rozwiązywanie Problemów
If you encounter issues with your Devoko Electric Recliner Chair, refer to the following common problems and solutions:
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Chair does not recline/return to upright position. |
|
|
| Nietypowy dźwięk podczas pracy. |
|
|
Jeśli wykonanie tych czynności nie rozwiąże problemu, skontaktuj się z obsługą klienta Devoko, aby uzyskać dalszą pomoc.
7. Specyfikacje produktu
- Marka: Devoko
- Model: 0815
- Kolor: Green Grey
- Tworzywo: Skóra PU
- Wymiary produktu (dł. x szer. x wys.): 55 x 55 x 103 cm (około 21.6 x 21.6 x 40.5 cala)
- Waga: 18 kg (około 39.6 funta)
- Maksymalna ładowność: 136 kg (około 300 funta)
- Kąt odchylenia: 90° to 165° (continuous adjustment)
- Cechy szczególne: Foldable (for transport/storage), Adjustable Backrest, Electric Reclining Mechanism, Side Pockets
- Silnik: High-performance brushless motor, Standby consumption <1W, Rated motor power ≤60W, Noise <55 dB

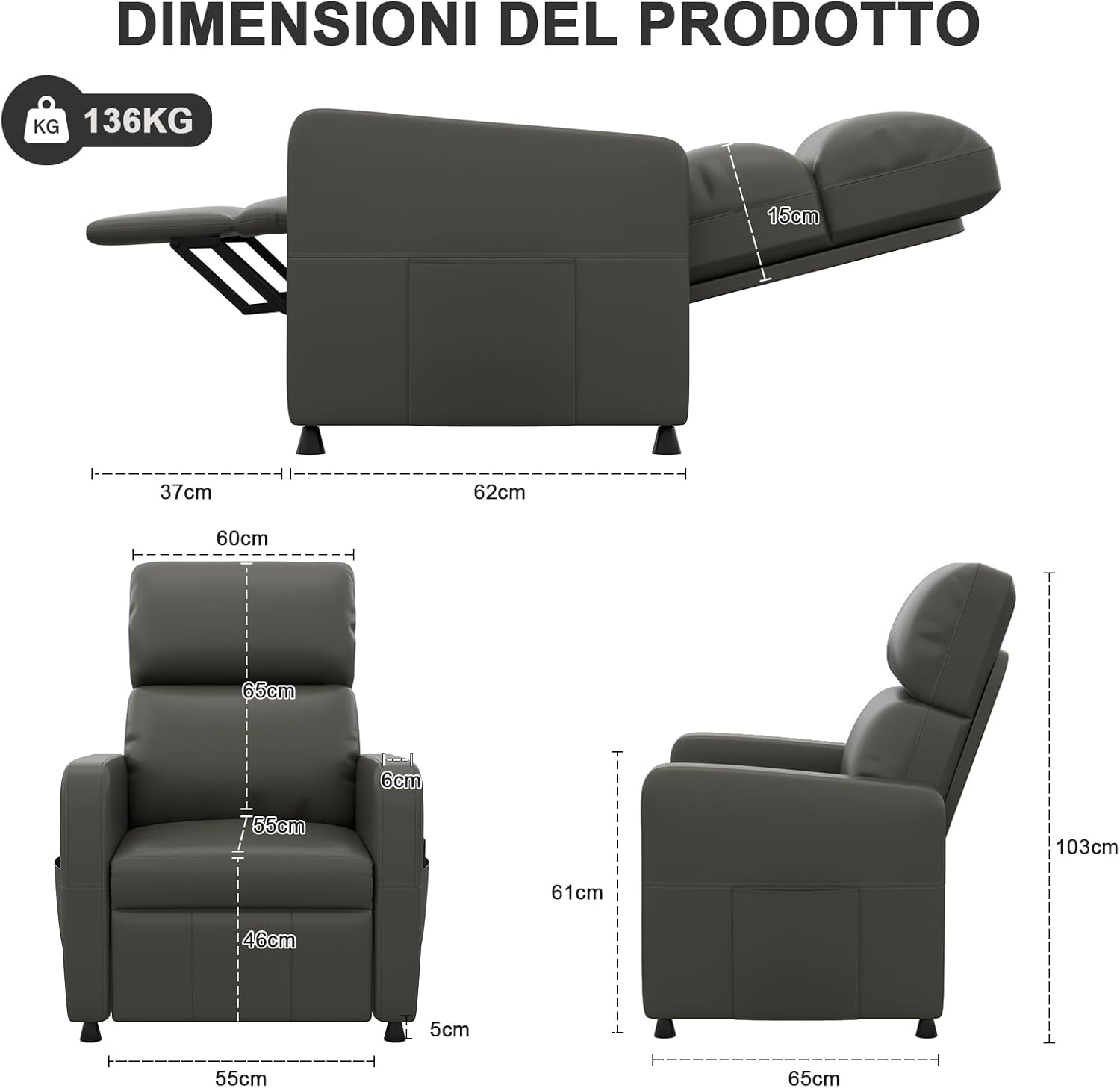

Image: Diagram showing the precise measurements of the recliner chair in various configurations.
Image: Technical details of the chair's motor, highlighting its efficiency and quiet operation.
8. Gwarancja i wsparcie
For warranty information or technical support, please refer to the documentation included with your purchase or contact Devoko customer service directly. Keep your purchase receipt as proof of purchase.
Informacje kontaktowe: Proszę odwiedzić oficjalną stronę Devoko website or refer to your purchase platform for the most up-to-date customer support contact details.
