1. Koniec produktuview
The WALI Dual Ultrawide Monitor Mount is designed to securely hold two ultrawide, heavy-duty, or curved monitors, enhancing your workspace ergonomics and freeing up desk space. This robust monitor arm supports screens from 17 to 49 inches, with a weight capacity of up to 44 lbs per arm. It features an advanced gas spring mechanism for flexible adjustments, including tilt, swivel, and rotation, allowing for various screen configurations such as vertical stacking.
Image: The WALI Dual Ultrawide Monitor Mount supporting two monitors in a stacked vertical configuration.
Image: Visual representation of the WALI Dual Ultrawide Monitor Mount supporting different monitor sizes, including 45-inch, 40-inch, and 49-inch screens in various orientations.
2. Informacje dotyczące bezpieczeństwa
Please read this entire instruction manual before installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance. Keep these instructions in a safe place for future reference.
- Do not exceed the maximum weight capacity of 44 lbs (20 kg) per arm. Serious injury or property damage may occur.
- Ensure the mounting surface (desk) can safely support the combined weight of the equipment and all attached hardware.
- Use safety gear and proper tools for installation.
- Ten produkt zawiera małe przedmioty, które w przypadku połknięcia mogą stwarzać ryzyko zadławienia. Trzymać z dala od dzieci.
- Always check that the mount is securely fastened before attaching monitors.
3. Zawartość opakowania
Sprawdź, czy w Twoim pakiecie znajdują się wszystkie wymienione poniżej elementy:
- 1 x WALI Ultrawide Monitor Arm (Dual Arms)
- Zestaw elementów montażowych (różne śruby, podkładki, dystanse)
- Instrukcja obsługi
- Required Tools (e.g., Allen wrenches)
4. Konfiguracja i instalacja
The WALI Dual Ultrawide Monitor Mount offers two installation options: C-clamp and grommet mount. Both methods are suitable for desk thicknesses between 0.47 inches and 1.77 inches.
4.1 Wybierz metodę montażu
Determine whether to use the C-clamp for desks without a pre-drilled hole or the grommet mount for desks with an existing hole.
Obraz: Szczegółowy view z C-clamp and grommet mounting options, showing compatibility with desk thicknesses from 0.47" to 1.77".
4.2 Mocowanie uchwytu do biurka
Follow the specific instructions provided in the included hardware kit for your chosen mounting method. Ensure the mount is stable and securely tightened to prevent movement.
4.3 Mocowanie monitorów do ramion
This mount is compatible with VESA patterns of 75x75mm and 100x100mm. Before mounting, ensure your monitors meet these VESA standards and do not exceed the 44 lbs weight limit per arm.
- Attach the VESA plate to the back of each monitor using the appropriate screws from the hardware kit.
- Slide the monitor with the attached VESA plate onto the arm's mounting head.
- Secure the monitor by tightening any locking screws or mechanisms on the VESA head.
Image: The WALI monitor arm securely holding two monitors, emphasizing its capacity of up to 44 lbs per arm.
5. Obsługa i regulacje
The WALI Dual Ultrawide Monitor Mount provides extensive flexibility for optimal viewkąty i ergonomiczne ustawienie.
5.1 Monitor Positioning
Each arm allows for:
- Przechylenie: +50°/-20° for reducing glare and finding the perfect vertical angle.
- Obracać: +/-90° to share your screen or adjust for different tasks.
- Obrót: 360° for switching between landscape and portrait orientations.
- Regulacja wysokości: Up to 18.9 inches of smooth vertical movement thanks to the gas spring lift.
- Rozszerzenie: Max extension of 21.7 inches from the pole.

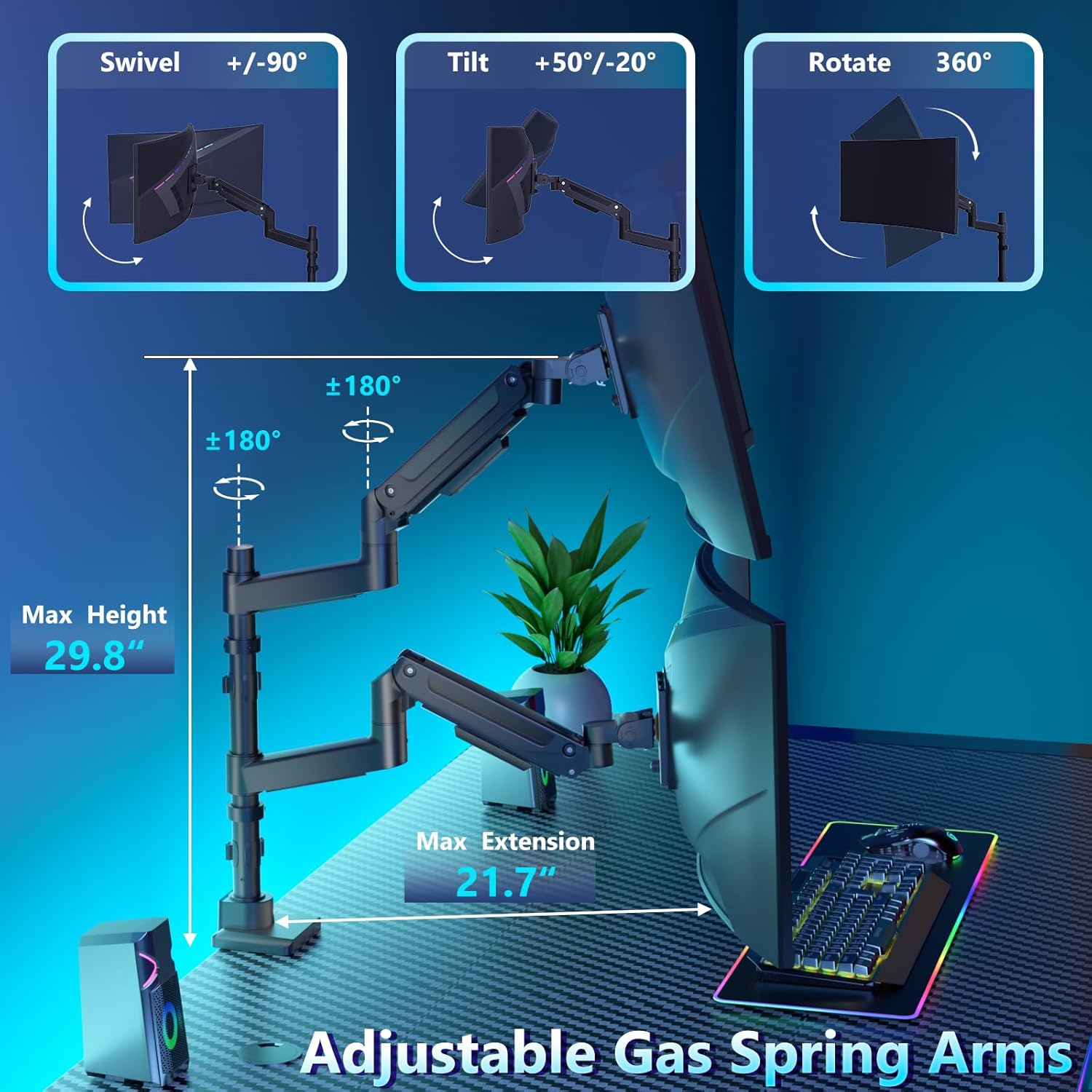

Image: Diagram illustrating the adjustable features of the WALI monitor arm, including swivel (+/-90°), tilt (+50°/-20°), 360° rotation, maximum height of 29.8", and maximum extension of 21.7".
Image: A user demonstrating an ergonomic setup with two vertically stacked monitors, showcasing the flexibility of the WALI monitor arm for different work scenarios.
5.2 Regulacja napięcia sprężyny gazowej
The gas springs allow for effortless adjustments. If an arm drops or rises unexpectedly, adjust the tension using the provided Allen key.
- Ustaw i przytrzymaj ramię poziomo.
- Locate the tension adjustment screw on the arm.
- Zakręt zgodnie ze wskazówkami zegara if the arm rises too easily or does not stay down.
- Zakręt przeciwnie do ruchu wskazówek zegara if the arm drops or is difficult to raise.
- Adjust until the arm stays in the desired position when released.
Image: Visual guide for adjusting the gas spring tension. Turn counter-clockwise if the arm drops, and clockwise if the arm rises.
5.3 Tilting Ultrawide Monitors
For ultrawide monitors, specific steps may be needed to achieve smooth tilting:
- Before mounting the monitor, adjust the gas spring tension (A & B) to the maximum.
- If the monitor does not tilt smoothly after mounting, loosen the screw as shown in the diagram until smooth tilting is achieved.
Image: Step-by-step instructions for tilting ultrawide monitors, including pre-adjustment of gas spring tension and loosening a specific screw for smooth movement.
5.4 Zarządzanie kablami
Integrated cable management clips are provided to route and conceal cables along the arms and pole, maintaining a clean and organized workspace.
6. Konserwacja
Regular maintenance ensures the longevity and optimal performance of your WALI monitor mount.
- Czyszczenie: Przetrzyj uchwyt miękką ściereczką.amp płótno. Unikaj ściernych środków czyszczących.
- Kontrola szczelności: Periodically check all screws and connections to ensure they remain tight and secure. Re-tighten as necessary.
- Kontrola sprężyny gazowej: If the arms become difficult to adjust or do not hold position, refer to the "Gas Spring Tension Adjustment" section.
Image: An illustration of the WALI monitor arm undergoing a "20000 Press Test," signifying its robust and stable construction for long-term use.
7. Rozwiązywanie Problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Monitor arm drops or does not hold position. | Napięcie sprężyny gazowej jest zbyt słabe w stosunku do wagi monitora. | Increase gas spring tension by turning the adjustment screw zgodnie ze wskazówkami zegara. Patrz rozdział 5.2. |
| Monitor arm is difficult to move or rises too quickly. | Napięcie sprężyny gazowej jest zbyt duże. | Decrease gas spring tension by turning the adjustment screw przeciwnie do ruchu wskazówek zegara. Patrz rozdział 5.2. |
| Monitor does not tilt smoothly (especially ultrawide). | Tilt mechanism is too tight. | Loosen the specific tilt adjustment screw as shown in Section 5.3. |
| Mocowanie wydaje się niestabilne i chwiejne. | Montaż clamp/grommet is not sufficiently tightened. | Ponownie dokręć C-clamp or grommet bolt to the desk. Ensure desk thickness is within limits. |
8. Specyfikacje produktu
| Funkcja | Szczegół |
|---|---|
| Numer modelu | B0FBGG2SX3 |
| Marka | WALI |
| Kompatybilność z rozmiarem ekranu | 17" - 49" (per arm) |
| Nośność | Do 20 kg (44 funta) na ramię |
| Zgodność ze standardem VESA | 75x75mm, 100x100mm |
| Grubość biurka (C-clamp/Przelotka) | 0.47" - 1.77" |
| Zakres pochylenia | +50° / -20° |
| Zakres obrotu | +/-90° |
| Obrót | 360° |
| Maksymalna regulacja wysokości | 18.9" (gas spring lift) |
| Tworzywo | Metal |
| Kolor | Czarny |
Image: Compatibility chart for the WALI monitor mount, detailing supported screen sizes (17"-49"), weight capacity (44 lbs), VESA sizes (75x75mm/100x100mm), and desktop thickness for clamp-on and grommet mounts (0.47"-1.77").
9. Gwarancja i obsługa klienta
WALI products are designed for durability and performance. For any questions, concerns, or assistance with your product, please contact WALI customer support. Our experienced and friendly US-based customer support team is available to assist you 7 days a week.
Please refer to your product packaging or the official WALI webna tej stronie znajdziesz najnowsze informacje dotyczące gwarancji i dane kontaktowe.
