Lumos Nyxel Smart Bike Helmet Instruction Manual

1. Wprowadzenie

Welcome to the Lumos Nyxel Smart Bike Helmet instruction manual. This document provides essential information for the safe and effective use of your new smart helmet. The Lumos Nyxel is designed to enhance cyclist visibility and safety through integrated lighting, smart features, and robust head protection.

2. Główne cechy

• 360° Visibility: Integrated front and back LED lights ensure cyclists are visible from all angles, maximizing safety in various environments.
• Kierunkowskazy: Control lights with a remote to indicate turns, enhancing safety on city streets.
• Sterowanie typu „wszystko w jednym”: Synchronize your helmet and bike lights for seamless performance, 360° visibility, and a personalized riding experience.
• Team Sync: Connect your Lumos helmet with other Lumos helmets in your riding group for coordinated lighting.
• Mips Safety System: Features an innovative low-friction liner that allows for small movements within the shell, absorbing extra energy during rotational impacts for enhanced head protection.

3. Konfiguracja

3.1 Rozpakowanie i wstępna inspekcja

Upon receiving your Lumos Nyxel helmet, carefully open the packaging and inspect all components. The box should contain:

• Lumos Nyxel Smart Bike Helmet
• Kabel ładujący USB-C
• Lumos Remote (for turn signals)
• Silicone Bands (for remote attachment)
• Getting Started Cards / User Guide

3.2 Ładowanie kasku

Before first use, fully charge your helmet. Connect the provided USB-C cable to the charging port located on the helmet and plug the other end into a compatible USB power source. The helmet's lights will indicate charging status.

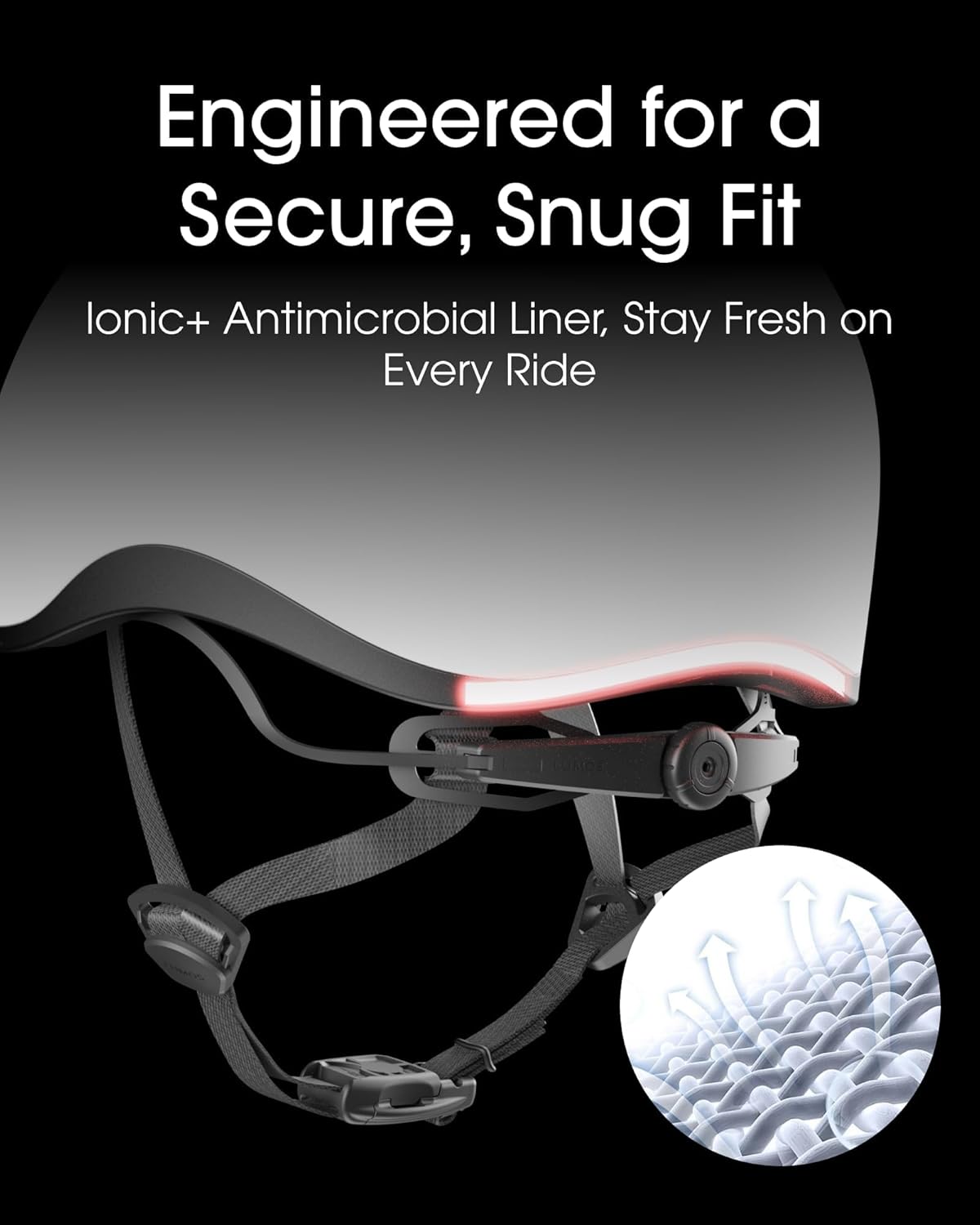

3.3 Dopasowanie kasku

Ensure a secure and comfortable fit for optimal safety. Adjust the straps and the rear retention system until the helmet sits snugly on your head without obstructing your vision. The Ionic+ Antimicrobial Liner helps maintain freshness.

3.4 Pairing with the Lumos App

Download the Lumos App from your smartphone's app store. Follow the in-app instructions to pair your helmet via Bluetooth. This enables customization of light patterns, battery monitoring, and access to smart features like crash detection.

3.5 Attaching the Lumos Remote

Use the provided silicone bands to securely attach the Lumos Remote to your bike's handlebar. Ensure it is within easy reach for activating turn signals during your ride.

4. Instrukcja obsługi

4.1 Włączanie/wyłączanie i zmiana trybów oświetlenia

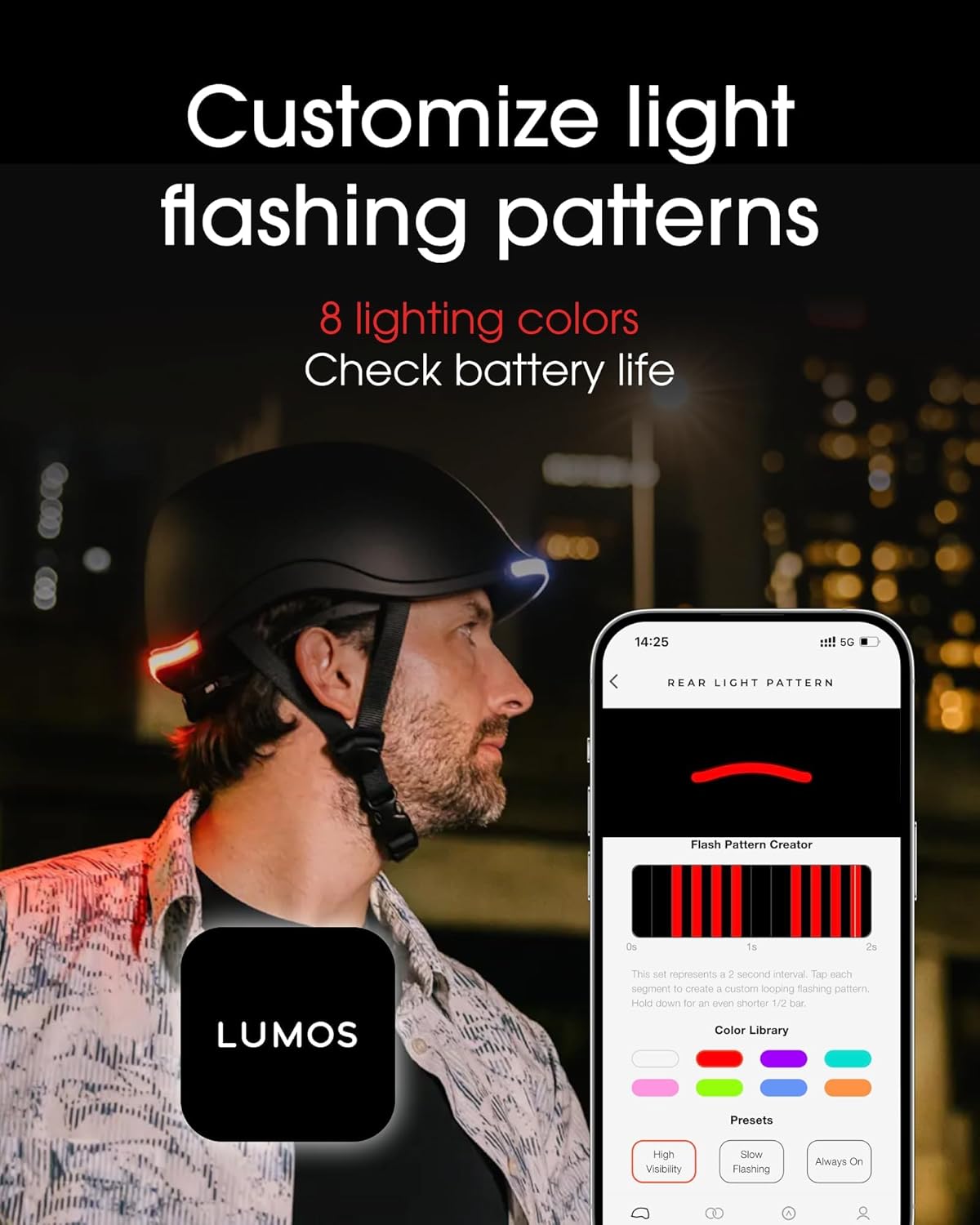

Press the power button on your helmet to turn it on or off. Short presses will cycle through different pre-set light modes. Further customization of light patterns, colors, and brightness is available via the Lumos App.

4.2 Using Turn Signals

Press the left or right button on your Lumos Remote to activate the corresponding turn signal on your helmet. The signal will flash for a set duration or until manually deactivated, clearly indicating your intentions to other road users.

4.3 Automatic Brake Lights

When paired with the Lumos Remote, the helmet can detect sudden deceleration and automatically activate its rear lights as brake lights, warning traffic behind you. This feature significantly enhances safety during stops or sudden speed changes.

4.4 Team Sync Functionality

Through the Lumos App, you can enable Team Sync to coordinate your helmet's lights with other Lumos helmets in your group. This creates a unified and highly visible presence on the road.

5. Konserwacja

5.1 Cleaning Your Helmet

Wyczyść skorupę kasku miękką,amp cloth and mild soap. Avoid harsh chemicals or abrasive materials that could damage the finish or electronic components. The internal padding can be removed and hand-washed with mild detergent, then air-dried.

5.2 Pielęgnacja baterii

Regularly charge your helmet to maintain optimal battery life. Avoid fully discharging the battery for extended periods. Store the helmet in a cool, dry place when not in use. The Nyxel features a replaceable battery module, contributing to a longer product lifespan and reduced waste.

5.3 aktualizacji oprogramowania sprzętowego

Periodically check the Lumos App for available firmware updates. Keeping your helmet's firmware up-to-date ensures you have the latest features, performance enhancements, and bug fixes.

6. Rozwiązywanie Problemów

• Helmet not turning on: Ensure the battery is charged. Connect to the USB-C charger and check for charging indicators.
• Światła nie działają: Check battery level. Verify light mode settings via the helmet button or Lumos App.
• Problemy z łącznością aplikacji: Ensure Bluetooth is enabled on your smartphone and the helmet is in pairing mode. Try restarting both the helmet and the app. Ensure the helmet's firmware is updated.
• Turn signals not responding: Check if the Lumos Remote is paired correctly with the helmet. Ensure the remote's battery is functional.
• Automatic brake lights not activating: This feature requires the Lumos Remote to be paired and functioning. Ensure the helmet is worn correctly for accurate motion detection.

7. Specyfikacje

8. Gwarancja i wsparcie

8.1 Informacje o gwarancji

For detailed warranty information, please refer to the warranty card included in your product packaging or visit the official Lumos webZachowaj dowód zakupu na wypadek roszczeń gwarancyjnych.

8.2 Skontaktuj się z pomocą techniczną

If you encounter any issues or have questions not covered in this manual, please contact Lumos customer support:

• E-mail: wsparcie@lumoshelmet.co

8.3 Lumos App Download

Download the Lumos App for full functionality and customization:

• Sklep Google Play (Android)
• Sklep z aplikacjami Apple (iOS)
