Instrukcja obsługi bezprzewodowej klawiatury do gier FREEWOLF M96

Produkt ponadview

The FREEWOLF M96 is a compact 94-key ANSI layout wireless gaming keyboard designed for productivity and a tactile typing experience. It features a creamy membrane switch, rainbow LED backlight, a functional LCD smart screen, and a media knob. The keyboard supports dual connection modes (2.4Ghz wireless and Bluetooth) and is compatible with various operating systems.

Image: FREEWOLF M96 Wireless Gaming Keyboard. This image displays the full keyboard with its purple keycaps, the integrated LCD screen, and the volume knob. A small USB receiver is shown separately at the top left.

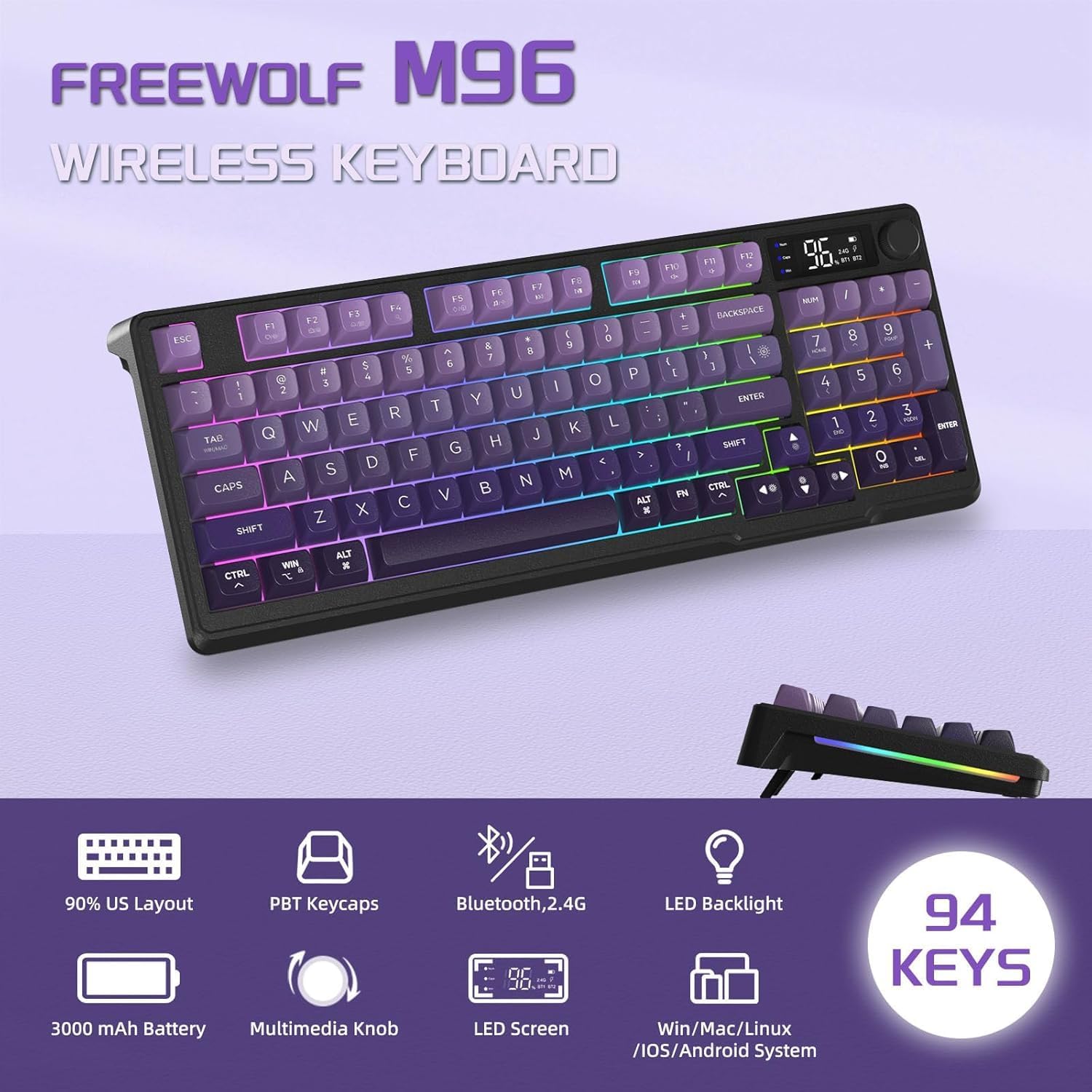

Obraz: Ponadview of FREEWOLF M96 Wireless Keyboard features. This graphic highlights key features such as 90% US Layout, PBT Keycaps, Bluetooth/2.4G connectivity, LED Backlight, 3000mAh Battery, Multimedia Knob, LED Screen, and compatibility with Win/Mac/Linux/iOS/Android systems, along with a "94 KEYS" badge.

Zawartość opakowania

Po otwarciu opakowania należy sprawdzić, czy znajdują się w nim wszystkie poniższe elementy:

• FREEWOLF M96 Wireless Gaming Keyboard
• USB 2.4Ghz Receiver (stored in the left foot stand of the keyboard)
• Kabel ładujący USB-C
• Instrukcja obsługi (ten dokument)

Organizować coś

1. Ładowanie początkowe

Before first use, it is recommended to fully charge the keyboard. Connect the provided USB-C charging cable to the keyboard's Type-C charging port and the other end to a USB power source (e.g., computer USB port, wall adapter). The LCD screen will indicate charging status.

Note: The USB-C port is for charging only; the keyboard cannot be used via wired connection.

Image: Dual Mode Wireless Keyboard. This image illustrates the two connection modes: Bluetooth (BT1, BT2) and 2.4GHz Wireless via a USB receiver. It also shows the location of the Type-C charging port, power switch, and 2.4G/BT1/BT2 switch on the keyboard.

2. Podłączanie klawiatury

The M96 keyboard supports two wireless connection modes: 2.4Ghz and Bluetooth.

2.1. Połączenie bezprzewodowe 2.4 GHz

1. Locate the USB 2.4Ghz receiver, which is stored in the left foot stand of the keyboard.
2. Podłącz odbiornik USB do wolnego portu USB w komputerze lub urządzeniu.
3. On the keyboard, slide the connection switch (located on the side) to the "2.4G" position.
4. The keyboard should automatically connect to your device. The LCD screen will indicate the 2.4G connection status.

2.2. Połączenie Bluetooth

Klawiatura może połączyć się z maksymalnie trzema urządzeniami Bluetooth (BT1, BT2, BT3).

1. On the keyboard, slide the connection switch to either "BT1", "BT2", or "BT3" position.
2. The corresponding Bluetooth indicator on the LCD screen will blink, indicating it's in pairing mode.
3. Na swoim urządzeniu (komputerze, laptopie, tablecie, smartfonie) włącz Bluetooth i wyszukaj nowe urządzenia.
4. Select "FREEWOLF M96" (or similar name) from the list of available devices to pair.
5. Once paired, the Bluetooth indicator on the LCD screen will become solid.
6. To switch between paired Bluetooth devices, simply slide the connection switch to the desired BT channel.

3. Adjustable Foot Stand

The keyboard features adjustable foot stands on the underside, allowing you to set an ergonomic typing angle that suits your preference. Simply flip out the stands to raise the keyboard's rear.

Instrukcja obsługi

1. LCD Smart Screen

The integrated LCD screen provides real-time information about the keyboard's status:

• Wyświetlacz mocy: Pokazuje aktualny poziom naładowania baterii w procentachtage.
• Status połączenia: Indicates whether the keyboard is connected via 2.4Ghz, BT1, BT2, or BT3.
• Wskaźnik ładowania: Displays when the keyboard is charging.
• Wskaźnik niskiego poziomu baterii: Alerts when the battery level is low.
• Caps Lock/Num Lock/Win Lock: Indicators for these key states.

Image: Digital Display Screen. This image details the information displayed on the keyboard's LCD screen, including power display (battery percentage), connection status (2.4G, BT1, BT2), charging indicator, and low battery indicator. It also shows indicators for Num Lock, Caps Lock, and Win Lock.

2. Media Knob Functionality

The multi-functional knob allows for quick adjustments:

• Default Function (Short Press/Rotate):
  • Obróć w prawo: zwiększanie głośności
  • Rotate counter-clockwise: Volume Down
  • Short press: Mute/Unmute
• Light Control Function (Press and Hold for 5 Seconds):

  Press and hold the knob for approximately 5 seconds to switch its function to backlight control. The LCD screen may indicate the change.

  • Rotate clockwise: Backlight Brightness Increase
  • Rotate counter-clockwise: Backlight Brightness Decrease
  • Short press: Cycle through Light Effects (if applicable, though backlight color is fixed)

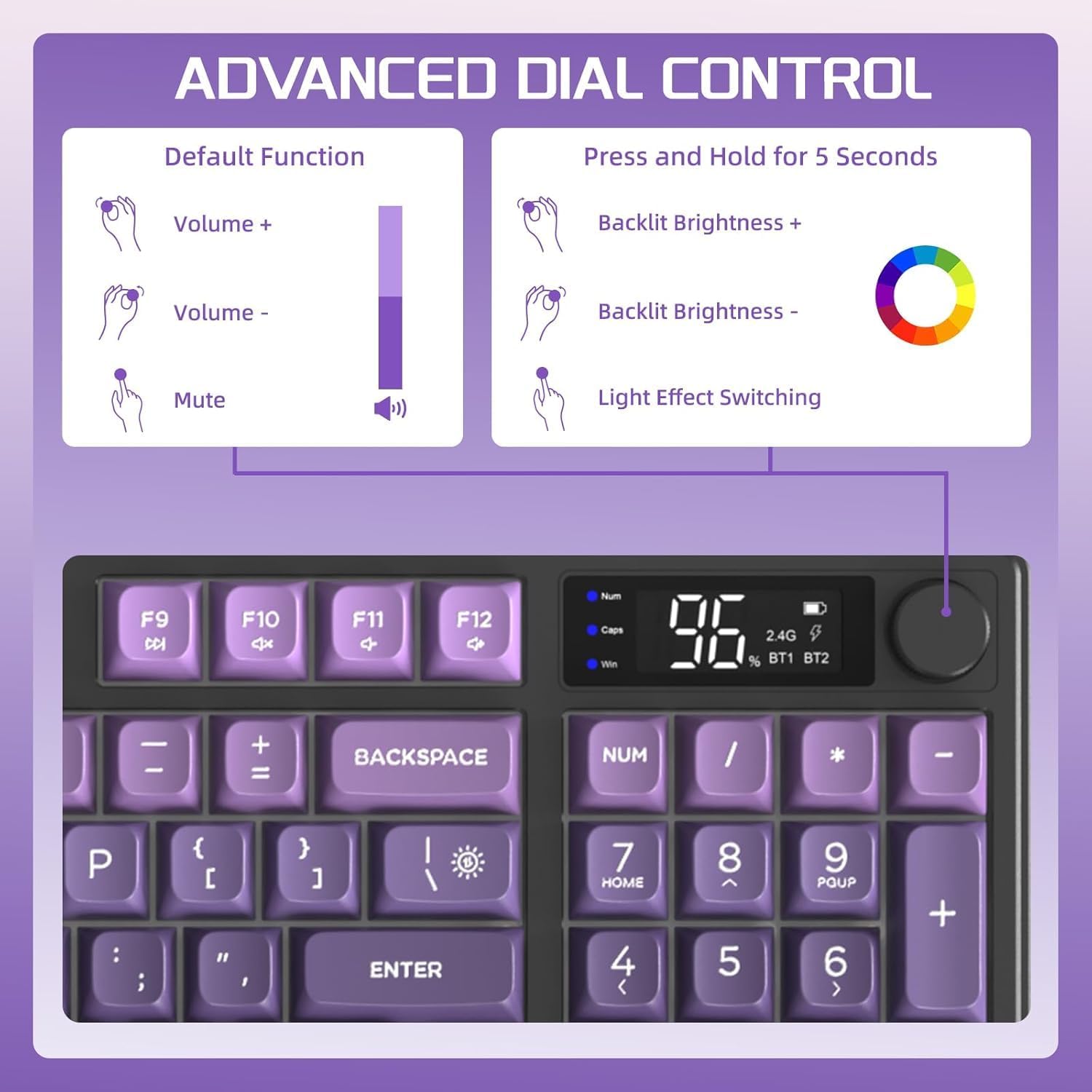

Image: Advanced Dial Control. This graphic explains the dual functionality of the media knob. Its default function is volume control (volume up, volume down, mute). Pressing and holding the knob for 5 seconds switches it to backlight control (backlit brightness increase, decrease, and light effect switching).

3. Kontrola podświetlenia

The keyboard features a rainbow LED backlight. While the color is fixed, you can adjust its brightness and mode using FN key combinations:

• FN + N: Cycle through Backlight Modes (if multiple modes are available beyond fixed rainbow).
• FN + ↑ (Strzałka w górę): Increase Backlight Brightness.
• FN + ↓ (Strzałka w dół): Decrease Backlight Brightness.
• FN + ← (Strzałka w lewo): Decrease Backlight Speed (for dynamic modes).
• FN + → (Strzałka w prawo): Increase Backlight Speed (for dynamic modes).

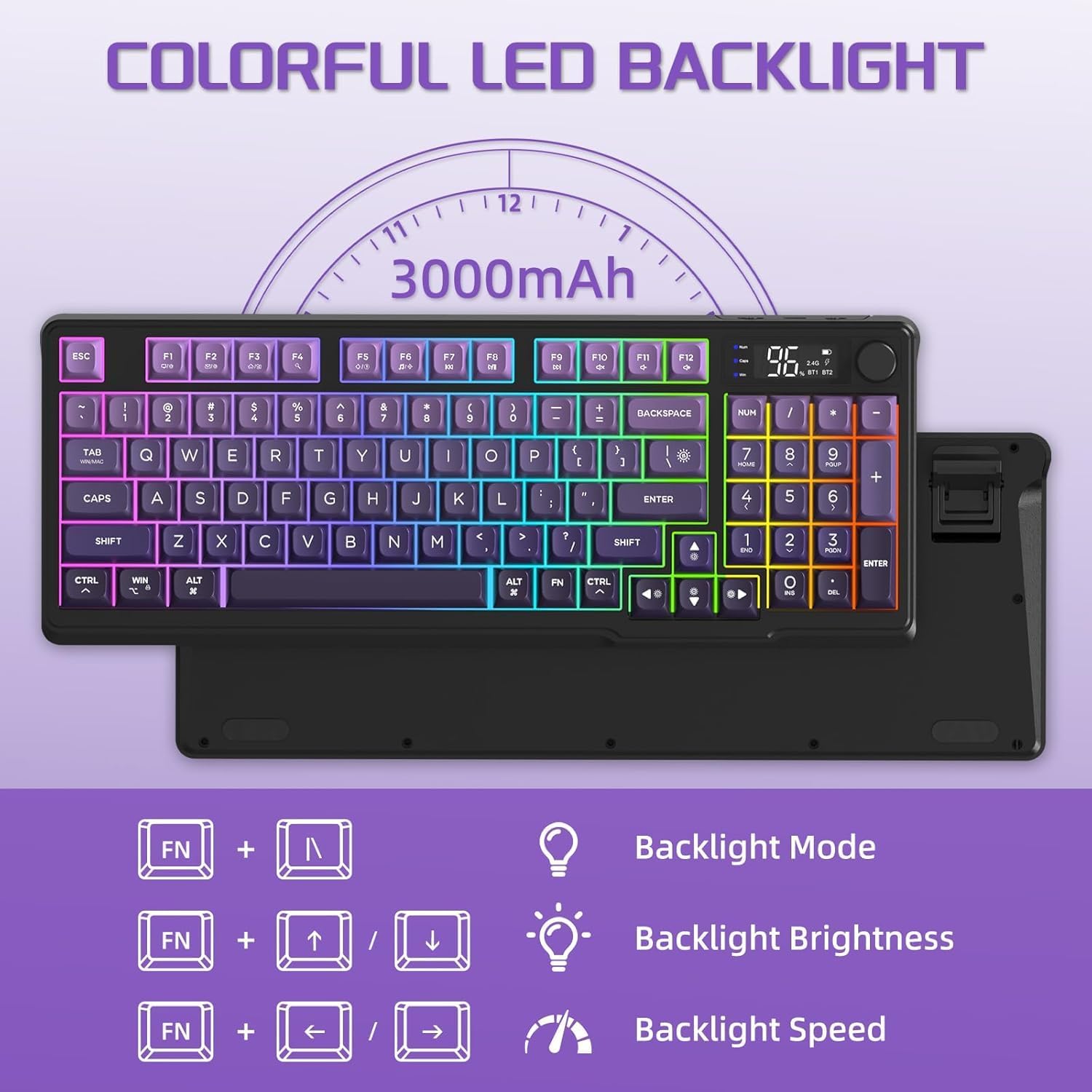

Image: Colorful LED Backlight. This image shows the keyboard with its rainbow backlight illuminated and illustrates the FN key combinations for controlling backlight mode, brightness, and speed.

4. Power Saving Features

To conserve battery life, the keyboard will automatically enter sleep mode if no activity is detected for 3 minutes. Press any key to wake it up.

5. Zgodność

The FREEWOLF M96 keyboard is broadly compatible with the following operating systems and devices:

• Windows (PC, Laptop)
• Mac OS (Mac, Laptop)
• iOS (iPad, iPhone)
• Android (Tablets, Smartphones)
• Linux

For use with game consoles like PS4/PS5/Switch/Xbox, a corresponding adapter may be required (not included).

Konserwacja

1. Czyszczenie klawiatury

• Always power off the keyboard before cleaning.
• Użyj miękkiej, niestrzępiącej się ściereczki, lekko wyczyśćampened with water or a mild, non-abrasive cleaning solution to wipe the surface of the keyboard and keycaps.
• Do usuwania kurzu i zanieczyszczeń spomiędzy klawiszy należy użyć sprężonego powietrza lub małej szczoteczki.
• Unikaj rozpylania płynów bezpośrednio na klawiaturę.
• Ensure the keyboard is completely dry before powering it on again.

2. Pielęgnacja baterii

• Aby zachować żywotność baterii, ładuj klawiaturę regularnie.
• Unikaj częstego całkowitego rozładowywania baterii.
• If storing the keyboard for an extended period, charge it to about 50% to prevent battery degradation.
• Do ładowania należy używać wyłącznie dołączonego lub certyfikowanego kabla USB-C.

Rozwiązywanie problemów

Specyfikacje

Image: Product Size. This image provides the dimensions of the FREEWOLF M96 keyboard: 385mm/15.16 inches in length, 145mm/5.71 inches in width, and 40mm/1.57 inches in height.

Gwarancja i wsparcie

For warranty information, please refer to the documentation included with your purchase or visit the official FREEWOLF website. If you encounter any issues not covered in this manual or require further assistance, please contact FREEWOLF customer support or your retailer.

Zachowaj paragon zakupu i opakowanie produktu na wypadek reklamacji.
