KINESIS mWave Ergonomic Keyboard for Mac (White)

Wstęp

This manual provides detailed instructions for the setup, operation, and maintenance of your KINESIS mWave Ergonomic Keyboard for Mac (White). This keyboard features a unique wave layout, low-profile mechanical switches, and versatile connectivity options including Bluetooth and USB. It is designed to enhance comfort and productivity for macOS users.

Figure 1: KINESIS mWave Ergonomic Keyboard for Mac (White)

Co jest w pudełku

Sprawdź, czy w przesyłce znajdują się wszystkie elementy:

• KINESIS mWave for Mac Keyboard (KB150M-TAC)
• USB-C to USB-A Cable (6 ft)
• 3 magnetyczne nóżki do ujemnego pochylenia
• 2 AA Batteries (pre-installed or separate)
• Szybki przewodnik

Figure 2: Battery Compartment with AA Batteries

Konfiguracja i łączność

1. Instalacja baterii

The keyboard requires two AA batteries for wireless operation. These are typically included. If not already installed, open the battery compartment on the underside of the keyboard and insert the batteries, ensuring correct polarity.

2 Połączenie przewodowe (USB)

For a direct and reliable connection, use the provided USB-C to USB-A cable. Connect the USB-C end to the port on the front of the keyboard and the USB-A end to an available USB port on your Mac computer.

Figure 3: USB-C Port Location

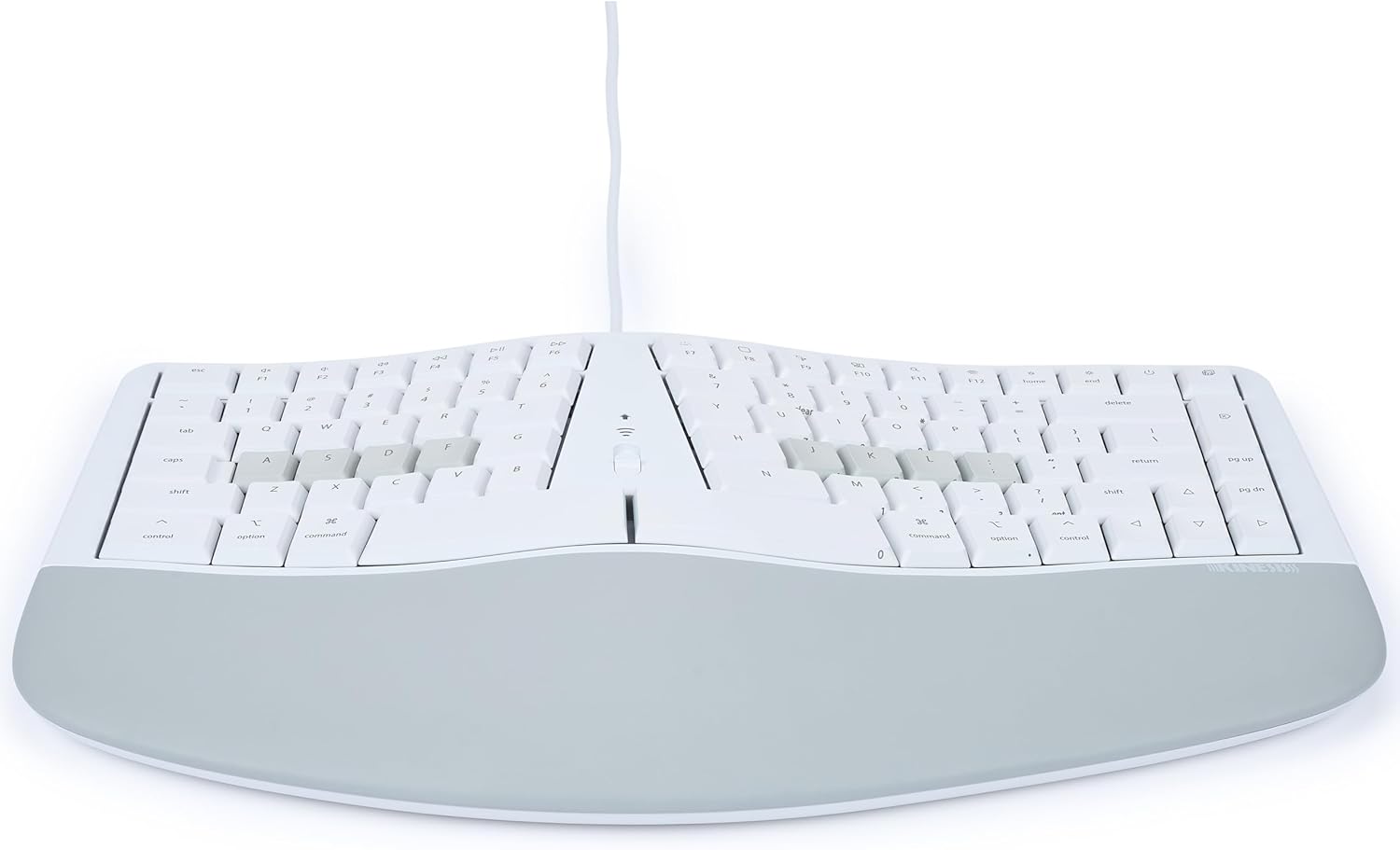

Figure 4: Keyboard Connected via USB Cable

3. Połączenie bezprzewodowe (Bluetooth)

The mWave keyboard can pair with up to two different Bluetooth devices. To connect:

1. Sprawdź, czy klawiatura jest włączona.
2. Press and hold the Bluetooth pairing key (usually indicated by a Bluetooth icon) for a few seconds until the indicator light flashes, signifying pairing mode.
3. On your Mac, navigate to System Settings > Bluetooth.
4. Select the KINESIS mWave keyboard from the list of available devices and follow any on-screen prompts to complete pairing.
5. To switch between paired devices, briefly press the corresponding Bluetooth channel key.

Działanie

Ergonomic Design and Posture

The mWave keyboard features a popular "wave" layout and a thick padded palm support. This design helps position your hands and arms in a neutral posture, reducing strain during extended use. The keyboard also includes three magnetic feet that can be attached to the underside to achieve a negative tilt, further optimizing wrist alignment.

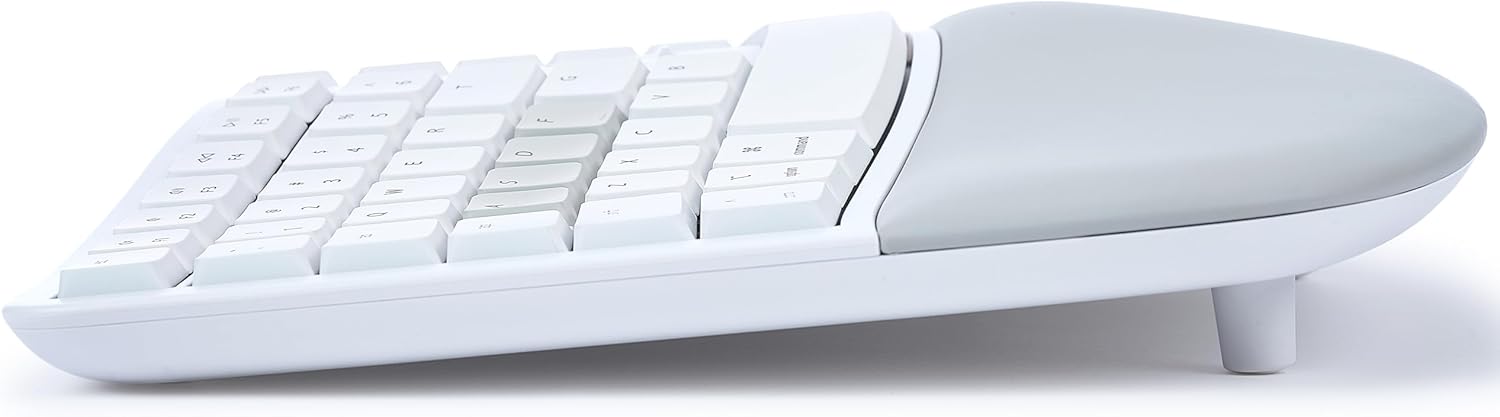

Figure 5: Keyboard with Magnetic Feet for Negative Tilt

Programmability with Kinesis Clique

The keyboard offers powerful programmability. You can re-program any key using the Kinesis Clique software, accessible via a Chrome or Edge browser. This allows for over 350 USB actions, mouse clicks, basic macros, tap-and-hold functions, and up to 8 layers of customization.

Figure 6: Kinesis Clique Software Interface

Podświetlenie

When connected via USB, the keyboard's backlighting illuminates the upper key legends. This feature helps reduce eye strain in low-light environments. Adjust backlighting intensity using the dedicated function keys.

Zintegrowana klawiatura

The keyboard includes an integrated numeric keypad. Tap the Fn key to access standard numeric keypad actions without needing to move your hands from the home row.

Konserwacja

To ensure the longevity and optimal performance of your KINESIS mWave keyboard, follow these maintenance guidelines:

• Czyszczenie: Użyj miękkiej, niestrzępiącej się ściereczki, lekko wyczyśćampened with water or a mild cleaning solution to wipe down the keycaps and palm rest. Avoid harsh chemicals or abrasive materials.
• Usuwanie kurzu: Usuń kurz i zanieczyszczenia spomiędzy klawiszy za pomocą sprężonego powietrza.
• Składowanie: Jeśli klawiatura nie będzie używana przez dłuższy czas, należy ją przechowywać w czystym i suchym miejscu, chroniąc przed ekstremalnymi temperaturami.
• Wymiana baterii: Replace AA batteries when the low battery indicator appears or when wireless connectivity becomes unreliable.

Rozwiązywanie problemów

If you encounter issues with your KINESIS mWave keyboard, refer to the following common solutions:

• Klawiatura nie odpowiada:
  • wired: Ensure the USB cable is securely connected to both the keyboard and your computer. Try a different USB port or cable.
  • Bezprzewodowy: Check if the keyboard is powered on and batteries are charged. Re-establish the Bluetooth connection by re-pairing the device. Ensure the keyboard is within range of your computer.
• Klawisze nie rejestrują się lub są wpisywane podwójnie:
  • Wyczyść obszar wokół uszkodzonego klawisza sprężonym powietrzem, aby usunąć wszelkie zanieczyszczenia.
  • If the issue persists, a factory reset may be necessary (refer to the Quick Start Guide for specific instructions).
• Podświetlenie nie działa:
  • Ensure the keyboard is connected via USB, as backlighting is primarily supported in wired mode.
  • Check backlighting intensity settings using the function keys.
• Problemy z parowaniem Bluetooth:
  • Upewnij się, że żadne inne urządzenie Bluetooth nie powoduje zakłóceń.
  • Remove the keyboard from your computer's Bluetooth device list and attempt to pair again.

For further assistance, please visit the official Kinesis support webstrona.

Specyfikacje

Gwarancja i wsparcie

Kinesis products are designed for durability and performance. For information regarding product warranty, returns, or technical support, please refer to the Quick Start Guide included with your product or visit the official Kinesis webPlany ochrony mogą być również dostępne z rozszerzonym zakresem ochrony.

Aby uzyskać najnowsze informacje dotyczące pomocy technicznej i kontaktu, odwiedź stronę: www.kinesis.com/support
