1. Wprowadzenie
Welcome to the ANIIOKI A9 Pro Max Dual Motor Ebike user manual. This guide provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new electric bicycle. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

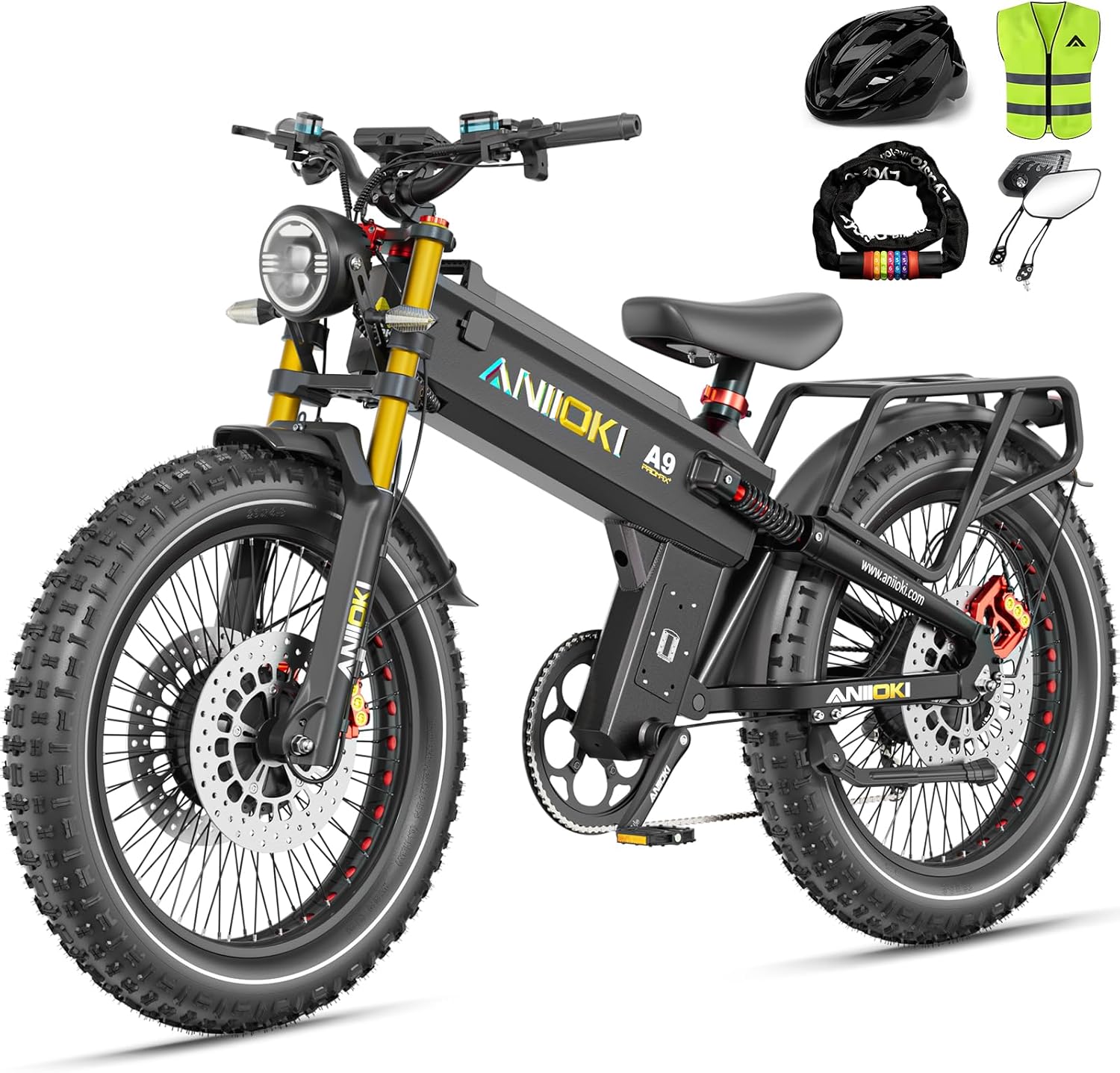

Figure 1: The ANIIOKI A9 Pro Max Dual Motor Ebike, shown with included accessories such as a helmet, reflective vest, chain lock, and mirrors.
2. Instalacja i montaż
Your ANIIOKI A9 Pro Max Ebike arrives approximately 90% assembled. Follow these steps for final assembly and initial setup:
- Rozpakowywanie: Carefully remove the ebike and all components from the packaging. Retain packaging for future transport or storage.
- Montaż kierownicy: Attach the handlebars to the stem, ensuring all bolts are securely tightened.
- Mocowanie pedału: Identify the left (L) and right (R) pedals. Thread them into the crank arms (left pedal is reverse threaded) and tighten firmly.
- Regulacja sztycy siodełka: Włóż sztycę siodełka do ramy i ustaw wygodną wysokość jazdy. Zabezpiecz dźwignią szybkozamykacza.
- Instalacja akumulatora i początkowe ładowanie:
The 60V 70Ah/80Ah high-capacity battery is designed for secure fitment. Ensure it is properly seated and locked into the frame. Before first use, fully charge the battery using the provided charger. The charging indicator will show when charging is complete.
Figure 2: Proper insertion of the 60V battery into the ebike frame.
- Pompowanie opon: Check tire pressure and inflate to the recommended PSI (typically found on the tire sidewall). The 26 * 4.8" fat tires are designed for various terrains.
- Kontrola hamulców: Verify that both front and rear brakes are functioning correctly and provide adequate stopping power.
3. Instrukcja obsługi
3.1 Włączanie i wyłączanie zasilania
To power on the ebike, press and hold the power button on the display. To power off, press and hold the same button until the display shuts down.
3.2 Dual Motor System
The A9 Pro Max features dual 2200W motors, providing a combined peak power of 5600W. This dual motor configuration offers enhanced acceleration and climbing ability. The dual 60V 35A controllers ensure smooth and efficient power delivery.
Figure 3: Visual representation of the ebike's dual motor system, highlighting the 5600W peak power.
3.3 5-Inch Multi-function Display
The ebike is equipped with a 5-inch smart multi-function display. This display provides real-time riding data and allows for various controls:
- Speed and Odometer: Displays current speed, trip distance, and total odometer.
- Poziom naładowania baterii: Pokazuje pozostały poziom naładowania baterii.
- Poziom PAS: Wskazuje aktualny poziom systemu wspomagania pedałowania.
- Muzyka Bluetooth: Connect your device for music playback.
- Nagrywanie kamerą: Built-in camera for recording your rides.
- App Control & Phone Charging: Connect to a mobile app for advanced settings and charge your phone via the display's USB port.
- Physical & Touch Buttons: Navigate menus and control functions using both physical buttons and the touch screen.
Figure 4: The 5-inch smart display, showing various functions and controls.
3.4 Braking System (CBS & Dual Front Disc Brakes)
The ANIIOKI A9 Pro Max features an advanced Combined Braking System (CBS) with dual front disc brakes and 4-piston calipers. This system provides superior stopping power and stability. Always apply both brakes smoothly and evenly for controlled deceleration.
Figure 5: Illustration of the CBS and dual front disc brake system for enhanced safety.
3.5 Układ zawieszenia
The ebike is equipped with an air suspension fork and rear shock absorbers, designed to absorb shocks and provide a smoother ride on various terrains. The suspension is adjustable for optimal comfort and performance.

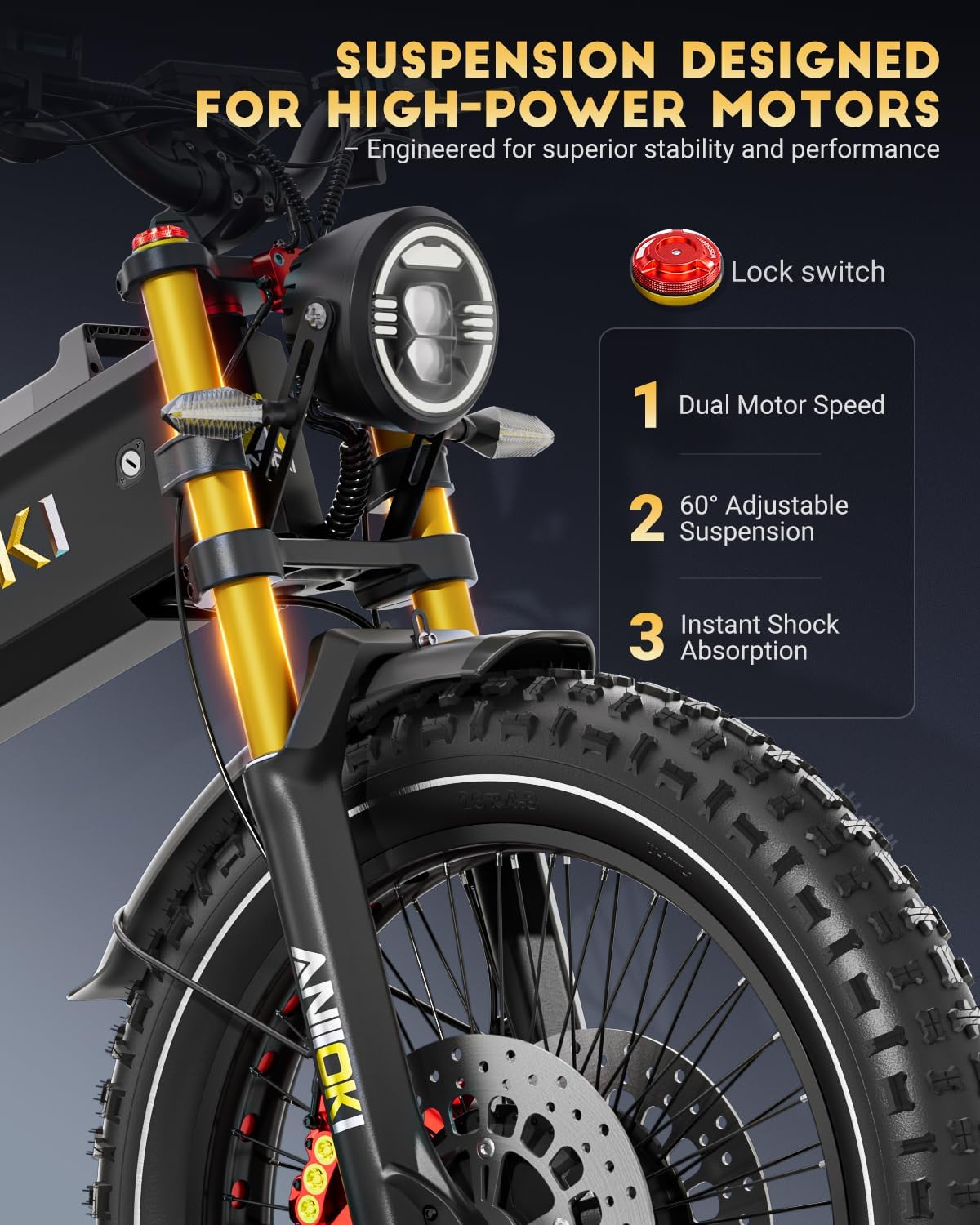

Figure 6: Detail of the front suspension, highlighting its adjustability and shock absorption capabilities.
4. Konserwacja
Regular maintenance is crucial for the longevity and safe operation of your ANIIOKI A9 Pro Max Ebike.
- Pielęgnacja baterii:
To maximize battery life, avoid fully discharging the battery. Charge it regularly, even if not in frequent use. Store the battery in a cool, dry place. The 60V 70Ah/80Ah battery is designed with 8 safety features and a 4mm thick casing for enhanced protection.
Rysunek 7: Wewnętrzne view of the high-capacity battery, emphasizing its fireproof, explosion-proof, and needle-proof features.
- Układ hamulcowy: Regularly inspect brake pads for wear and replace as needed. Ensure brake levers are responsive and hydraulic lines are free from leaks.
- Opony: Przed każdą jazdą sprawdź ciśnienie w oponach. Sprawdź opony pod kątem przecięć, dziur lub nadmiernego zużycia.
- Łańcuch i układ napędowy: Keep the chain clean and lubricated. Inspect the 7-speed gear system and 72T crankset for proper function and alignment.
- Kontrola ramy: Periodically check the aerospace-grade aluminum frame for any signs of damage or stress.
- Ogólne sprzątanie: Clean the ebike with a damp szmatką. Unikaj mycia elementów elektrycznych pod wysokim ciśnieniem.
5. Rozwiązywanie Problemów
This section addresses common issues you might encounter with your ANIIOKI A9 Pro Max Ebike.
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Rower elektryczny nie włącza się | Bateria nie jest naładowana, bateria nie jest prawidłowo włożona, problem z przyciskiem zasilania. | Charge battery, ensure battery is fully inserted and locked, try pressing power button firmly. |
| Silnik nie wspomaga | Niski poziom naładowania akumulatora, zbyt niski poziom PAS, zaciśnięte dźwignie hamulca, problem z połączeniem silnika. | Naładuj akumulator, zwiększ poziom PAS, upewnij się, że dźwignie hamulca są całkowicie zwolnione, sprawdź połączenia kabli silnika. |
| Hamulce są słabe | Zużyte klocki hamulcowe, powietrze w przewodach hydraulicznych, nieprawidłowo ustawione zaciski. | Inspect and replace brake pads, bleed hydraulic brakes (professional service recommended), adjust caliper alignment. |
| Nietypowe dźwięki z układu napędowego | Dry chain, misaligned gears, loose components. | Clean and lubricate chain, adjust derailleur (professional service recommended), check for loose bolts. |
If you encounter issues not listed here or require further assistance, please contact ANIIOKI customer support.
6. Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Typ roweru | Rower elektryczny |
| Nazwa modelu | A9 PRO MAX |
| Moc silnika | Podwójny 2200 W (5600 W szczytowy) |
| Bateria | 60V 70Ah/80Ah High-Capacity |
| Maksymalna prędkość | 45+ mil na godzinę |
| Zakres | Up to 245 Miles (depending on battery option and riding conditions) |
| Opony | Opona gruba 26" x 4.8" |
| Styl hamulca | CBS & Dual Front Disc Brakes (4-piston calipers), 300mm Hydraulic Disc Brakes |
| Typ zawieszenia | Dual (Air Suspension Fork) |
| Liczba prędkości | 7 |
| Materiał ramy | Aluminium klasy lotniczej |
| Wyświetlacz | 5-inch Multi-function Digital Display |
| Nośność | Max 400 LBS |
| Zalecany wzrost jeźdźca | 5'9" - 6'5" or 180cm - 200cm |
| Zawarte komponenty | Horn, Kickstand, Mirror, Tool Kit, Lock |
Figure 8: Detailed dimensions and specifications of the A9 Pro Max Ebike.
7. Gwarancja i wsparcie
ANIIOKI offers comprehensive support for your ebike:
- Gwarancja: A one-year warranty is provided for your ebike.
- Wsparcie techniczne: Dostępne jest dożywotnie wsparcie techniczne.
- Montaż: Ebikes are 90% assembled upon delivery for your convenience.
- Kontakt: For any issues or questions, please contact ANIIOKI customer service via email, phone, or online chat.
Rysunek 9: Koniecview of ANIIOKI's customer service and support commitments.
