1. Wprowadzenie
Thank you for choosing the VIFOCUFY 96W 48V 2A Adapter Charger. This power supply is designed to provide reliable and efficient power to compatible Saris and CycleOps smart bike trainers. This manual provides essential information for the safe and effective use of your new adapter charger, including setup, operation, maintenance, and troubleshooting.
Zawartość opakowania:
- 1 × VIFOCUFY 96W 48V 2A Adapter Charger
- Przewód zasilający (dołączony)
Image 1.1: The VIFOCUFY 96W 48V 2A Adapter Charger with its integrated power cord.
2. Informacje dotyczące bezpieczeństwa
Please read all safety instructions carefully before using the adapter charger. Failure to follow these instructions may result in electric shock, fire, or damage to the product or connected devices.
- Nie wystawiaj adaptera na działanie wody, wilgoci ani ekstremalnych temperatur.
- Nie demontuj, nie modyfikuj ani nie próbuj naprawiać adaptera.
- Ensure the adapter is connected to a properly grounded power outlet.
- Unikaj umieszczania ciężkich przedmiotów na przewodzie zasilającym.
- Unplug the adapter from the power outlet when not in use for extended periods.
- Przechowywać w miejscu niedostępnym dla dzieci.
Wbudowane zabezpieczenia:
The VIFOCUFY adapter charger is equipped with multiple safety features to protect your devices:
- Ochrona przed przegrzaniem: Prevents overheating of the adapter.
- Zabezpieczenie przed zwarciem: Zabezpieczenia przed zwarciami.
- Ponad tomtage Ochrona: Chroni przed nadmierną objętościątage wejście.
- Ochrona nadprądowa: Zapobiega uszkodzeniom spowodowanym nadmiernym poborem prądu.
- Ochrona przed przeładowaniem: Protects against power overloads.
- Ochrona przed nadmiernym ładowaniem: Ensures safe charging for compatible devices.

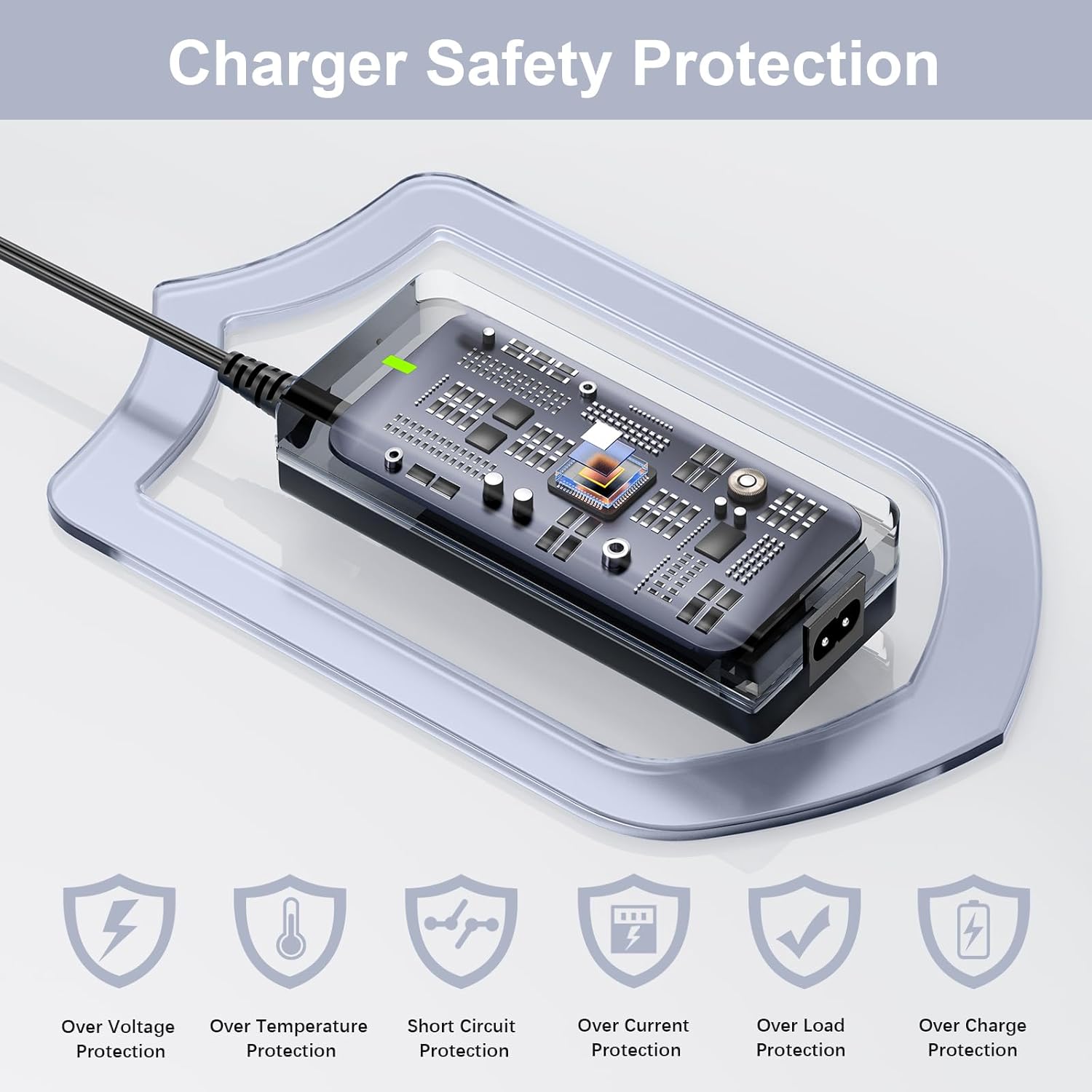

Image 2.1: Visual representation of the charger's built-in safety protection features.
3. Koniec produktuview i kompatybilność
The VIFOCUFY 96W 48V 2A Adapter Charger is a high-quality power supply designed for specific smart bike trainers. It features a robust design and a standard round barrel connector for reliable power delivery.
Główne cechy:
- Wejście: AC 100-240V, 50-60Hz
- Wyjście: 48 V prądu stałego, 2 A, 96 W
- Port ładowania: Round Jack (Barrel Connector)
- Długość kabla: Około 7.5 stóp (2.3 metry)
- Kolor: Czarny
Zgodne urządzenia:
This adapter charger is compatible with the following smart bike trainer models:
- Saris 9830T H3, 9830TH3, 9830TF, 9830TF_0, 9830TF0, 9830TZ, M2, 9930T, 9930TF_0, 9930TF0 Direct Drive Smart Bicycle Cycle Indoor Bike Trainer
- CycleOps H2, M2, 9930T, 9820, 9820Z Direct Drive Smart Bike Trainer
- CycleOps Hammer 9810 H1 Smart Bike Trainer
- CycleOps Magnus 9920, 25420, 25420_0 Bicycle Smart Trainer
- Saris Direct Drive Smart Bike Trainer Model SDI65-48-UD, SD165-48-UD, SD16-48-UD, SDI65-48UD, SD165-48UD, SD16-48UD P/N: SDI65-48-UDC-P6-C2, SD165-48-UDC-P6-C2
Image 3.1: The charger connected to a Saris bike trainer, illustrating its primary use.
Image 3.2: The charger's compatibility with CycleOps H2 Smart Bike Trainer, showing the barrel connector detail.
4. Konfiguracja
Follow these steps to set up your VIFOCUFY adapter charger:
- Sprawdź ładowarkę: Before connecting, visually inspect the adapter and its cables for any signs of damage. Do not use if any damage is observed.
- Połącz z urządzeniem: Locate the power input port on your compatible Saris or CycleOps smart bike trainer. Insert the round barrel connector of the VIFOCUFY adapter firmly into the device's power input port.
- Podłącz do gniazdka elektrycznego: Plug the AC power cord of the adapter into a standard AC 100-240V wall outlet. Ensure the outlet is easily accessible.
- Sprawdź połączenie: Once connected, the indicator light on the adapter should illuminate, typically green, indicating that power is being supplied.
Image 4.1: Proper connection of the charger to a smart bike trainer and a wall outlet.
5. Instrukcja obsługi
The VIFOCUFY adapter charger operates automatically once connected to a power source and a compatible device. It provides a stable 48V DC output to power your smart bike trainer.
Kontrolka:
- A zielony indicator light signifies that the adapter is receiving power and is ready to supply power to the connected device.
- Jeśli jest światło wyłączony, check the power connections to both the wall outlet and the device.
The adapter is designed for continuous operation within its specified limits. Always ensure that the power requirements of your device do not exceed the adapter's 96W (48V 2A) output capacity.
Image 5.1: Operational details of the charger, including input, output, and charging port type.
6. Konserwacja i pielęgnacja
Proper maintenance ensures the longevity and safe operation of your adapter charger.
- Czyszczenie: Disconnect the adapter from all power sources and devices before cleaning. Use a soft, dry cloth to wipe the surface. Do not use liquid cleaners or abrasive materials.
- Składowanie: When not in use, store the adapter in a cool, dry place away from direct sunlight and extreme temperatures. Avoid tightly coiling the cables to prevent damage.
- Zarządzanie kablami: Regularly check the power cord and connector for any signs of fraying, cuts, or bends. Replace the adapter if any damage is found.
7. Rozwiązywanie Problemów
If you encounter issues with your VIFOCUFY adapter charger, refer to the following common problems and solutions:
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Adapter indicator light is off. | Brak zasilania z gniazdka, luźne połączenie lub uszkodzony adapter. |
|
| Device is not powering on/charging. | Incorrect adapter, device issue, or insufficient power. |
|
| Adapter feels excessively hot. | Overload, poor ventilation, or internal fault. |
|
Image 7.1: Visual comparison highlighting the reliability of VIFOCUFY chargers.
8. Specyfikacje
Detailed technical specifications for the VIFOCUFY 96W 48V 2A Adapter Charger:
- Wymiary produktu: 5.3 x 2.4 x 1.3 cala (13.46 x 6.1 x 3.3 cm)
- Waga przedmiotu: 12.6 uncji (357.2 grama)
- Wejście Voltage: AC 100-240V, 50-60Hz
- Objętość wyjściatage: Prąd stały 48 V
- Wyjście Ampwymazać: 2 Amps
- Moc wyjściowatage: 96 watów
- Typ złącza: Barrel Connector (Round Jack)
- Kolor: Czarny
- Cechy szczególne: Over Load Protection, Over Temperature Protection, Short Circuit Protection, Over Voltage Protection, Over Current Protection, Over Charge Protection
Image 8.1: Close-up details of the charger's components and features.

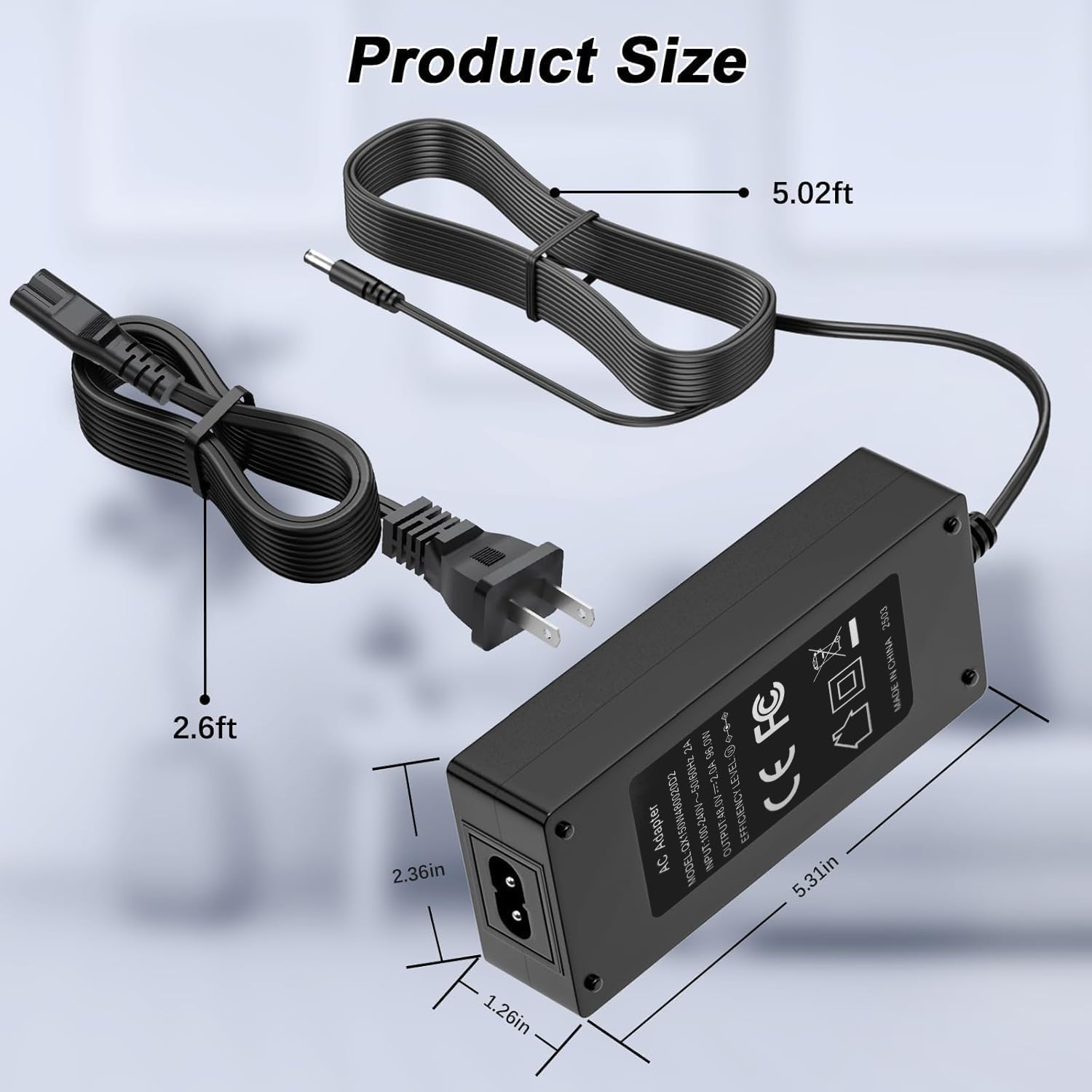

Image 8.2: Dimensions of the adapter and cable lengths.
9. Gwarancja i wsparcie
VIFOCUFY stands behind the quality of its products.
Zapewnienie jakości:
This VIFOCUFY 96W 48V 2A Adapter Charger comes with a 12-miesięczna gwarancja jakości. This warranty covers manufacturing defects and ensures the product performs as described under normal use.
Obsługa klienta:
If you have any questions, concerns, or require assistance with your product, please contact VIFOCUFY customer support. We are committed to providing prompt support and solutions.
For support, please refer to the contact information provided with your purchase or visit the official VIFOCUFY store page on Amazon: VIFOCUFY Amazon Store.
