1. Wprowadzenie i koniecview
This manual provides essential information for the proper installation, operation, and maintenance of your DD Audio VO-MN310-S4 10-inch Pro Audio Neo Midrange Speaker. The VO-MN310-S4 is engineered for high efficiency and broad bandwidth, featuring a supercharged Neodymium ring magnet and an ultralight long fiber pulp cone. It is designed to deliver precise audio reproduction, particularly in vocal and tweeter frequency ranges, and is suitable for challenging environments such as motorcycles, boats, and UTVs.
Rycina 1: Przód view of the DD Audio VO-MN310-S4 Midrange Speaker.
2. Funkcje produktu
- Materiał stożka: Treated Long Fiber Paper Cone with Cloth Surround for durability and sound quality.
- Pasmo przenoszenia: Wide bandwidth from 70Hz to 14KHz for detailed audio reproduction.
- Cewka głosowa: 38mm (1.5-inch) Vented Kapton Former with Copper Clad Aluminum (CCA) wire.
- Magnet System: Main Neodymium Ring Magnet with a Supercharged Neo Ring for high efficiency.
- Konstrukcja silnika: Low Inductance/Distortion Faraday Shorting Ring Motor for improved sound clarity.
- Former Cap: Ultralight design extends upper frequency response.
3. Specyfikacje techniczne

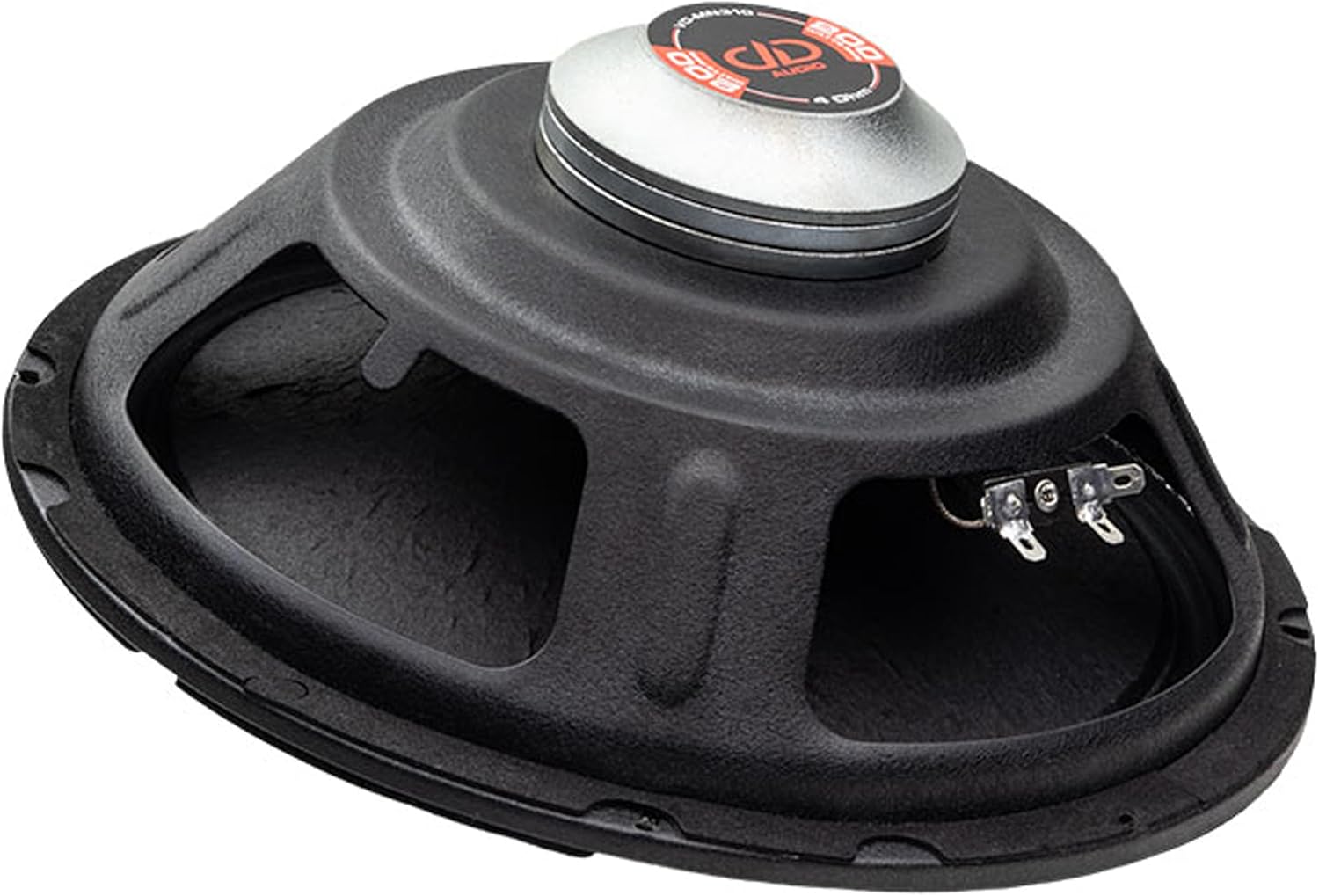

Rysunek 2: Tył view of the DD Audio VO-MN310-S4 Midrange Speaker, highlighting the magnet and terminals.
| Parametr | Wartość |
|---|---|
| Rozmiar głośnika | 10 cali |
| Obsługa mocy RMS | 200 watów |
| Impedancja | 4 Ohm (S4) |
| Średnica cewki drgającej (VCD) | 1.5 cala (38 mm) |
| Odpowiedź częstotliwościowa | 70 Hz - 14 kHz |
| Częstotliwość rezonansowa (Fs) | 63 Hz |
| Mechaniczne Q (Qms) | 5.48 |
| Elektryczne Q (Qes) | 0.5 |
| Razem Q (il.) | 0.45 |
| Równoważna objętość (Vas) | 48.48 litrów |
| Czułość (dBSPL) | 100dB |
| Produkt BL (BL) | 8.8 TM |
| Wycieczka liniowa (Xmax) | 5 mm |
| Zawieszenie podróży | 15 mm |
| Średnica montażowa | 9.25 cala (233 mm) |
| Głębokość montażu | 3.75 cala (95 mm) |
| Tworzywo | Aluminium (rama) |
| Waga przedmiotu | 4 funta |
| Poziom wodoodporności | Wodoodporny |

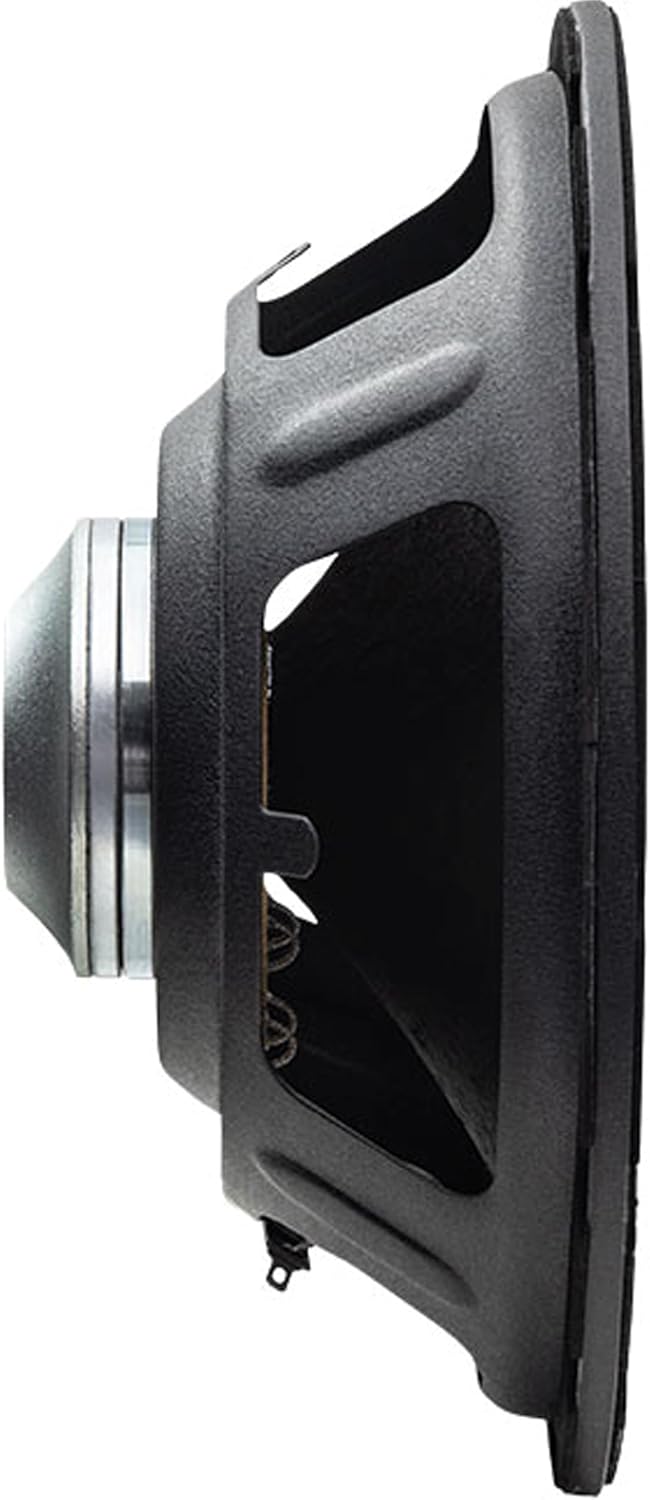

Rysunek 3: Profesjonalizm bocznyfile of the DD Audio VO-MN310-S4 Midrange Speaker, illustrating mounting depth.
4. Konfiguracja i instalacja
Proper installation is crucial for optimal performance and longevity of your speaker. It is highly recommended that installation be performed by a qualified professional car audio technician. Incorrect wiring or mounting can damage the speaker, amplifier lub układ elektryczny pojazdu.
4.1 Montaż
- Ensure the mounting location provides sufficient depth and diameter as specified in Section 3.
- Use appropriate mounting hardware to secure the speaker firmly. Avoid over-tightening, which can distort the speaker frame.
- Upewnij się, że powierzchnia montażu jest sztywna i wolna od przeszkód.
4.2 Okablowanie
- Podłącz głośnik do amplifier capable of delivering 200 Watts RMS at 4 Ohms.
- Observe correct polarity (+ to + and - to -) when connecting the speaker to the amplifier. Incorrect polarity can lead to reduced sound quality and imaging.
- Use high-quality speaker wire of adequate gauge to minimize power loss and ensure proper current delivery.
- Aby zapobiec zwarciom, należy upewnić się, że wszystkie połączenia są solidne i zaizolowane.
4.3 Ustawienia zwrotnicy
As a midrange speaker, the VO-MN310-S4 is designed to reproduce frequencies within the 70Hz to 14KHz range. It is essential to use an external crossover (either active or passive) to filter out frequencies outside this range.
- Set a high-pass filter (HPF) at or above 70Hz to protect the speaker from damaging low frequencies.
- Set a low-pass filter (LPF) at or below 14KHz to integrate smoothly with tweeters in a multi-speaker system.
- Skonsultuj się z amplifier or head unit's manual for specific crossover adjustment procedures.
5. Instrukcja obsługi
Once installed, proper operation ensures the best sound quality and extends the life of your speaker.
- AmpUstawienie wzmocnienia lifier: Carefully set the gain on your amplifier. Start with the gain at minimum and slowly increase it until the desired volume is achieved without distortion. Over-driving the amplifier (clipping) can severely damage the speaker.
- Regulacja głośności: Use your head unit's volume control for daily adjustments. Avoid operating the system at maximum volume for extended periods if distortion is present.
- Okres docierania: Allow a break-in period of approximately 20-30 hours of normal listening before evaluating the speaker's full performance. This allows the suspension components to loosen and reach their optimal compliance.
- Zagadnienia dotyczące ochrony środowiska: While the speaker is water-resistant, avoid direct exposure to high-pressure water jets or prolonged submersion. Ensure proper ventilation around the speaker and ampliyfikator.
6. Konserwacja
Regular, simple maintenance can help preserve the appearance and performance of your DD Audio speaker.
- Czyszczenie: Użyj miękkiego, suchego lub lekko damp cloth to wipe down the speaker frame and cone. Avoid using harsh chemicals, solvents, or abrasive cleaners.
- Kontrola: Periodically inspect the speaker for any signs of damage to the cone, surround, or connections. Ensure mounting screws remain tight.
- Ochrona środowiska: If installed in an open-air environment (e.g., boat, UTV), consider using protective covers when the vehicle is not in use to shield from prolonged sun exposure or heavy moisture.
7. Rozwiązywanie Problemów
If you experience issues with your speaker, refer to the following common troubleshooting steps.
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Brak dźwięku z głośnika |
|
|
| Zniekształcony dźwięk |
|
|
| Słaby lub stłumiony dźwięk |
|
|
8. Gwarancja i wsparcie
The DD Audio VO-MN310-S4 speaker comes with a Ograniczona gwarancja. Specific terms and conditions of the warranty are provided at the time of purchase or can be obtained by contacting DD Audio directly.
For technical support, warranty claims, or further assistance, please contact DD Audio customer service through their official website or authorized dealer. Please have your product model number (VO-MN310-S4) and proof of purchase available when seeking support.
