1. Wprowadzenie
Thank you for choosing the Varstrom 52V 20Ah Ebike Battery. This manual provides essential information for the safe and efficient use, installation, and maintenance of your new battery. Please read this manual thoroughly before using the product and retain it for future reference.
This battery is designed to power electric bikes with motors ranging from 50W to 1500W, offering reliable and long-lasting performance.
2. Ważne instrukcje bezpieczeństwa
- Bezpieczeństwo ładowania: Always use the provided Varstrom charger. Do not use chargers from other brands or with different voltage/current specifications. Recharge the battery before it is completely depleted for optimal life. Disconnect the charger once its indicator turns green to prevent overcharging.
- Unikaj zwarć: Never short-circuit the battery terminals, as this can cause permanent damage, fire, or explosion.
- Temperatura: Do not expose the battery to extreme temperatures (above 60°C / 140°F or below -10°C / 14°F). Avoid direct sunlight and heat sources.
- Narażenie na działanie wody: Keep the battery dry. Do not immerse it in water or expose it to heavy rain.
- Uszkodzenia fizyczne: Do not drop, puncture, or disassemble the battery. Any physical damage can compromise its safety and performance.
- Składowanie: Store the battery in a cool, dry place, partially charged (around 50-60%) if not used for extended periods.
- Dzieci: Przechowuj baterię w miejscu niedostępnym dla dzieci.
- Sprzedaż: Dispose of the battery according to local regulations for lithium-ion batteries. Do not dispose of it with household waste.
3. Zawartość opakowania
Sprawdź, czy w przesyłce znajdują się wszystkie elementy:
- 1x Varstrom 52V 20Ah Ebike Battery
- 1x Battery Fix Plate (Mounting Bracket)
- 1x ładowarka baterii
- Klucze 2x
- 4x śruby montażowe
- 1x Instrukcja obsługi (ten dokument)
Rysunek 3.1: A step-by-step visual guide demonstrating how to mount the battery to an ebike frame, along with a packing list detailing the included battery, battery fix plate, keys, screws, charger, and user manual.
4. Koniec produktuview
The Varstrom 52V 20Ah Ebike Battery is a high-performance lithium-ion power source designed for electric bicycles. It features a robust construction and advanced safety mechanisms.
4.1 Główne cechy
- Duża pojemność: 52V 20Ah (1040Wh) for extended range.
- Szeroka kompatybilność: Suitable for 0-1500W electric bike kits, including BAFANG, Voilamart, AW, Ebikeling, Pexmor, and L-Fater.
- Trwała konstrukcja: Engineered with a proprietary CNC cell holder and shockproof shell structure.
- Zaawansowane bezpieczeństwo: Dual-layer protection with a Battery Management System (BMS) and individual cell fuses.
- Integrated Lock System: Provides security against theft.
- Przełącznik zasilania i wskaźnik LED: For power management and charge level monitoring.
- Łatwa instalacja: Mounting bracket compatible with most water bottle screw holes on bike frames.
Rysunek 4.1: The Varstrom 52V 20Ah Ebike Battery, shown with its mounting base and dedicated charger.
Rysunek 4.2: Szczegółowy views of the battery's integrated safe lock for theft prevention, the DC2.1 charging port (ensure current does not exceed 3A), the 5-pin discharge port, and the XT60 female battery connector for efficient power transfer.

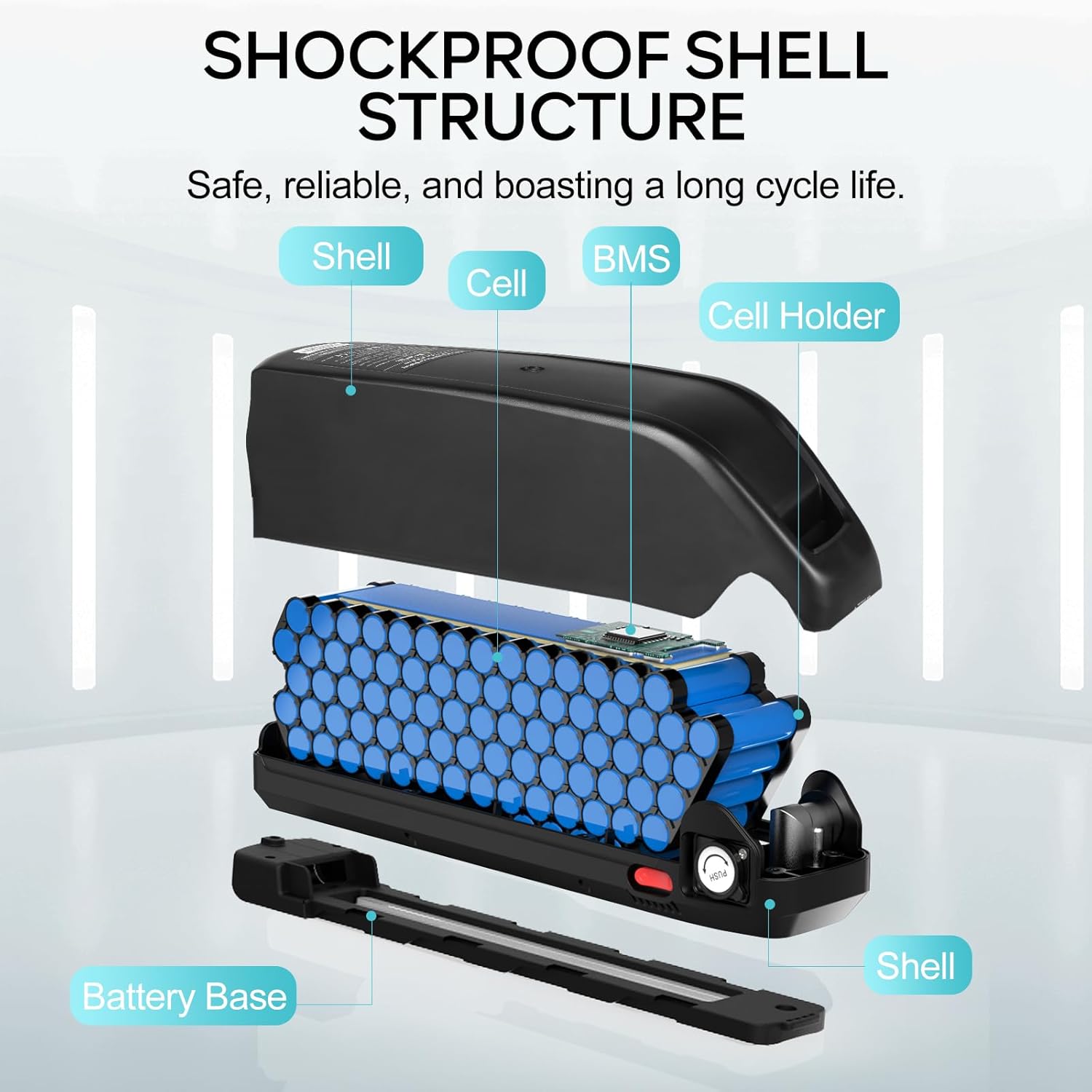

Rysunek 4.3: eksplodował view showing the robust shockproof shell, individual battery cells, the Battery Management System (BMS), and the cell holder, designed for safety and durability.
Rysunek 4.4: This graphic highlights the comprehensive safety features including overcurrent, overvoltage, overload, overcharge, overdischarge, temperature, short circuit protection, and cell voltagi równoważenie.
5. Konfiguracja i instalacja
Follow these steps to install your Varstrom Ebike Battery:
- Mount the Fix Plate: Locate the water bottle screw holes on your bike frame. Align the battery fix plate with these holes and secure it using the provided mounting screws. Ensure the plate is firmly attached.
- Włóż baterię: Carefully slide the battery onto the mounted fix plate. Ensure it clicks securely into place.
- Lock the Battery: Use the provided key to lock the battery to the fix plate. This prevents theft and ensures the battery remains secure during rides.
- Połącz z silnikiem: Connect the XT60 discharge connector from the battery to your ebike motor controller. Ensure a firm connection.
Rysunek 5.1: Visual representation of the battery installation process on an ebike frame.
6. Instrukcja obsługi
6.1 Ładowanie akumulatora
To charge your Varstrom Ebike Battery:
- Ensure the battery's power switch is in the 'OFF' position before connecting the charger.
- Connect the charger to a standard wall outlet. The charger's indicator light will typically show red.
- Connect the charger's output plug to the battery's charging port (DC2.1).
- The charger indicator light will turn green when the battery is fully charged. Disconnect the charger from the battery and then from the wall outlet.
- It is recommended to charge the battery in a well-ventilated area and to avoid leaving it unattended for prolonged periods during charging.
6.2 Włączanie/wyłączanie
Use the integrated power switch on the battery to turn it on or off. The LED power indicator lights will illuminate to show the current charge level when the battery is on.
6.3 Wskaźnik zasilania LED
The LED indicator lights provide an approximate indication of the remaining battery charge. Refer to the battery casing for the specific interpretation of the LED pattern (e.g., 4 lights for 76-100%, 3 lights for 51-75%, etc.).
6.4 Video Guide: Unboxing and Handling
Wideo 6.1: This video provides a visual guide on how to unbox and handle an ebike lithium battery, showcasing the components and initial inspection.
7. Konserwacja i przechowywanie
- Czyszczenie: Wipe the battery exterior with a soft, dry cloth. Do not use water or cleaning agents directly on the battery.
- Nawyki ładowania: For optimal battery longevity, avoid completely draining the battery before recharging. Regular, partial charges are generally better than infrequent, deep discharges.
- Przechowywanie długoterminowe: If storing the battery for an extended period (more than one month), charge it to approximately 50-60% capacity. Store it in a cool, dry place away from direct sunlight and extreme temperatures. Check the charge level every 2-3 months and recharge if necessary to maintain the 50-60% range.
- Pielęgnacja złącza: Keep the battery and charger connectors clean and free of debris to ensure good electrical contact.
8. Rozwiązywanie Problemów
If you encounter issues with your Varstrom Ebike Battery, refer to the following common problems and solutions:
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Bateria się nie ładuje | Charger not connected properly; charger malfunction; battery power switch off; battery fault. | Ensure charger is securely plugged into wall and battery. Check if charger indicator light changes. Turn battery power switch ON. Try another outlet. If issue persists, contact support. |
| Battery not powering ebike | Battery power switch off; battery not securely mounted; discharge connector loose; battery depleted. | Turn battery power switch ON. Ensure battery is fully seated and locked. Check XT60 connector for secure fit. Charge the battery. |
| LED power indicator not working | Internal wiring issue; indicator fault. | Ensure battery is powered on. If the battery functions otherwise, this may be a minor fault. If the battery does not function, contact support. |
| Zmniejszony zasięg lub moc | Battery degradation; improper charging; extreme temperatures. | Ensure proper charging habits. Avoid riding in very cold conditions. If battery is old, degradation is normal. Consider battery replacement if performance is significantly impacted. |
If you cannot resolve the issue using the troubleshooting guide, please contact Varstrom customer support for assistance.
9. Specyfikacje
Technical specifications for the Varstrom 52V 20Ah Ebike Battery:
| Funkcja | Specyfikacja |
|---|---|
| Marka | Varstrom |
| Model | 52V 20Ah Ebike Battery |
| Objętość nominalnatage | 52 V |
| Pojemność nominalna | 20Ah |
| Energia | 1040 Wh |
| Maksymalny ciągły prąd rozładowania | 30A |
| Wymiary (dł. x szer. x wys.) | 368 mm x 95 mm x 125 mm (14.4 cala x 3.7 cala x 4.9 cala) |
| Waga | Około 5 kg |
| Złącze rozładowcze | XT60 żeński |
| Baza baterii | 5-stykowy nagłówek |
| Cykl życia | ≥80% capacity retention after 800 cycles; estimated lifespan up to 5 years. |
| Dopasowana moc silnika | 50W to 1500W (including 1500W, 1200W, 1000W, 750W, 500W) |
| Złącze ładowarki | 6PIN Gold-Plated |
| Maksymalny prąd ładowania | 3A |
| Kolor | Czarny |
Rysunek 9.1: This image illustrates the physical dimensions of the battery and highlights key specifications.
10. Gwarancja i wsparcie
10.1 Informacje o gwarancji
The Varstrom 52V 20Ah Ebike Battery comes with the following warranty:
- 30-dniowa polityka zwrotów: For initial product defects or dissatisfaction.
- 365-Day Repair or Replace: Covers manufacturing defects and functional issues under normal use conditions.
Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or failure to follow the instructions in this manual.
10.2 Obsługa klienta
For technical assistance, warranty claims, or any questions regarding your Varstrom Ebike Battery, please contact Varstrom customer support through the platform where you purchased the product. Provide your order number and a detailed description of the issue to expedite service.
