Irfora PC102 Portable Water Quality Tester User Manual

1. Wprowadzenie

The Irfora PC102 is a portable digital water quality tester designed to quickly and accurately measure pH and chlorine (CL2) levels in swimming pools, spas, and other water sources. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your device.

Główne cechy:

• Measures pH and CL2 levels.
• Large screen display for clear readings.
• Portable and handheld design.
• Recommended chlorine level for pools and spas: 1.2 ~ 1.7 ppm.
• Recommended pH level for pools and spas: 7.2 ~ 7.8 pH.

2. Informacje dotyczące bezpieczeństwa

Ważne środki ostrożności:

• Nie zanurzaj jednostki głównej w wodzie. Urządzenie nie jest wodoodporne.
• Probes are advised NOT to be immersed in any liquid other than pool or spa water.
• Przechowywać urządzenie w miejscu niedostępnym dla dzieci.
• Handle the probes with care to avoid damage.
• Upewnij się, że komora baterii jest dobrze zamknięta, aby zapobiec przedostawaniu się wody.

3. Zawartość opakowania

Sprawdź, czy w opakowaniu znajdują się wszystkie elementy:

• 1 x Irfora PC102 PH and CL2 Probe Tester
• 1 x Sheet of Sandpaper
• 1 x Instrukcja obsługi (angielski)

4. Koniec produktuview

Familiarize yourself with the components of your PC102 Water Quality Tester.

Rycina 4.1: Przód view of the PC102 tester showing the pH and CL2 measurement scales.

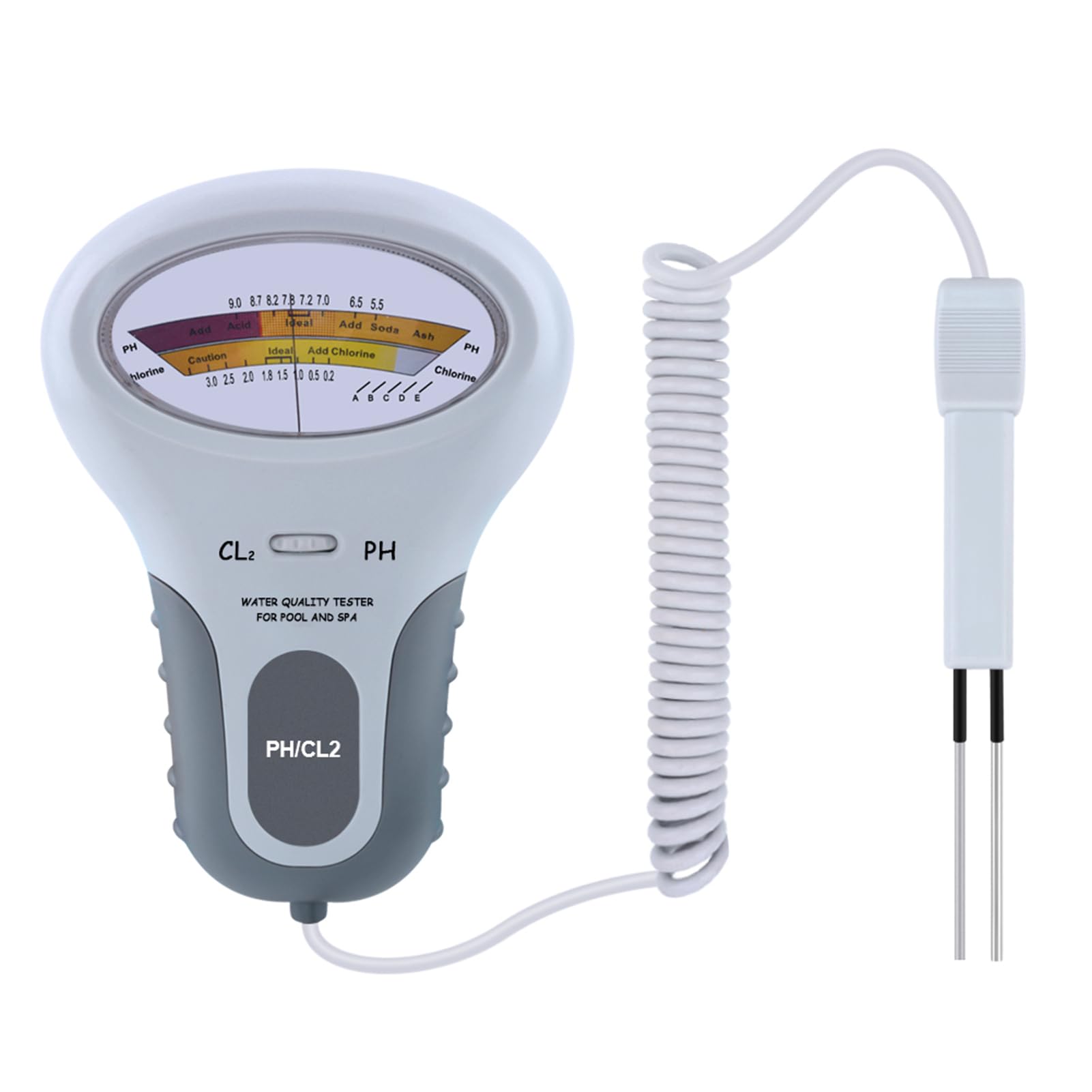

Figure 4.2: The PC102 main unit connected to its probe via a coiled cable.

Figure 4.3: Dimensions of the PC102 tester and probe, along with the battery compartment location and PH/CL2 conversion button.

• Jednostka główna: Contains the display, control buttons, and battery compartment.
• Sonda: Connected to the main unit via a coiled cable, used for water immersion.
• PH/CL2 Conversion Button: Located on the main unit, used to switch between pH and CL2 measurement modes.
• Ekran wyświetlacza: Shows the measurement results.

5. Konfiguracja

5.1 Instalacja baterii

1. Znajdź komorę baterii z tyłu jednostki głównej.
2. Otwórz pokrywę baterii.
3. Insert one 1.5V AA battery, ensuring correct polarity. (Battery not included)
4. Dokładnie zamknij pokrywę baterii.

Figure 5.1: Illustration of the battery compartment and battery type (1x AA battery).

5.2 Initial Calibration (Recommended)

For accurate results, it is recommended to calibrate the meter before first use and whenever accuracy is suspected. Refer to the specific calibration instructions provided with your calibration solution (not included) or consult a pool/spa professional.

Note: The provided sandpaper sheet can be used to gently clean the probe tips if they appear corroded or dirty, which can affect accuracy. Use sparingly and with care.

6. Instrukcja obsługi

Follow these steps to measure water quality:

1. Przygotuj testera:
   • Ensure the probes are clean and dry.
   • Turn on the device by pressing the "PH/CL2" button.
2. Wybierz tryb pomiaru:
   • Use the "CL2 / PH" switch on the main unit to select either Chlorine (CL2) or pH measurement mode.
3. Zanurz sondę:
   • Carefully immerse the probe into the water of the swimming pool or spa. Ensure the probe tips are fully submerged.
   • Do not immerse the main unit.


   Figure 6.1: The PC102 probe being used to measure water quality in a swimming pool.
4. Przeczytaj pomiar:
   • Wait for the reading on the large screen display to stabilize.
   • Note the pH or CL2 level displayed.
5. Compare to Recommended Levels:
   • Recommended CL2 content for pools/spas: 1.2 ~ 1.7 ppm.
   • Recommended pH value for pools/spas: 7.2 ~ 7.8.


   Figure 6.2: Recommended CL2 and pH levels for swimming pools and spas, along with examples of use in various water environments.
6. Wyjmij i wyczyść:
   • After measurement, remove the probe from the water.
   • Rinse the probe with clean water and dry it thoroughly.
7. Store the Tester:
   • Wyłącz urządzenie.
   • Insert the probe into the designated slot on the main unit for convenient storage and portability.


   Figure 6.3: The probe slot on the PC102 main unit for secure storage of the probe.

7. Konserwacja

• Czyszczenie sondy: Always rinse the probe with clean water after each use and dry it thoroughly. If the probe tips become dirty or corroded, gently clean them with the provided sandpaper sheet.
• Składowanie: Store the PC102 in a cool, dry place away from direct sunlight and extreme temperatures. Utilize the probe slot for secure storage.
• Wymiana baterii: Replace the AA battery when the display becomes dim or the device fails to power on.

8. Rozwiązywanie Problemów

9. Specyfikacje

10. Gwarancja i wsparcie

For warranty information or technical support, please refer to the retailer where the product was purchased or visit the official Irfora webZachowaj paragon jako dowód zakupu.
