TROND Desk Clamp Instrukcja obsługi listwy zasilającej

Wstęp

Thank you for choosing the TROND Desk Clamp Power Strip. This manual provides essential information for the safe and efficient use of your new power strip. This device is designed to provide convenient power access and charging capabilities directly on your desk, reducing clutter and improving accessibility.

Image: TROND Desk Clamp Power Strip in use, providing power to a laptop and charging a smartphone.

Informacje dotyczące bezpieczeństwa

• For indoor use only. Do not expose to liquids or excessive moisture.
• Do not exceed the maximum power rating of 1625W (13A, 125V).
• Upewnij się, że listwa zasilająca jest prawidłowo uziemiona.
• Nie rozmontowuj i nie modyfikuj urządzenia.
• Przechowywać w miejscu niedostępnym dla dzieci.
• The built-in 1700J surge protection helps safeguard your electronics from power surges.
• This product is made of UL94 V-0 flame-retardant material for enhanced safety.

Zawartość opakowania

• 1 x TROND Desk Clamp Power Strip (Model TD-PS-US28S)
• 1 x Instrukcja obsługi

Cechy produktu

• 4 gniazdka prądu przemiennego: Widely spaced to accommodate larger power adapters.
• 2 porty USB-C: Power Delivery (PD) 20W Max for fast charging compatible devices.
• 2 porty USB-A: Quick Charge (QC) 18W Max for fast charging compatible devices.
• Ochrona przeciwprzepięciowa 1700 dżuli: Chroni podłączone urządzenia przed objtage kolce.
• Przewód przedłużający z płaską wtyczką o długości 6 stopy: Niskoprofile 0.33in flat plug with a 45° right-angled design, made with 16 AWG pure copper.
• Biurko Clamp Projekt: Easily mounts to tabletops up to 1.97 inches thick, no drilling required.
• Przełącznik przerywacza obwodu: Controls AC power and provides overload protection.
• Wymienione ETL: Certyfikowane pod kątem bezpieczeństwa i jakości.

Instrukcje konfiguracji

1. Wybierz miejsce montażu: Select a suitable edge on your desk or table. The clamp fits tabletops up to 1.97 inches (5cm) thick.
2. Podłącz Clamp: Position the power strip on the desired edge. Turn the knob on the bottom of the clamp clockwise to tighten it securely to the table. Ensure the clamp is firm and the power strip does not wobble.
3. Podłącz do gniazdka ściennego: Plug the 6ft flat plug extension cord into a standard 125V AC wall outlet. The 45° right-angled flat plug is designed to fit in tight spaces without blocking other outlets.
4. Aktywuj moc: Press the circuit breaker switch on the power strip to the 'ON' position. The indicator light will illuminate, confirming power is supplied.

Image: Visual guide for clamping the power strip to a desk edge or table leg, highlighting the maximum desk thickness.

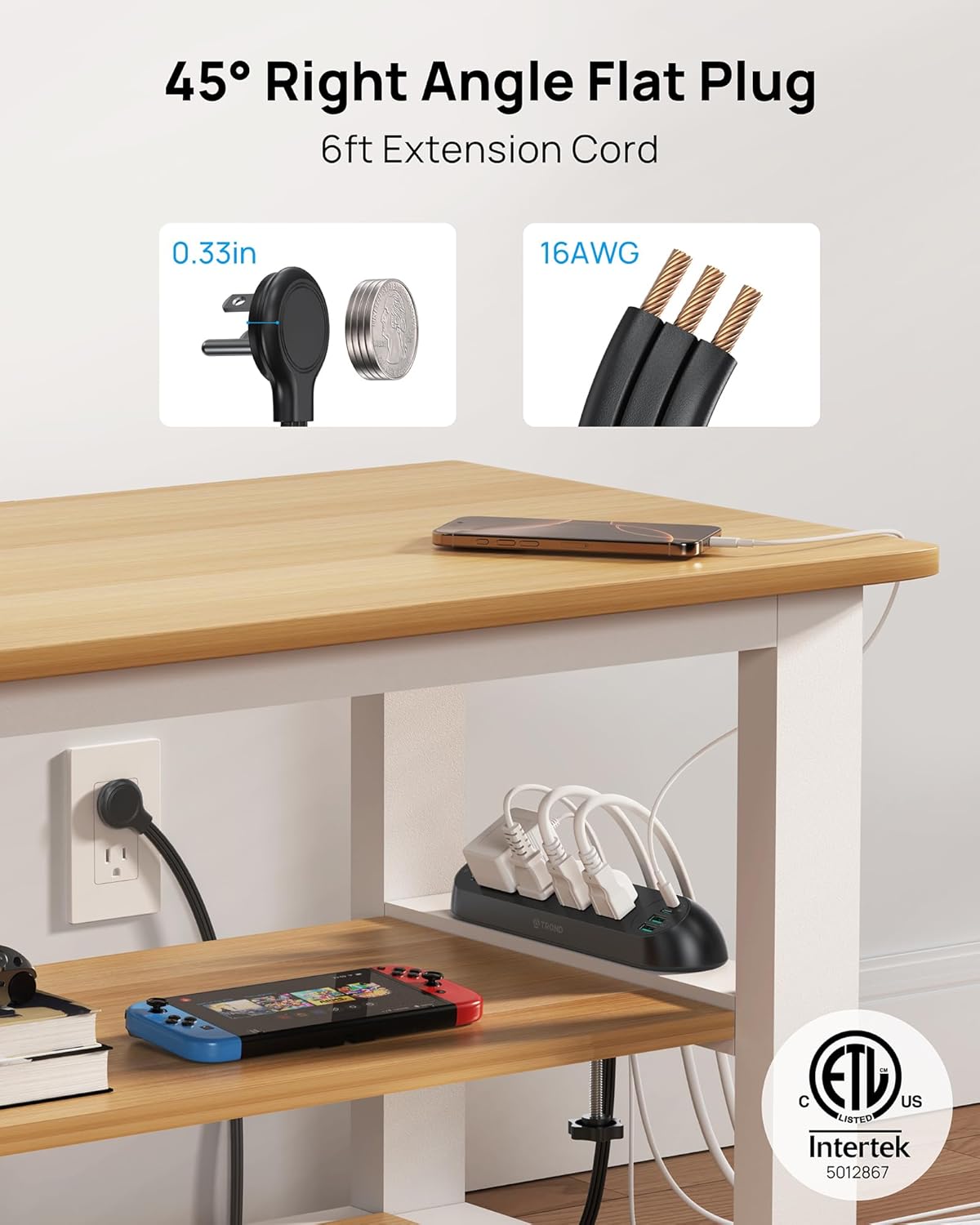

Image: Detail of the space-saving 45° right-angle flat plug and the robust 16 AWG cord.

Instrukcja obsługi

Once installed and powered on, the TROND Desk Clamp Power Strip is ready for use. Its design provides easy access to all ports, eliminating the need to reach under your desk.

• Gniazdka AC: Plug your AC-powered devices into the 4 widely spaced outlets. The wide spacing ensures that larger power adapters do not obstruct adjacent outlets.
• Porty USB: Connect your USB-powered devices (smartphones, tablets, etc.) to the USB-C or USB-A ports for charging.
• Przycisk zasilania: Use the integrated circuit breaker switch to turn the entire power strip on or off. This switch also acts as an overload protector.

Image: The power strip on a nightstand, illustrating the wide spacing of AC outlets.

Możliwości ładowania

The power strip features advanced charging technology for your mobile devices:

• Zasilanie przez USB-C (PD 20 W): Each USB-C port can deliver up to 20W of power when used individually, providing rapid charging for compatible smartphones and tablets.
• Szybkie ładowanie USB-A (QC 18 W): Each USB-A port can deliver up to 18W of power when used individually, offering fast charging for compatible devices.
• Multiple USB Ports (15W Max Shared): When two or more USB ports are used simultaneously, the total output is shared, with a maximum combined power of 15W.

Image: A smartphone charging rapidly via the USB-C PD 20W port on the power strip.

Image: Detailed breakdown of power output for single, dual, and multiple USB port usage.

Ochrona przeciwprzepięciowa

The TROND Desk Clamp Power Strip is equipped with 1700 Joules of surge protection to shield your valuable electronics from damaging power surges and spikes. The ETL listing confirms its compliance with safety standards.

• The surge protector automatically detects and diverts excess voltage away from connected devices.
• A dedicated indicator light on the power strip will show the status of the surge protection. If the light is off, the surge protection may have been compromised and the unit should be replaced.
• The integrated circuit breaker switch provides additional overload protection, automatically cutting power if the connected load exceeds the maximum rating.

Image: Visual representation of the surge protection feature and circuit breaker switch.

Image: Internal components illustrating the 1700J surge protection mechanism.

Konserwacja

• Always disconnect the power strip from the wall outlet before cleaning.
• Przetrzyj obudowę miękką, suchą ściereczką. Nie używaj płynnych środków czyszczących ani materiałów ściernych.
• Ensure all ports are free from dust and debris to maintain optimal performance.

Rozwiązywanie problemów

• Brak zasilania urządzeń:
  • Check if the power strip's circuit breaker switch is in the 'ON' position.
  • Ensure the power strip is securely plugged into a functioning wall outlet.
  • Verify that the wall outlet itself has power by testing with another device.
• Urządzenia nieładujące się przez USB:
  • Ensure the USB cables are properly connected to both the power strip and the device.
  • Check if the device's charging port is clean and undamaged.
  • Niektóre urządzenia mogą wymagać specjalnych protokołów ładowania; należy upewnić się, że są kompatybilne.
  • If multiple USB devices are connected, the shared power output might reduce individual charging speeds.
• Listwa zasilająca wyłącza się automatycznie:
  • This indicates that the overload protection has been activated. Disconnect some devices to reduce the load.
  • Reset the circuit breaker switch by turning it 'OFF' and then 'ON' again.

Specyfikacje

Gwarancja i wsparcie

For warranty information and customer support, please refer to the official TROND website or contact TROND customer service directly. Keep your purchase receipt for warranty claims.
