Purell 6424-01

PURELL ES6 Automatic Hand Sanitizer Dispenser (Model 6424-01) User Manual

Szczegółowe instrukcje dotyczące instalacji, obsługi i konserwacji.

1. Wprowadzenie

This manual provides detailed instructions for the proper setup, operation, and maintenance of your PURELL ES6 Automatic Hand Sanitizer Dispenser, Model 6424-01. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of the product.

PURELL ES6 Automatic Hand Sanitizer Dispenser in Graphite

Figure 1: PURELL ES6 Automatic Hand Sanitizer Dispenser, Graphite.

2. Zawartość opakowania

Sprawdź, czy w opakowaniu znajdują się wszystkie elementy:

  • 1 x PURELL ES6 Automatic Hand Sanitizer Dispenser (Graphite)
  • 1 x Adhesive Mounting Tape
  • 4 x C-cell Batteries

Note: PURELL ES6 Hand Sanitizer Refills are sold separately.

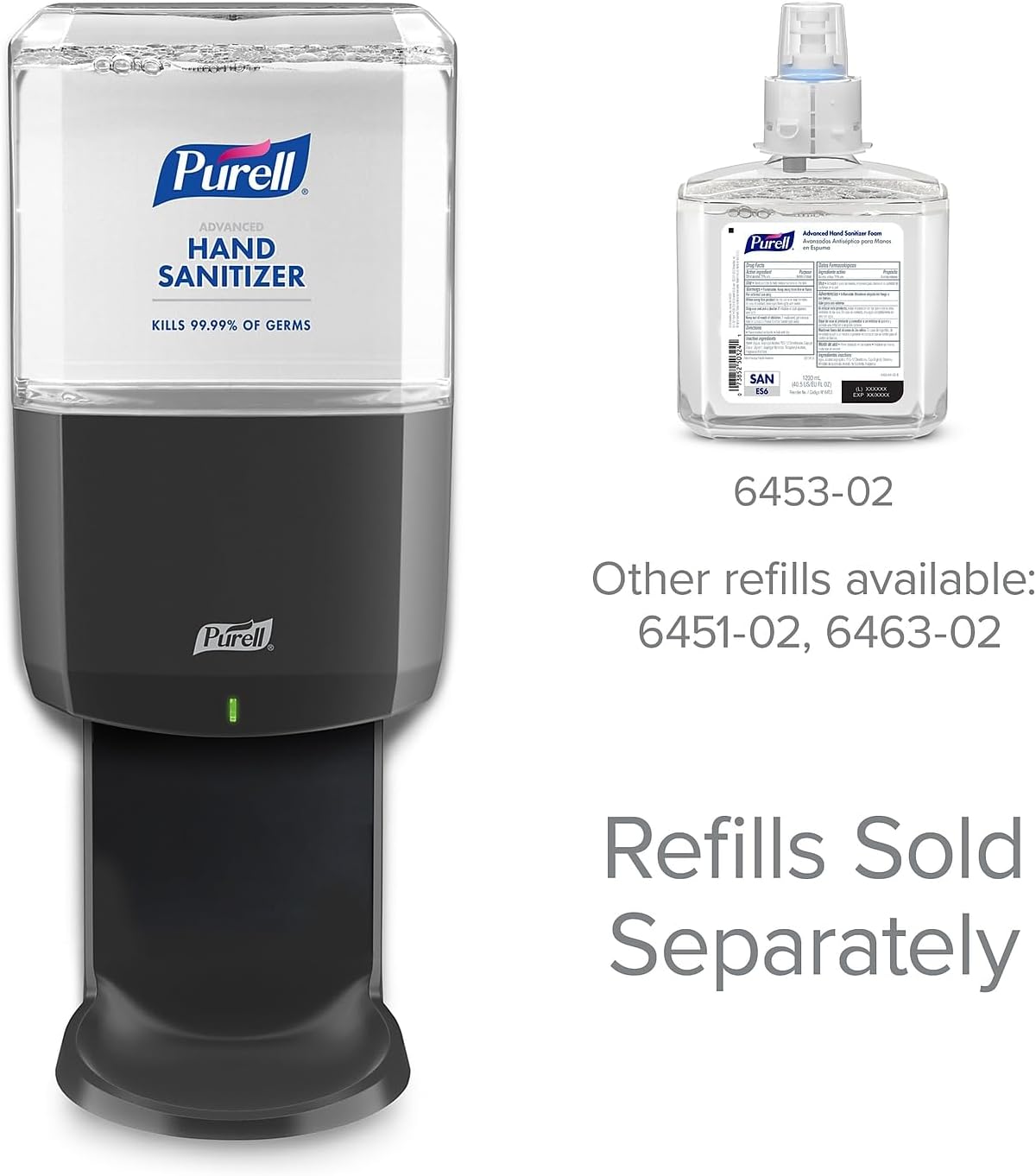

PURELL ES6 Dispenser with a separate refill bottle and text 'Refills Sold Separately'

Figure 2: Dispenser and compatible refill (sold separately).

3. Konfiguracja i instalacja

3.1 Instalacja baterii

  1. Otwórz pokrywę dozownika.
  2. Insert the 4 C-cell batteries into the battery compartment, ensuring correct polarity (+/-).
  3. Dokładnie zamknij pokrywę dozownika.

3.2 Mounting the Dispenser

The dispenser can be mounted using the included adhesive tape or by screwing it directly into a wall (screws not included).

Montaż klejony:

  1. Clean the desired wall surface thoroughly to ensure it is dry and free of dust or grease.
  2. Peel the backing from the adhesive mounting tape and firmly press it onto the back of the dispenser.
  3. Position the dispenser on the wall and press firmly for 30 seconds to ensure a strong bond.

Screw Mounting (Hardware not included):

  1. Zaznacz na ścianie miejsce montażu, w którym chcesz zamontować element.
  2. Use appropriate screws and wall anchors (if necessary) to secure the dispenser's mounting plate to the wall.

3.3 Refill Installation

The PURELL ES6 dispenser is designed for use with PURELL ES6 Advanced Hand Sanitizer refills (SKUs 6451-02, 6453-02, or 6463-02).

  1. Ensure the dispenser cover is open.
  2. Align the ES6 refill bottle with the dispenser's internal mechanism. The refill features a factory-sealed nozzle to prevent contamination.
  3. Push the refill firmly into place until it clicks, ensuring a secure connection.
  4. Zamknij pokrywę dozownika.

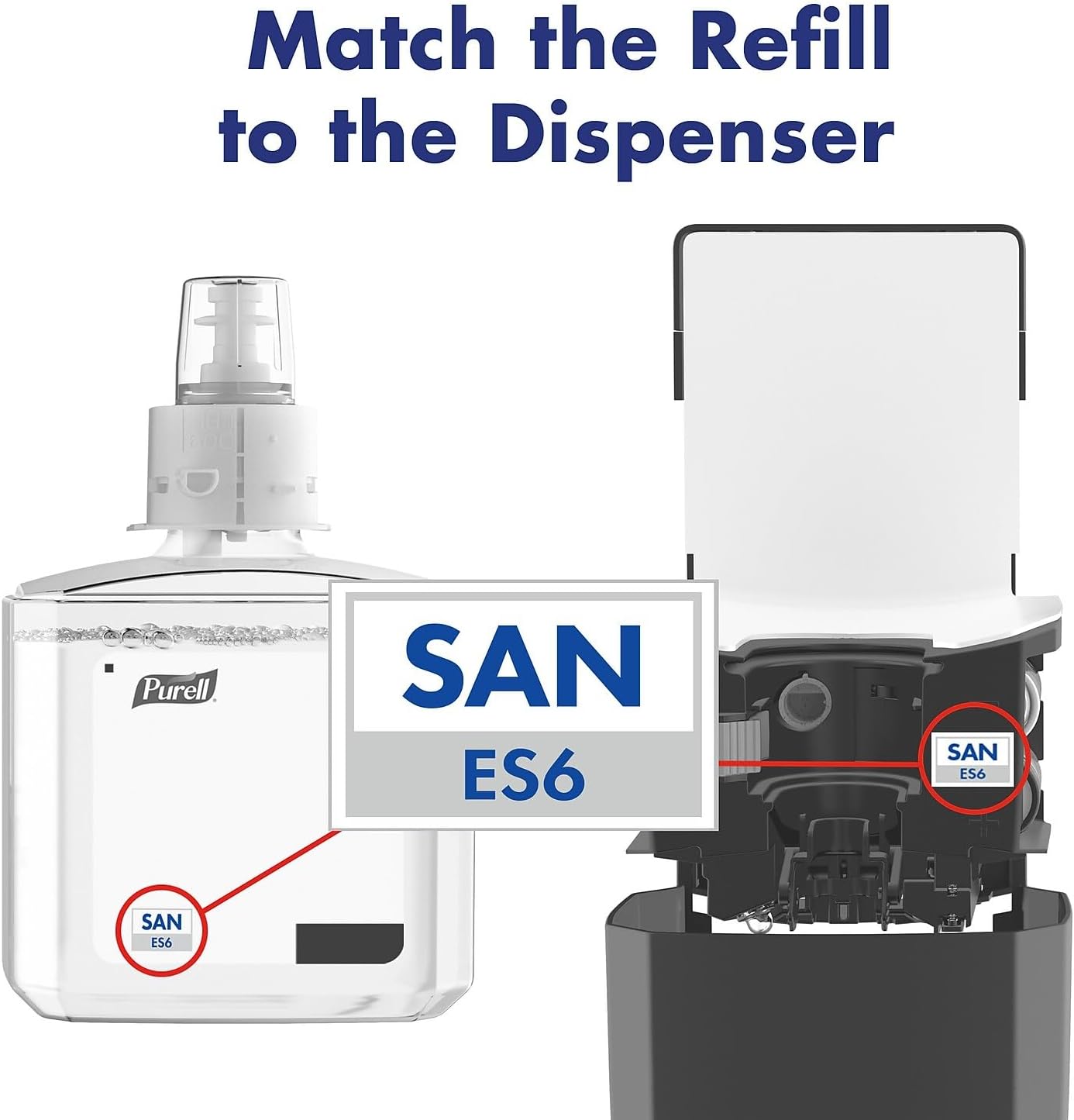

Image showing how to match the ES6 refill to the dispenser by aligning the 'SAN ES6' labels

Figure 3: Matching the ES6 refill to the dispenser.

Close-up of a factory-sealed nozzle on a hand sanitizer refill, labeled 'Sanitary Sealed'

Figure 4: Factory-sealed nozzle for hygienic dispensing.

4. Działanie

The PURELL ES6 dispenser is a touch-free unit designed for automatic dispensing.

  1. Place your hand directly under the dispenser's sensor.
  2. The dispenser will automatically dispense a measured amount of hand sanitizer into your palm.
  3. Rub your hands together thoroughly until dry.

The green LED indicator on the dispenser will illuminate during operation, confirming activation.

5. Konserwacja

5.1 Czyszczenie

  • Przetrzyj zewnętrzną część dozownika miękką,amp szmatką. Unikaj środków czyszczących o działaniu ściernym i rozpuszczalników.
  • The included drip tray helps keep the area clean and can be removed for washing.

5.2 Refill Monitoring and Replacement

The transparent design of the refill bottle allows for easy monitoring of sanitizer levels without opening the dispenser.

PURELL ES6 Dispenser showing a transparent refill bottle with text 'Monitor product levels with just one look'

Figure 5: At-A-Glance™ design for easy refill monitoring.

When the refill is empty, replace it by following the "Refill Installation" steps in Section 3.3.

5.3 Wymiana baterii

When the dispenser's performance diminishes or the green LED no longer illuminates, it may be time to replace the batteries. Follow the "Battery Installation" steps in Section 3.1.

6. Rozwiązywanie Problemów

ProblemMożliwa przyczynaRozwiązanie
Dispenser does not activate or dispense.
  • Niski poziom naładowania baterii lub jej rozładowanie.
  • Nieprawidłowa instalacja baterii.
  • Refill not properly seated.
  • Czujnik jest zasłonięty.
  • Dispenser is locked (optional feature).
  • Replace with new C-cell batteries.
  • Upewnij się, że baterie zostały włożone z zachowaniem prawidłowej polaryzacji.
  • Press refill firmly until it clicks into place.
  • Clear any obstructions from the sensor area.
  • Check if the optional locking feature is engaged and unlock if necessary.
Sanitizer leaks from dispenser.
  • Refill not properly seated.
  • Incorrect refill type used.
  • Ensure refill is firmly clicked into place.
  • Use only PURELL ES6 compatible refills.

7. Specyfikacje

FunkcjaSzczegół
Numer modelu6424-01
KolorGrafit
TworzywoDurable ABS Plastic (recycling code number 7)
Wymiary (wys. x szer. x gł.)14.39" x 5.51" x 3.88"
Waga przedmiotu1.97 funta
Baterie4 C-cell batteries (included)
Kompatybilne wkładyPURELL ES6 Advanced Hand Sanitizer Refills (SKUs 6451-02, 6453-02, 6463-02)
Diagram showing the dimensions of the PURELL ES6 Touch-Free Hand Sanitizer Dispenser: Width 5.51 inches, Height 14.39 inches, Depth 3.88 inches.

Figure 6: PURELL ES6 Dispenser dimensions.

8. Gwarancja i wsparcie

8.1 Informacje o gwarancji

The PURELL ES6 Automatic Hand Sanitizer Dispenser comes with a Gwarantowana niezawodność warranty. For specific terms and conditions, please refer to the official PURELL webodwiedź witrynę lub skontaktuj się z obsługą klienta.

Blue circular logo with text 'Proven Durable Dispenser Reliability Guarantee'

Figure 7: PURELL Dispenser Reliability Guarantee.

8.2 Obsługa klienta

For further assistance, technical support, or inquiries regarding PURELL products, please visit the official PURELL weblub skontaktuj się z działem obsługi klienta. Dane kontaktowe zazwyczaj znajdują się na opakowaniu produktu lub u producenta. webstrona.
