Wstęp
This manual provides comprehensive instructions for the setup, operation, and maintenance of your Browning Spec Ops Elite HP5 Trail Game Camera Bundle. Please read this manual thoroughly before using your camera to ensure optimal performance and longevity.
The Browning Spec Ops Elite HP5 is a high-performance trail camera designed for capturing wildlife images and videos with advanced features such as 24MP resolution, fast trigger speed, and robust night vision capabilities.

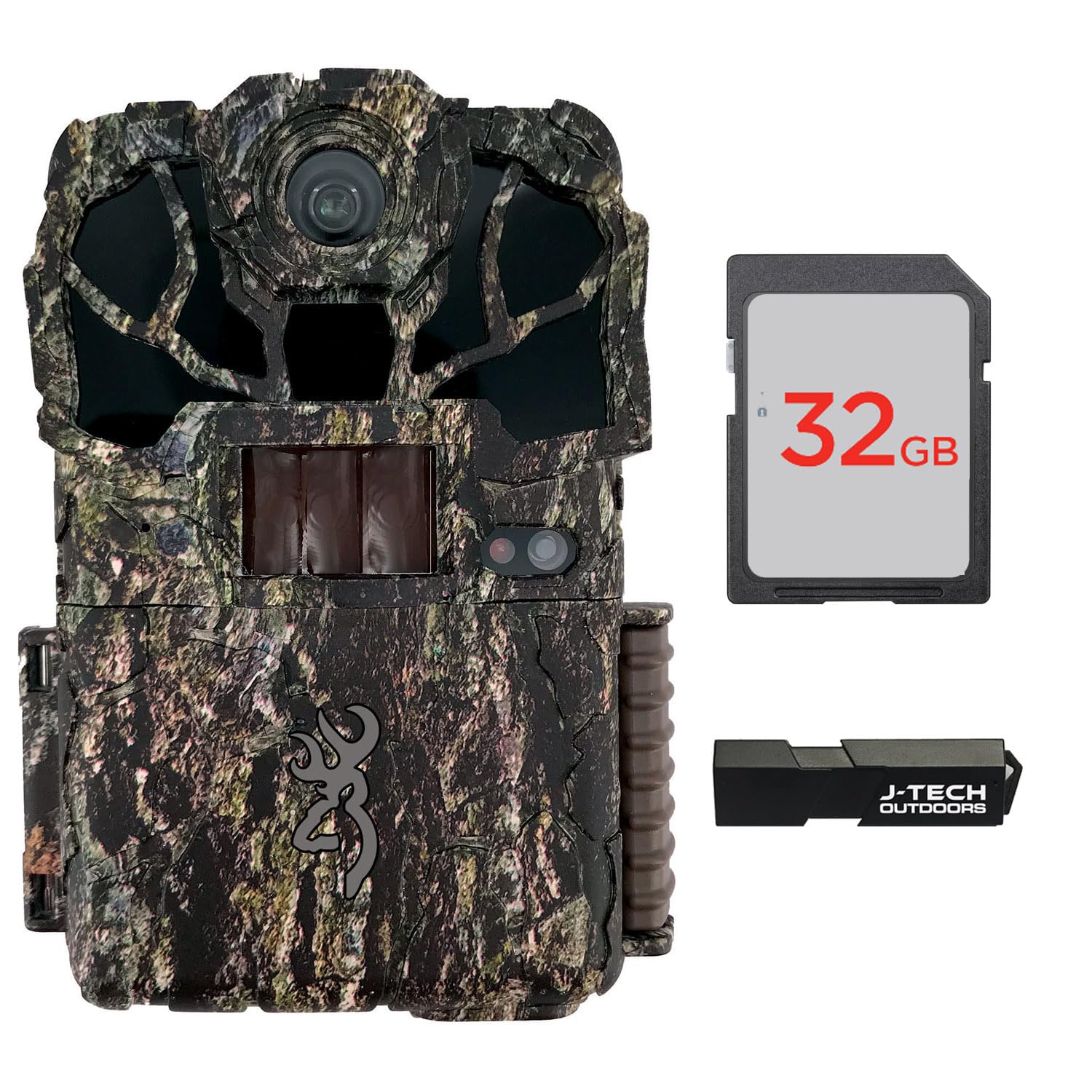

Zawartość opakowania
Sprawdź, czy w przesyłce znajdują się wszystkie wymienione poniżej elementy:
- Browning Spec Ops Elite HP5 Trail Game Camera (Model: BTC8EHP5)
- Karta pamięci SD 32 GB
- J-TECH USB Card Reader
- Tree Strap (for mounting)
- Instrukcja obsługi (ten dokument)
Funkcje aparatuview
The Spec Ops Elite HP5 camera offers a range of advanced features:
- Rozdzielczość obrazu: 24 Megapixels for high-quality stills.
- Prędkość wyzwalania: Adjustable from 0.1 to 0.7 seconds to capture fast-moving subjects.
- ViewEkran wejściowy: Kolor 2 cala viewing screen for easy setup and image review.
- Zasięg błysku: 100 ft. infrared flash for clear night images.
- Night Imaging: HDR (High Dynamic Range) Night Images for improved clarity in low light.
- Lampa błyskowa IR: Adjustable IR Flash settings (Power Save, Fast Motion, Long Range).
- Zasięg wykrywania: Adjustable up to 80 ft.
- Możliwości wideo: 1920 x 1080 FHD Videos with sound, adjustable length from 5 seconds to 2 minutes.
- Technologia Illuma-Smart: Automatically adjusts IR flash for optimal night photos.
- Oświetlenie IR: Features "RADIANT 5" IR Illumination for enhanced night vision.
Organizować coś
1. Instalacja baterii
The camera requires batteries for operation (not included). Refer to the battery compartment for the correct battery type and orientation. Ensure batteries are inserted correctly according to the polarity markings.
Obraz: Przód view of the Browning Spec Ops Elite HP5 Trail Game Camera, showing the lens, IR emitters, motion sensor, and the 2-inch color viewing screen with the Browning logo.
2. Instalacja karty SD
Locate the SD card slot, typically on the side or bottom of the camera. Insert the included 32GB SD memory card into the slot until it clicks into place. Ensure the card is oriented correctly to avoid damage. The camera supports standard SD cards.
3. J-TECH USB Card Reader Usage
The J-TECH USB Card Reader allows you to transfer images and videos from your SD card to a computer or laptop. Insert the SD card into the card reader, then plug the card reader into a USB port on your device. The card will appear as a removable drive, allowing you to access your media files.
Image: The J-TECH USB Card Reader, a black rectangular device with "J-TECH OUTDOORS" branding, used for transferring data from an SD card to a computer.
4. Montaż kamery
Use the provided tree strap to securely attach the camera to a tree or post. Position the camera at an appropriate height and angle to cover the desired area. Ensure the camera is stable and will not move due to wind or animal activity. Avoid pointing the camera directly at the sun to prevent overexposure.
Instrukcja obsługi
1. Włączanie/wyłączanie zasilania
Locate the ON/OFF switch on the camera body. Slide the switch to the "ON" position to power on the camera. The screen will illuminate. To power off, slide the switch to the "OFF" position.
2. Poruszanie się po Menu
Use the control buttons adjacent to the 2-inch color viewing screen to navigate through the camera's menu. Typically, there are directional buttons (up, down, left, right) and an "OK" or "Enter" button to select options. The "MODE" button often switches between setup, photo, and video modes.
3. Tryby zdjęć i wideo
Access the camera's settings menu to configure photo and video parameters:
- Rozdzielczość zdjęcia: Select 24MP for maximum detail.
- Rozdzielczość wideo: Choose 1920 x 1080 FHD for high-definition video.
- Długość filmu: Set video clip duration between 5 seconds and 2 minutes.
- Prędkość wyzwalania: Adjust between 0.1 and 0.7 seconds based on target movement.
- Zasięg wykrywania: Set the motion detection range up to 80 ft.
- IR Flash Mode: Select from Power Save, Fast Motion, or Long Range depending on your needs.
- Upływ czasu: If available, configure time-lapse intervals.
4. Illuma-Smart Technology and HDR Night Images
The camera automatically utilizes Illuma-Smart Technology to optimize IR flash intensity for balanced night photos. HDR Night Images further enhance clarity and detail in low-light conditions by combining multiple exposures.
Konserwacja
- Czyszczenie: Use a soft, dry cloth to clean the camera lens and IR sensors. Avoid abrasive materials or harsh chemicals.
- Wymiana baterii: Replace batteries when the low battery indicator appears on the screen. Always use fresh, high-quality batteries.
- Zarządzanie kartami SD: Regularly format your SD card (after backing up data) to maintain optimal performance and prevent data corruption.
- Składowanie: When not in use, store the camera in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries if storing for extended periods.
Rozwiązywanie problemów
- Kamera nie włącza się: Sprawdź instalację baterii i upewnij się, że są nowe.
- Słaba jakość obrazu: Clean the lens. Ensure the camera is not pointed directly at strong light sources. Check IR flash settings for night images.
- Brak zdjęć/filmów: Verify the SD card is inserted correctly and has sufficient free space. Check motion sensor sensitivity settings and detection range.
- Krótka żywotność baterii: Use high-quality batteries. Consider adjusting IR flash settings to "Power Save" if extended battery life is critical.
- Nieprawidłowa data/godzina: Aby ustawić prawidłową datę i godzinę, należy wejść do menu aparatu.
Specyfikacje
| Numer modelu | BTC8EHP5 |
| Rozdzielczość obrazu | 24 megapiksela |
| Rozdzielczość wideo | 1920 x 1080 FHD (1080p) |
| Szybkość wyzwalania | 0.1 – 0.7 Seconds (Adjustable) |
| Zasięg błysku | 100 stóp (podczerwień) |
| Zasięg wykrywania | Up to 80 Feet (Adjustable) |
| Viewekran | 2-calowy kolor |
| Źródło zasilania | Batteries (Not Included), 12 Volts |
| Tworzywo | Metal |
| Waga przedmiotu | 755 gramów |
| Wymiary (paczka) | Wymiary 30.6 x 15.9 x 12.1 cm |
| Cechy specjalne | Night Vision, HDR Night Images, Illuma-Smart Technology |
| Technologia łączności | Wireless (IR, Wi-Fi protocol) |
| Kompatybilne urządzenia | Desktop, Laptop (for card reader) |
| Zalecane zastosowanie | Gra i szlak |
Informacje o gwarancji
For detailed warranty information regarding your Browning Spec Ops Elite HP5 Trail Game Camera, please refer to the official Browning website or the warranty card included with your purchase. Warranty terms and conditions may vary by region and purchase date.
Obsługa klienta
If you encounter any issues or have questions not covered in this manual, please visit the official Browning customer support website or contact their support team directly. Contact information can typically be found on the manufacturer's webwitryny lub opakowania produktu.
Aby uzyskać dalszą pomoc, odwiedź stronę: Browning Support
