ROBOTIME ST003 & MC801 Wooden Puzzle Instruction Manual

Wstęp

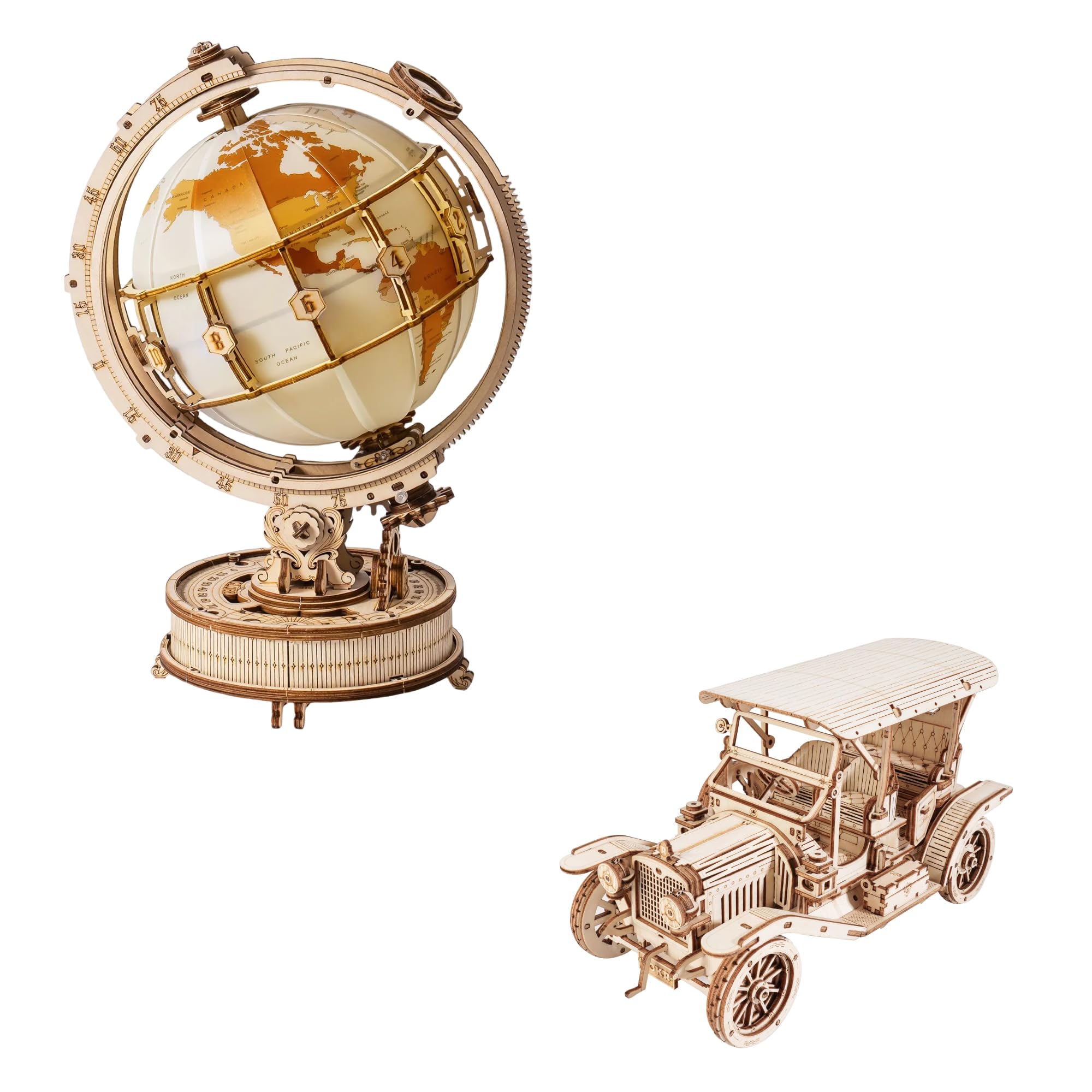

Thank you for choosing the ROBOTIME ST003 Globe and MC801 Vintage Car wooden puzzles. These kits provide an engaging and rewarding assembly experience, resulting in detailed display models. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure a successful build and lasting enjoyment of your models.

Ostrzeżenie dotyczące bezpieczeństwa:

• Produkt zawiera małe części i nie nadaje się dla dzieci poniżej 3 lat ze względu na ryzyko zadławienia.
• Adult supervision is recommended during assembly.
• Aby uniknąć drzazg, należy obchodzić się z drewnianymi elementami ostrożnie.

Zawartość opakowania

Before beginning assembly, please verify that all components are present. Each kit typically includes:

• Pre-cut wooden sheets with puzzle pieces.
• Instruction booklet with detailed diagrams.
• Sandpaper for smoothing edges.
• Small accessories (e.g., wires, LED components for ST003, if applicable).
• Wax or glue (if required for specific joints).

Jeśli brakuje jakichkolwiek części lub są one uszkodzone, prosimy o kontakt z obsługą klienta ROBOTIME.

Setup & Assembly Instructions

Assembly of these wooden puzzles requires patience and attention to detail. Follow the included instruction booklet specific to your model (ST003 or MC801) for step-by-step guidance.

1. Przygotowanie: Unpack all components. Identify the wooden sheets and the instruction booklet. Prepare a clean, well-lit workspace.
2. Identyfikacja elementu: Carefully punch out the wooden pieces from their sheets. Refer to the diagrams in the instruction booklet to identify each piece by its number. Keep similar pieces grouped to avoid confusion.
3. Wygładzanie krawędzi: Use the provided sandpaper to gently smooth any rough edges or burrs on the wooden pieces. This ensures a better fit and prevents splinters.
4. Kroki montażu: Follow the numbered steps in the instruction booklet precisely. Pay close attention to the orientation of each piece.
5. Elementy łączące: Pieces are designed to interlock. Apply gentle, even pressure when connecting them. If a piece is difficult to fit, do not force it. Recheck the piece number and orientation. A small amount of wax (if provided) can be applied to pegs for smoother insertion.
6. Electrical Components (ST003 Globe): If your ST003 Globe model includes LED lighting, follow the specific wiring instructions carefully. Ensure correct polarity and secure connections.
7. Ostatnie szlify: Once assembly is complete, ensure all pieces are securely in place. The models are designed for display.

Instrukcja obsługi

The ROBOTIME ST003 Globe and MC801 Vintage Car are primarily static display models, with the ST003 Globe having an additional functional element.

• MC801 Vintage Car: This model is designed for display. Its wheels may turn, but it is not intended for active play or motorized movement.
• ST003 Globe: If your model includes an electrical lighting component, connect it to a suitable power source (e.g., USB cable, battery pack as specified in its individual manual). The globe will illuminate, enhancing its visual appeal. Some models may also feature a manual rotation mechanism for the globe.

Konserwacja

Proper care will help preserve the appearance and integrity of your wooden puzzle models.

• Czyszczenie: Regularnie odkurzaj modele miękką, suchą ściereczką lub miękką szczotką. Unikaj stosowania wody i środków czyszczących, ponieważ mogą one uszkodzić drewno.
• Składowanie: Display the models in a stable environment, away from direct sunlight, extreme temperatures, and high humidity. These conditions can cause the wood to warp, crack, or fade.
• Obsługiwanie: Handle the models gently, especially when moving them, to prevent pieces from detaching or breaking.

Rozwiązywanie problemów

Encountering issues during assembly is common. Here are solutions to frequent problems:

• Części nie pasujące: Double-check the piece number and orientation against the instruction diagrams. Ensure no burrs are present; use sandpaper to smooth edges if necessary. Do not force pieces.
• Złamane kawałki: If a piece breaks during removal from the sheet or assembly, a small amount of wood glue can often repair it. Allow sufficient drying time. Contact support if a critical piece is irreparably damaged.
• Luźne stawy: For joints that are too loose, a tiny drop of wood glue can be used to secure them. Apply sparingly to avoid excess.
• ST003 Light Not Working: Verify that the power source is correctly connected and functional. Check all wiring connections for secure contact and correct polarity. Ensure the LED components are inserted correctly.

Specyfikacje

Informacje o gwarancji

ROBOTIME products are manufactured with quality and precision. For specific warranty details regarding your wooden puzzle kit, please refer to the documentation included in your package or visit the official ROBOTIME website. Typically, warranties cover manufacturing defects. Damage due to improper assembly or handling is generally not covered.

Wsparcie

If you require assistance with assembly, have questions about missing parts, or need further troubleshooting, please contact ROBOTIME customer support through the following channels:

• Webstrona: Visit the official ROBOTIME webStrona z odpowiedziami na często zadawane pytania i formularzami kontaktowymi.
• E-mail: Refer to your product packaging or the ROBOTIME webwitryna zawierająca adresy e-mail obsługi klienta.
• Detalista: Jeśli dokonano zakupu u konkretnego sprzedawcy detalicznego, pomoc może również okazać się dostępna w jego dziale obsługi klienta.

When contacting support, please provide your product model number (ST003 or MC801) and a clear description of the issue.
