Instrukcja obsługi wału odbioru mocy WilTec T5 700-910 mm

1. Wprowadzenie

This manual provides essential information for the safe and effective use of your WilTec T5 PTO Shaft. A Power Take-Off (PTO) shaft is a critical component in agriculture, designed to transfer power from a tractor to various agricultural implements. This WilTec PTO shaft is engineered for high quality and durability, ensuring reliable performance under demanding conditions.

It is crucial to understand the specifications and operational guidelines to ensure the longevity and safe operation of the PTO shaft and connected equipment. Always select a PTO shaft that meets or exceeds the power requirements of your application.

Figure 1: WilTec T5 PTO Shaft, a robust power take-off shaft for agricultural machinery.

2. Informacje dotyczące bezpieczeństwa

Always prioritize safety when operating machinery involving PTO shafts. Failure to follow safety instructions can result in serious injury or death.

• Przeczytaj instrukcję: Before installation or operation, thoroughly read and understand this instruction manual and the manuals for your tractor and implement.
• Protective Shields: Ensure all PTO shaft shields and guards are in place and in good condition on both the tractor and the implement. Never operate without proper shielding.
• Prawidłowe połączenie: Always ensure the PTO shaft is correctly attached and secured to both the tractor and the implement.
• Odzież: Wear close-fitting clothing. Avoid loose clothing, jewelry, or long hair that could become entangled in rotating parts.
• Wyczyść obszar: Keep bystanders, especially children, away from operating machinery.
• Disengage PTO: Always disengage the PTO, shut off the tractor engine, and remove the key before performing any adjustments, maintenance, or clearing blockages.
• Angle Limitations: Do not exceed the recommended operating angles for the PTO shaft. Excessive angles can cause premature wear or failure.
• Smarowanie: Follow recommended lubrication schedules to prevent overheating and wear.

3. Składniki produktu

The WilTec T5 PTO Shaft is constructed with robust materials for reliable power transmission. Understanding its components is essential for proper installation and maintenance.

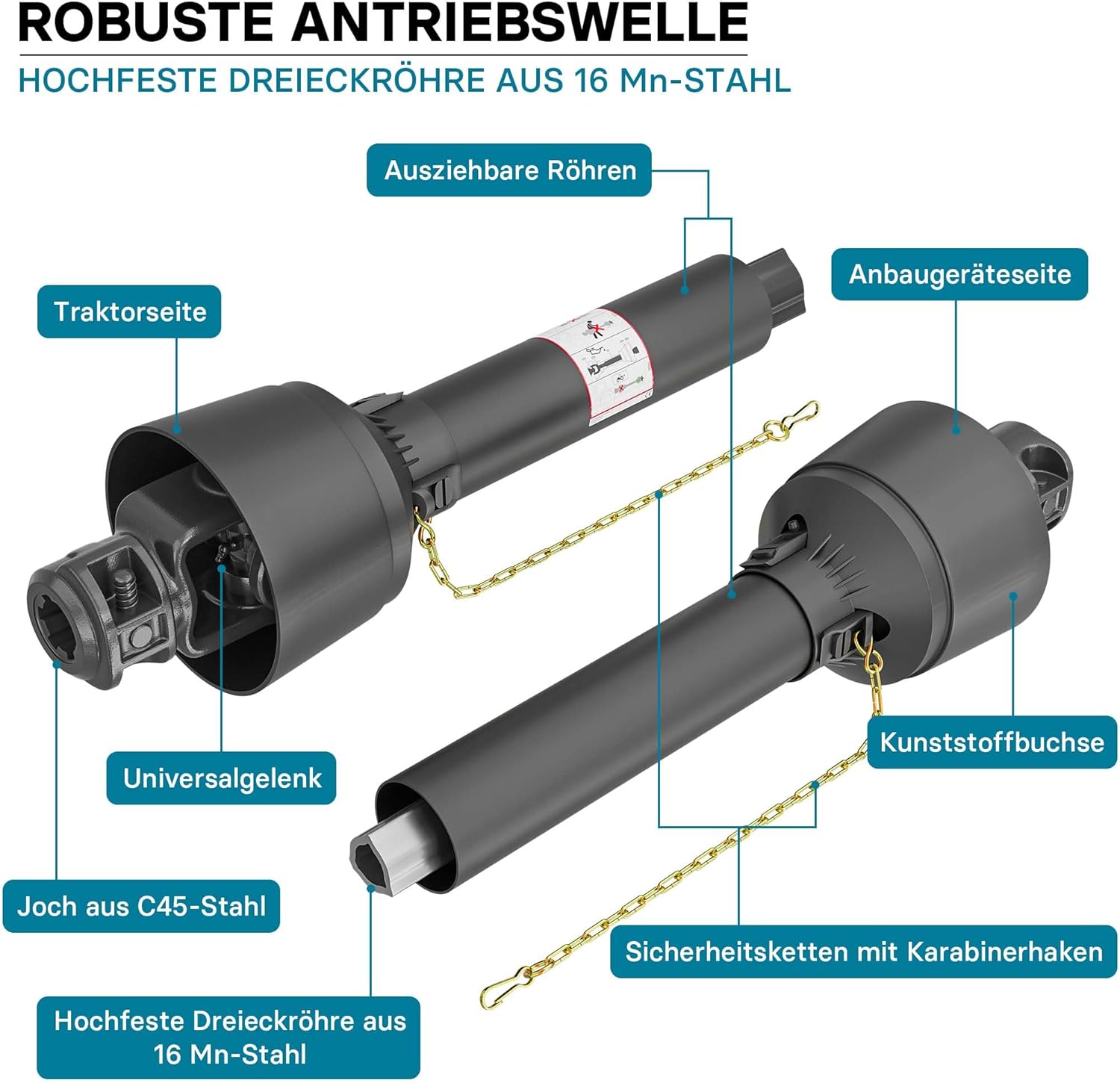

Rysunek 2: Eksplodowany view diagram of the WilTec T5 PTO Shaft, labeling key components such as the universal joint, C45-steel yoke, plastic bushing, high-strength triangular tube, and safety chains.

Kluczowe elementy obejmują:

• Universal Joint: Allows for angular misalignment between the tractor and implement.
• Yoke (C45-Steel): Connects the PTO shaft to the tractor and implement. Made from durable C45-steel.
• High-Strength Triangular Tube: The main shaft body, designed for robust power transfer.
• Plastic Bushing: Provides smooth operation and protection.
• Safety Chains with Carabiner Hooks: Essential for securing the PTO shaft and preventing accidental detachment.

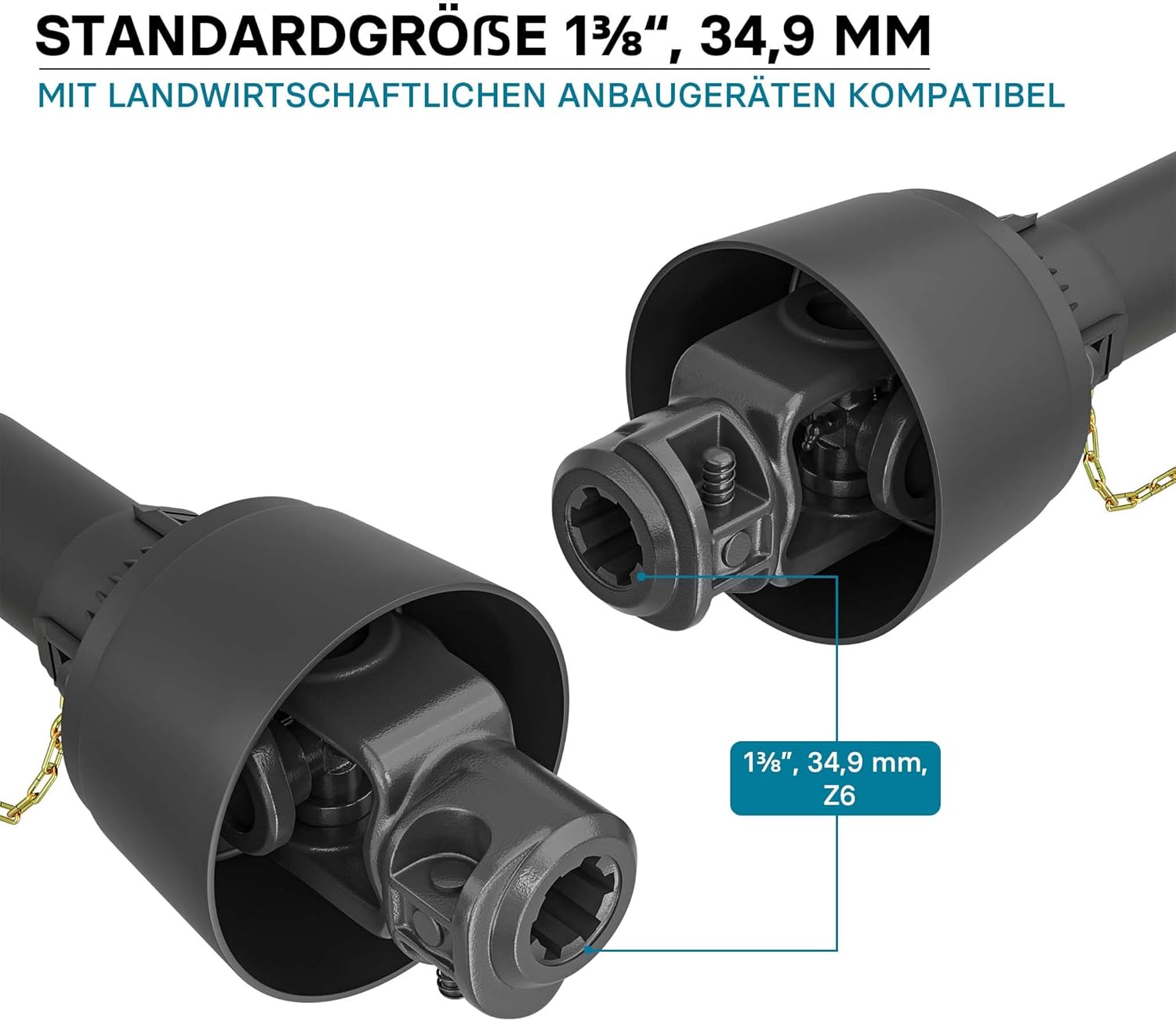

Rysunek 3: Zbliżenie view of the WilTec T5 PTO Shaft's yoke, showing the standard size of 1⅜ inches (34.9 mm) with Z6 teeth, compatible with agricultural implements.

4. Instrukcja instalacji

Proper installation is crucial for the safe and efficient operation of your PTO shaft. Follow these steps carefully.

Figure 4: Six-step visual guide for the easy installation of the WilTec T5 PTO Shaft.

1. Step 1: Remove Pins. Carefully remove the three pins that secure the bearings.
2. Step 2: Determine Required Length. Measure the distance between the tractor's PTO stub and the implement's input shaft. The PTO shaft should be able to operate at its shortest and longest working positions without binding or separating.
3. Step 3: Shorten Tubes to Required Length. If the PTO shaft is too long, cut the outer and inner tubes to the appropriate length. Ensure both ends are cut evenly.
4. Step 4: Deburr with File. After cutting, use a file to deburr all cut edges to prevent injury and ensure smooth operation.
5. Step 5: Shorten Inner Plastic Tube. Cut the inner plastic tube to match the shortened metal tubes.
6. Step 6: Reassemble PTO Shaft. Reassemble the PTO shaft, ensuring all components are correctly aligned and secured. Reinsert the pins to hold the bearings.

Ważny: A PTO shaft that is too short can disconnect during operation, while one that is too long can cause damage to the tractor or implement when the suspension moves or during turns. Always verify the length carefully.

5. Wytyczne działania

Operating the PTO shaft correctly ensures optimal performance and safety for your agricultural tasks.

Figure 5: WilTec T5 PTO Shaft in operation with an agricultural implement.

• Dopasowanie mocy: Ensure the PTO shaft's power rating (kW/HP and Nm) is appropriate for the implement's requirements. The stated power data is valid for a diffraction angle of 5° for standard joints.
• RPM Matching: The PTO shaft's operating speed (RPM) should match the speed required by the attachment (typically 540 rpm or 1000 rpm). Note that the power output depends on the speed.
• Typ jarzma: Verify that the yoke type (e.g., 1 3/8 inch, 6 teeth) on both the tractor and implement sides matches the PTO shaft.
• Kąt działania: Avoid operating the PTO shaft at extreme angles. High operating angles increase wear and reduce the shaft's lifespan.
• Płynne zaangażowanie: Engage the PTO smoothly to prevent shock loads on the shaft and connected equipment.
• Rozłączenie: Always disengage the PTO before making turns, stopping, or leaving the tractor.

Figure 6: PTO Shaft for Tractor Attachment, showing length and power specifications.

6. Konserwacja

Regular maintenance is essential to ensure the longevity and safe operation of your WilTec T5 PTO Shaft.

• Smarowanie: The output data of the PTO shaft in kW (HP) and Nm refers to an average service life of approximately 1000 hours, taking into account required lubrication intervals. Lubricate all grease points (universal joints, telescoping tubes) regularly as specified by the manufacturer of the PTO shaft and your equipment.
• Kontrola: Periodically inspect the PTO shaft for signs of wear, damage, or corrosion. Check for loose bolts, worn bearings, or damaged shields.
• Czystość: Keep the PTO shaft clean and free from dirt, debris, and crop residue.
• Shield Condition: Ensure all protective shields are intact and securely fastened. Replace any damaged shields immediately.

7. Rozwiązywanie Problemów

W tej sekcji znajdują się ogólne wskazówki dotyczące typowych problemów. W przypadku skomplikowanych problemów należy skonsultować się z wykwalifikowanym technikiem.

• Wibracja: Excessive vibration can indicate an imbalance, worn universal joints, or incorrect operating angle. Inspect the shaft for damage and ensure proper alignment.
• Hałas: Unusual noises may suggest a lack of lubrication, worn bearings, or internal damage. Disengage the PTO and inspect the shaft.
• Przegrzanie: Overheating can be caused by insufficient lubrication, excessive operating angles, or continuous operation at maximum load. Ensure proper lubrication and check operating conditions.
• Odłączenie: If the PTO shaft disconnects, it may be too short for the application or not properly secured. Re-evaluate the shaft length and ensure secure attachment.

8. Specyfikacje

Detailed technical specifications for the WilTec T5 PTO Shaft.

Figure 7: Product Dimensions, showing collapsed and extended lengths.

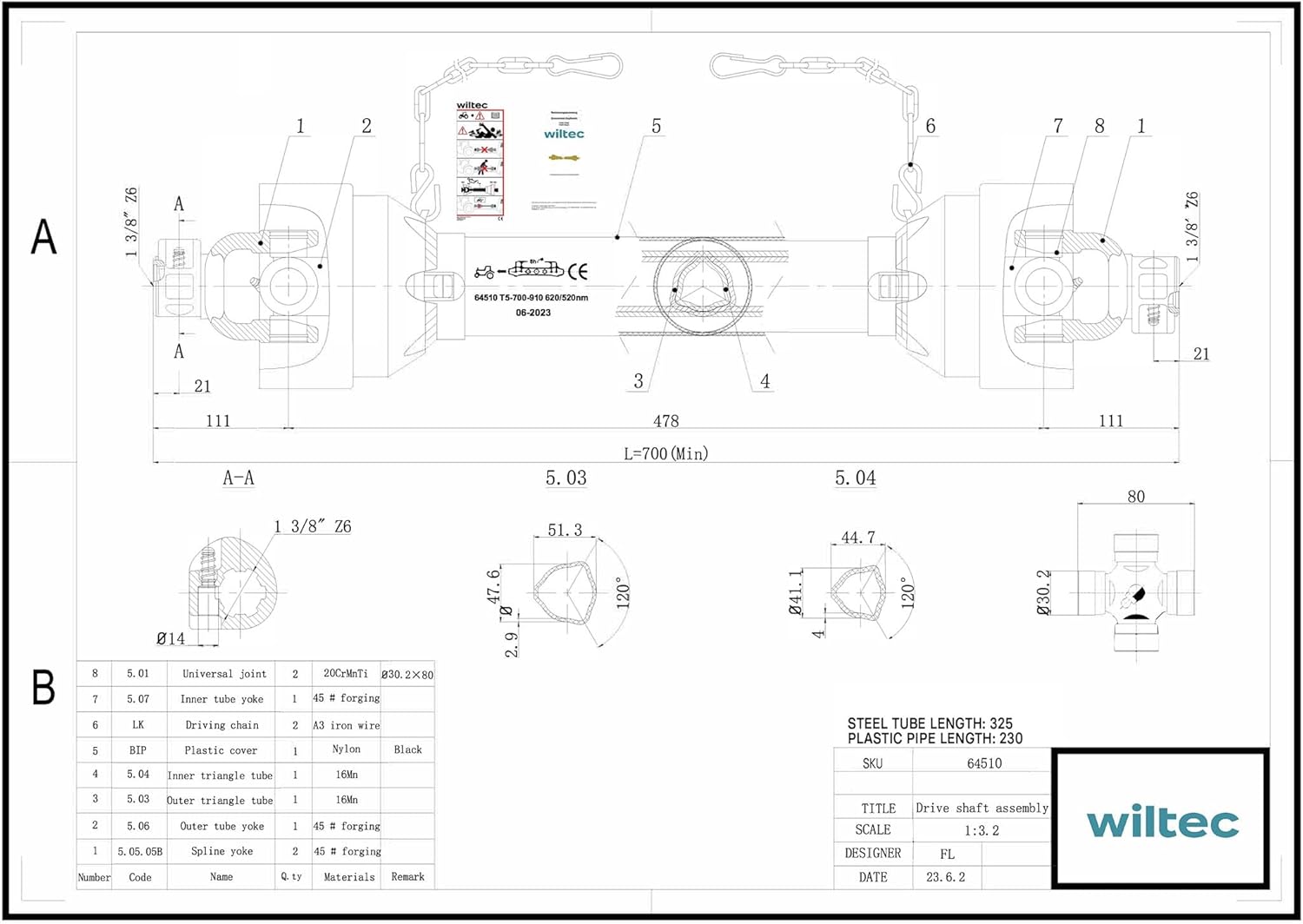

Figure 8: Detailed technical drawing with dimensions and parts list.

9. Gwarancja i wsparcie

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official WilTec webZachowaj paragon jako dowód zakupu.
