ACEBEAM Defender P17 Tactical Flashlight

Wstęp

The ACEBEAM Defender P17 is a high-performance tactical flashlight designed for various applications, including law enforcement, security, and outdoor activities. It features a powerful CREE XHP70.3 HI LED, dual tail switches for intuitive control, and a robust, waterproof design. This manual provides essential information for the proper setup, operation, and maintenance of your Defender P17 flashlight.

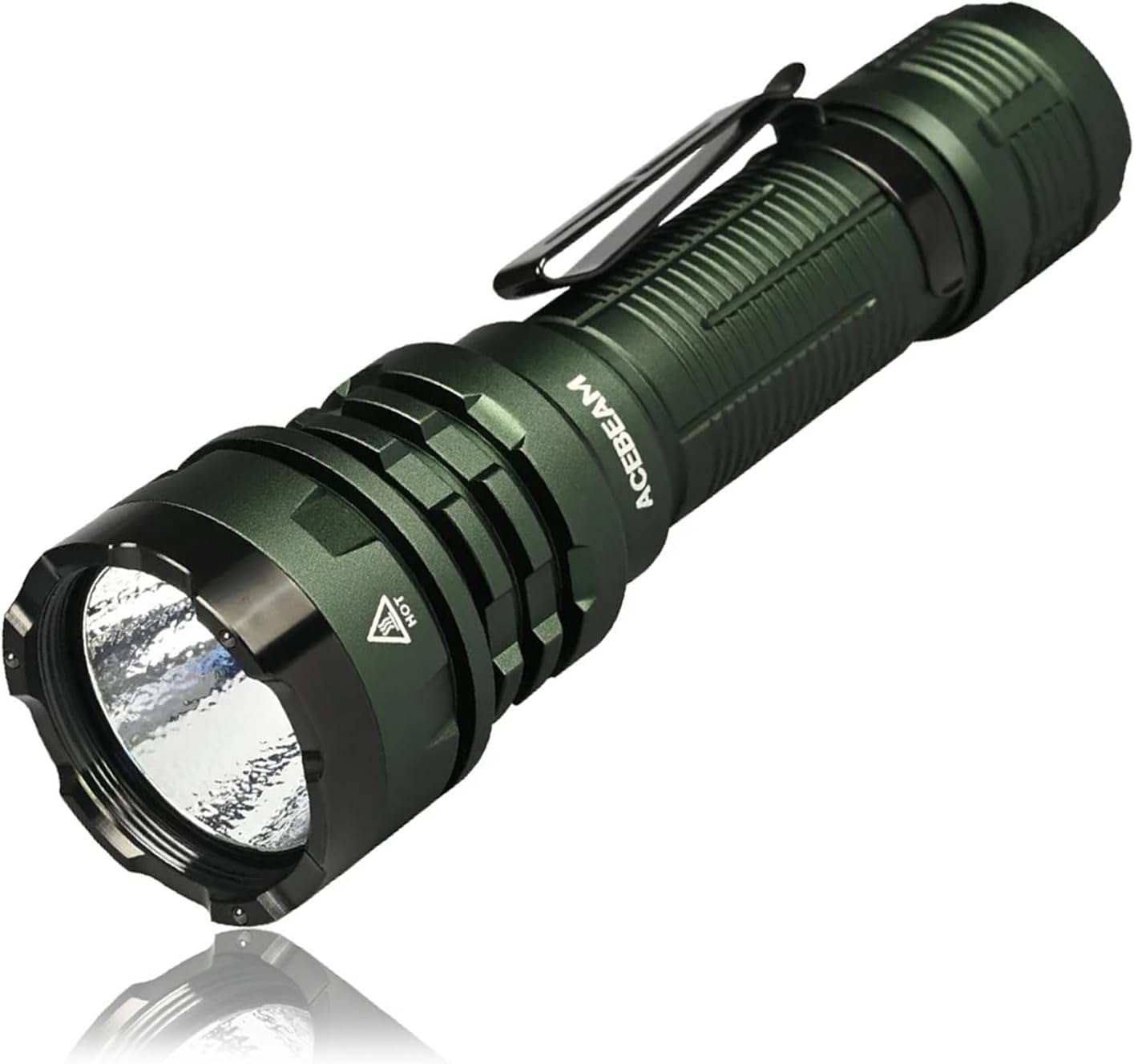

Figure 1: ACEBEAM Defender P17 Tactical Flashlight in Dark Green.

Organizować coś

1. Instalacja baterii

The Defender P17 uses one Acebeam 5100mAh rechargeable battery. Before first use, ensure the insulating film is removed from the battery. Unscrew the tail cap, insert the battery with the positive (+) end facing towards the head of the flashlight, and then securely screw the tail cap back on.

Figure 2: Diagram illustrating battery installation and removal of insulating film.

2. Ładowanie akumulatora

The included Acebeam 5100mAh battery has a built-in USB Type-C port for convenient charging. Connect the USB Type-C charging cable to the battery and a compatible USB power source. The battery features an indicator light: red for charging and green for fully charged.

Instrukcja obsługi

1. Dual Tail Switch Operation

The Defender P17 features intuitive dual tail switches for easy access to different settings: Tactical Mode, Daily Mode, and Special Mode.

• Przełącznik taktyczny: Provides momentary-on function.
• Functional Switch: Offers instant strobe, instant ultra-low, and instant high modes.

Figure 3: Illustration of the dual tail switch functionality.

2. Light Modes and Output

The flashlight offers multiple output levels and specialized modes to suit various needs. Refer to the table below for detailed specifications on each mode.

Figure 4: Detailed table of Daily, Tactical, and Special Operation Modes.

3. Tactical Features

The Defender P17 is equipped with a stainless steel bezel featuring 3 silicon nitride ceramic beads. These beads are designed for emergency glass shattering, providing an essential tool in critical situations.

Rysunek 5: Zbliżenie view of the stainless steel bezel with integrated ceramic beads.

The flashlight's compact size and stylish grip design ensure a comfortable and secure hold, even in challenging conditions, making it ideal for tactical use.

Rysunek 6: Example of the flashlight's ergonomic design for tactical applications.

Konserwacja

1. Wodoodporność

The Defender P17 is IP68 rated, meaning it is waterproof and submersible up to 2 meters. It is also impact resistant up to 1.5 meters. To maintain its waterproof integrity, ensure all O-rings are properly seated and lubricated, and the tail cap is securely tightened before exposure to water.

Figure 7: The Defender P17 submerged, highlighting its IP68 waterproof rating.

2. Ogólna opieka

• Wyczyść obiektyw miękką, czystą szmatką.
• Periodically inspect and lubricate the O-rings to ensure water resistance.
• Przechowuj latarkę w chłodnym i suchym miejscu, jeśli nie używasz jej przez dłuższy czas.

Rozwiązywanie problemów

Typowe problemy i rozwiązania:

• Latarka się nie włącza:
  • Ensure the battery's insulating film has been removed.
  • Sprawdź, czy bateria jest w pełni naładowana.
  • Sprawdź, czy bateria została włożona z zachowaniem prawidłowej polaryzacji.
  • Sprawdź, czy nakrętka tylna jest mocno dokręcona.
• Słabe lub migoczące światło:
  • Bateria może być słaba; naładuj ją.
  • Wyczyść styki baterii i gwinty latarki.

If you encounter issues not listed here or if the problem persists, please contact ACEBEAM customer support for assistance.

Specyfikacje

Below are the detailed technical parameters for the ACEBEAM Defender P17 Tactical Flashlight.

Figure 8: Visual representation of technical parameters including lumen output and runtime for various modes.

Co jest w pudełku

• 1 x Defender P17 Flashlight
• 1 x Acebeam 5100mAh Rechargeable Battery (Built-in USB Type-C Port)
• Kabel ładujący 1 x USB Type-C
• 2 x zapasowe o-ringi
• 1 x Instrukcja obsługi
• 1 x Karta gwarancyjna

Figure 9: Contents included in the ACEBEAM Defender P17 package.

Gwarancja i wsparcie

ACEBEAM products are covered by a manufacturer's warranty. Please refer to the included Warranty Card for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact ACEBEAM customer service through their official webwitrynę lub sprzedawcę, u którego zakupiono produkt.
