1. Koniec produktuview
This manual provides essential information for the installation, operation, and maintenance of your GTW 12 Inch Golf Cart Wheels and Tires Combo. This set includes four GTW Stellar Chrome Aluminum Wheels paired with GTW Mamba Street Tires, designed for golf cart applications.

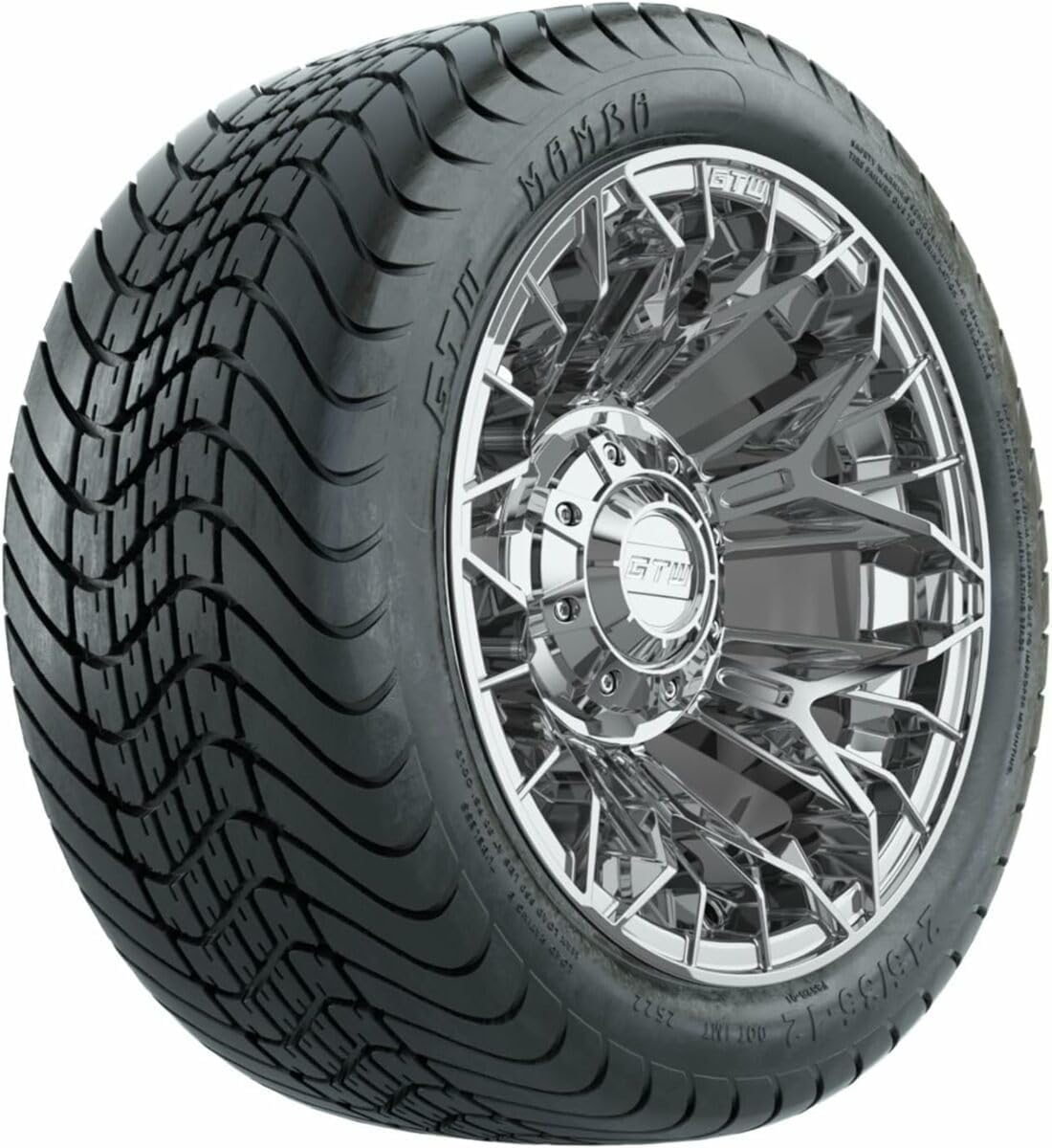

Obraz 1.1: Pod kątem view of the GTW 12 Inch Golf Cart Wheel and Tire Combo.
Image 1.2: A golf cart featuring GTW wheels and tires, demonstrating typical application.
2. Konfiguracja i instalacja
Your GTW wheel and tire combo ships fully mounted and inflated, ready for installation. However, it is crucial to perform a pre-installation check.
2.1 Kontrola przed instalacją
- Sprawdź opakowanie: Ensure all four wheel and tire assemblies are present and undamaged.
- Sprawdź ciśnienie w oponach: Verify the tire pressure of each tire using a reliable gauge. Adjust to the recommended PSI as indicated on the tire sidewall or in your golf cart's manual.
- Verify Bolt Pattern: Confirm your golf cart's bolt pattern is 4-4 (4x101.6mm) for compatibility.
- Lug Nuts: Note that lug nuts are sold separately and are not included with this combo. Ensure you have the correct lug nuts for your golf cart.
2.2 Kroki instalacji
- Prepare Golf Cart: Park the golf cart on a level surface, engage the parking brake, and block the wheels that will remain on the ground.
- Lift Golf Cart: Safely lift the golf cart using a jack and support it with jack stands. Never work under a vehicle supported only by a jack.
- Usuń istniejące koła: Loosen and remove the lug nuts from the existing wheels, then carefully remove the wheels.
- Montaż nowych kół: Mount the GTW wheel and tire combo onto the wheel studs. Ensure the wheel sits flush against the hub.
- Secure with Lug Nuts: Install your lug nuts and hand-tighten them.
- Lower Golf Cart: Carefully lower the golf cart until the tires just touch the ground, but the full weight is not yet on them.
- Ostateczne dokręcanie: Using a torque wrench, tighten the lug nuts in a star pattern to the manufacturer's recommended torque specifications for your golf cart.
- Pełne obniżenie: Fully lower the golf cart and remove the jack and jack stands.
- Kontrola po instalacji: Re-check tire pressure and lug nut torque after the first 50 miles of operation.
Important Note for Club Car Precedent Models: These models may require a low-profile spacer or lift kit to accommodate this wheel and tire combo without rubbing.
Obraz 2.1: Zbliżenie view of a GTW wheel and tire installed on a golf cart.
3. Wytyczne operacyjne
The GTW Mamba Street Tires are designed to provide a smooth ride and reliable traction on various surfaces, including grass and pavement.
3.1 Tire Characteristics
- Płynna jazda: The tire design contributes to a comfortable driving experience.
- Reliable Traction: Engineered for consistent grip on both street and turf conditions.
- Trwała konstrukcja: Features a strong 4-ply construction for longevity.
Image 3.1: Illustration of GTW Mamba Street Tire features, highlighting tread pattern benefits.
4. Konserwacja
Regular maintenance ensures the longevity and optimal performance of your GTW wheels and tires.
4.1 Konserwacja opon
- Ciśnienie w oponach: Check tire pressure monthly and before extended use. Maintain the PSI recommended on the tire sidewall. Proper inflation is critical for safety, ride comfort, and tire life.
- Kontrola opon: Regularly inspect tires for signs of wear, cuts, punctures, or bulges. Remove any embedded objects. Uneven wear patterns may indicate alignment issues or improper inflation.
- Czyszczenie: Opony należy czyścić łagodnym mydłem i wodą. Unikaj agresywnych środków chemicznych, które mogą uszkodzić gumę.
4.2 Wheel Maintenance
- Czyszczenie: Clean chrome wheels regularly with a non-abrasive wheel cleaner and a soft cloth to prevent corrosion and maintain their finish. Rinse thoroughly with water.
- Lug Nuts: Periodically check that lug nuts remain properly torqued, especially after the initial installation period.

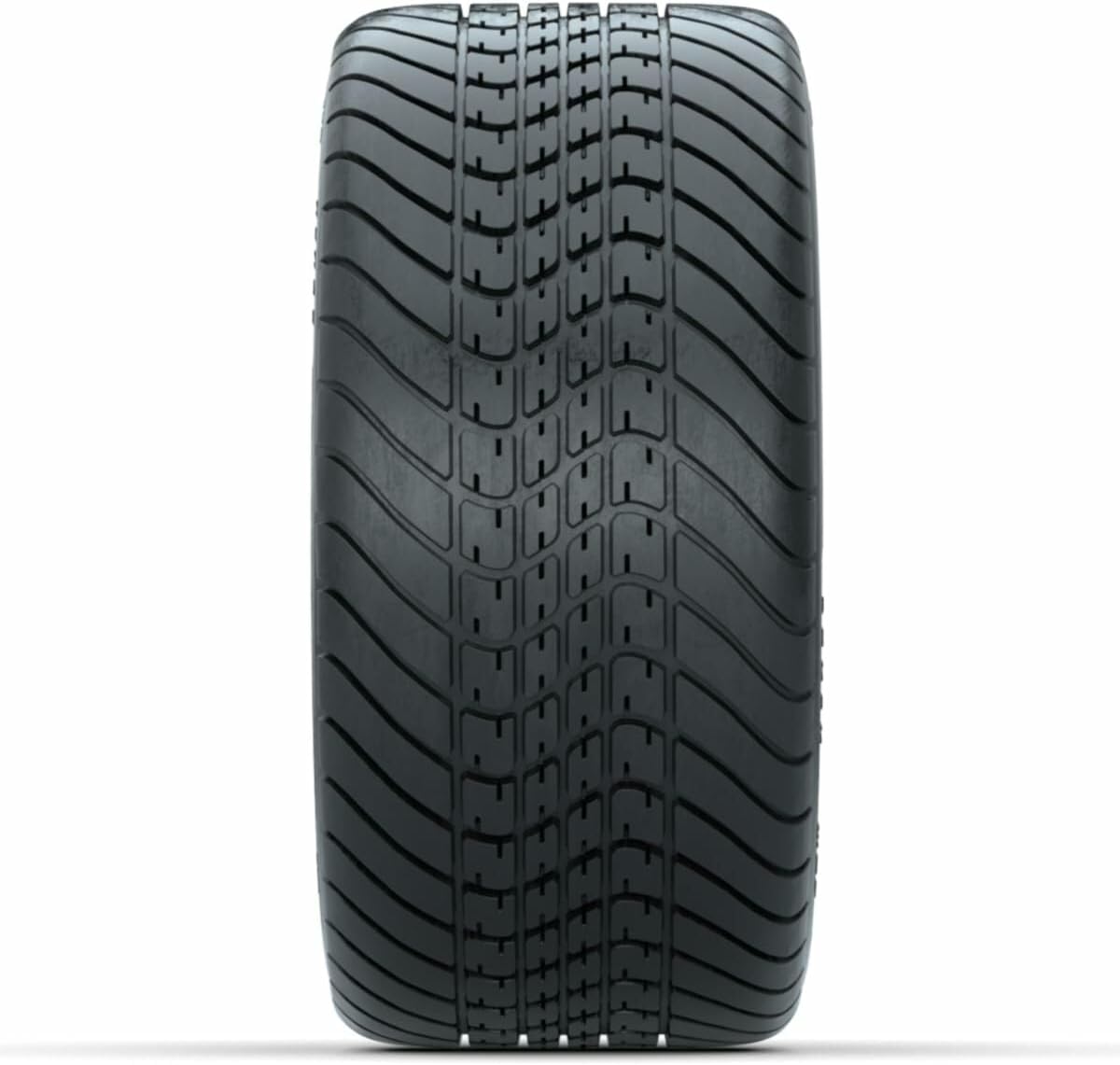

Obraz 4.1: Widok z góry na dół view of the GTW Mamba Street Tire tread pattern, designed for optimal contact.
5. Rozwiązywanie Problemów
This section addresses common issues you might encounter with your wheel and tire combo.
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Nierównomierne zużycie opon | Improper tire pressure, misaligned suspension, worn suspension components. | Check and adjust tire pressure. Have golf cart alignment inspected by a professional. |
| Wibracje lub drgania | Unbalanced wheels, loose lug nuts, damaged wheel or tire. | Ensure lug nuts are torqued correctly. Have wheels balanced. Inspect for damage. |
| Tire Losing Air | Puncture, leaky valve stem, bead leak, damaged rim. | Inspect tire for punctures. Check valve stem. Seek professional repair or replacement. |
| Wheel Rubbing | Incorrect offset, insufficient clearance (especially for Club Car Precedent). | Verify compatibility. For Club Car Precedent, a low-profile spacer or lift kit may be required. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact GTW customer support or a qualified golf cart technician.
6. Specyfikacje
| Funkcja | Specyfikacja |
|---|---|
| Marka | GTW |
| Numer modelu | A19-772 |
| Rozmiar koła | 12 cali |
| Szerokość obręczy | 7 cali |
| Wheel Offset | 3:4 |
| Materiał koła | Aluminium |
| Wheel Color | Chrom |
| Rozmiar opony | 215/35-12 (18" tall) |
| Typ opony | Mamba Street Tires |
| Tire Construction | 4-warstwowy |
| Overall Tire Diameter | 18 cali |
| Tire Section Width | 8.5 cali |
| Tire Aspect Ratio | 35% |
| Indeks nośności | 66.00 |
| Ocena prędkości | B |
| Wzór śrub | 4-4 (4x101.6mm) |
| Typ serwisu pojazdu | Wózek golfowy |
| Item Weight (Set of 4) | 100 funta |
| UPC | 723537676578, 841417187942 |
7. Gwarancja i wsparcie
For specific warranty information regarding your GTW 12 Inch Golf Cart Wheels and Tires Combo, please refer to the documentation provided at the time of purchase or contact GTW directly. Warranty terms and conditions may vary.
For product support, technical assistance, or to inquire about replacement parts, please contact:
- GTW Customer Service: Refer to the official GTW webstrona dla danych kontaktowych.
- Wsparcie sprzedawcy: Contact PERFORMANCE PLUS, the seller of this product, for assistance related to your purchase.
You can also visit the official GTW brand store for more information: GTW Brand Store
