Instrukcja obsługi składanego wózka sklepowego COSTWAY

1. Wprowadzenie

Thank you for choosing the COSTWAY Folding Shopping Cart. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new utility cart. Please read all instructions carefully before use and retain this manual for future reference.

This portable cart is designed to assist with transporting groceries, laundry, and other items, featuring a sturdy metal frame, smooth-rolling wheels, and a removable waterproof Oxford cloth liner.

2. Informacje dotyczące bezpieczeństwa

• Nośność: Do not exceed the maximum weight capacity of 120 lbs (54 kg). Overloading can cause damage to the cart and potential injury.
• Montaż: Ensure all components are correctly assembled and securely fastened before using the cart.
• Mechanizm składania: Keep hands and fingers clear of the folding and unfolding mechanisms to prevent pinching.
• Stabilność: Always place items evenly in the cart to maintain balance and prevent tipping.
• Zastosowanie powierzchniowe: While designed for various surfaces, exercise caution on uneven terrain, stairs, or inclines.
• Dzieci: This product is not a toy. Do not allow children to play with or ride in the cart.
• Konserwacja: Regularly inspect the cart for any signs of wear or damage. Do not use if damaged.

3. Zawartość opakowania

Przed rozpoczęciem montażu należy sprawdzić, czy wszystkie części są obecne:

• 1 x Folding Shopping Cart Frame with pre-attached rear wheels and liner
• 2 x Front Swivel Wheels
• 1 x Instrukcja obsługi (ten dokument)

4. Montaż i konfiguracja

The COSTWAY Folding Shopping Cart is 95% pre-assembled. Only the two front wheels require attachment.

1. Unfold the Cart Frame: Gently pull the cart frame apart until it locks into its open position.
2. Zamontuj koła przednie: Locate the two front wheel sockets at the bottom front of the cart frame. Insert the stem of each front swivel wheel into a socket until it clicks securely into place. Ensure both wheels are firmly attached and can rotate freely.
3. Sprawdź stabilność: Once the front wheels are attached, gently push and pull the cart to ensure all four wheels are stable and the frame is fully extended.

5. Instrukcja obsługi

5.1 Unfolding the Cart

To unfold the cart from its compact storage position, grasp the handle and gently pull the frame outwards until it fully extends and locks into place. Ensure all four support bars are securely engaged.

5.2 Using the Removable Liner

The cart features a waterproof Oxford cloth liner. This liner can be easily removed for cleaning or to access items. It also includes a fitted cover to protect contents and ensure privacy. To remove, unhook the liner from the top edges of the frame. To re-attach, align the liner with the frame and secure its loops over the frame's top bars.

5.3 Transporting Items

Place items evenly inside the liner, ensuring the total weight does not exceed 120 lbs. Use the ergonomic handle to push or pull the cart. The two universal front wheels provide 360-degree rotation for easy maneuverability, while the fixed rear wheels offer stability.

6. Konserwacja

• Cleaning the Liner: The Oxford cloth liner is removable and washable. Hand wash with mild soap and water, then air dry. Do not bleach or tumble dry.
• Czyszczenie ramy: Wytrzyj metalową ramę reklamąamp cloth and mild detergent if necessary. Dry thoroughly to prevent rust.
• Kontrola kół: Periodically check the wheels for debris, hair, or other obstructions that may hinder smooth movement. Ensure all wheels are securely attached.
• Składowanie: Store the cart in a clean, dry place away from direct sunlight and extreme temperatures.

7. Przechowywanie

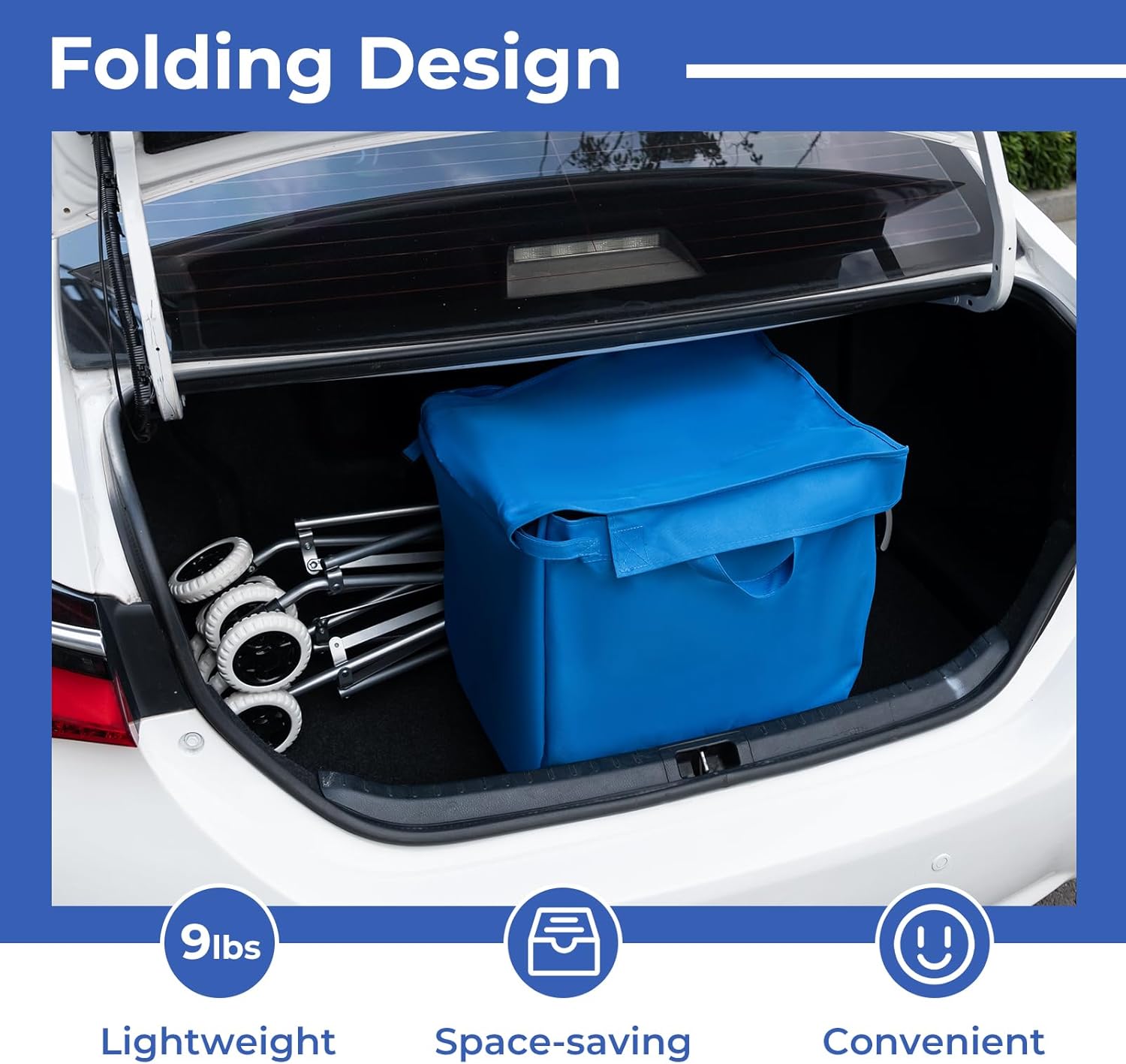

The cart features a convenient folding design for compact storage.

1. Empty the Cart: Remove all contents from the liner.
2. Złóż ramkę: Locate the folding release mechanisms (usually levers or buttons) on the frame. Engage these mechanisms and gently push the sides of the cart inwards until it collapses into its folded position.
3. Bezpieczny: Ensure the cart is fully folded and any locking clips are engaged to prevent accidental unfolding.

The folded dimensions are approximately 8"L x 10"W x 43"H, allowing it to be stored in small spaces, such as a car trunk or closet corner.

8. Rozwiązywanie Problemów

• Cart not unfolding/folding smoothly: Check for any obstructions in the folding mechanism. Ensure the frame is clean and free of debris. Apply a small amount of silicone lubricant to moving parts if necessary.
• Koła nie toczą się płynnie: Inspect wheels for tangled hair, string, or other debris. Clean the wheel axles. Ensure the front wheels are fully inserted and locked into their sockets.
• Wózek wydaje się niestabilny: Verify that the cart frame is fully extended and locked into place. Ensure items are distributed evenly within the liner and the weight limit is not exceeded.

9. Specyfikacje

10. Gwarancja i wsparcie

For warranty information, product support, or to inquire about replacement parts, please contact COSTWAY customer service. Refer to your purchase documentation for specific contact details or visit the official COSTWAY webstrona.
