Moen Greenfield 4325BN Diverter Tub Spout

Wstęp

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Moen Greenfield 4325BN Brushed Nickel Diverter Tub Spout. Please read all instructions carefully before beginning installation to ensure proper function and to avoid damage.

The Moen Greenfield diverter tub spout is designed to complement the Greenfield bathroom collection, featuring a brushed nickel finish and a convenient diverter mechanism for directing water flow.

Główne cechy

• Skończyć: Nikiel szczotkowany, oferujący ciepły, szary, metaliczny wygląd.
• Funkcja odgałęzienia: Includes a lift rod to switch water flow between the tub spout and a showerhead.
• Typ połączenia: 1/2-inch slip fit connection for easy installation.
• Długość: 7-3/8 inch length.
• Projekt: Features unique beveled edges, coordinating with the Greenfield Collection.
• Trwałość: Built to last and backed by Moen’s Limited Lifetime Warranty.

Zawartość opakowania

Przed rozpoczęciem instalacji sprawdź, czy wszystkie komponenty są obecne:

• Diverter Tub Spout (Model 4325BN)
• Instrukcje instalacji (ten dokument)

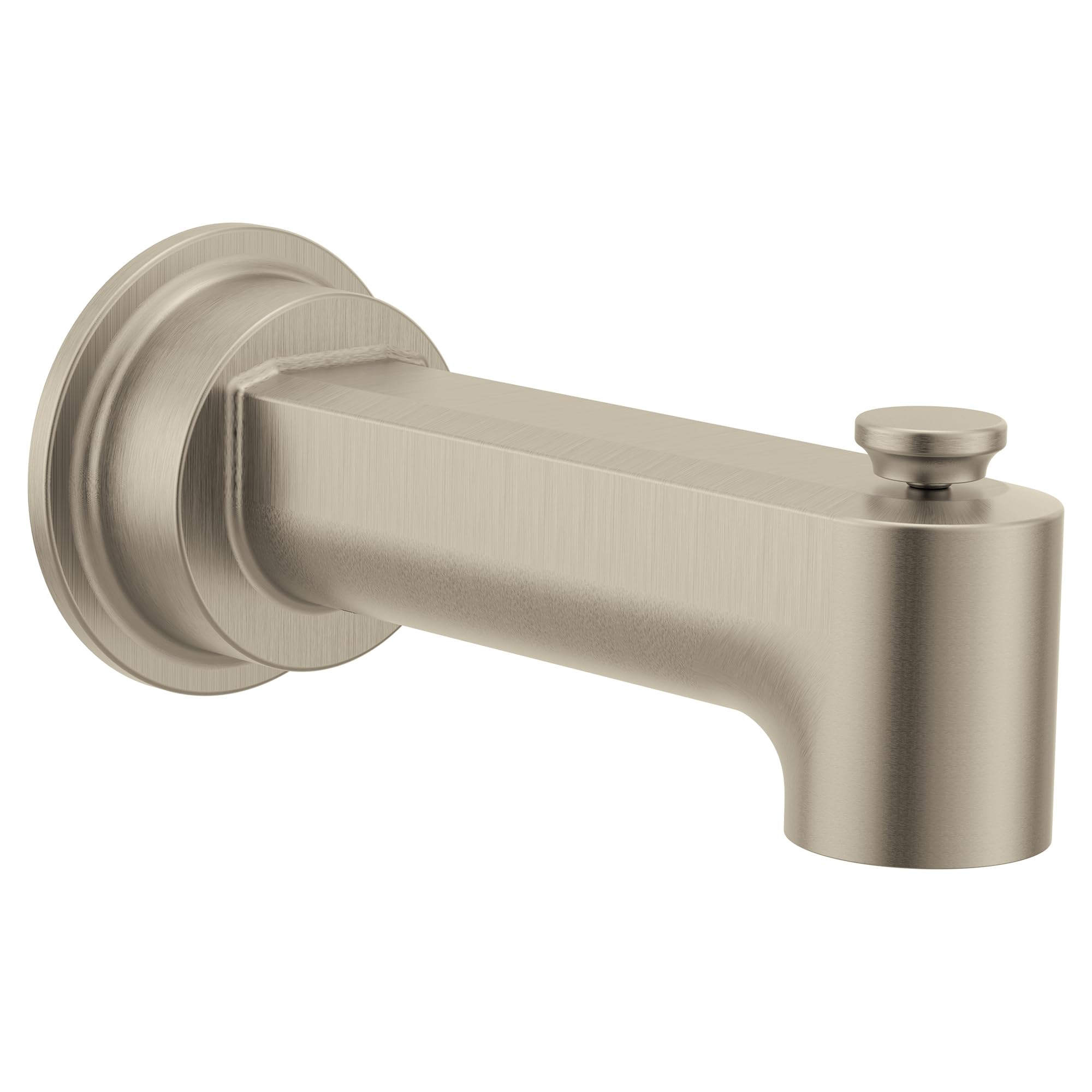

Image 1: Moen Greenfield 4325BN Brushed Nickel Diverter Tub Spout. This image displays the complete tub spout in its brushed nickel finish, highlighting its design and the integrated diverter lift rod.

Instrukcje instalacji

This tub spout utilizes a 1/2-inch slip-fit connection. Ensure your existing plumbing is compatible with this connection type.

Image 2: Tub Spout Connection Types. This diagram illustrates the difference between IPS (threaded) and CC (slip fit) connections. The Moen 4325BN uses a CC (Slip Fit) connection, which requires a 5/32" hex wrench to secure the tub spout to the pipe.

Wymagane narzędzia:

• 5/32-inch Hex Wrench (Allen Key)
• Plumber's Tape (optional, for threaded connections if applicable)
• Miękka tkanina

Kroki instalacji:

1. Przygotuj obszar: Ensure the water supply to the tub is turned off. Remove any existing tub spout. Clean the pipe extending from the wall.
2. Inspect the Pipe: The pipe extending from the wall should be approximately 1/2-inch in diameter and extend out 3/4 to 1 inch from the finished wall surface for optimal slip-fit connection.
3. Montaż wylewki: Slide the new Moen Greenfield tub spout onto the pipe. Ensure it is pushed firmly against the wall.
4. Secure the Spout: Locate the set screw on the underside of the tub spout, near the wall. Use a 5/32-inch hex wrench to tighten this set screw. Do not overtighten, but ensure it is snug to prevent the spout from rotating or pulling away from the wall.
5. Test szczelności: Turn the water supply back on. Run water through the tub spout and check for any leaks around the connection point. If leaks occur, turn off the water, slightly adjust the spout, and re-tighten the set screw.

Instrukcja obsługi

The Moen Greenfield 4325BN tub spout features a diverter for directing water flow.

• Tub Fill: To fill the tub, ensure the diverter lift rod is in the down position. Water will flow directly from the tub spout.
• Tryb prysznica: To divert water to the showerhead, pull the lift rod on top of the tub spout upwards. Water will then flow from the showerhead. Push the lift rod back down to return water flow to the tub spout.

Konserwacja i czyszczenie

To maintain the finish and performance of your Moen Greenfield tub spout, follow these guidelines:

• Regularne czyszczenie: Regularnie czyść dzióbek miękką,amp płótno.
• Unikaj silnych środków czyszczących: Do not use abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the brushed nickel finish.
• Łagodny roztwór mydła: For more thorough cleaning, use a mild soap solution and rinse thoroughly with water, then dry with a soft cloth.
• Prevent Water Spots: Wipe the spout dry after each use to prevent water spots and mineral buildup.

Rozwiązywanie problemów

If you encounter issues with your tub spout, refer to the following common solutions:

• Niski przepływ wody: Check for obstructions in the spout or aerator (if applicable). Ensure the main water supply is fully open.
• Wyciek z wylewki: If water drips from the spout when the diverter is engaged, the diverter mechanism may need cleaning or replacement. For leaks at the wall connection, ensure the set screw is tightened correctly and the pipe is properly seated.
• Diverter Not Engaging: If the diverter lift rod does not fully engage or disengage, check for mineral buildup or obstructions. Clean the mechanism if necessary.
• Spout Loose: Re-tighten the set screw on the underside of the spout using a 5/32-inch hex wrench.

For persistent issues, contact Moen customer support or a qualified plumber.

Specyfikacje

Gwarancja i wsparcie

This Moen product is backed by Moen’s Limited Lifetime Warranty. For detailed warranty information, please refer to the official Moen webodwiedź witrynę lub skontaktuj się z obsługą klienta Moen.

For technical assistance, replacement parts, or warranty claims, please contact Moen Incorporated directly:

• Producent: Moen Incorporated
• Webstrona: www.moen.com
• Obsługa klienta: Odnieś się do Moen webAktualne dane kontaktowe znajdują się na stronie.
