Instrukcja obsługi zestawu przełączników CHERRY MX Black Clear TOP

Produkt ponadview

The CHERRY MX Black Clear TOP Switch Kit provides 23 mechanical keyboard switches designed for DIY, hot-swap, or gaming keyboards. These switches are linear, offering a direct and powerful keystroke without an audible click. Manufactured with high-quality German engineering, they are built for durability and precise performance.

Image: The CHERRY MX Black Clear TOP Switch Kit, showing the packaging and the 23 individual switches.

Główne cechy obejmują:

• Linear Switching: Provides a smooth, consistent keystroke without a tactile bump or audible click.
• Optimal Operating Force: Features a 63.5 cN operating force for a balanced feel.
• Trwała konstrukcja: Equipped with CHERRY gold crosspoint contacts, ensuring resistance to dirt and dust, and a lifespan of over 50 million keystrokes.
• Inżynieria niemiecka: Developed and manufactured in Germany, guaranteeing high quality and precision.
• Convenient Packaging: Switches are securely packaged in a pure cardboard box to prevent pin bending and reduce waste.

Konfiguracja i instalacja

This kit is designed for users who wish to customize or repair mechanical keyboards, particularly those with hot-swappable sockets. Ensure your keyboard is compatible with 3-pin or 5-pin MX-style switches before proceeding.

Kroki instalacji:

1. Przygotowanie: Power off your keyboard and disconnect it from your computer. If replacing existing switches, carefully remove the keycaps using a keycap puller.
2. Switch Removal (for replacement): For hot-swappable keyboards, use a switch puller tool to gently unclip and remove the old switches. For soldered keyboards, desoldering will be required (professional installation recommended).
3. Inspect New Switches: Before installation, carefully inspect each CHERRY MX Black Clear TOP switch for any bent pins. If a pin is slightly bent, you can gently straighten it with fine-nose pliers.
4. Insert New Switches: Align the pins of the new switch with the holes on the keyboard's PCB (Printed Circuit Board). Apply gentle, even pressure until the switch clicks into place. Ensure the switch is fully seated and flush with the plate.
5. Funkcjonalność testu: Reconnect your keyboard and test each newly installed switch to ensure it registers correctly.
6. Reattach Keycaps: Once all switches are installed and tested, reattach the keycaps.

Image: A CHERRY MX switch being inserted into a mechanical keyboard, demonstrating the installation process for hot-swappable keyboards.

Obraz: Zbliżenie view of a hand pressing a CHERRY MX switch into a keyboard plate, illustrating the final step of switch installation.

Parametry pracy

The CHERRY MX Black Clear TOP switches are characterized by their linear actuation, meaning the force required to press the key remains consistent throughout the keystroke. There is no tactile bump or audible click, providing a smooth and quiet typing or gaming experience.

• Typ przełącznika: Liniowy
• Siła operacyjna: 63.5 cN (centinewtons)
• Pre Travel: 2.0 mm (distance to actuation point)
• Łączna liczba podróży: 4.0 mm (total distance key can be pressed)
• Dźwięk Profile: Silent (no click)

Image: A user's hand typing on a mechanical keyboard, demonstrating typical use of the switches.

These characteristics make the MX Black Clear TOP switches suitable for users who prefer a direct and consistent feel, often favored in gaming for rapid, repeated key presses, or for typing environments where quiet operation is desired.

Konserwacja i pielęgnacja

CHERRY MX switches are designed for long-term durability. With proper care, your switches will maintain their performance over millions of keystrokes.

Ogólne wskazówki dotyczące konserwacji:

• Kurz i zanieczyszczenia: Regularly clean your keyboard to prevent dust and debris from accumulating around and inside the switches. Use compressed air to blow out particles.
• Czyszczenie nakładek klawiszy: Periodically remove keycaps and clean them with a mild soap solution and water. Ensure they are completely dry before reattaching.
• Switch Longevity: The CHERRY gold crosspoint contacts are resistant to dirt and dust, contributing to the switches' impressive lifespan of over 50 million keystrokes without loss of quality.

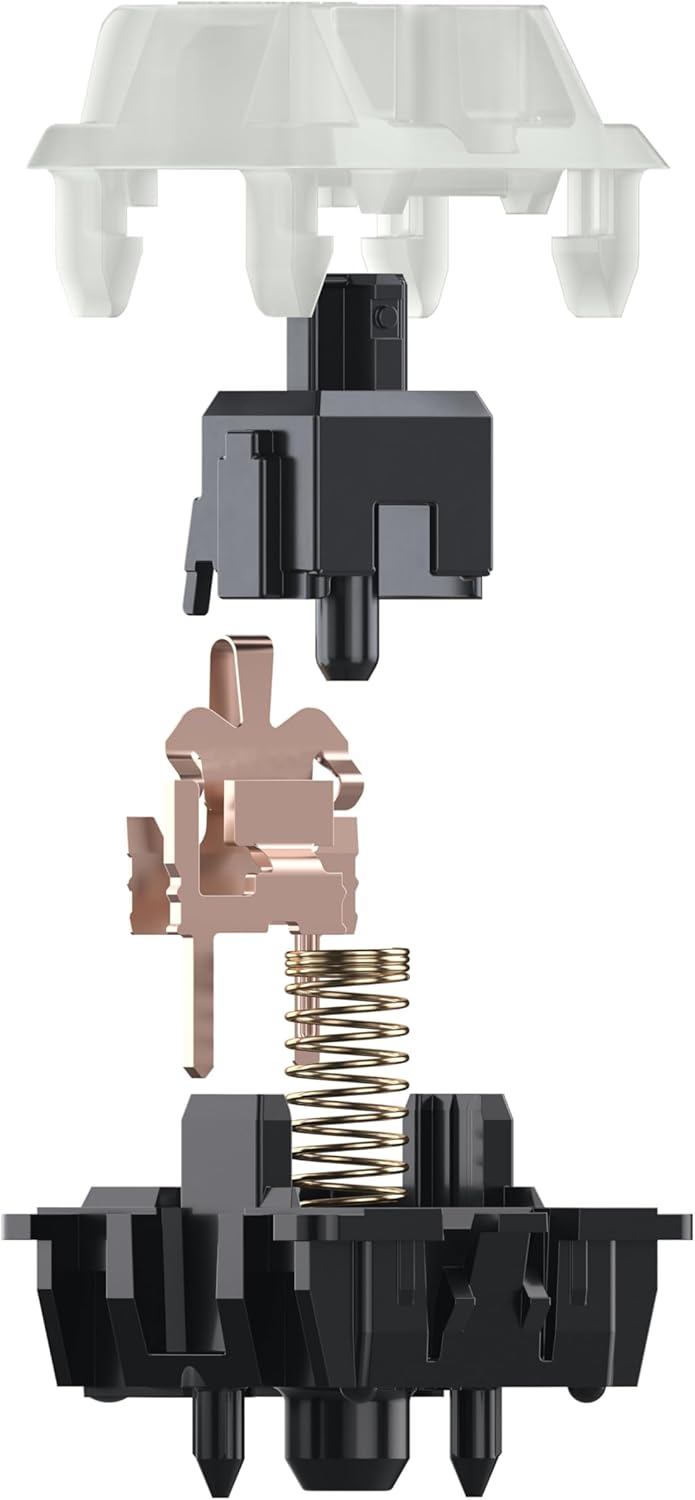

Image: An exploded diagram of a CHERRY MX switch, highlighting the durable internal components like the gold crosspoint contacts and spring.

Rozwiązywanie problemów

While CHERRY MX switches are highly reliable, occasional issues may arise. Here are some common troubleshooting steps:

• Switch Not Registering:
  • Ensure the switch is fully seated in its socket. Gently press down on the switch to confirm it's flush with the keyboard plate.
  • If using a hot-swappable keyboard, carefully remove the switch and inspect its pins for any bends or damage. Straighten bent pins if possible, or replace the switch if damaged.
  • Clean the switch socket and the switch pins with compressed air to remove any debris.
• Bent Pins Upon Arrival:

  Although switches are securely packaged, minor pin bends can sometimes occur during shipping. If you receive switches with bent pins, gently straighten them using fine-nose pliers. Be careful not to apply excessive force, as this can break the pin.
• Inconsistent Keystrokes:
  • This could indicate dust or debris inside the switch. Try cleaning the switch with compressed air.
  • Ensure the keycap is properly seated and not interfering with the switch stem.

If issues persist after attempting these steps, please refer to the manufacturer's support resources or consult a qualified technician.

Specyfikacje

Image: Detailed dimensions of a single CHERRY MX mechanical switch, showing its height and width.

Gwarancja i wsparcie

CHERRY products are manufactured to high standards of quality and reliability. For specific warranty information and support, please refer to the official CHERRY webodwiedź witrynę lub skontaktuj się bezpośrednio z działem obsługi klienta.

While a specific warranty period for the switches is not detailed here, the product is designed for over 50 million keystrokes, indicating exceptional durability.

For further assistance, you may visit the official Cherry store or support page:

Visit the Official CHERRY Store on Amazon

Producent: Wiśnia Europe GmbH

Kraj pochodzenia: Niemcy
