1. Wprowadzenie i koniecview

The Vertiv Liebert GXT5 Lithium-Ion N Online UPS (Uninterruptible Power Supply) provides reliable, high-quality AC power to IT equipment. This unit is designed to protect critical loads from power disturbances and outages, ensuring continuous operation. Featuring Lithium-Ion battery technology, it offers extended battery life and reduced maintenance compared to traditional UPS systems. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your UPS.

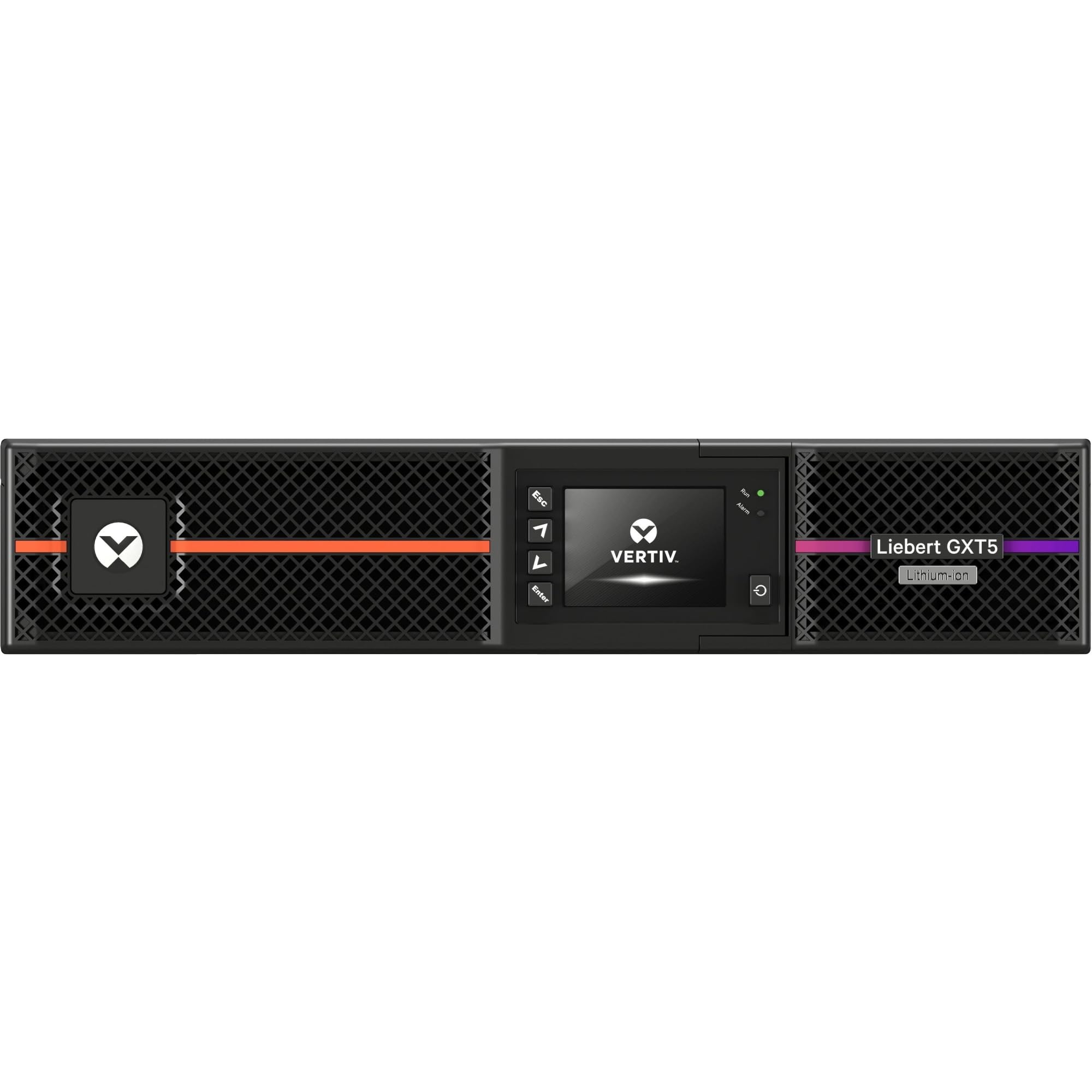

Rycina 1: Przód view of the Vertiv Liebert GXT5 UPS, showing the display and ventilation.

2. Informacje dotyczące bezpieczeństwa

Please read and understand all safety instructions before installing, operating, or maintaining the UPS. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Zagrożenie elektryczne: To urządzenie zawiera niebezpieczną objtages. Do not open the UPS enclosure. Refer all servicing to qualified service personnel.
• Bezpieczeństwo baterii: The UPS contains Lithium-Ion batteries. Do not dispose of batteries in a fire. Batteries may explode. Do not open or mutilate batteries. Released electrolyte is harmful to the skin and eyes.
• Grunt: Ensure the UPS is properly grounded to reduce the risk of electric shock.
• Środowisko: Install the UPS in a controlled environment, free from excessive dust, humidity, and extreme temperatures.
• Waga: The UPS unit is heavy. Use proper lifting techniques or assistance during installation to prevent injury.

3. Zawartość opakowania

Sprawdź, czy wszystkie elementy znajdują się w opakowaniu. Jeśli brakuje któregokolwiek z nich lub jest on uszkodzony, skontaktuj się z dostawcą.

• Vertiv Liebert GXT5 Lithium-Ion N Online UPS Unit
• Wejściowy przewód zasilający
• Output Power Cords (quantity may vary)
• Kabel USB
• Kabel szeregowy
• Rackmount Kit (rails, hardware)
• Tower Stands (for tower configuration)
• Skrócona instrukcja obsługi i instrukcje dotyczące bezpieczeństwa

4. Konfiguracja

4.1 Fizyczna instalacja

The GXT5 UPS can be installed in either a rackmount or tower configuration.

Konfiguracja wieży:

Attach the provided tower stands to the bottom of the UPS unit for stable vertical placement. Ensure adequate clearance for ventilation.

Figure 2: UPS unit configured for tower installation with stands.

Rackmount Configuration:

Install the rackmount rails into your standard 19-inch equipment rack. Slide the UPS unit onto the installed rails and secure it with the provided screws.

4.2 Podłączanie zasilania i sprzętu

1. Podłącz zasilanie wejściowe: Podłącz przewód zasilający UPS do prawidłowo uziemionego gniazdka elektrycznego.
2. Podłącz sprzęt: Plug your critical equipment (servers, network devices, etc.) into the output receptacles on the rear panel of the UPS. Note that some outlets may be individually controllable.
3. Porty komunikacyjne: For monitoring and management, connect the USB or serial cable to your computer or network device.
4. Optional RDU101 Card: If using the optional RDU101 network management card, insert it into the Intellislot and connect an Ethernet cable for remote monitoring.

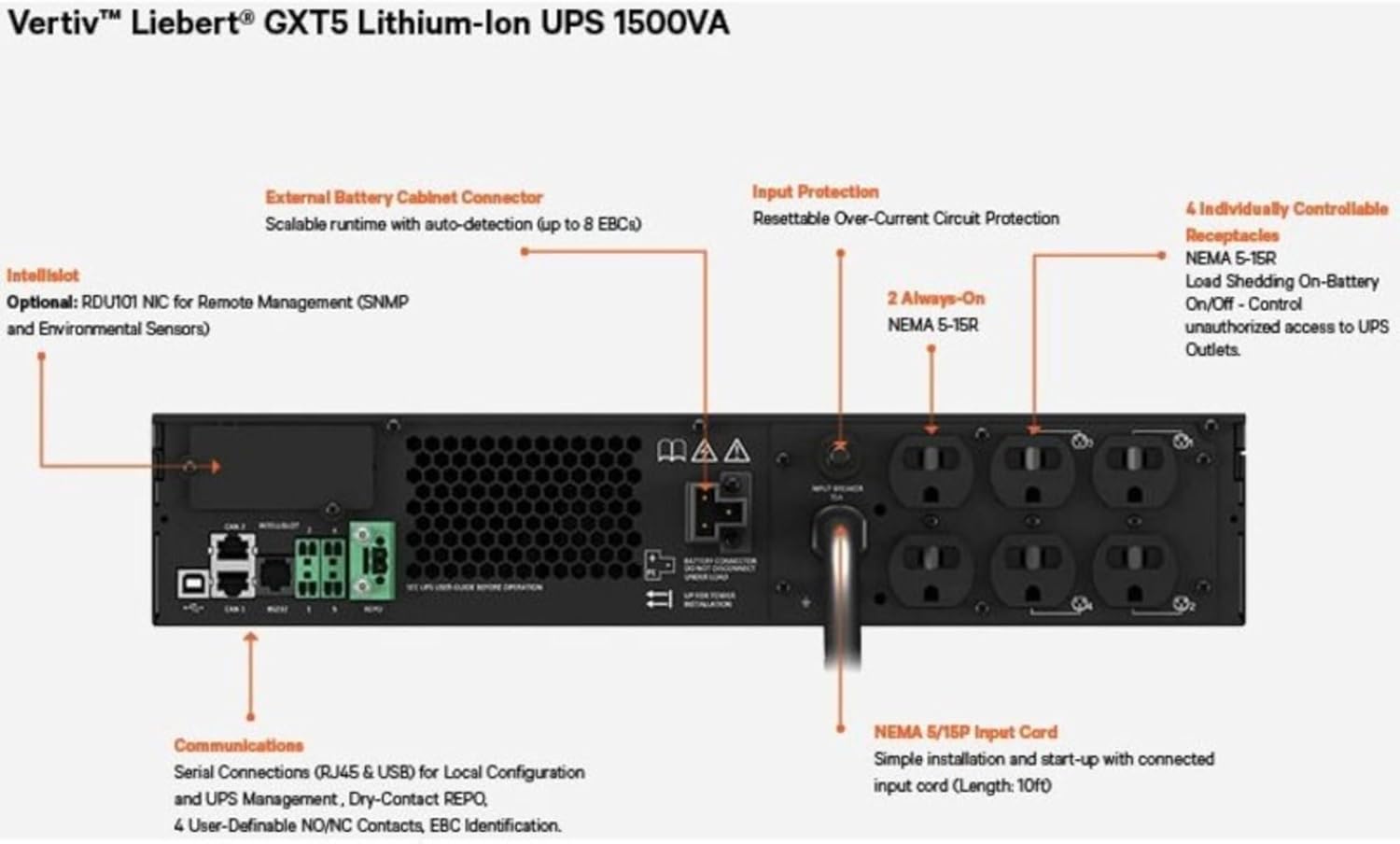

Figure 3: Rear panel connections, including input power, output receptacles, and communication ports.

Figure 4: RDU101 network management card with labeled ports.

4.3 Pierwsze włączenie zasilania

After all connections are secure, press the power button on the front panel to turn on the UPS. The display will illuminate, and the UPS will perform a self-test. Allow the batteries to charge for at least 24 hours before relying on them for extended backup time.

5. Obsługa UPS-a

5.1 Wyświetlacz i elementy sterujące na panelu przednim

Wyświetlacz LCD na przednim panelu zapewnia informacje o stanie w czasie rzeczywistym, w tym o głośności wejścia/wyjścia.tage, load level, battery status, and alarm conditions. Use the navigation buttons to access menus and configure settings.

5.2 tryby pracy

• Tryb online: Normal operation where the UPS continuously converts AC input to DC to charge batteries and then back to AC to power connected equipment, providing maximum protection.
• Tryb baterii: When input power fails, the UPS automatically switches to battery power to keep connected equipment running.
• Tryb obejścia: In certain conditions or for maintenance, the UPS can transfer the load directly to utility power, bypassing the UPS's power conditioning.

5.3 Procedury wyłączania

To safely shut down the UPS, first power off all connected equipment. Then, press and hold the power button on the UPS front panel until the unit powers off. Disconnect the input power cord only after the UPS is completely off.

6. Konserwacja

6.1 Pielęgnacja baterii

The Lithium-Ion batteries in your GXT5 UPS are designed for a long service life. Regular maintenance is generally not required. However, ensure the UPS operates within recommended temperature ranges to maximize battery lifespan. Avoid frequent deep discharges if possible.

6.2 Czyszczenie

Keep the UPS free from dust and debris. Use a soft, dry cloth to clean the exterior. Do not use liquid cleaners or solvents. Ensure ventilation openings are clear and unobstructed.

6.3 aktualizacji oprogramowania sprzętowego

Periodically check the Vertiv website for available firmware updates for your UPS model. Firmware updates can provide performance enhancements, bug fixes, and new features. Follow the instructions provided with the update package carefully.

7. Rozwiązywanie Problemów

This section provides solutions to common issues you may encounter with your UPS. For more complex problems, contact Vertiv technical support.

8. Specyfikacje

9. Gwarancja i wsparcie

Your Vertiv Liebert GXT5 UPS is covered by a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official Vertiv webSzczegółowe warunki gwarancji można znaleźć na naszej stronie.

For technical assistance, troubleshooting, or to inquire about service, please contact Vertiv customer support. You can also explore additional resources and product information through the Vertiv Virtual Showroom:

Visit the Vertiv Virtual Showroom

Figure 5: Scan this QR code to access the Vertiv Virtual Showroom for more product information and support.
