EBTOOLS Bluetooth Remote Control Page Turner User Manual

Wstęp

Thank you for choosing the EBTOOLS Bluetooth Remote Control Page Turner. This device offers convenient wireless control for various functions on your iOS and Android smartphones, including remote camera shutter, video page turning, and e-book navigation. Please read this manual carefully to ensure proper use and optimal performance.

Produkt ponadview

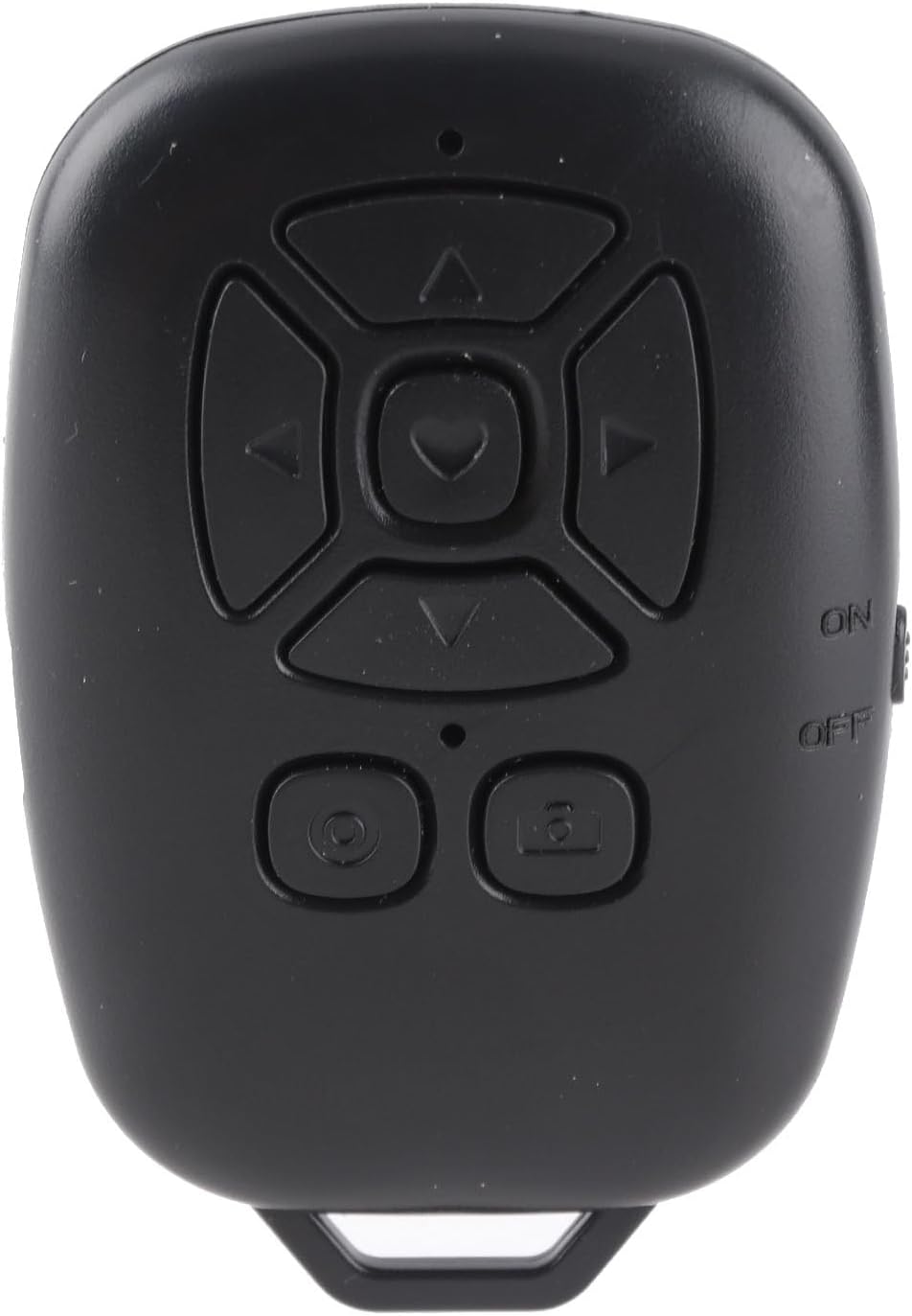

Rysunek 1: Przód view of the EBTOOLS Bluetooth Remote Control, showcasing its compact design and intuitive button layout for various functions.

The EBTOOLS Bluetooth Remote Control is a compact and lightweight device designed for ease of use. It features a multi-directional control pad, dedicated camera/record buttons, and an ON/OFF switch. Its ergonomic design allows for comfortable handling, and the integrated loop enables attachment to keychains for portability.

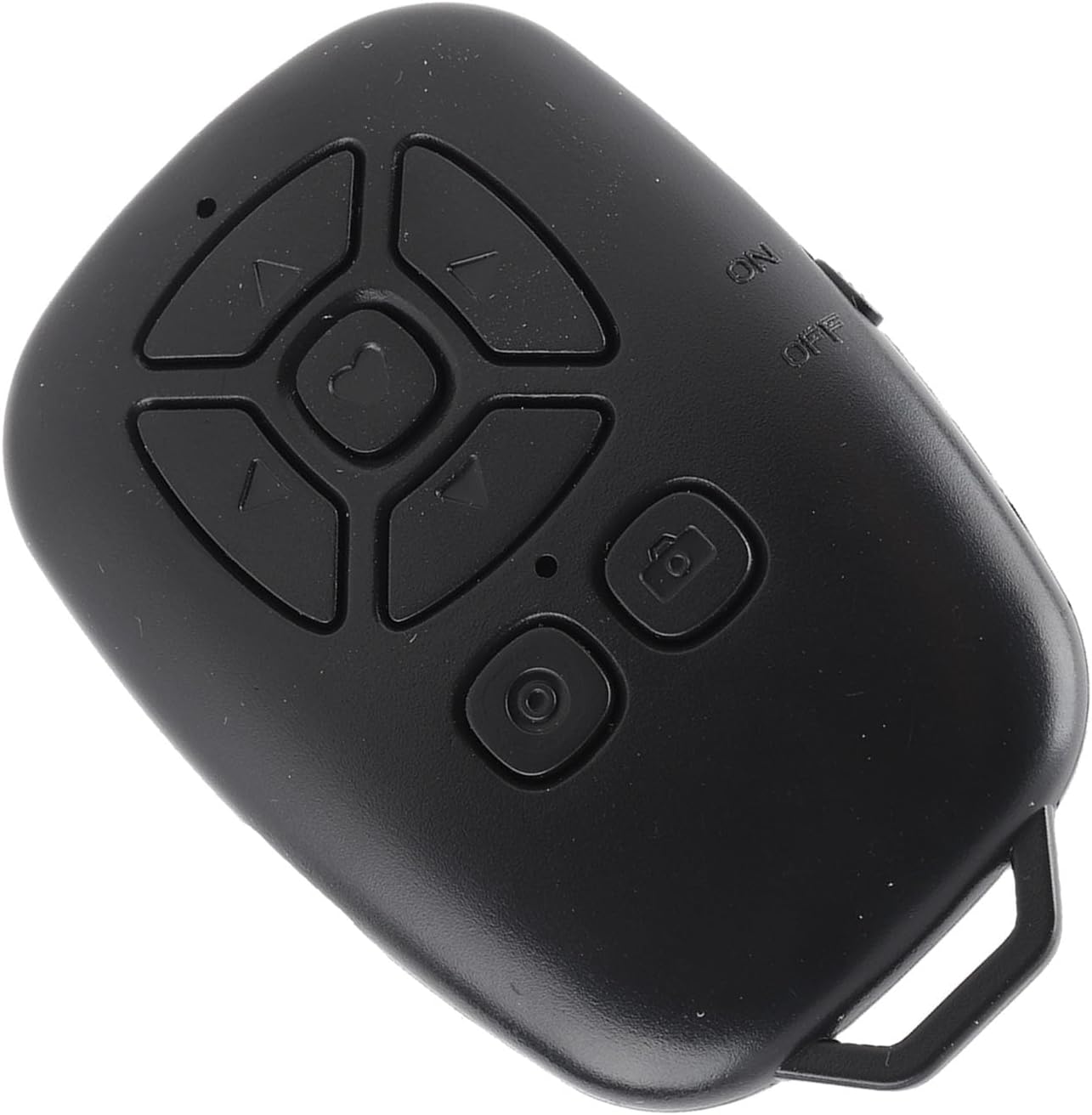

Rysunek 2: Kątowy view of the EBTOOLS Bluetooth Remote Control, showing its ergonomic shape and the side-mounted ON/OFF switch.

Specyfikacje

Zawartość opakowania

W pakiecie znajdują się następujące elementy:

• 1 x EBTOOLS Bluetooth Remote Control
• 1 x Instrukcja obsługi (ten dokument)
• 1 x kabel USB (typ C)

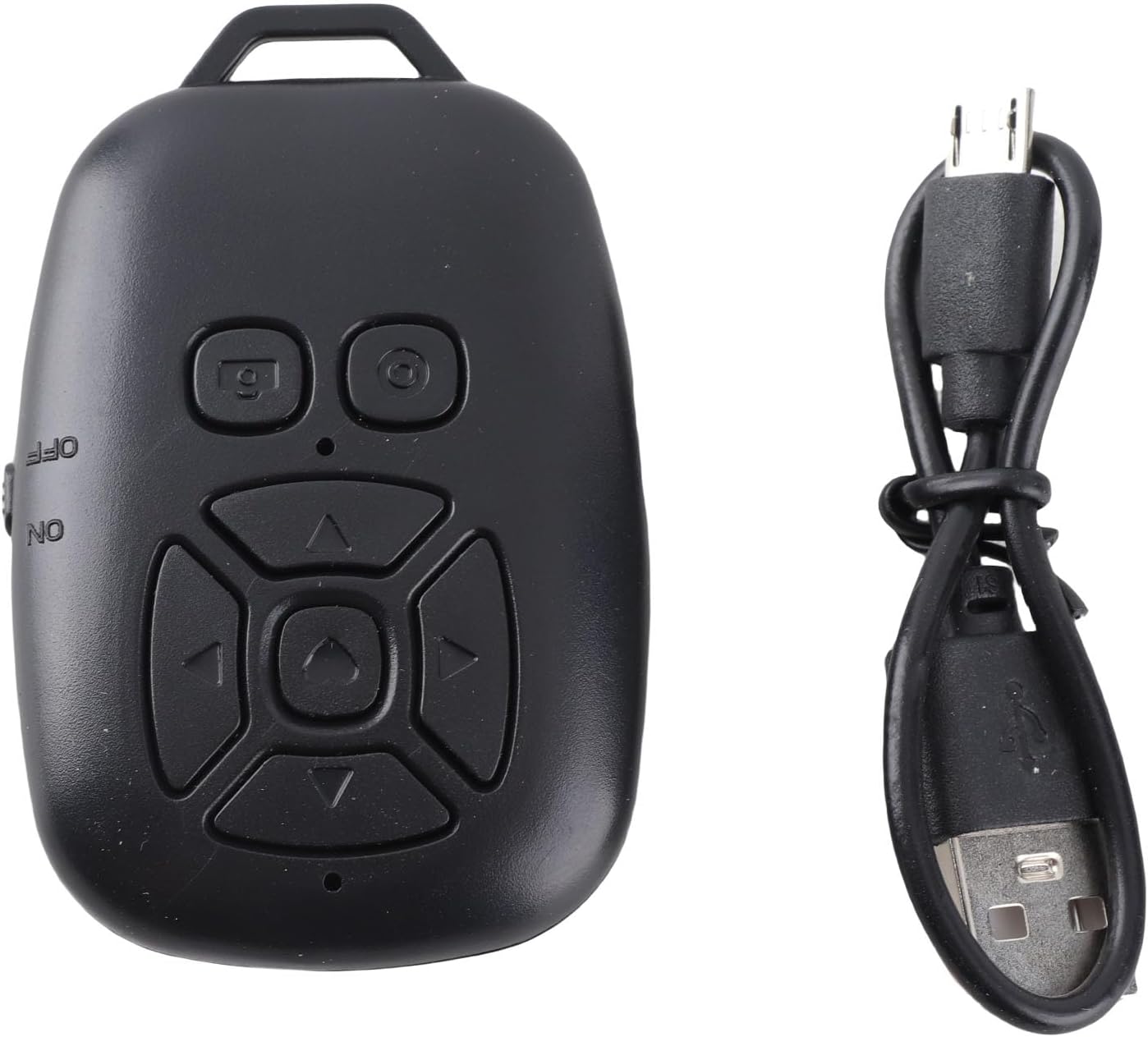

Rysunek 3: The EBTOOLS Bluetooth Remote Control alongside its USB-C charging cable, highlighting the device's compact size and charging method.

Organizować coś

1. Połączenie Bluetooth

1. Ensure the remote control is charged (refer to the Charging section).
2. Turn on the remote control using the ON/OFF switch located on the side.
3. Na swoim smartfonie przejdź do Ustawienia > Bluetooth.
4. Szukaj available Bluetooth devices. The remote control will appear as BLE M3.
5. Wybierać BLE M3 to pair and connect. Once connected, the indicator light on the remote will typically stop flashing or turn solid.

2. For iOS Systems (Additional Settings)

After establishing the Bluetooth connection, iOS users may need to enable Accessibility features for full functionality:

1. Idź do Ustawienia > Dostępność > Dotykać > Wspomagający dotyk.
2. Dźwignia kolankowa Wspomagający dotyk Do ON.
3. Zapewnić Wykonaj gesty dotykowe is also set to ON within the AssistiveTouch settings.

3. For Android Systems

Once the Bluetooth connection is successfully established, the remote control is generally ready for use on Android devices without further specific settings.

Rysunek 4: A person using the EBTOOLS Bluetooth Remote Control to capture a selfie with a smartphone, demonstrating its utility for remote photography.

Instrukcja obsługi

Remote Shutter Function

Open your smartphone's camera application. Press the dedicated camera button on the remote control to remotely trigger the shutter for photos or start/stop video recording. This allows for stable shots and wider angles, especially when using a tripod.

Page Turning and Media Control

The directional buttons (up, down, left, right) and the central button can be used for various functions depending on the application:

• Short Video Apps: Use the up/down buttons to scroll through videos, and the left/right buttons for other navigation or interactions. The central button may act as a 'like' or 'play/pause' function.
• E-book Readers: Use the left/right buttons to turn pages.
• Odtwarzanie muzyki/wideo: Control volume, skip tracks, or play/pause media.

Adjusting Camera Point (for specific apps)

If the camera point or cursor is not aligned in certain applications, you can adjust its position:

1. Press and hold the camera button on the remote.
2. While holding the camera button, use the up, down, left, or right directional keys to move the cursor on your screen to the desired camera position.
3. Release the camera button once the cursor is correctly positioned.

Rysunek 5: A user interacting with a smartphone, with the EBTOOLS Bluetooth Remote Control positioned nearby, illustrating its convenience for media control and page turning.

Ładowanie urządzenia

The EBTOOLS Bluetooth Remote Control features a USB Type-C charging port for convenient recharging. When the battery is low, connect the provided USB Type-C cable to the remote control and a standard USB power source (e.g., computer USB port, wall adapter). The indicator light will typically show charging status and turn off or change color when fully charged.

Pielęgnacja i konserwacja

• Przechowuj urządzenie w suchym miejscu. Wilgoć może uszkodzić podzespoły elektroniczne.
• Unikaj ekstremalnych temperatur. Nie wystawiaj na bezpośrednie działanie promieni słonecznych ani bardzo zimnego otoczenia.
• Czyść urządzenie miękką, suchą ściereczką. Nie używaj silnych środków chemicznych ani ściernych środków czyszczących.
• Gdy nie używasz urządzenia, przechowuj je w bezpiecznym miejscu, aby zapobiec jego uszkodzeniu fizycznemu.

Podręcznik rozwiązywania problemów

Device Not Connecting via Bluetooth

• Ensure the remote control is turned ON and fully charged.
• Upewnij się, że Bluetooth jest włączony w Twoim smartfonie.
• Spróbuj rozłączyć i ponownie sparować urządzenie w ustawieniach Bluetooth telefonu.
• Uruchom ponownie smartfon i pilota.
• Upewnij się, że żadne inne urządzenie Bluetooth nie zakłóca połączenia.

Functions Not Working on iOS

• Sprawdź, czy Wspomagający dotyk I Wykonaj gesty dotykowe are enabled in your iOS Accessibility settings as described in the Setup section.

Pilot nie odpowiada

• Sprawdź poziom naładowania baterii i w razie potrzeby doładuj.
• Ensure the remote is within the effective Bluetooth range (up to 30 feet/10 meters).
• Confirm the remote is paired and connected to your device.

Gwarancja i wsparcie

EBTOOLS products are manufactured with quality and performance in mind. For specific warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. If you encounter any issues or require technical assistance, please reach out to the customer support channel provided by your seller.
