BOSYTRO 0-12V 0-50A 600W Adjustable AC to DC Power Supply

1. Wprowadzenie

This manual provides essential information for the safe and efficient operation of your BOSYTRO 0-12V 0-50A 600W Adjustable AC to DC Power Supply. This device converts 110V-240V AC input to an adjustable 0-12V DC output with a maximum current of 50A and a maximum power of 600W. It is designed for various applications including LED strips, motor pumps, CCTV systems, 3D printers, and lab computers.

Przed użyciem należy dokładnie przeczytać niniejszą instrukcję i zachować ją do wykorzystania w przyszłości.

2. Ważne informacje dotyczące bezpieczeństwa

• Upewnij się, że głośność wejściowatage switch (115V/230V) is correctly set for your region's power supply before connecting to AC power. Incorrect setting can cause damage.
• Do not operate the power supply in wet conditions or expose it to water.
• Always disconnect the power supply from the AC outlet before making any connections or adjustments to the output terminals.
• Do not exceed the maximum output current (50A) or power (600W) ratings to prevent damage to the unit or connected devices. For motor devices, ensure the power supply's peak power is at least twice the motor's power.
• This device features overload, over-current, and short-circuit protection. However, proper handling and connection are crucial for safe operation.
• Ensure adequate ventilation around the unit. The built-in cooling fan requires clear airflow to prevent overheating.
• Przechowywać w miejscu niedostępnym dla dzieci.

3. Zawartość opakowania

Sprawdź, czy w opakowaniu znajdują się wszystkie elementy:

• BOSYTRO 0-12V 0-50A 600W Adjustable AC to DC Power Supply Unit
• Przewód zasilający AC
• Output Connection Cables (e.g., alligator clips)
• Terminal Connectors (if applicable)

4. Koniec produktuview

The BOSYTRO power supply features a durable aluminum alloy shell with multiple ventilation holes and a built-in cooling fan for efficient heat dissipation. It includes an LED display for real-time voltage and current readings, and adjustable knobs for precise control.

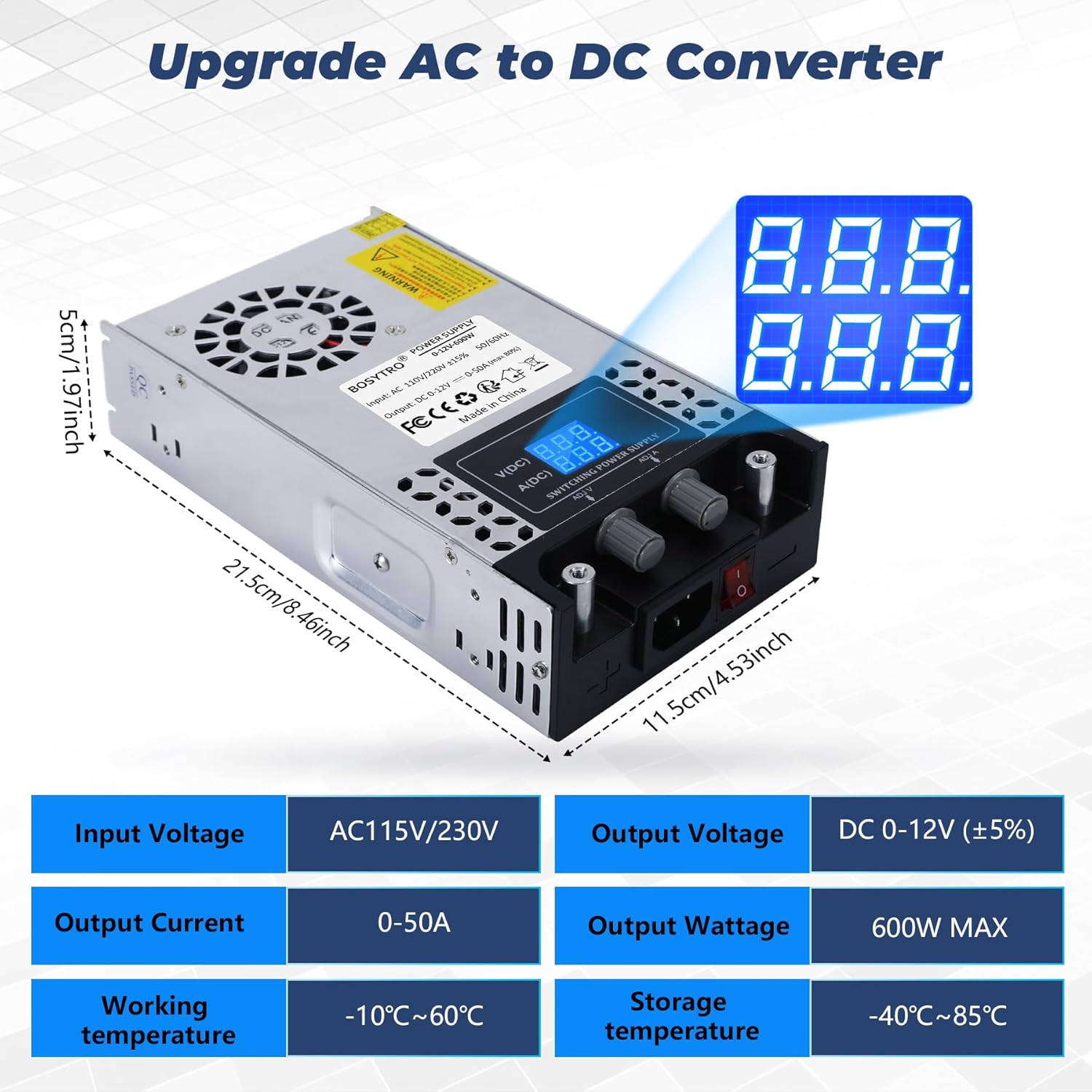

Rysunek 4.1: Przód view of the power supply with key dimensions and specifications. Note the input voltage (AC115V/230V), output voltage (DC 0-12V), output current (0-50A), and maximum output wattagi (600W).

Rysunek 4.2: Wewnętrzny view highlighting premium components and multiple protection features including overload, over-current, over-temperature, and short circuit protection.

5. Instrukcje konfiguracji

1. Wybierz wejście Voltage: Locate the red switch on the side of the unit. Slide it to either 115 V or 230 V according to your local power grid. Warning: Incorrect voltage selection can severely damage the unit.


   Rysunek 5.1: Objętość wejściowatage selector switch. Ensure it matches your local power supply.
2. Podłącz zasilanie sieciowe: Insert the provided AC power cord into the power input socket on the unit. Do not plug the other end into a wall outlet yet.
3. Podłącz urządzenie wyjściowe:
   • Identify the positive (+) and negative (-) output terminals on the power supply.
   • Use the provided connection cables (e.g., alligator clips) or suitable wires to connect your device to the output terminals. Ensure correct polarity: positive to positive, negative to negative.
   • Dokręć śruby zacisków, aby zabezpieczyć połączenia.


   Rysunek 5.2: Examples of connecting devices to the output terminals using alligator clips or direct wire connections.

4. Początkowa objętośćtage/Aktualna regulacja: Before powering on, turn the voltage (VDC) and current (ADC) adjustment knobs counter-clockwise to their minimum settings. This prevents sudden high voltage/current output upon startup.


   Rysunek 5.3: Regulowana objętośćtage (0-12V) and current (0-50A) knobs, along with the high-precision LED display.

6. Instrukcja obsługi

1. Włączanie: Plug the AC power cord into a wall outlet. Flip the red power switch on the unit to the "ON" position. The LED display will illuminate, showing the current voltage i bieżące ustawienia.
2. Dostosuj głośnośćtage: Powoli obróć głośnośćtagpokrętło regulacji zgodnie z ruchem wskazówek zegara, aby zwiększyć głośność wyjściowątage to your desired level (0-12V). Observe the VDC reading on the LED display.
3. Dostosuj prąd: Slowly turn the current adjustment knob clockwise to increase the output current to your desired level (0-50A). Observe the ADC reading on the LED display.
4. Monitorowanie: Continuously monitor the LED display for voltage and current readings during operation to ensure they remain within safe limits for your connected device.
5. Układ chłodzenia: The built-in cooling fan will activate automatically when necessary to maintain optimal operating temperature. Ensure the fan vents are not obstructed.

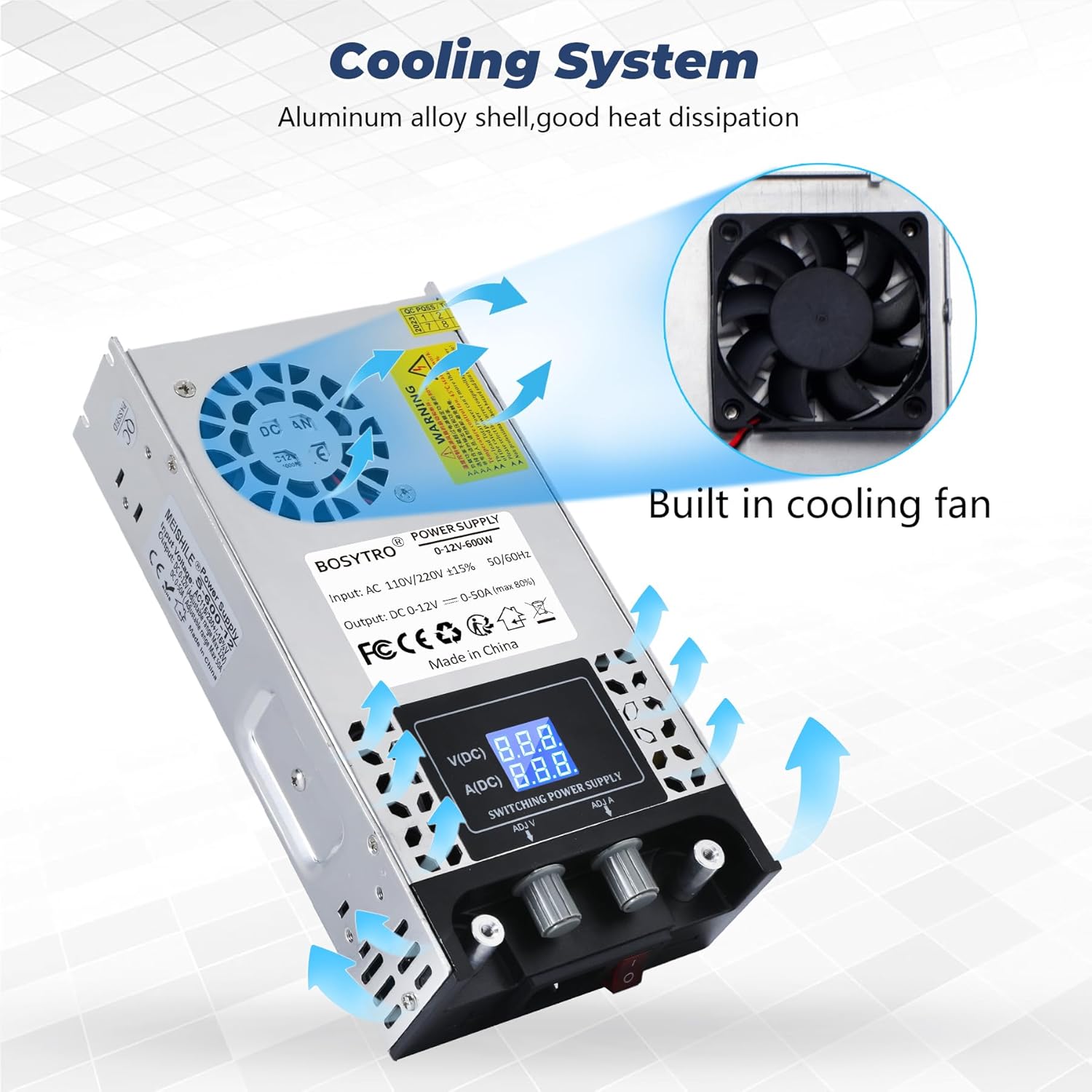

   Rysunek 6.1: The power supply's cooling system, featuring an aluminum alloy shell for heat dissipation and a built-in fan.

6. Wyłączone: Before disconnecting your device, turn the voltage and current adjustment knobs counter-clockwise to their minimum settings. Then, flip the red power switch to the "OFF" position and unplug the AC power cord from the wall outlet.

7. Szerokie zastosowanie

This versatile power supply is suitable for a broad range of 12-volt devices and projects, including but not limited to:

• Oświetlenie taśmowe LED
• Motor Pumps (ensure peak power consideration)
• CCTV Security Systems
• Drukarki 3D
• Lab Computers and Equipment
• Kamper i Camper Power Needs
• Radio/Car Stereos
• Kamery bezpieczeństwa
• Monitory LCD

Rysunek 7.1: Visual representation of various applications for the adjustable power supply, including LED strips, campers, CCTV, audio equipment, car stereos, 3D printers, and CB radios.

8. Konserwacja

• Czyszczenie: Ensure the unit is unplugged before cleaning. Use a dry, soft cloth to wipe the exterior. Do not use liquid cleaners or solvents.
• Wentylacja: Regularly check that the cooling fan and ventilation holes are free from dust and debris to ensure proper airflow.
• Składowanie: When not in use for extended periods, store the power supply in a cool, dry place, away from direct sunlight and moisture.
• Znajomości: Periodically inspect all input and output connections for tightness and signs of wear or damage.

9. Rozwiązywanie Problemów

10. Specyfikacje

11. Gwarancja i wsparcie

For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase or visit the official BOSYTRO webZachowaj paragon jako dowód zakupu na wypadek reklamacji.

Producent: BOSYTRO

Miejsce prowadzenia działalności: ShenZhenShi Bao Si Chuang Mao Yi CO.,LTD 105 Lianyi Cuiyuan, No. 87, Zone 3, Yucui New Village,Longhua District, Shenzhen, CN, 518000

E-mail: servicesupport2000@163.com
