Wstęp
The VACLIFE Portable Air Compressor (Model T2190) is designed to provide a convenient and efficient solution for tire inflation and other emergency needs. This wireless, lightweight, and compact device is an essential tool for drivers, cyclists, and adventurers, ensuring you are prepared for unexpected flat tires.
Główne cechy obejmują:
- Portable and Wireless Design: Compact and easy to carry, offering three selectable pressure units (PSI, BAR, kg/cm²).
- Szybka i skuteczna inflacja: Equipped with a high-performance chip, capable of up to 150 PSI, inflating a 175/70R14 car tire from 0 to 35 PSI in under 7 minutes. Features a large LED screen for real-time pressure monitoring and automatic shut-off to prevent over-inflation.
- Długotrwała moc: Powered by three rechargeable 2000 mAh batteries, providing up to 20 minutes of continuous use on a 3-4 hour charge.
- Stabilna wydajność: Durable metal mesh housing and a built-in turbo fan ensure rapid heat dissipation and consistent operation.
- 3-in-1 Emergency Tool: Functions as a tire pump, a three-mode LED flashlight for visibility and warnings, and an emergency power bank via its Type-C charging port and 5V/2A USB output port.
Image: The VACLIFE Portable Air Compressor shown with its various inflation nozzles and charging cables.
Produkt ponadview i wymiary
The VACLIFE Portable Air Compressor is designed for portability and ease of use. Its compact cylindrical shape allows for convenient storage and transport.
Image: The VACLIFE Portable Air Compressor with its dimensions highlighted: approximately 6.6 inches tall, 2.8 inches wide, and 2.1 inches deep.
The device features a clear LED display for pressure readings and mode selection, along with intuitive control buttons for operation.
Organizować coś
- Opłata początkowa: Before first use, fully charge the air compressor. Connect the provided USB-C cable to the device's charging port and plug the other end into a compatible USB power adapter (not included). The LED display will indicate charging status. A full charge typically takes 3-4 hours.
- Podłącz wąż: Screw the inflation hose securely onto the air compressor's output port.
- Wybierz dyszę: Choose the appropriate nozzle for the item you wish to inflate (e.g., Schrader valve for car tires, needle for sports balls, tapered nozzle for inflatables). Attach the selected nozzle to the end of the inflation hose.
Instrukcja obsługi
- Włączanie: Press and hold the power button to turn on the device. The LED display will light up.
- Wybierz jednostkę ciśnienia: Press the 'M' button to cycle through the available pressure units: PSI, BAR, and kg/cm². Select your desired unit.
- Ustaw ciśnienie docelowe: Use the '+' and '-' buttons to adjust the target pressure. Refer to your vehicle's or item's recommended pressure.
- Połącz z elementem: Securely connect the inflation hose with the attached nozzle to the valve of the item you want to inflate. The display will show the current pressure of the item.
- Rozpocznij inflację: Press the power button briefly to start the inflation process. The compressor will begin to inflate, and the real-time pressure will be displayed.
- Automatyczne wyłączanie: Kompresor zatrzyma się automatycznie po osiągnięciu zadanej wartości ciśnienia.
- Odłączyć: Carefully disconnect the hose from the item's valve. A small amount of air may escape, which is normal.
- Wyłączone: Naciśnij i przytrzymaj przycisk zasilania, aby wyłączyć urządzenie.
Fast Inflation Capability
The VACLIFE compressor is designed for quick inflation. For example, it can inflate a 175/70R14 car tire from 0 to 35 PSI in less than 7 minutes, or an R15 196/65 tire from 22 to 36 PSI in approximately 4 minutes.
Image: The VACLIFE Portable Air Compressor actively inflating a car tire, demonstrating its fast inflation capability.
Using as an Emergency Power Bank and Flashlight
- Flesz: Briefly press the flashlight button (usually indicated by a light icon) to cycle through the three LED light modes: steady on, SOS, and strobe. This is useful for nighttime inflation or as a warning signal.
- Bank mocy: Connect your electronic device to the USB output port (5V/2A) on the bottom of the compressor using a compatible USB cable to charge it.
Image: The VACLIFE Portable Air Compressor demonstrating its multi-purpose functionality, including use as a flashlight and a power bank for charging a smartphone.
Konserwacja
- Czyszczenie: Przetrzyj zewnętrzną część sprężarki miękką,amp Ściereczką. Nie używaj silnych środków chemicznych ani ściernych środków czyszczących. Przed schowaniem upewnij się, że urządzenie jest suche.
- Składowanie: Store the compressor and its accessories in a cool, dry place, away from direct sunlight and extreme temperatures. Keep out of reach of children.
- Pielęgnacja baterii: For optimal battery life, charge the device fully every 3-6 months if not in regular use. Avoid completely draining the battery before recharging.
- Rozpraszanie ciepła: The device features a metal mesh housing and a built-in turbo fan for efficient heat dissipation. Ensure these areas are not blocked during operation to maintain stable performance.
Image: An illustration of the VACLIFE Portable Air Compressor's internal cooling system, highlighting the metal mesh housing and built-in turbo fan for efficient heat dissipation.

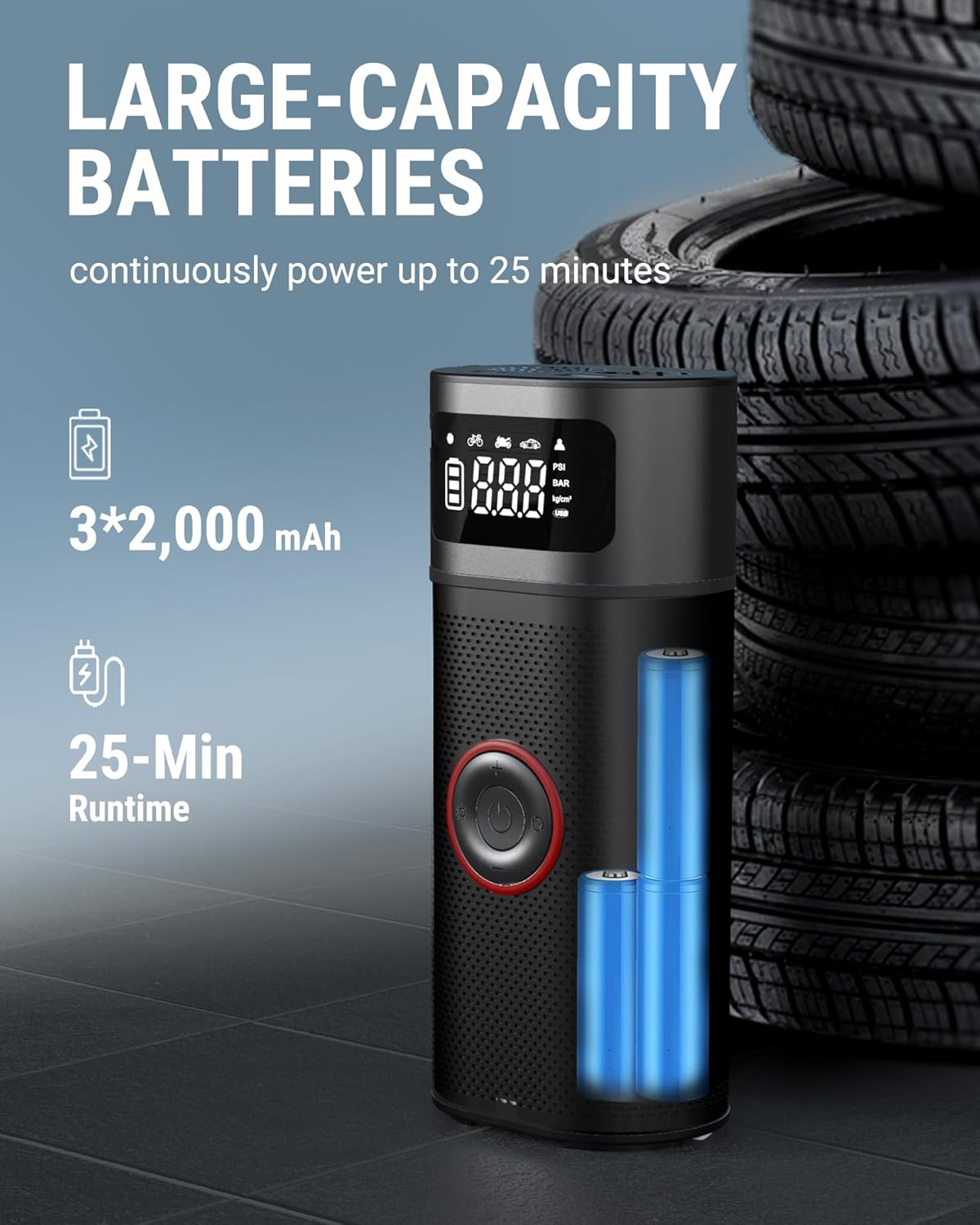

Image: The VACLIFE Portable Air Compressor illustrating its large-capacity 3x2000mAh batteries, providing up to 25 minutes of continuous runtime.
Rozwiązywanie problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Urządzenie się nie włącza. | Niski poziom naładowania baterii lub brak ładowania. | Naładuj urządzenie całkowicie (3-4 godzin). |
| Kompresor nie pompuje. | Hose not securely connected; nozzle not properly attached to valve; target pressure set too low. | Ensure all connections are tight. Check nozzle fit. Increase target pressure above current pressure. |
| Inflacja jest niska. | Low battery; hose or nozzle obstruction. | Recharge the device. Check hose and nozzles for blockages. |
| Urządzenie przegrzewa się i wyłącza. | Prolonged continuous use; blocked ventilation. | Allow the device to cool down. Ensure ventilation mesh is clear. Avoid continuous operation beyond recommended runtime (approx. 20 minutes). |
Specyfikacje
| Marka | VACLIFE |
| Numer modelu | T2190 |
| Numer części | T2190 |
| Waga przedmiotu | 730 gramów |
| Wymiary opakowania | Wymiary 17.81 x 11.3 x 6.3 cm |
| Kolor | Czerwony |
| Styl | Bezprzewodowy |
| Typ źródła zasilania | Battery Powered (Rechargeable Lithium Batteries) |
| Tomtage | 12 wolty |
| Przepływ powietrza | 20 litrów na minutę |
| Maksymalne ciśnienie | 150 PSI |
| Cechy specjalne | LED Light, Portable, Automatic Shut-off |
| Zawarte komponenty | Dysze |
| Baterie w zestawie | Tak |
| Typ ogniwa baterii | Lit |
| Pojemność baterii | 3 x 2000 mAh |
| Pierwsza dostępna data | 12 czerwca 2023 r. |
Gwarancja i wsparcie
W dostępnych danych nie ma szczegółowych informacji dotyczących gwarancji tego produktu. Prosimy o zapoznanie się z opakowaniem produktu lub oficjalną instrukcją producenta. webSzczegółowe warunki gwarancji można znaleźć na naszej stronie.
For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact VACLIFE customer service through their official channels. Keep your purchase receipt or order number handy when contacting support.
Informacje kontaktowe dotyczące pomocy technicznej można często znaleźć na stronie producenta. webmiejscu lub w opakowaniu produktu.
