Instrukcja obsługi zamka drzwi bezkluczykowego Veise KS02C z czytnikiem linii papilarnych i gałkami

1. Wprowadzenie

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Veise KS02C Fingerprint Keyless Entry Door Lock. Please read this manual thoroughly before installation and use to ensure proper function and safety.

The Veise KS02C is a smart front handle set featuring a fingerprint keypad deadbolt combined with two knobs, offering multiple unlocking methods for enhanced security and convenience.

2. Informacje dotyczące bezpieczeństwa

• Bezpieczeństwo baterii: Use only 4 AA alkaline batteries. Do not mix old and new batteries, or different types of batteries. Replace all batteries at the same time. Remove batteries if the lock will not be used for an extended period.
• Warunki środowiskowe: The lock is rated IP54 waterproof, suitable for outdoor use. However, extreme weather conditions may affect performance. Ensure the fingerprint sensor is clean and dry for optimal recognition.
• Bezpieczeństwo fizyczne: While the lock is designed with an ANSI Grade 3 sturdy lock cylinder and alloy, it is important to ensure your door and frame are also secure.
• Code Security: Avoid sharing your master code. When entering codes, utilize the anti-peeping feature by entering random digits before or after your actual code.
• Fingerprint Management: Be cautious when adding or deleting fingerprints. Deleting a fingerprint requires the registered finger to be scanned. If a user is no longer available, a factory reset may be necessary to remove their fingerprint access.

3. Zawartość opakowania

Przed rozpoczęciem instalacji sprawdź, czy wszystkie komponenty są obecne:

• Fingerprint Door Lock (Exterior Keypad and Interior Assembly)
• 2 Knobs (Interior and Exterior)
• 2 Physical Keys
• Zatrzask
• Blacha zaczepowa
• Płyta montażowa
• Śruby
• Instrukcja obsługi instalacji
• Programming Quick Set Up Guide

4. Instalacja

The Veise KS02C lock is designed for easy installation with a standard screwdriver. It is compatible with all American standard left- and right-handed doors.

4.1 Sprawdzenie zgodności drzwi

Przed montażem należy upewnić się, że drzwi spełniają następujące wymagania:

• Średnica otworu: 2-1/8 cala (54 mm)
• Minimum Distance (between deadbolt and knob holes): 4 cala (101.6 mm)
• Niepowodzenie: 2-3/8 inches or 2-3/4 inches (60mm or 70mm)
• Bore Diameter (for latch): 1 cala (25mm)
• Grubość drzwi: 1-3/8 inches to 2 inches (35mm-50mm)

The lock is compatible with doors having a chiseled latch hole and a single cylinder deadbolt. It is nie compatible with Mortise, Integrated, or Rim Cylinder lock types.

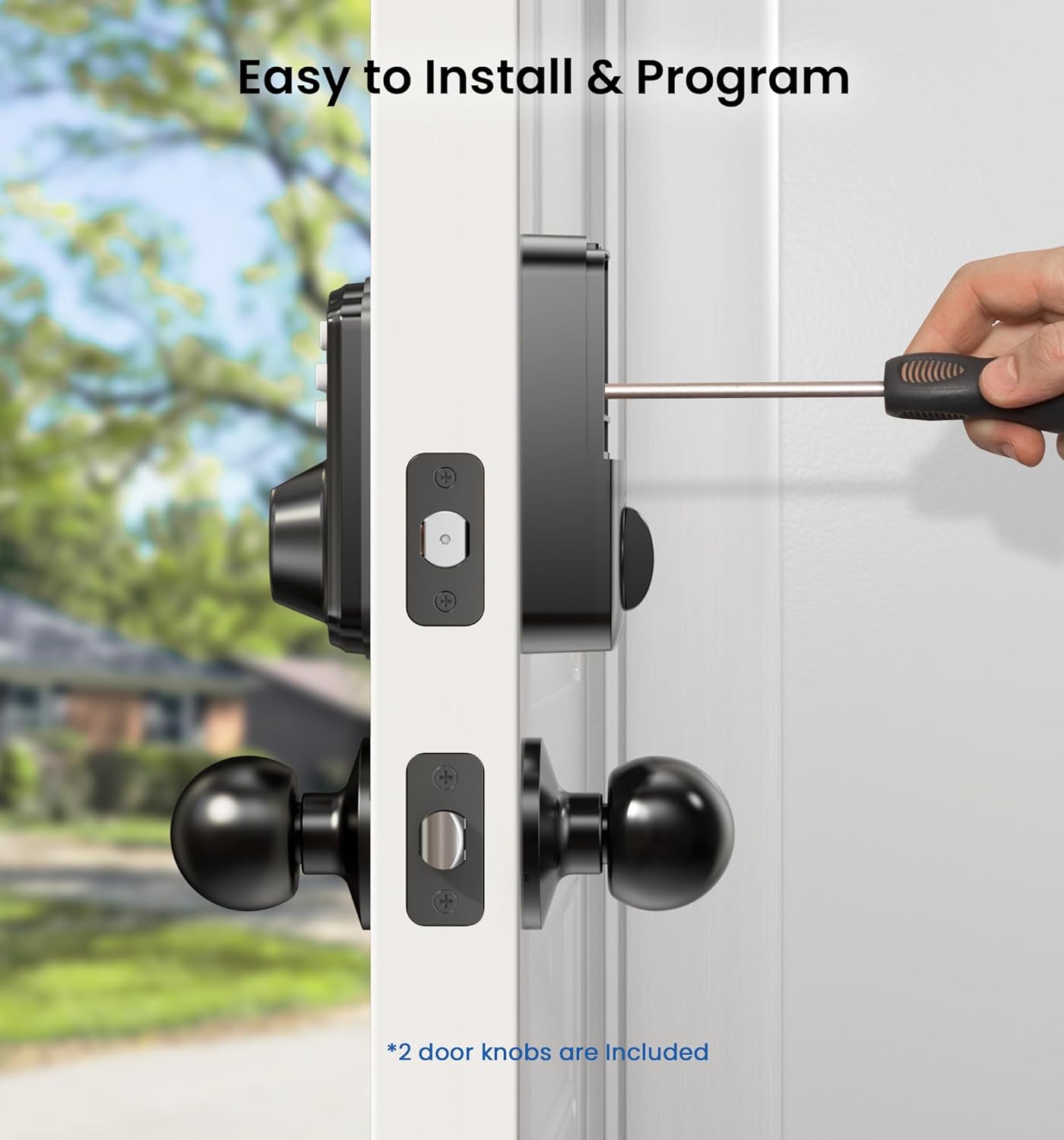

4.2 Kroki instalacji

1. Przygotuj drzwi: Ensure the door is properly prepped according to the dimensions above. Remove any existing hardware.
2. Zainstaluj zatrzask: Włóż zatrzask w krawędź drzwi i przykręć go śrubami. Upewnij się, że rygiel zatrzasku jest skierowany w odpowiednią stronę, dostosowaną do kierunku otwierania drzwi.
3. Montaż zewnętrznego zestawu klawiatury: Place the exterior keypad assembly onto the door, feeding the cable through the deadbolt hole to the interior side.
4. Zainstaluj płytę montażową: Secure the interior mounting plate to the exterior assembly using the provided screws. Ensure the cable is not pinched.
5. Connect the Cable and Install Interior Assembly: Connect the cable from the exterior assembly to the interior assembly. Carefully tuck the excess cable into the door. Attach the interior assembly to the mounting plate and secure it with screws.
6. Montaż gałek: Attach the interior and exterior knobs according to the instructions.
7. Włóż baterie: Open the battery cover on the interior assembly and insert 4 new AA alkaline batteries.
8. Operacja testowa: After installation, test the lock with the physical key and ensure the latch operates smoothly.

5. Instrukcja obsługi

The Veise KS02C offers multiple convenient ways to unlock your door.

5.1 Odblokowanie odciskiem palca

The lock identifies your fingerprint within 0.3 seconds and unlocks the door within 1 second, with a 99.99% recognition rate.

1. Dodawanie odcisków palców: Follow the programming guide to register up to 20 unique fingerprints. Ensure your finger is clean and dry for accurate scanning.
2. Odblokowanie: Place your registered finger on the fingerprint sensor. The lock will verify and unlock.

5.2 Code Unlock (User Codes)

You can program up to 20 user codes for regular access.

1. Dodawanie kodów użytkownika: Refer to the programming guide to set up new user codes.
2. Odblokowanie: Enter your programmed user code on the keypad, then press the unlock button (or equivalent confirmation key).

5.3 One-Time Codes

Generate temporary one-time codes for visitors, delivery personnel, or service providers.

1. Generating One-Time Codes: Follow the programming guide to create a one-time code. These codes are typically valid for a single use.
2. Odblokowanie: The recipient enters the one-time code on the keypad.

5.4 Odblokowanie kluczem

Traditional physical keys are provided as a backup unlocking method.

1. Odblokowanie: Insert the key into the keyhole and turn to unlock the deadbolt.

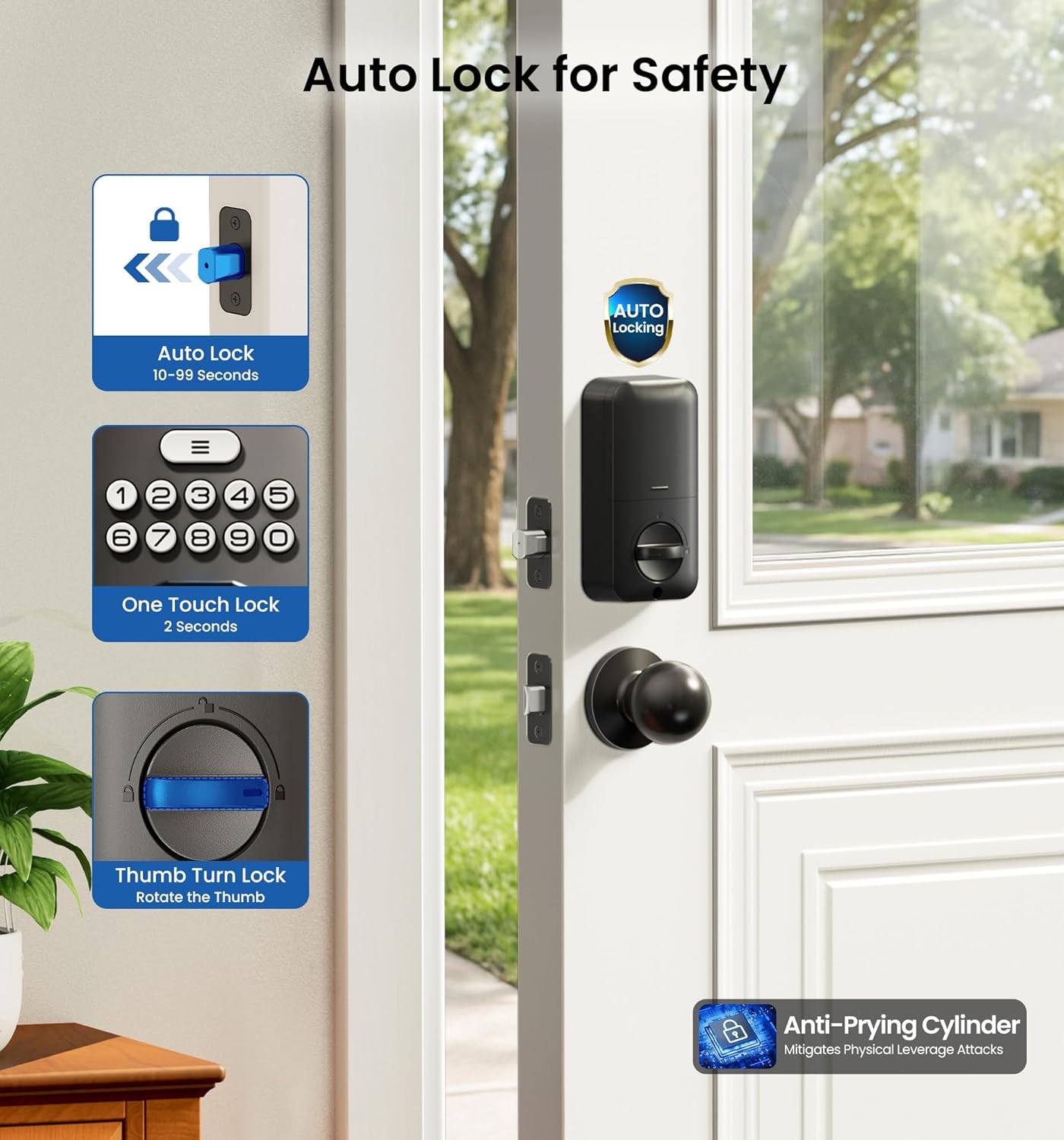

5.5 Funkcja automatycznego blokowania

The lock can be set to automatically lock after a specified period.

• Setting Auto-Lock: Refer to the programming guide to enable and configure the auto-lock delay, which can be set between 10-99 seconds.
• Blokowanie ręczne: To manually lock the door, press any key on the keypad for 2 seconds.

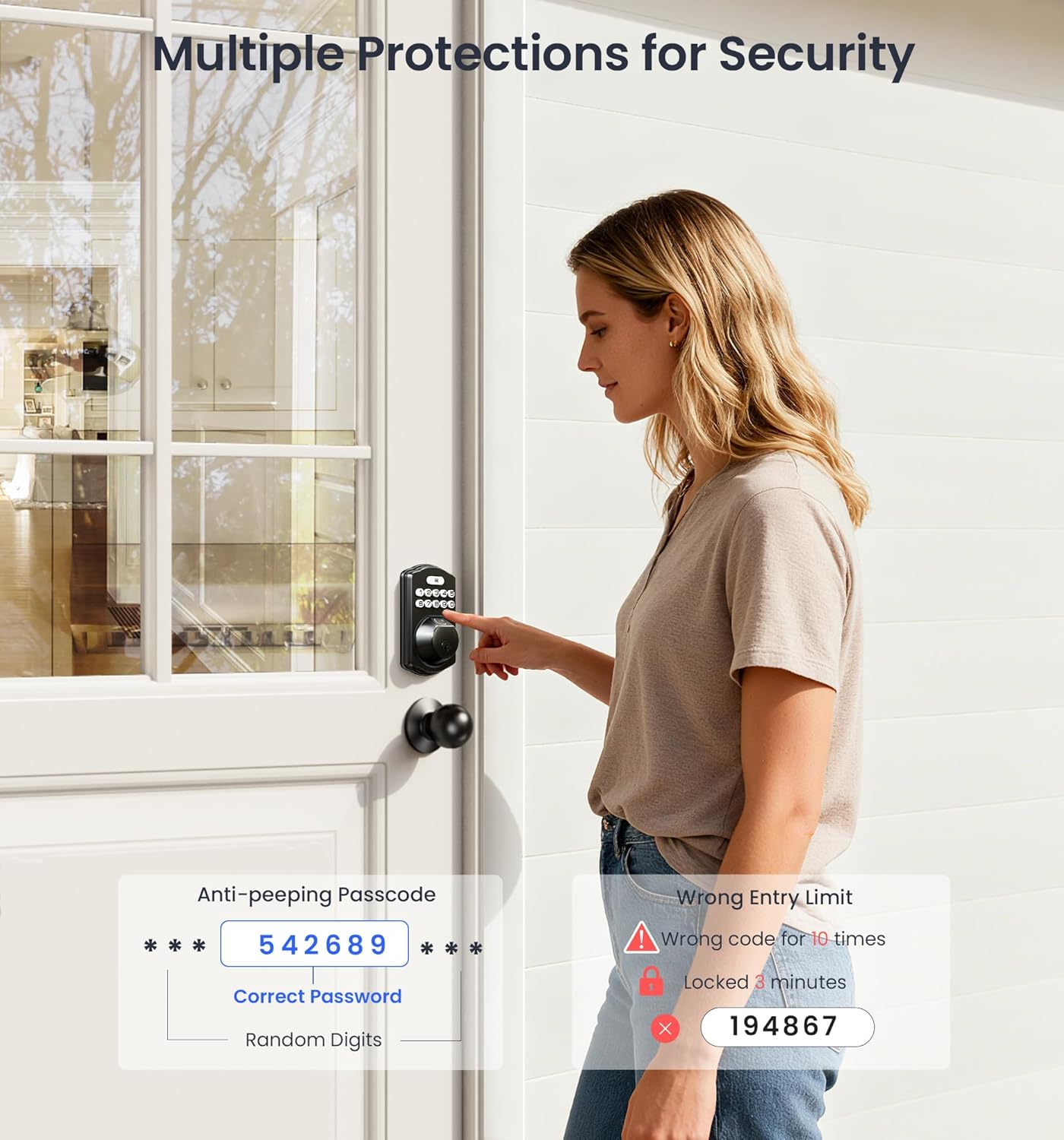

5.6 Anti-Peeping Password

Enhance security when entering your code in front of others.

1. Stosowanie: Enter any random digits before or after your actual code. The lock will still recognize the correct sequence within the longer string of numbers.

5.7 Tryb wyciszenia

Disable keypad sounds for quiet operation.

• Aktywacja/Dezaktywacja: Refer to the programming guide for instructions on enabling or disabling mute mode.

5.8 Tryb urlopowy

A security feature for extended absences.

• Aktywacja: Refer to the programming guide to enable vacation mode, which typically disables all electronic entry methods until a master code or physical key is used.

6. Konserwacja

6.1 Wymiana baterii

The lock is powered by 4 AA batteries, which typically last for more than 1 year. The lock features a low battery alert.

• Alert niskiego poziomu baterii: The keypad will indicate a low battery status (e.g., a specific light or sound pattern). Replace batteries promptly when this alert appears.
• Wymiana: Open the battery cover on the interior assembly. Remove old batteries and insert 4 new AA alkaline batteries, ensuring correct polarity.

6.2 Czyszczenie

Wyczyść zewnętrzną część zamka miękką szmatką.amp ściereczką. Unikaj środków czyszczących o działaniu ściernym i rozpuszczalników, które mogą uszkodzić wykończenie lub elementy elektroniczne.

6.3 Fingerprint Sensor Care

Keep the fingerprint sensor clean and dry for optimal performance. Wipe it gently with a soft cloth if smudges or dirt accumulate.

7. Rozwiązywanie Problemów

• Zamek nie odpowiada: Check battery levels. Replace batteries if low. Ensure the cable connection between the exterior and interior assemblies is secure.
• Odcisk palca nie został rozpoznany: Ensure your finger is clean and dry. Try re-registering your fingerprint. If the issue persists, try a different finger or use a code/key.
• Klawiatura nie odpowiada: Check for low battery. If the keypad is backlit but not responding to input, try a factory reset (refer to programming guide).
• Cannot Delete Fingerprint: To delete a specific fingerprint, the registered finger must be scanned during the deletion process. If the person is unavailable, a factory reset of the lock may be required to clear all stored fingerprints and codes, after which you can reprogram new ones.
• Błędny limit wejść: If incorrect codes are entered 10 times, the lock will temporarily disable for 3 minutes as a security measure. Wait for the lockout period to expire before attempting entry again.
• Automatyczna blokada nie działa: Verify that the auto-lock feature is enabled and correctly configured in the programming settings.

8. Specyfikacje

9. Gwarancja i wsparcie

Veise offers comprehensive support for your product:

• Gwarancja: At least a 1-year warranty is provided from the date of purchase.
• Wsparcie telefoniczne: Lifetime online phone support is available Monday to Friday, 9 AM to 5 PM PST.
• Usługa e-mail: 24/7 after-sales email service is available for any inquiries or issues.

Please refer to the contact information provided with your product packaging or on the official Veise website for specific support channels.
