Lewitt MTP W950 Handheld Microphone

1. Wprowadzenie i koniecview

The Lewitt MTP W950 is a premium handheld condenser microphone designed to deliver studio-quality sound in live performance and recording environments. It features a 1-inch true condenser capsule, offering exceptional clarity and detail. Engineered for versatility, the MTP W950 provides robust feedback and bleed rejection, ensuring your vocals remain clear and prominent even in challenging acoustic settings. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your MTP W950 microphone.

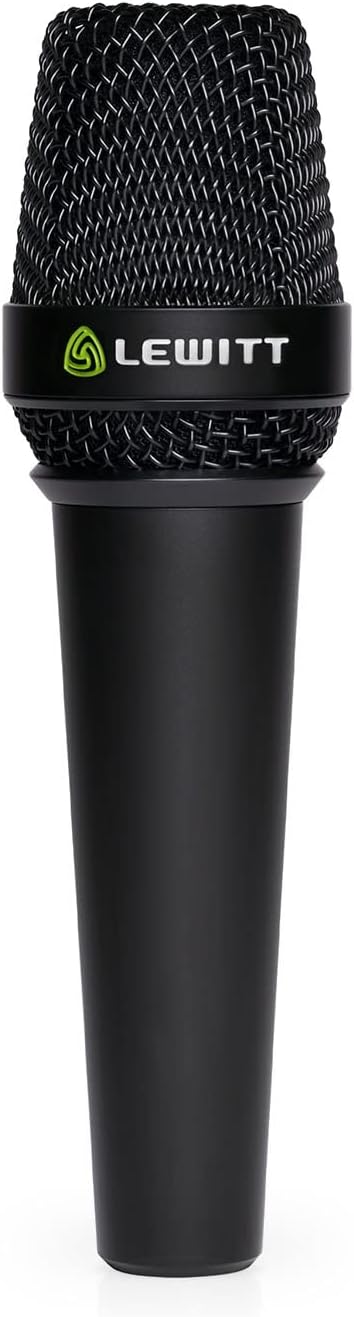

Figure 1: The Lewitt MTP W950 Handheld Microphone, showcasing its sleek design and prominent Lewitt branding.

2. Główne cechy

• Studio Sound on Stage: Equipped with a 1-inch true condenser capsule for high-end sound quality, minimizing feedback and bleed.
• Wired and Wireless Compatibility: Designed for both XLR wired connections and seamless integration with industry-standard wireless transmitters by detaching the capsule.
• Superior Rear Rejection: Achieves an industry-leading 90% rear rejection to effectively minimize unwanted stage noise from drums, instruments, and crowd.
• Dual-Layer Protection: Innovative design reduces plosives without an external pop filter, protects the capsule from moisture, and eliminates wind noise.
• Flexible Sound Settings: Offers switchable cardioid and supercardioid polar patterns, a 12 dB attenuation setting, and a 120 Hz low-cut filter for adaptable sound shaping.
• Konstrukcja Premium: Features a durable full-metal housing and gold-plated XLR connectors for high signal integrity and longevity.

Figure 2: The MTP W950 delivers studio-quality sound for live performances, capturing vocal nuances with clarity.

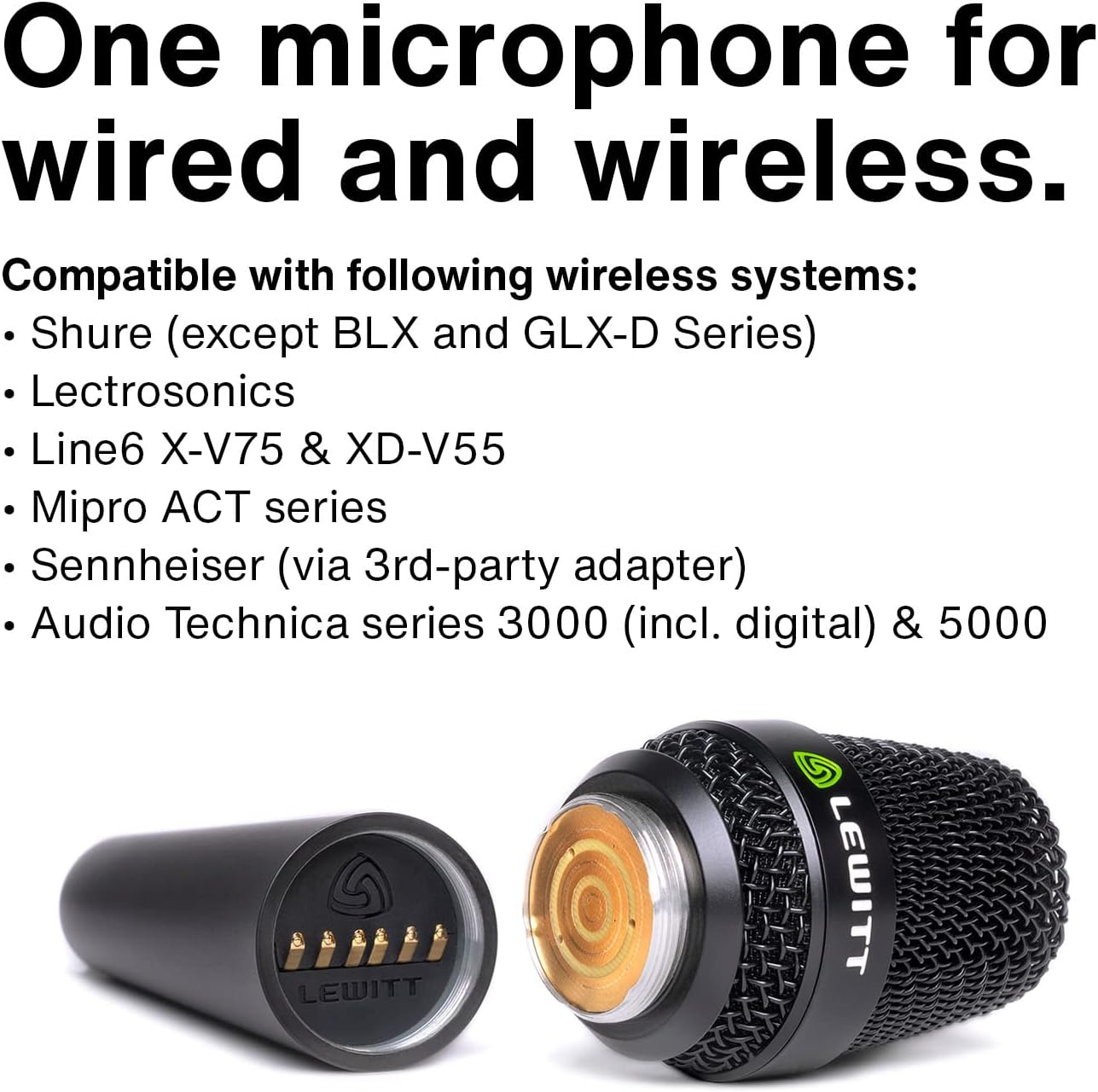

Figure 3: The MTP W950's modular design allows for easy transition between wired and wireless setups by detaching the capsule.

Figure 4: Adjustable settings on the MTP W950 capsule, including polar pattern selection, attenuation, and low-cut filter.

3. Zawartość pudełka

Upon unboxing your Lewitt MTP W950, please ensure all the following items are present:

• Lewitt MTP W950 Microphone
• Skrzynia transportowa
• Szyba przednia
• Klips do mikrofonu

Figure 5: The MTP W950 microphone, mic clip, and windscreen neatly stored within the included durable transport case.

4. Konfiguracja

4.1 Połączenie przewodowe

1. Attach the MTP W950 microphone to the included mic clip.
2. Secure the mic clip onto a standard microphone stand.
3. Connect a standard XLR cable (not included) to the XLR connector at the base of the microphone.
4. Connect the other end of the XLR cable to your audio interface, mixer, or preamplifier. Ensure phantom power (+48V) is enabled on your device, as the MTP W950 is a condenser microphone.

4.2 Konfiguracja sieci bezprzewodowej

1. Gently unscrew the microphone capsule from the main body of the MTP W950.
2. Carefully attach the MTP W950 capsule to a compatible industry-standard wireless handheld transmitter (not included). Refer to your wireless system's manual for specific attachment instructions.
3. Ensure the wireless transmitter is powered on and properly paired with its receiver.

4.3 Adjusting Microphone Settings

The MTP W950 offers versatile sound shaping options directly on the capsule:

• Wzór biegunowy: Unscrew the windscreen to access the switches. Select between Cardioid (wider pickup, good for general vocals) and Supercardioid (tighter pickup, excellent for feedback rejection and isolating vocals).
• Podkładka tłumiąca: Engage the -12 dB pad switch if you are experiencing signal clipping or distortion with very loud sound sources.
• Filtr dolnoprzepustowy: Activate the 120 Hz low-cut filter switch to reduce unwanted low-frequency rumble or proximity effect.

5. Instrukcja obsługi

To achieve optimal performance from your Lewitt MTP W950 microphone, consider the following:

• Umiejscowienie mikrofonu: For most vocal applications, hold the microphone 2-6 inches from your mouth. Experiment with distance to control proximity effect (increased bass response when close to the mic).
• Zyskaj Staging: Set the input gain on your mixer or audio interface to an appropriate level. The signal should be strong without clipping (distortion).
• Zapobieganie sprzężeniom zwrotnym: Utilize the MTP W950's excellent rear rejection by positioning stage monitors and loudspeakers strategically. The supercardioid pattern offers maximum feedback suppression.
• Kontrola wybuchowa: The dual-layer protection is designed to minimize plosives (harsh 'P' and 'B' sounds). For extreme cases, the included windscreen can be used.
• Działanie bezprzewodowe: When using the MTP W950 capsule with a wireless transmitter, ensure clear line-of-sight between the transmitter and receiver to prevent signal dropouts.

6. Konserwacja

Proper care will ensure the longevity and performance of your MTP W950 microphone:

• Czyszczenie: Use a soft, dry cloth to wipe down the microphone body. For the grille, a soft brush can be used to remove debris. Do not use liquid cleaners directly on the microphone.
• Składowanie: Always store the microphone in its provided transport case when not in use. This protects it from dust, moisture, and physical damage.
• Wilgoć: While the dual-layer protection offers resistance to moisture, avoid exposing the microphone to excessive humidity or direct liquids.
• Temperatura: Store and operate the microphone within recommended temperature ranges to prevent damage to internal components.

7. Rozwiązywanie Problemów

If you encounter issues with your MTP W950, try the following common troubleshooting steps:

• Brak dźwięku:
  • Ensure phantom power (+48V) is enabled on your mixer/interface.
  • Check all XLR cable connections for secure fit.
  • Verify input gain is turned up on your mixer/interface.
  • If using wirelessly, confirm transmitter is powered, charged, and paired correctly.
• Zniekształcony dźwięk:
  • Engage the -12 dB attenuation pad on the microphone capsule.
  • Reduce the input gain on your mixer/interface.
  • Upewnij się, że mikrofon nie znajduje się zbyt blisko źródła dźwięku, ponieważ może to powodować przesterowanie.
• Nadmierna informacja zwrotna:
  • Switch the polar pattern to Supercardioid for maximum rejection.
  • Reposition stage monitors or performers relative to the microphone.
  • Reduce overall system volume or specific frequency ranges causing feedback.
• Muffled or Boomy Sound:
  • Engage the 120 Hz low-cut filter on the microphone capsule.
  • Increase distance from the sound source to reduce proximity effect.

If issues persist after attempting these steps, please contact Lewitt customer support.

8. Specyfikacje

9. Gwarancja i wsparcie

The Lewitt MTP W950 Handheld Microphone comes with a 2-letnia gwarancja, ensuring peace of mind regarding manufacturing defects and performance. Additionally, a 30-dniowa gwarancja zwrotu pieniędzy obowiązuje od daty zakupu.

For technical support, warranty claims, or further inquiries, please visit the official Lewitt webna stronie internetowej lub skontaktuj się z działem obsługi klienta, korzystając z danych kontaktowych podanych na stronie webZachowaj dowód zakupu w celu potwierdzenia gwarancji.
