1. Wprowadzenie

The Accsoon SeeMo is a compact and versatile HDMI to USB-C video transmitter adapter designed to transform your iOS device (iPhone or iPad) into a high-grade monitor for your camera or other HDMI sources. It enables real-time monitoring, recording, and streaming, enhancing your filmmaking workflow with portability and advanced features.

Image 1.1: Accsoon SeeMo adapter connected to a camera, with an iPhone mounted for monitoring.

Główne cechy:

• High-Grade Monitoring: Connects your camera or HD HDMI source to your iPhone or iPad for professional monitoring.
• Przenośna konstrukcja: Compact and lightweight, ideal for on-the-go filmmakers using handheld cameras, gimbals, or studio setups.
• Zgodność z systemem iOS: Features a built-in clamp for recent iPhones and connects via an included right-angle Lightning to USB-C cable.
• Elastyczna moc: Powered by rechargeable Sony NP-F type batteries (NP-F550/F750/F970), offering up to 8 hours of operation with an NP-F 970 battery.
• Accessory Power Output: A useful 5V 2A USB-C output port allows powering of external devices like microphones or small on-camera lights.
• iPad Integration: Can connect to a recent iPad or iPad Pro using an Accsoon PowerCage (sold separately) for a larger director's monitor setup.

2. Co znajduje się w pudełku

Upon unboxing your Accsoon SeeMo, please ensure all the following items are present:

Image 2.1: Accsoon SeeMo package contents.

• Accsoon SeeMo Unit x1
• Accsoon Cold Shoe Adapter x1
• USB-C to Lightning Cable x1
• Kabel USB-C do USB-C x1

Note: Sony NP-F type batteries are not included and must be purchased separately.

3. Konfiguracja

3.1 Mounting the SeeMo

1. Attach the Accsoon Cold Shoe Adapter to your camera's hot shoe or a compatible mounting point on your camera rig. Secure it firmly.
2. Slide the Accsoon SeeMo unit onto the cold shoe adapter until it clicks into place.
3. Adjust the angle of the SeeMo unit as needed using the cold shoe adapter's articulation.
4. Extend the built-in clamp on the SeeMo unit and carefully insert your iPhone (5.5–6.7 inches wide) into the clamp. Upewnij się, że jest bezpiecznie zamocowany.

Image 3.1: Accsoon SeeMo mounted on a camera with an iPhone.

3.2 Powering the SeeMo

1. Insert a fully charged Sony NP-F type battery (NP-F550/F750/F970) into the battery holder on the back of the SeeMo unit.
2. Press the 'ON/OFF' button on the side of the SeeMo unit to power it on. The LED indicators will light up to show the battery level.

3.3 Connecting to Your Camera and iOS Device

1. Connect your camera's HDMI output port to the HDMI-A input port on the Accsoon SeeMo using a compatible HDMI cable.
2. Connect the USB-C output port on the Accsoon SeeMo to your iPhone's Lightning or USB-C port using the appropriate included cable (USB-C to Lightning or USB-C to USB-C).

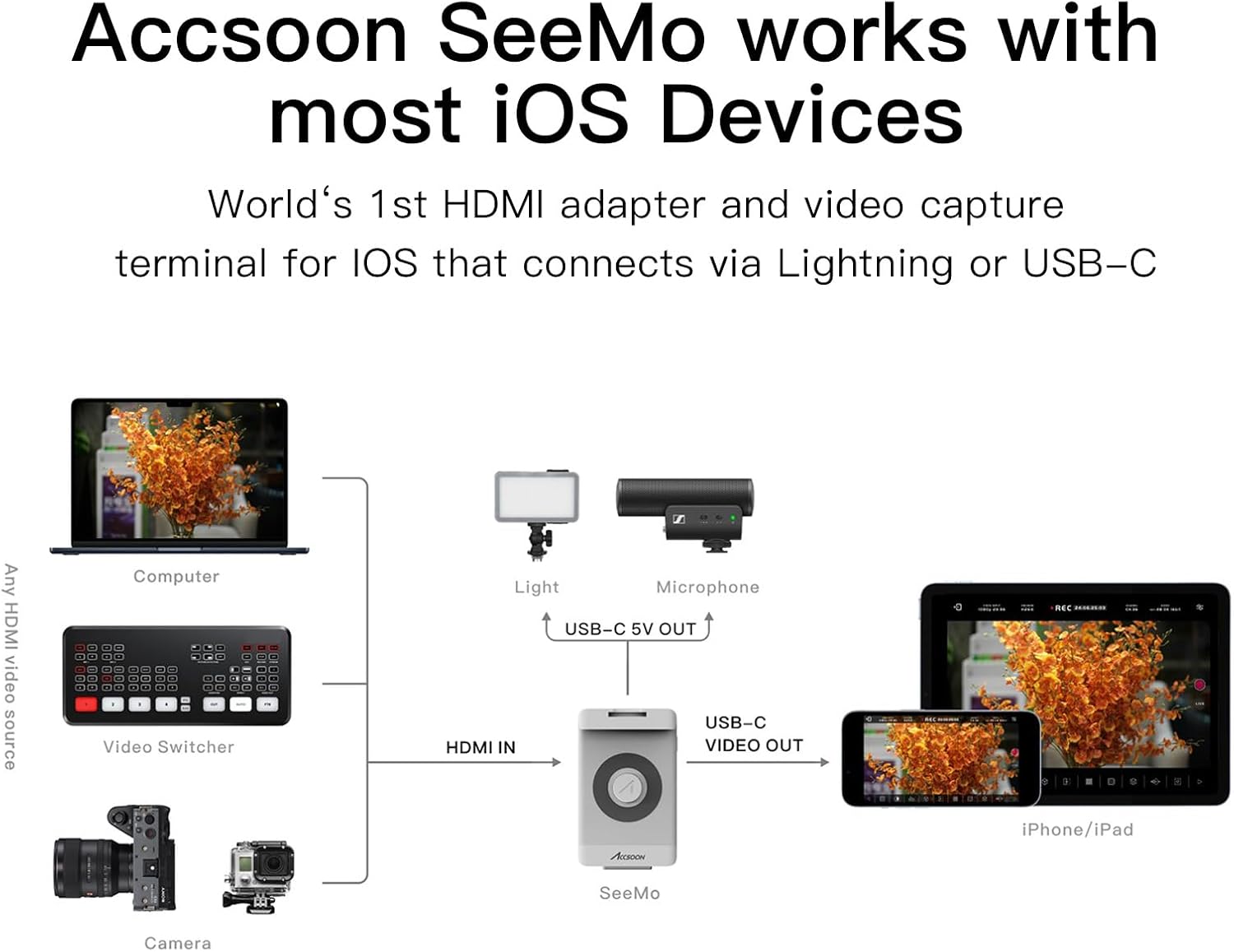

Image 3.2: Connection diagram for Accsoon SeeMo with various devices.

3.4 Instalacja aplikacji

The Accsoon SeeMo requires the Accsoon SEE app (iOS 12.0 or later) to function. Upon connecting the SeeMo to your iOS device, you may receive a prompt to download the app from the App Store. If not, search for 'Accsoon SEE' in the App Store and install it.

4. Instrukcja obsługi

Once the Accsoon SEE app is launched and connected, your iOS device will display the live feed from your camera. The app provides a comprehensive interface for monitoring, recording, and streaming.

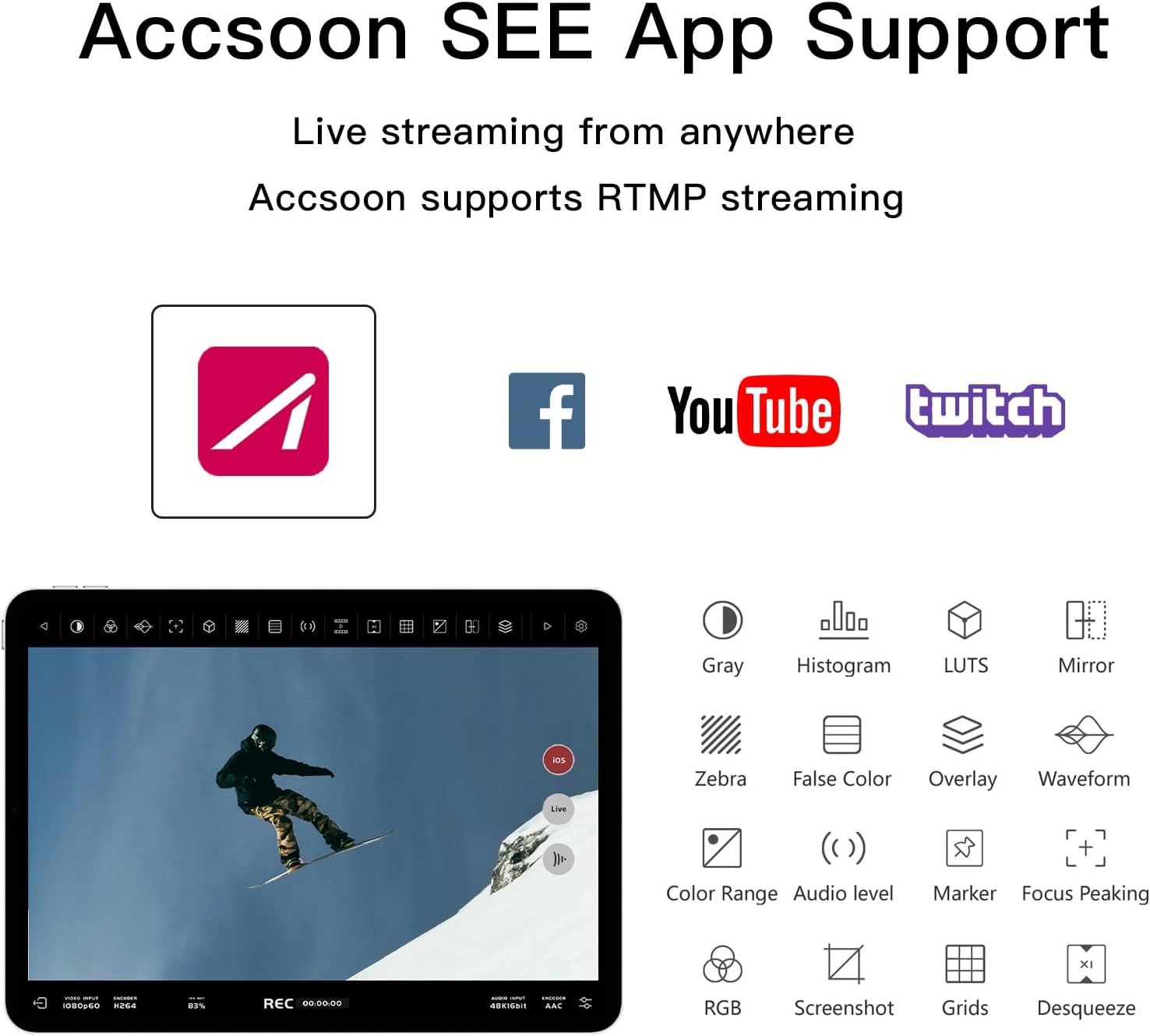

Image 4.1: Accsoon SEE app interface on an iPhone.

4.1 Funkcje monitorowania

The Accsoon SEE app offers a suite of professional monitoring tools:

• Asystent ostrości: Tools like focus peaking to ensure sharp focus.
• Exposure Tools: Waveforms, histograms, and false color for accurate exposure control.
• Framing Guides: Grids, aspect ratio guides, and safe areas.
• LUT: Apply custom Look Up Tables in real-time for creative previews.
• Rozluźnij: For anamorphic lens monitoring.
• Lustro/Flip: Adjust the image orientation as needed.

Image 4.2: Accsoon SEE app monitoring tools.

4.2 Nagrywanie

You can record the video feed directly to your iOS device. The app supports recording in 1080p at up to 60fps, providing a convenient backup or quick-share option for your footage.

4.3 Przesyłanie strumieniowe

The Accsoon SEE app supports RTMP/SRT streaming, allowing you to live stream your camera's feed to various platforms like YouTube, Facebook, and Twitch directly from your iOS device.

Image 4.3: Accsoon SEE app live streaming features.

5. Konserwacja

5.1 aktualizacji oprogramowania sprzętowego

Accsoon regularly releases firmware updates to improve performance and add new features. To update the firmware:

1. Ensure your SeeMo unit is fully charged (battery level above 50%).
2. Connect your SeeMo to your iOS device and launch the Accsoon SEE app.
3. Navigate to the 'Firmware' section within the app's menu.
4. Follow the on-screen instructions to download and install the latest firmware. Do not interrupt the update process, as this can cause permanent damage to the device.

5.2 Pielęgnacja baterii

• Always use genuine Sony NP-F type batteries or reputable third-party alternatives.
• Baterie, które nie są używane, przechowuj w chłodnym i suchym miejscu.
• Avoid fully discharging batteries to prolong their lifespan.

6. Rozwiązywanie Problemów

• Brak sygnału wideo:
  • Ensure all HDMI and USB-C cables are securely connected.
  • Verify that your camera's HDMI output is active and configured correctly.
  • Check if the Accsoon SeeMo unit is powered on and has sufficient battery.
  • Confirm that the Accsoon SEE app is open and running on your iOS device.
• App Not Recognizing SeeMo:
  • Restart the Accsoon SEE app and reconnect the SeeMo.
  • Ensure your iOS device is running iOS 12.0 or later.
  • Try a different USB-C to Lightning/USB-C cable.
• Krótki czas pracy baterii:
  • Use higher capacity NP-F batteries (e.g., NP-F970).
  • Ensure external accessories are not drawing excessive power from the 5V USB-C output.

7. Specyfikacje

Image 7.1: Accsoon SeeMo physical features and specifications.

8. Gwarancja i wsparcie

For warranty information and technical support, please refer to the official Accsoon webOdwiedź witrynę lub skontaktuj się z lokalnym dystrybutorem. Zachowaj dowód zakupu na wypadek reklamacji.
