Wstęp
The Cadac Safari Chef 30 is a versatile and compact gas barbecue designed for outdoor cooking. It offers multiple cooking options, making it ideal for camping, picnics, and other outdoor adventures. This manual provides essential information for the safe and efficient use, setup, and maintenance of your Safari Chef 30.
This portable gas cooker weighs less than 9 pounds and includes a burner with a pot stand, a BBQ grid, a flat grill plate, and a lid/dome that also functions as a pot. Its design allows for a wide range of cooking applications, from grilling meats and vegetables to preparing stews and griddle cakes.
Składniki produktu
The Safari Chef 30 comes with several interchangeable cooking surfaces and essential components for diverse cooking needs:
- Gas burner with piezo ignition
- Podstawka pod garnek
- BBQ grid (GreenGrill ceramic coated non-stick)
- Flat grill plate (GreenGrill ceramic coated non-stick)
- Pot/lid (doubles as a pot)
- Torba transportowa
- Foldable legs for support
Image: All components of the Safari Chef 30, disassembled to show each part.
Organizować coś
Setting up your Cadac Safari Chef 30 is designed to be quick and easy:
- Rozpakuj wszystkie elementy z torby transportowej.
- Extend the foldable legs of the main burner unit to ensure a stable base.
- Insert a propane bayonet gas cartridge directly into the designated compartment on the unit. Ensure it is securely screwed in.
- Place the desired cooking surface (pot stand, BBQ grid, or flat grill plate) onto the main burner unit.
- Ensure all connections are secure before ignition.
Image: Proper insertion of the gas cartridge into the unit.
Image: The Safari Chef 30 with the pot stand attached.
Instrukcja obsługi
The Safari Chef 30 is designed for efficient and versatile outdoor cooking:
- After setup, turn the control knob to the ignition position. The automatic push-button piezo ignition will light the burner.
- Adjust the flame intensity using the control knob to achieve the desired cooking temperature.
- Utilize the various cooking surfaces:
- Pot Stand: For boiling water, cooking with pots, or using the lid as a pot.
- BBQ Grid: Ideal for grilling meats, fish, and vegetables. The GreenGrill ceramic coating ensures healthier cooking and easy release.
- Flat Grill Plate: Perfect for pancakes, eggs, bacon, or other griddle-style cooking.
- Lid/Dome: Can be used as a pot for cooking or as a dome to create an oven effect for roasting or baking.
- Always monitor your cooking and adjust heat as needed.
- When finished, turn the control knob to the "OFF" position and allow the unit to cool completely before handling or disassembling.

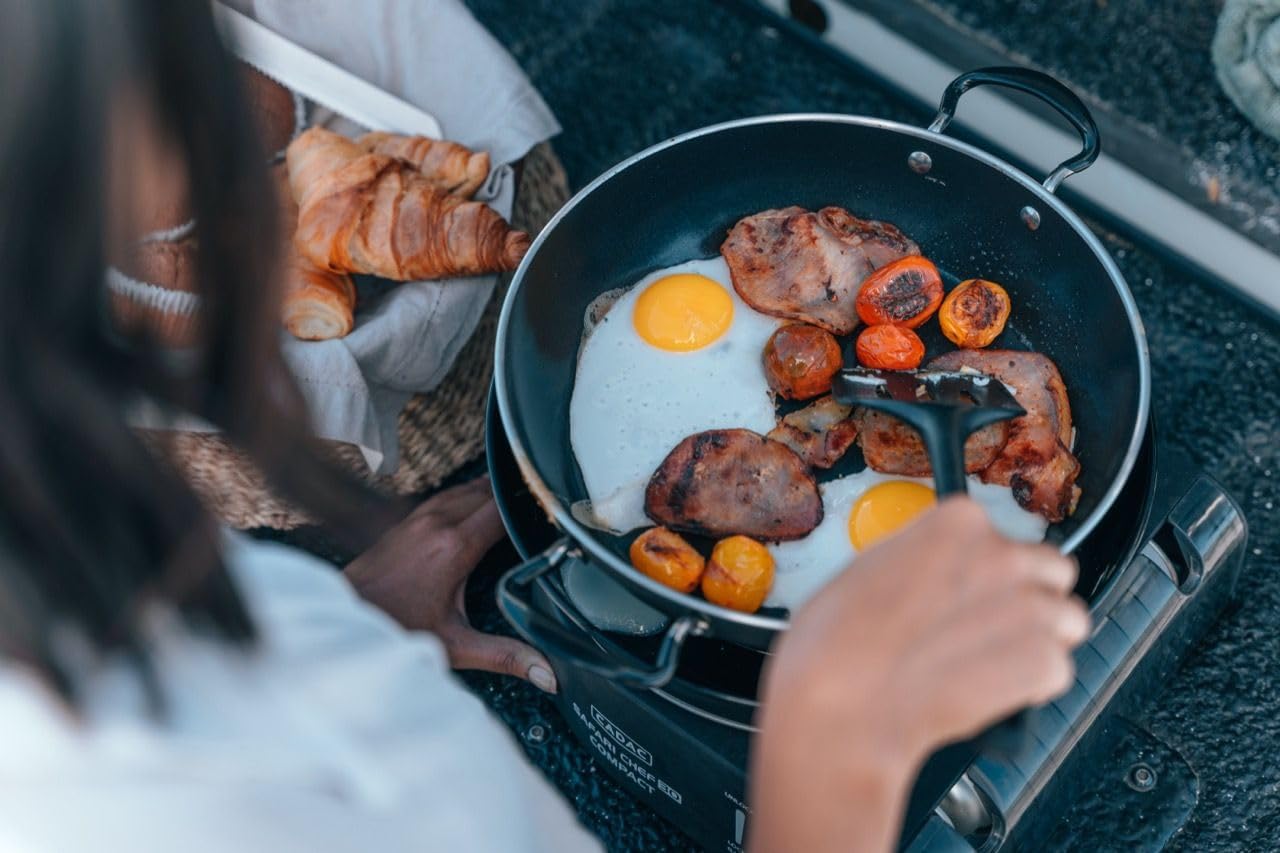

Image: Cooking breakfast on the Safari Chef 30 using a pan on the pot stand.

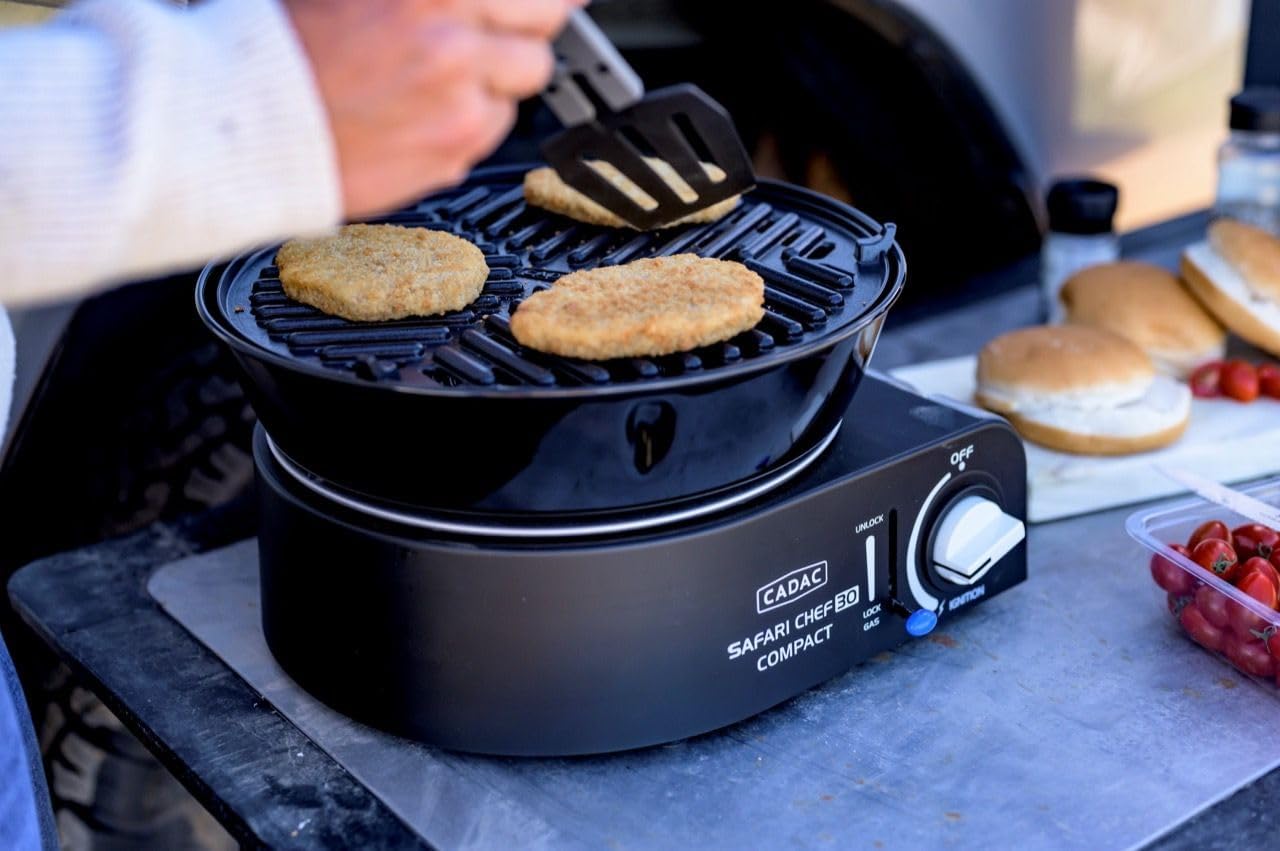

Image: Grilling food on the BBQ grid.
Konserwacja i czyszczenie
Regular cleaning and maintenance will prolong the life of your Safari Chef 30 and ensure optimal performance:
- Ochłonąć: Always allow the unit and all cooking surfaces to cool completely before cleaning.
- Cooking Surfaces: The GreenGrill ceramic coated non-stick surfaces are easy to clean. Use warm soapy water and a soft sponge or cloth. Avoid abrasive cleaners or scourers that could damage the coating.
- Jednostka główna: Wipe down the main burner unit with a damp płótno. Nie zanurzać urządzenia w wodzie.
- Składowanie: Once clean and dry, pack all components back into the provided carry bag for convenient and safe storage.
Image: The Safari Chef 30 stored in its carry bag.
Rozwiązywanie problemów
If you encounter issues with your Safari Chef 30, consider the following common solutions:
- Awaria zapłonu:
- Ensure the gas cartridge is correctly inserted and securely screwed in.
- Check if the gas cartridge is empty and replace if necessary.
- Verify that the control knob is turned fully to the ignition position.
- If the piezo igniter is not sparking, you may need to use a long match or lighter to manually ignite the burner.
- Low Flame/No Gas Flow:
- Confirm the gas cartridge has sufficient fuel.
- Check for any kinks or obstructions in the gas line (if applicable, though this model uses direct cartridge).
- Ensure the control knob is fully open.
- Jednostka niestabilna:
- Ensure the foldable legs are fully extended and locked into place on a flat, stable surface.
W przypadku powtarzających się problemów, które nie zostały tutaj omówione, skontaktuj się z obsługą klienta.
Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Marka | Cadac |
| Nazwa modelu | Szef kuchni Safari |
| Numer modelu | 407473 |
| Wymiary produktu (Gł. x Szer. x Wys.) | 9.06" gł. x 11.81" szer. x 13.78" wys. (23 x 30 x 35 cm) |
| Waga przedmiotu | 8.36 funta (3.8 kilograma) |
| Typ paliwa | Gas (Propane bayonet gas cartridge) |
| Moc grzewcza | 1.8 kilowatów (1800 watów) |
| Powierzchnia do gotowania | 700 cm² (110 cali²) |
| Zawarte komponenty | Gas burner with piezo ignition, Pot stand, BBQ grid, Flat pan, Pot/lid, Carry bag, Foldable legs |
| Funkcja specjalna | Durable, GreenGrill ceramic coating |
| Wymagany montaż | NIE |
Obraz: Diagram wymiarów produktu.
Gwarancja i wsparcie
The Cadac Safari Chef 30 comes with a 2-letnia gwarancja na produkt provided by Front Runner. This warranty covers manufacturing defects and ensures the quality of your product.
For warranty claims, technical support, or any inquiries regarding your product, please contact Front Runner Outfitters directly. You can find more information and contact details on their official store page:
This appliance complies with EN 17476 and SANS 1539 standards.
