Regał magazynowy Yaheetech 5-poziomowy ze stali (90 x 45 x 180 cm, niebieski) – instrukcja obsługi

1. Informacje dotyczące bezpieczeństwa

Przed montażem i użytkowaniem produktu prosimy o zapoznanie się ze wszystkimi instrukcjami. Nieprzestrzeganie tych instrukcji może spowodować obrażenia ciała lub uszkodzenie produktu.

• Nośność: Each shelf has a maximum load capacity of 265 kg (evenly distributed). Do not exceed this limit.
• Prawidłowy montaż: Ensure all components are securely fitted and hammered into place during assembly. A rubber mallet (not included) is recommended for secure connections.
• Stabilność: For enhanced stability and safety, especially in areas with children or pets, it is highly recommended to secure the shelving unit to a wall using an anti-tip kit (not included).
• Umieszczenie: Place the unit on a flat, stable, and level surface. Avoid placing it in high-traffic areas where it could be easily bumped.
• Ostre krawędzie: While edges are designed to be smooth, wear protective gloves during assembly to prevent cuts or pinches.
• Dzieci: Do not allow children to climb on or play with the shelving unit.

2. Lista części

Before starting assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, please contact customer support.

Obraz: Ponadview of all parts included for the Yaheetech 5-Tier Steel Rack assembly.

3. Instalacja i montaż

Follow these steps carefully to assemble your Yaheetech 5-Tier Steel Storage Rack. It is recommended to wear the provided gloves during assembly.

Krok 1: Złóż ramę bazową

1. Attach the corner protectors to the bottom ends of four long vertical posts. Ensure the large opening faces up and the small opening faces down.
2. Connect two long horizontal beams and two short horizontal beams to form a rectangular base. Use a rubber mallet to gently tap the connections until they are secure. Ensure the wider side of the beams faces upwards.

Video: Demonstrates the initial steps of assembling the base frame and attaching the vertical posts.

Step 2: Install the First Shelf

3. Place one MDF board onto the assembled base frame. Ensure it sits flush within the frame.

Step 3: Extend Vertical Posts and Add Middle Shelves

4. Attach the remaining vertical posts to the top of the existing posts using the coupling plates. Tap gently with a rubber mallet to secure.
5. Repeat the process of creating horizontal frames (two long, two short beams) and placing MDF boards for the middle shelves. Ensure the wider side of the beams faces upwards and connections are secure.

Video: Shows the process of extending the vertical posts and adding subsequent shelves.

Step 4: Complete the Top Section

6. Assemble the final horizontal frame for the top shelf.
7. Place the last MDF board onto the top frame.
8. Install the remaining corner protectors on the very top ends of the vertical posts.

Image: Illustrates the flexibility of the rack, allowing for adjustable shelf heights and conversion into two smaller units.

4. Instrukcja obsługi

Your Yaheetech Steel Storage Rack is designed for versatile storage. Here are some guidelines for optimal use:

• Ładowanie przedmiotów: Distribute weight evenly across each shelf to maintain stability and prevent warping. Place heavier items on lower shelves.
• Regulacja wysokości półki: The shelves are adjustable. To change a shelf's height, carefully remove the items, then use a rubber mallet to gently tap the horizontal beams upwards to disengage them from the vertical posts. Reattach them at the desired height and tap firmly to secure.
• Rekonfiguracja: The rack can be separated into two smaller, independent units (e.g., two 2-tier or 3-tier units) by using the coupling plates to create new top sections.
• Wszechstronne zastosowanie: This rack is suitable for various environments such as kitchens, garages, warehouses, basements, workshops, offices, bedrooms, and living rooms.

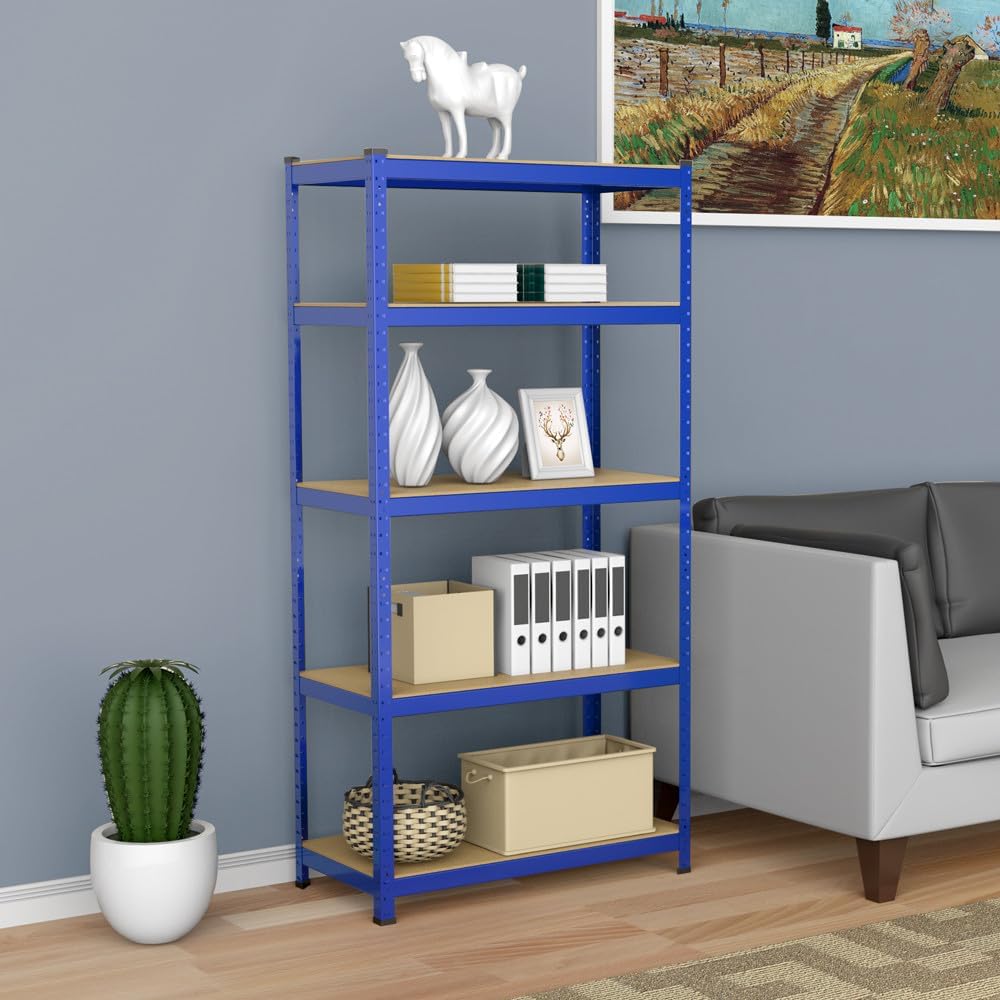

Image: The rack organized with various household items in a living room.

5. Konserwacja i pielęgnacja

To ensure the longevity and appearance of your steel storage rack, follow these maintenance tips:

• Czyszczenie: Wipe down the steel frame and MDF boards with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the coating.
• Zapobieganie rdzewieniu: The rack features a rust-resistant coating. To maintain this, avoid prolonged exposure to excessive moisture. Promptly wipe away any spills.
• Kontrola: Periodically check all connections to ensure they remain secure. Re-tap with a rubber mallet if any looseness is detected.
• Unikaj zadrapań: The smooth edges help prevent scratches, but avoid dragging sharp or heavy objects across the frame or shelves.

6. Rozwiązywanie Problemów

Jeśli podczas montażu lub użytkowania napotkasz jakiekolwiek problemy, zapoznaj się z poniższymi typowymi rozwiązaniami:

• Chwiejny stojak: Ensure all horizontal beams are fully seated into the keyhole slots on the vertical posts. Use a rubber mallet to firmly tap all connections until they are flush and secure. Check that the unit is on a level surface.
• Stopień trudności montażu: If parts are difficult to fit, ensure they are oriented correctly (e.g., wider side of beams facing up). A rubber mallet is essential for securing the screwless connections. Do not force parts; re-check alignment.
• Silny zapach: Some users have reported an initial odor from the MDF boards. This is typically temporary. Ensure good ventilation in the area where the rack is assembled for a few days.
• MDF Board Not Fitting: Ensure the horizontal beams are correctly installed and fully seated. The MDF board should rest securely on the inner lip of the beams.

7. Specyfikacje

Image: Detailed dimensions and load capacity of the 5-tier rack.

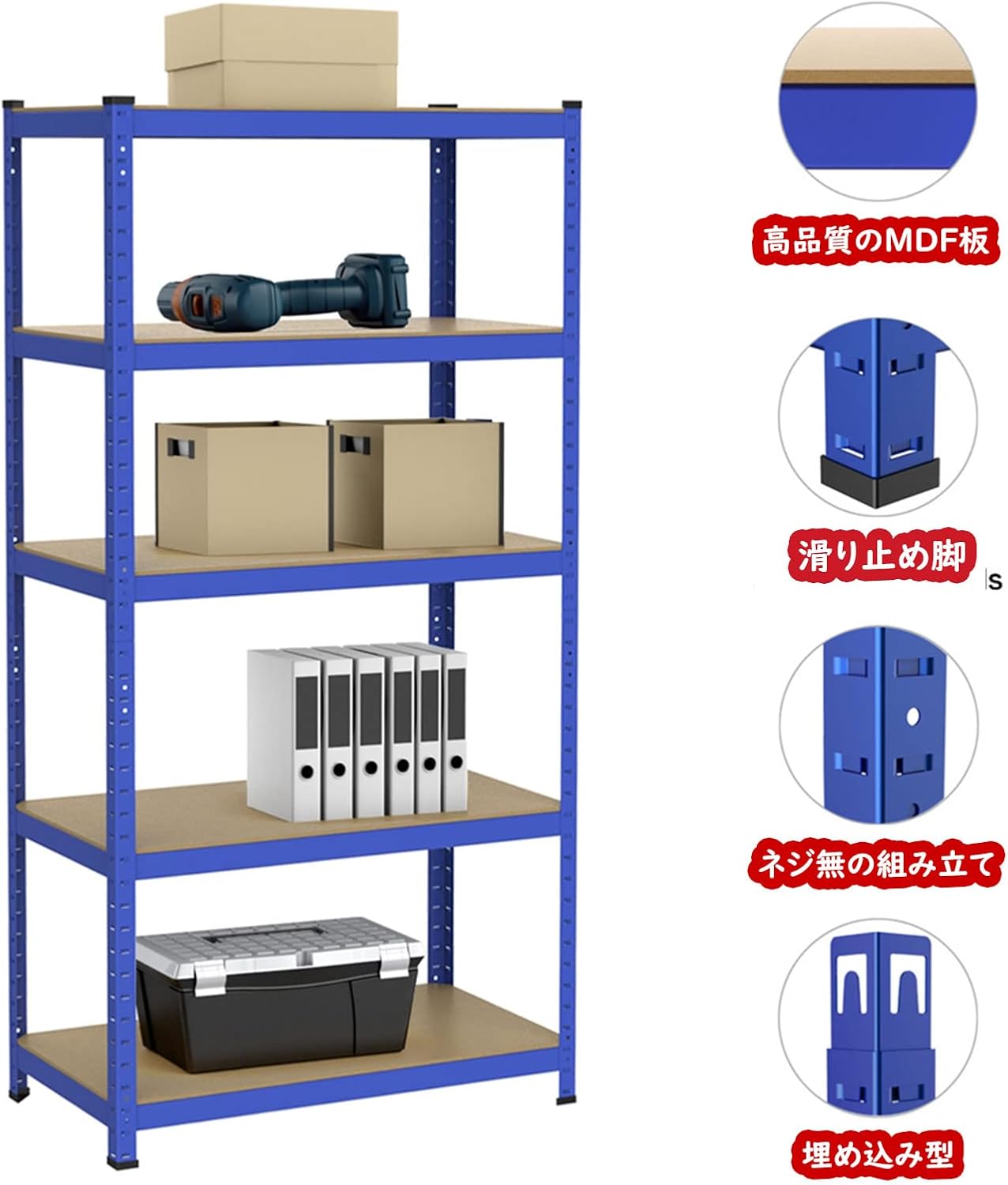

Image: Highlights key features like high-quality MDF, non-slip feet, and the screwless assembly design.

8. Gwarancja i wsparcie

For warranty information or customer support, please refer to the documentation included with your product or contact Yaheetech customer service directly. Details are typically available on the manufacturer's official webna stronie internetowej lub w miejscu zakupu.
