Wstęp
This manual provides detailed instructions for the assembly, operation, and maintenance of your Yaheetech 5-Tier Metal Storage Rack, Model 592104. Please read these instructions carefully before assembly and use to ensure safe and proper operation.
Image 1: Fully assembled Yaheetech 5-Tier Metal Storage Rack, showcasing its five shelves and sturdy frame.
Informacje dotyczące bezpieczeństwa
- Przed montażem należy upewnić się, że wszystkie elementy są obecne i nieuszkodzone.
- Assemble the rack on a flat, stable surface.
- Do not exceed the maximum load capacity per shelf (175 kg / 385.8 lbs, evenly distributed).
- Distribute weight evenly across shelves to maintain stability.
- Trzymaj dzieci i zwierzęta z daleka podczas montażu.
- Wear appropriate safety gear, such as gloves, during assembly to prevent injury.
Zawartość opakowania
Sprawdź, czy w pakiecie znajdują się wszystkie części:
- Steel uprights (vertical supports)
- Steel crossbeams (horizontal supports for shelves)
- Płyty półkowe MDF
- Plastic feet caps (16 pieces)
- Instrukcja montażu (niniejsza instrukcja)
Konfiguracja i montaż
The Yaheetech 5-Tier Metal Storage Rack features a screwless design for easy assembly. A rubber mallet (not included) may be helpful to secure connections.
Image 2: Close-up illustrating the screwless assembly mechanism, the MDF shelf board, and the embedded support structure for stability.
- Przygotuj obszar: Przygotuj przestronne, płaskie i stabilne miejsce na montaż.
- Assemble Upright Frames: Connect the vertical steel uprights using the provided connectors. Ensure they are fully seated. The rack can be assembled as a single tall unit or divided into two shorter units.
- Attach Crossbeams: Insert the horizontal crossbeams into the slots on the uprights. Use a rubber mallet to gently tap them into place until they are secure. Ensure all four crossbeams for a single shelf level are installed before placing the MDF board.
- Regulacja wysokości półki: The shelf height is adjustable. Determine your desired shelf positions before inserting all crossbeams.

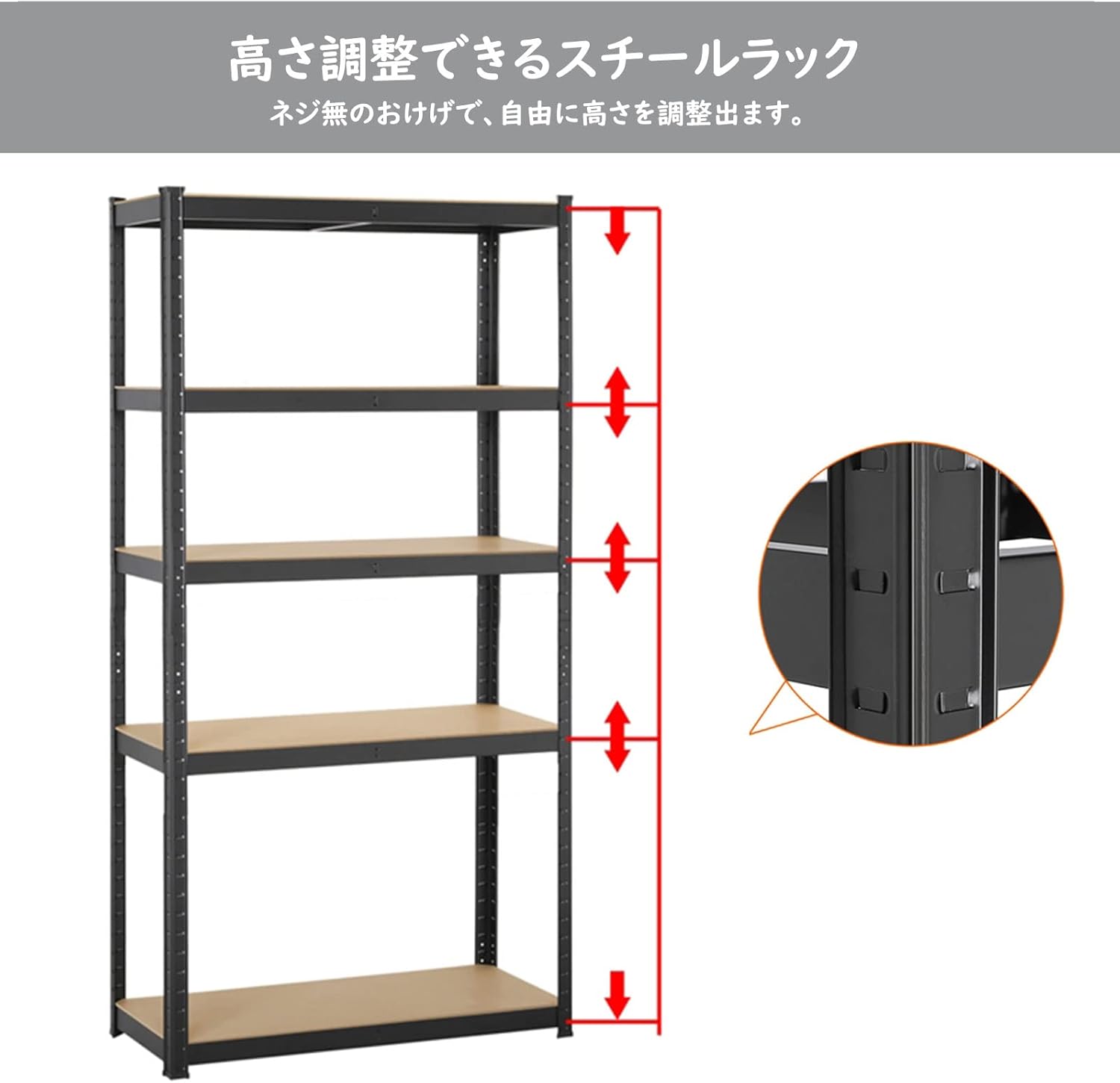

Image 3: Illustration demonstrating the adjustable height feature of the shelves, allowing customization for various item sizes.
- Place MDF Boards: Once the crossbeams for a shelf level are securely in place, lay the MDF board onto the crossbeams. Ensure it sits flush and is supported by the central support ribs.
- Install Feet Caps: Attach the plastic feet caps to the bottom of the uprights to protect your floor and enhance stability.
The rack can be configured as a single 5-tier unit or split into two separate units (e.g., a 3-tier and a 2-tier unit) for versatile use.
Działanie i użytkowanie
This storage rack is designed for various applications, including kitchens, storage rooms, workshops, garages, basements, bedrooms, and living rooms.
Obraz 4: Examples of the Yaheetech storage rack used in different environments, including an office, living room, kitchen, and garage, highlighting its versatility.
- Nośność: Each shelf can hold up to 175 kg (385.8 lbs) when the weight is evenly distributed. Do not concentrate heavy items in one small area.
- Regulowane półki: Adjust shelf heights as needed to accommodate items of different sizes. To adjust, remove the MDF board, gently tap out the crossbeams, reposition them, and re-insert the MDF board.
- Wszechstronna konfiguracja: The rack can be used as a tall shelving unit or separated into two shorter units, or even laid flat as a workbench, depending on your storage needs.
Konserwacja
- Czyszczenie: Wipe down the steel frame and MDF boards with a damp cloth. Avoid abrasive cleaners that could damage the painted finish.
- Kontrola: Periodically check all connections to ensure they remain secure. Re-tap any loose crossbeams with a rubber mallet if necessary.
- Rust and Scratch Resistance: The rack features a rust and scratch-resistant coating. However, avoid sharp objects or harsh chemicals that could compromise this protection.
- Ochrona podłogi: The vinyl feet caps protect your floors from scratches. Ensure they are always in place.
Rozwiązywanie problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Stojak wydaje się niestabilny lub chwiejny. | Connections not fully seated; uneven floor; weight not evenly distributed. | Ensure all crossbeams are fully tapped into the uprights. Move the rack to a level surface or use shims if necessary. Redistribute items evenly across shelves. |
| MDF shelf board does not sit flush. | Crossbeams not properly installed or bent. | Verify that all crossbeams are correctly inserted and fully seated. Check for any bent components and contact support if parts are damaged. |
| Difficulty assembling components. | Components not aligned correctly; lack of force. | Ensure parts are aligned before tapping. Use a rubber mallet to gently but firmly tap components into place. Do not force if alignment is incorrect. |
Specyfikacje

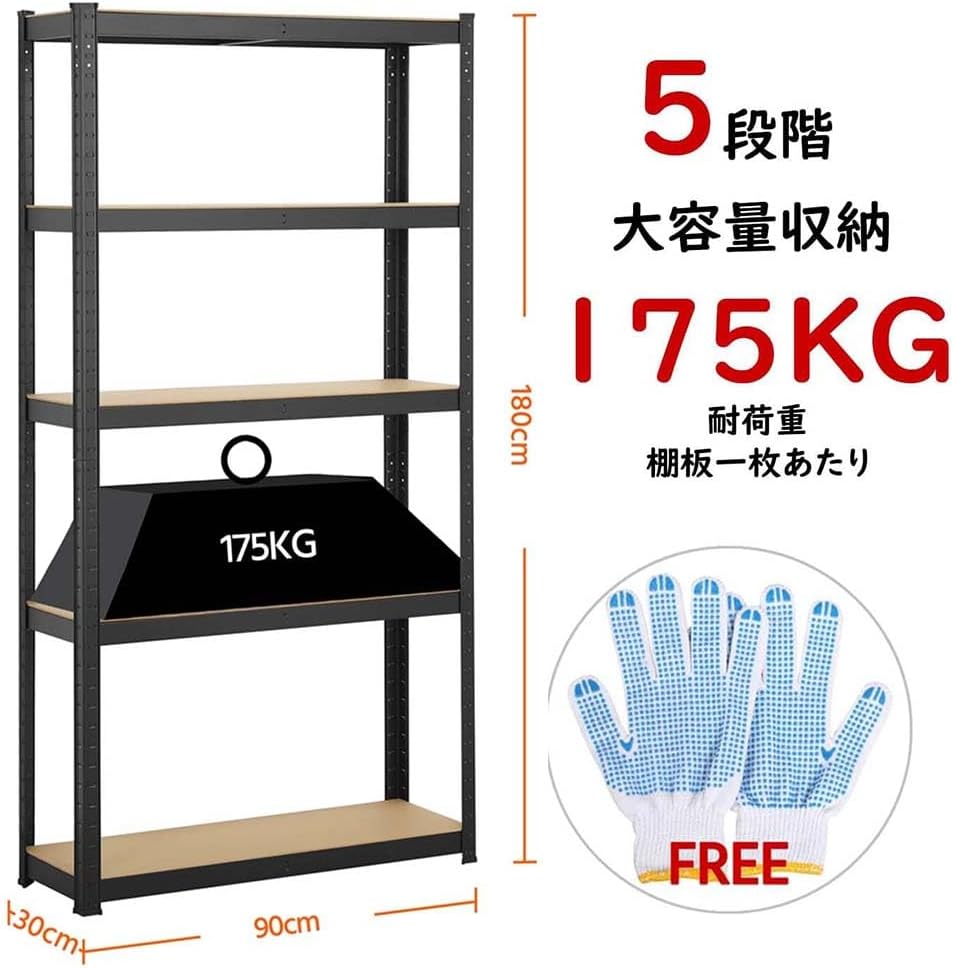

Image 5: Visual representation of the rack's dimensions (90cm width, 30cm depth, 180cm height) and the maximum load capacity per shelf (175 kg).
- Model: 592104
- Tworzywo: Alloy Steel, Stainless Steel, Metal (Frame), MDF (Shelves)
- Kolor: Czarny
- Wymiary (po złożeniu): 35.43" szer. x 11.81" gł. x 70.87" wys. (90 cm szer. x 30 cm gł. x 180 cm wys.)
- Liczba poziomów: 5
- Nośność na półkę: 175 kg (385.8 lbs) (evenly distributed)
- Cechy: Adjustable shelf height, corrosion resistant, lightweight, durable, screwless assembly, non-slip feet.
- Wymagany montaż: Tak
- Waga przedmiotu: 27.9 funta
- Kod UPC: 850035103746
Gwarancja i wsparcie
For warranty information, technical support, or to inquire about replacement parts, please contact Yaheetech customer service directly. Refer to your purchase documentation for specific contact details.
You can also visit the official Yaheetech store on Amazon for more information: Sklep Yaheetech
