Wstęp
Thank you for choosing the HOMCOM Adjustable Football Rebound Net. This manual provides essential information for the safe and effective assembly, operation, and maintenance of your new training equipment. Please read these instructions thoroughly before use and retain them for future reference.
Image: A football player demonstrating the use of the HOMCOM Adjustable Football Rebound Net during training.
Informacje dotyczące bezpieczeństwa
Before assembly and use, please observe the following safety precautions:
- Przed montażem upewnij się, że wszystkie elementy są kompletne i nieuszkodzone. Nie używaj, jeśli brakuje którejkolwiek części lub jest ona uszkodzona.
- Assemble the rebound net on a flat, stable surface.
- Always use the provided ground stakes (sardines) to secure the net firmly to the ground, especially during outdoor use or in windy conditions.
- Trzymaj dzieci i zwierzęta domowe z dala od miejsca montażu.
- Regularly inspect the net and frame for wear, tear, or damage. Replace worn or damaged parts immediately.
- This product is intended for football training. Do not use it for purposes other than its intended use.
- W przypadku młodszych użytkowników zaleca się nadzór osoby dorosłej.
Zawartość opakowania
Sprawdź, czy w pakiecie znajdują się wszystkie poniższe elementy:
- 1 x Football Rebound Net Frame
- 1 x Rebound Net (Polyethylene)
- 1 x Instrukcja obsługi (ten dokument)
- 30 x Black Elastic Loops (for net attachment)
- 4 x Ground Stakes (Sardines)
Image: Illustration of the product packaging, confirming a single package delivery.
Instrukcje konfiguracji
Follow these steps to assemble your HOMCOM Football Rebound Net:
- Rozpakuj komponenty: Ostrożnie wyjmij wszystkie części z opakowania i rozłóż je na czystej, płaskiej powierzchni.
- Złóż ramę: Connect the metal frame sections according to the diagrams provided in the separate assembly sheet (if included). Ensure all connections are secure. The frame is made of robust epoxy-coated metal.
- Zamocuj siatkę: Secure the polyethylene net to the assembled frame using the 30 black elastic loops. Ensure the net is taut and evenly distributed across the frame. The net features a 4.5 cm square mesh.
- Adjust Angle (Initial): Set the desired initial angle for the rebound net. Refer to the "Adjusting the Rebound Net" section for details.
- Zabezpieczenie uziemienia: Position the rebound net in your desired training location. Use the 4 provided ground stakes to firmly anchor the net to the ground for optimal stability.
Obraz: Szczegółowy view of the quality polyethylene net and the anti-corrosion epoxy metal frame, highlighting material durability.
Image: Close-up demonstrating how the elastic loops attach the net to the frame, ensuring a secure fit.
Instrukcja obsługi
The HOMCOM Football Rebound Net is designed for versatile football training, suitable for both amateur and professional use. It allows for various exercises to improve your skills.
Versatile Training Applications:
- Volleys and Headers: Practice receiving and returning balls with volleys and headers.
- Free Kicks: Use the net as a wall to practice free kicks and shot accuracy.
- Passing and Control: Improve passing accuracy and ball control by repeatedly sending and receiving the ball.
Target Practice:
The rebound net includes an adjustable white target zone. This target is designed to help players improve their shooting precision and practice hitting specific areas of the net.
Image: A child engaging in football practice using the rebound net in an outdoor setting.
Adjusting the Rebound Net
The HOMCOM Football Rebound Net offers adjustable features to cater to different training needs:
- Regulacja kąta: The inclination of the rebound net is adjustable across 4 levels, ranging from 42° to 70°. This allows you to change the rebound trajectory of the ball.
- Regulacja wysokości: The height of the rebound net can be adjusted from 130 cm to 183 cm, accommodating various drills and user heights.
To adjust, locate the adjustment mechanisms on the frame. Ensure the net is stable and securely locked in place after making any adjustments.

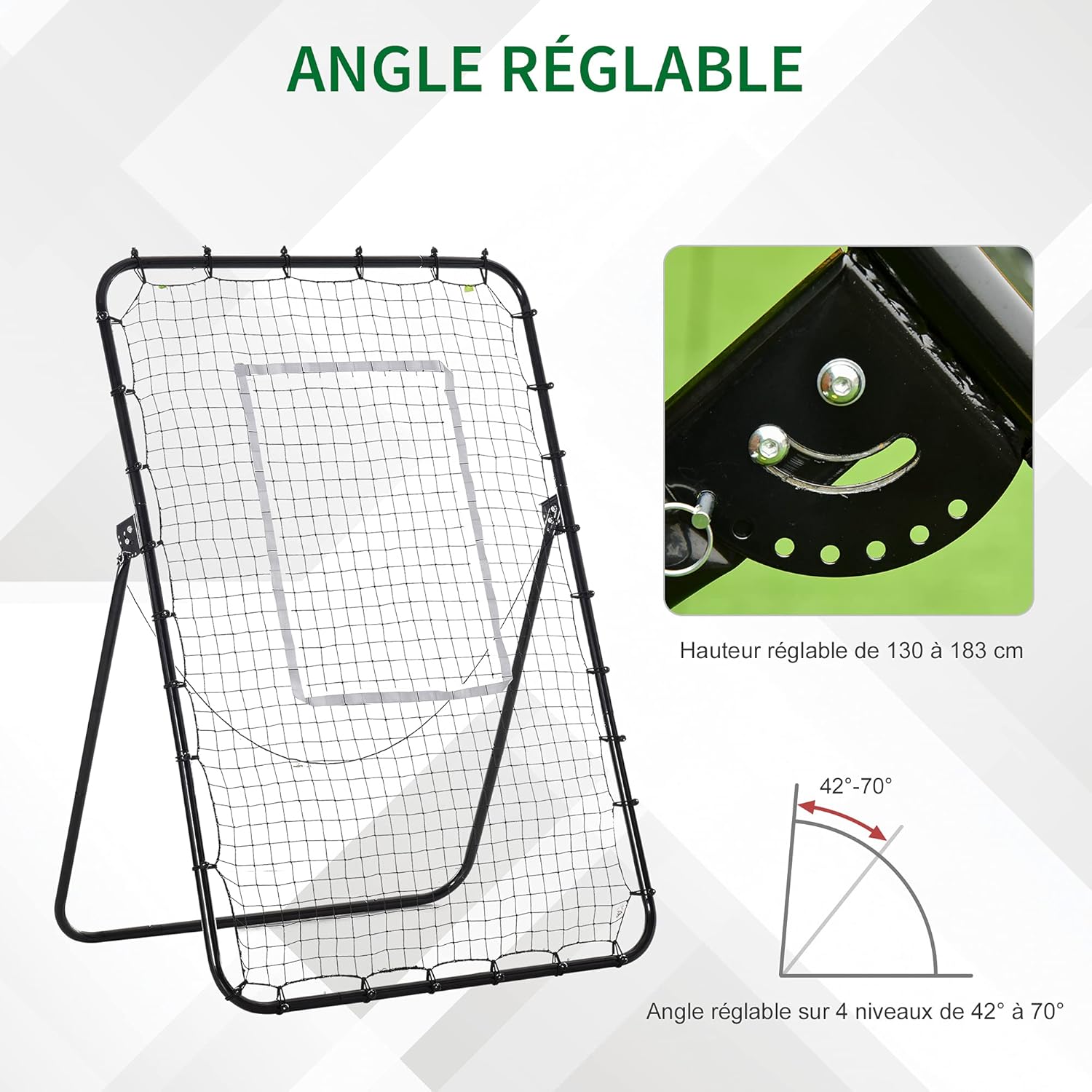

Image: Visual representation of the rebound net's adjustable angle and height settings.
Konserwacja
To ensure the longevity and optimal performance of your rebound net, follow these maintenance guidelines:
- Czyszczenie: Wytrzyj metalową ramę reklamąamp cloth to remove dirt and debris. The net can be rinsed with water if necessary. Avoid harsh chemicals.
- Kontrola: Regularly check all frame connections, elastic loops, and the net for any signs of wear, rust, or damage.
- Składowanie: The rebound net is foldable, making it convenient for storage. When not in use for extended periods, fold the net and store it in a dry, protected area to prevent weather damage.
Image: Demonstration of the rebound net's foldable design for easy storage and portability.
Rozwiązywanie problemów
If you encounter any issues with your HOMCOM Football Rebound Net, refer to the following common problems and solutions:
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Net is loose or sagging. | Elastic loops are not properly attached or are worn out. | Ensure all 30 elastic loops are securely attached. Replace any worn or broken loops. |
| Rebound net is unstable. | Not properly secured to the ground; uneven surface. | Use all 4 ground stakes to anchor the net. Ensure it is placed on a flat, stable surface. |
| Difficulty adjusting angle/height. | Adjustment mechanism is stiff or obstructed. | Check for any obstructions. Apply a small amount of lubricant to moving parts if necessary. Ensure locking pins are fully disengaged before adjusting. |
| Frame components do not fit. | Misalignment or manufacturing defect. | Double-check the assembly instructions. If parts are deformed or do not fit, contact customer support. |
Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Numer modelu | A90-2530531 |
| Marka | DOMKOM |
| Wymiary całkowite (dł. x szer. x wys.) | 123 cm x 73 cm x 178.5 cm (48.4 x 28.7 x 70.3 cala) |
| Wymiary po złożeniu (dł. x szer. x wys.) | 123 cm x 180 cm x 12.5 cm (48.4 x 70.9 x 4.9 cala) |
| Zakres regulacji kąta | 42° do 70° (4 poziomów) |
| Zakres regulacji wysokości | od 130 cm do 183 cm (od 51.2 do 72 cala) |
| Wymiary netto | 176 cm x 115 cm (69.3 x 45.3 cala) |
| Net Mesh Size | 4.5 cm x 4.5 cm (1.8 x 1.8 cala) |
| Materiał ramy | Epoxy-coated Metal |
| Materiał netto | Polietylen (PE) |
| Waga produktu | 7.04 kg (15.5 funta) |
| Kolor | Czarny |
Image: Dimensional diagram of the rebound net, illustrating its various measurements and foldable design.
Gwarancja i wsparcie
Aby uzyskać informacje o gwarancji lub pomocy technicznej, zapoznaj się z regulaminem sprzedawcy lub skontaktuj się bezpośrednio z działem obsługi klienta HOMCOM. Zachowaj paragon jako dowód zakupu.
Producent: HOMCOM
Model Reference: A90-2530531
