Wstęp
The TrolMaster HS-1 Humidistat Station is designed to integrate with the Hydro-X control system, providing precise control over dehumidification systems. This module allows for the automated management of humidity levels by turning dehumidifiers on and off based on user-defined setpoints. It is compatible with dehumidifiers utilizing a 24V terminal for control.
This manual provides essential information for the proper installation, operation, and maintenance of your HS-1 Humidistat Station to ensure optimal performance and longevity.
Zawartość opakowania
- TrolMaster HS-1 Humidistat Station Module
- Connection Cables (if included)
- Elementy montażowe (jeśli są dołączone)
Image: The HS-1 Humidistat Station packaging, showing the device and branding.
Produkt ponadview
Obraz: Przód view of the HS-1 Humidistat Station, displaying the current humidity (67%) and setpoint (56%), along with a 'FAN' button and 'Addressing' indicator.
The HS-1 features a clear display for monitoring current humidity and setpoint. It includes a 'FAN' button for manual control and an 'Addressing' indicator for system integration. The unit is designed for easy connection to the Hydro-X control system.
Obraz: Bok view of the HS-1 Humidistat Station, showing its compact profile i punktów montażowych.
Konfiguracja i instalacja
- Mounting the HS-1: Select a suitable location for the HS-1 station, ensuring it is away from direct airflow from the dehumidifier or other environmental controls to obtain accurate humidity readings. Mount the unit securely using appropriate hardware.
- Connecting to Hydro-X System: Connect the HS-1 module to your existing Hydro-X control system using the provided RJ12 cable. The HS-1 connects to a DEVICE port on the Hydro-X controller.
Image: Diagram illustrating the connection of the Humidistat Station to the Hydro-X Control System via an RJ12 cable, showing the DC power, Internet, Sensors, Devices, Line 1, Line 2, and Micro SD ports on the Hydro-X controller.
- Wiring to Dehumidifier (24V Terminal): The HS-1 is designed to control dehumidifiers that accept a 24V control signal. Refer to the wiring diagrams below for specific connections. Ensure all power is disconnected before making any wiring connections.

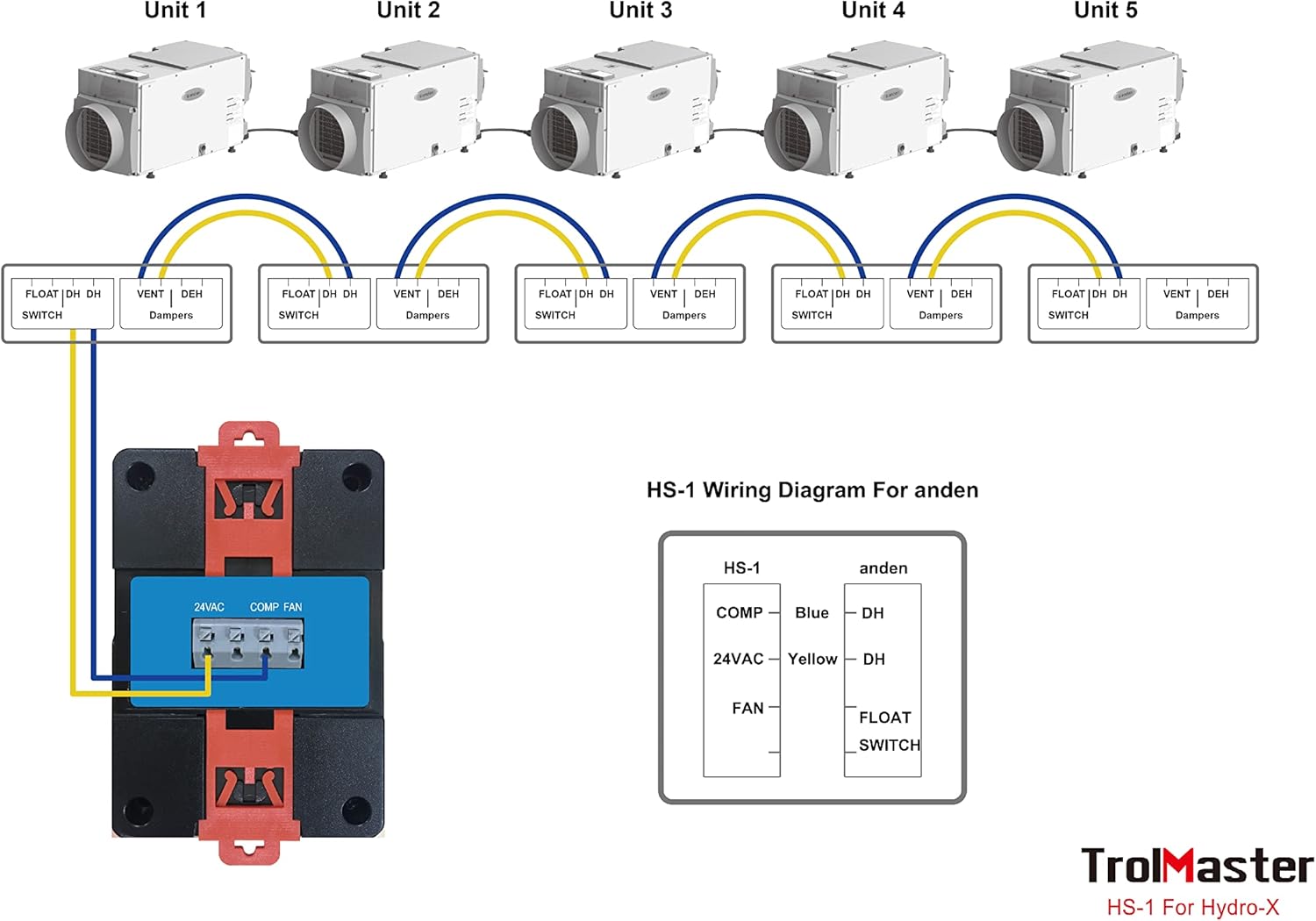

Image: Wiring diagram for connecting the HS-1 to multiple Anden dehumidifiers. It shows connections for COMP (compressor), 24VAC, and FAN, along with a FLOAT SWITCH input, controlling multiple dehumidifier units (Unit 1 to Unit 5) with their respective FLOAT SWITCH, DH (dehumidifier), and VENT Dampers terminals.

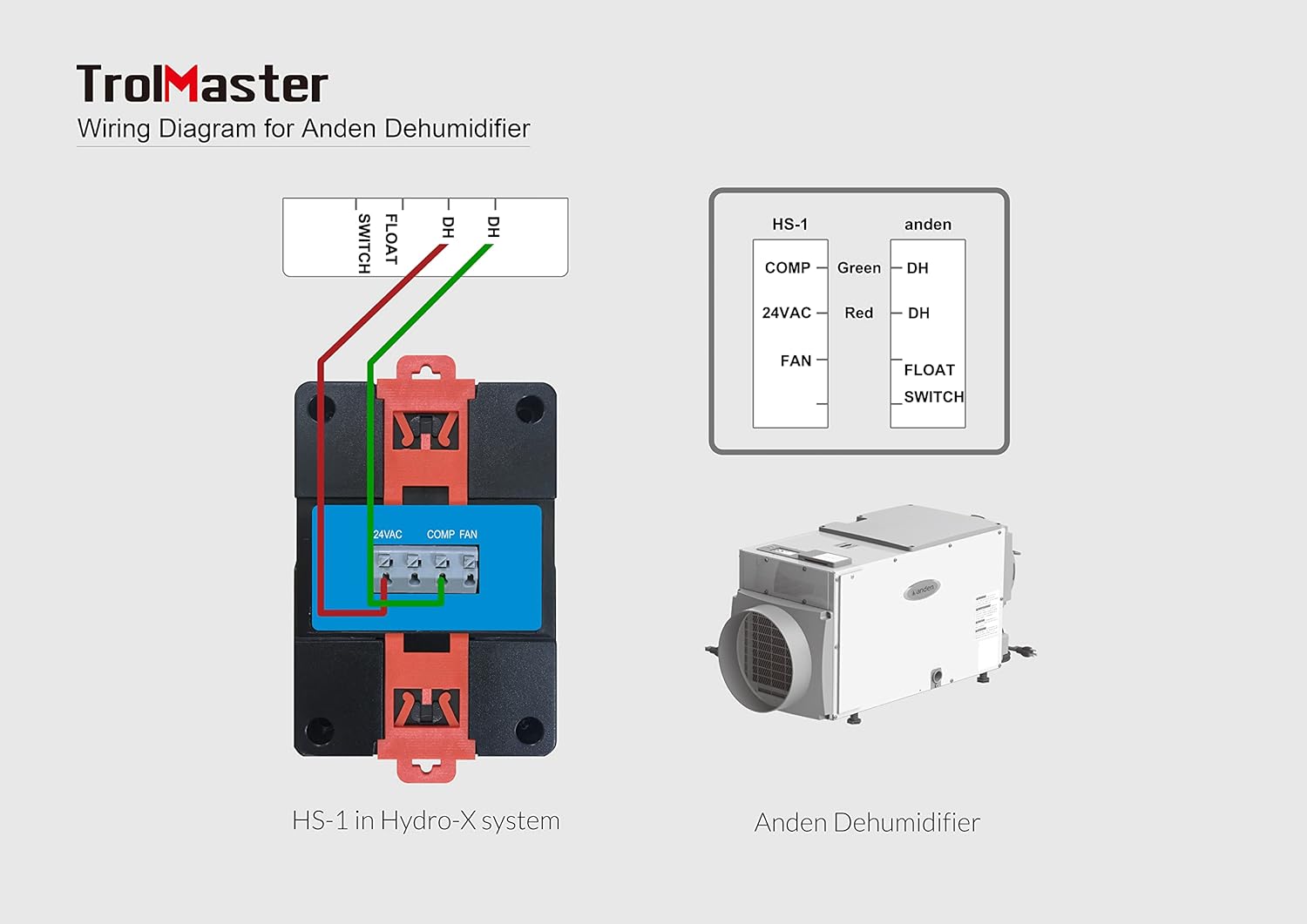

Image: Detailed wiring diagram for connecting the HS-1 to a single Anden Dehumidifier. It illustrates the connections for COMP (green wire to DH), 24VAC (red wire to DH), and FAN, including the FLOAT SWITCH input, showing the HS-1 in a Hydro-X system and the Anden Dehumidifier unit.
Klucz okablowania:
- KOMP: Connects to the compressor control terminal of the dehumidifier.
- 24VAC: Provides 24V AC power for the dehumidifier's control circuit.
- WENTYLATOR: Connects to the fan control terminal of the dehumidifier.
- PRZEŁĄCZNIK PŁYWAKOWY: Input for a float switch, typically used for condensate overflow protection.
- Włączanie: Once all connections are secure, power on your Hydro-X system and the dehumidifier. The HS-1 will initialize and display current humidity readings.
Instrukcja obsługi
- Ustawianie wartości zadanej wilgotności: The humidity setpoint is configured through your main Hydro-X controller. Navigate to the device settings for the HS-1 module and adjust the desired humidity level. The HS-1 will then automatically activate or deactivate the connected dehumidifier to maintain this setpoint.
- Monitoring Humidity: The HS-1's integrated display shows the current humidity percentage and the active setpoint. This allows for quick visual confirmation of environmental conditions.
- Przycisk WENTYLATORA: The 'FAN' button on the HS-1 can be used for manual control of the dehumidifier's fan, if supported by the dehumidifier and configured within the Hydro-X system. Consult your Hydro-X controller manual for specific fan control options.
- Adresowanie: The 'Addressing' indicator confirms that the HS-1 is properly recognized and communicating with the Hydro-X system. If this indicator is not active, check your RJ12 cable connection and Hydro-X system settings.
Konserwacja
- Czyszczenie: Periodically wipe the exterior of the HS-1 module with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure no moisture enters the unit.
- Pielęgnacja czujnika: Keep the humidity sensor area (typically small vents on the unit) clear of dust and debris to ensure accurate readings. Do not obstruct these vents.
- Kontrola kabla: Regularly inspect all connected cables for any signs of wear or damage. Replace damaged cables immediately to prevent system malfunctions.
Rozwiązywanie problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| HS-1 display is blank or unit is unresponsive. | No power to Hydro-X system or HS-1 module. Faulty RJ12 cable connection. | Ensure Hydro-X system is powered on. Check RJ12 cable connection between HS-1 and Hydro-X controller. Try a different port or cable. |
| Dehumidifier not turning on/off as expected. | Incorrect humidity setpoint. Incorrect wiring to dehumidifier. Dehumidifier malfunction. Float switch activated. | Verify setpoint on Hydro-X controller. Re-check wiring according to diagrams. Test dehumidifier independently. Check if the dehumidifier's float switch is engaged due to a full condensate tank or blockage. |
| Niedokładne odczyty wilgotności. | Czujnik jest zasłonięty lub brudny. HS-1 placed in an area with poor air circulation or direct airflow. | Wyczyść otwory wentylacyjne czujników. Relocate HS-1 to a more representative area for humidity measurement. |
| HS-1 not recognized by Hydro-X system. | RJ12 cable issue. Hydro-X system configuration error. | Ensure RJ12 cable is securely connected. Try a different cable or port. Refer to your Hydro-X controller manual for adding or re-scanning devices. |
Specyfikacje
Image: Diagram showing the dimensions of the HS-1 Humidistat Station: 3 inches (D) x 2 inches (W) x 4 inches (H).
| Funkcja | Szczegół |
|---|---|
| Nazwa modelu | HS-1 |
| Wymiary produktu | 3" gł. x 2" szer. x 4" wys. |
| Waga przedmiotu | 11.2 uncji (0.7 funta) |
| Tworzywo | Plastikowy |
| Tryb działania | Automatyczny |
| Funkcja specjalna | Plug and Play (with Hydro-X system) |
| Zalecane zastosowania | Commercial (Horticultural) |
| Zawarte komponenty | Moduł |
Gwarancja i wsparcie
TrolMaster products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your product or visit the official TrolMaster webZachowaj paragon jako dowód zakupu.
For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact TrolMaster customer service. Contact details can typically be found on the official TrolMaster webmiejscu lub w opakowaniu produktu.
Urzędnik Webstrona: www.trolmaster.com
