Pruveeo D90 3-Channel Dash Cam User Manual

Wstęp

The Pruveeo D90 is an advanced 3-channel dash camera system engineered to provide comprehensive video surveillance for your vehicle. It is equipped with three 1080P cameras, capturing simultaneous footage from the front, interior, and side perspectives. This design ensures a wide 170-degree viewing angle for each camera, enhancing situational awareness and evidence collection. The D90 incorporates features such as superior night vision for clear recordings in low-light conditions, 24/7 parking monitoring for continuous protection, automatic loop recording to manage storage efficiently, and an emergency accident lock function that secures critical footage po wykryciu uderzenia.

This manual serves as a comprehensive guide to help you set up, operate, and maintain your Pruveeo D90 dash cam, ensuring optimal performance and longevity.

Główne cechy

Ogólny produkt View: The Pruveeo D90 dash cam features a central display unit with two adjustable side cameras, allowing for flexible recording angles. The main unit includes control buttons for easy navigation.

Triple Channel Recording: The dash cam records simultaneously from three perspectives: front, interior, and side (left/right), each in 1080P resolution with a 170° wide angle, providing comprehensive coverage.

• Triple 1080P Recording: Captures video at 1920x1080P resolution from three independent channels (front, interior, and side).
• 170° Super Wide Angle Lens: Each camera provides a broad field of view, minimizing blind spots and capturing more of the surrounding environment.
• Adjustable Interior Cameras: The two cabin cameras can rotate back and forth, and left and right, allowing users to customize recording angles for specific needs, such as monitoring the left and right sides of the car or the interior.
• Doskonała widoczność w nocy: Equipped with 4 infrared lights and an F1.8 aperture on the cabin cameras, along with a highly sensitive night vision image sensor, ensuring clear video capture even in dark conditions.
• Monitoring parkingowy 24/7: Provides continuous surveillance of your vehicle when parked, automatically detecting and recording moving objects or impacts.
• Nagrywanie w pętli: Automatycznie nadpisuje najstarszy odblokowany plik footage when the memory card reaches its maximum capacity, ensuring continuous recording without manual intervention. Supports 1, 2, or 3-minute loop recording segments.
• Blokada awaryjna (czujnik G): A built-in G-sensor detects sudden collisions and automatically locks the current recording, preventing it from being overwritten.
• Wide Memory Card Support: Compatible with Class 10 or higher micro-SD cards up to 128GB.
• Superkondensator: Utilizes a supercapacitor for power, offering enhanced durability and reliability in extreme temperatures compared to traditional lithium-ion batteries.

Flexible Recording Angles: The D90's design allows for multiple recording configurations, enabling users to capture various perspectives inside and around the vehicle for comprehensive evidence.

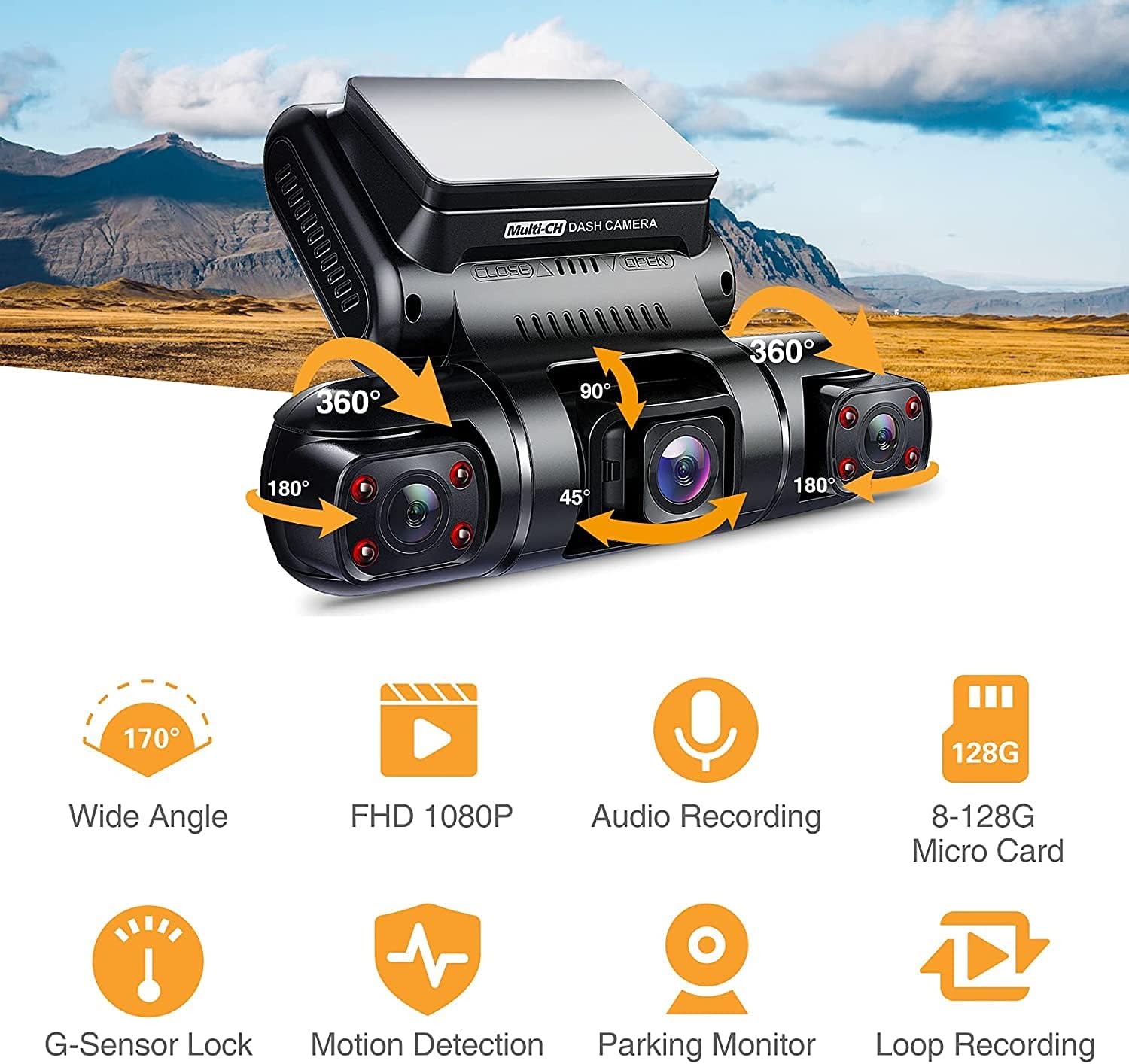

Funkcja ponadview: Visual representation of the dash cam's core functionalities including wide-angle recording, Full HD 1080P resolution, audio recording, extensive micro SD card support, G-sensor lock, motion detection, parking monitor, and loop recording.

Super Night Vision & 24 Hours Parking Monitor: The dash cam provides clear images even in low light. When parked, it detects moving objects and automatically begins recording, ensuring continuous protection.

Loop Recording Functionality: When the micro SD card's storage is full, the oldest non-protected files are automatically overwritten, allowing for continuous recording without interruption.

Co jest w pudełku

Po otwarciu opakowania należy sprawdzić, czy znajdują się w nim wszystkie poniższe elementy:

• Pruveeo D90 3-Channel Dash Cam Unit
• Karta pamięci
• Przyssawka
• Instrukcja obsługi (ten dokument)
• Car Charger (typically included for power)
• USB Cable (for data transfer/power)

Note: Specific accessories may vary slightly. Please refer to the product packaging for the most accurate list.

Przewodnik po konfiguracji

1. Przygotuj kartę pamięci

1. Insert a Class 10 or higher micro SD card (up to 128GB) into the dash cam's memory card slot. Ensure the card is inserted correctly until it clicks into place.
2. It is highly recommended to format the memory card within the dash cam's settings before first use and periodically thereafter (e.g., once a month) to ensure optimal performance and prevent data corruption.

2. Mount the Dash Cam

1. Clean the chosen area on your windshield thoroughly. Ensure it is free of dust and grease.
2. Przymocuj uchwyt przyssawkowy do kamery samochodowej.
3. Press the suction cup firmly against the cleaned windshield surface and engage the locking mechanism to secure it. Position the dash cam so that the front camera has a clear view of the road ahead, and the interior/side cameras can capture their intended areas.
4. Adjust the angle of the dash cam and individual cameras as needed to achieve the desired recording coverage.

3. Podłączenie zasilania

1. Podłącz dołączoną ładowarkę samochodową do portu zasilania kamery samochodowej.
2. Podłącz drugi koniec ładowarki samochodowej do gniazda zasilania 12 V w pojeździe (gniazdo zapalniczki).
3. Route the power cable neatly along the windshield and dashboard edges to avoid obstructing your view lub utrudniające prowadzenie pojazdu.

Instrukcja obsługi

Włączanie/wyłączanie zasilania

• Automatyczna moc: The dash cam will automatically power on and begin recording when your vehicle's ignition is turned on (and the 12V outlet receives power). It will power off automatically shortly after the ignition is turned off.
• Manual Power: To manually power on or off, press and hold the Power button located on the dash cam unit.

Tryby nagrywania

• Nagrywanie w pętli: Once powered on, the dash cam will automatically start loop recording. Video files are saved in segments (e.g., 1, 2, or 3 minutes). When the memory card is full, the oldest unlocked files zostaną nadpisane.
• Nagrywanie awaryjne (czujnik G): In the event of a sudden impact or collision, the built-in G-sensor will automatically trigger emergency recording. These files are locked and protected from being overwritten by loop recording. You can also manually trigger emergency recording by pressing the designated button (refer to your device's button layout).
• Monitor parkowania: When the vehicle is parked and the dash cam is connected to a continuous power source (e.g., hardwire kit, not included), the parking monitor function will activate. It uses motion detection or G-sensor triggers to record events while the vehicle is stationary.

Odtwarzanie i File Kierownictwo

• Do view recorded videos on the dash cam's screen, enter playback mode via the menu. Navigate through files using the directional buttons and select a video to play.
• Przenieść files to a computer, remove the micro SD card and insert it into a card reader connected to your computer, or connect the dash cam directly to your computer via USB (if supported for data transfer).

Ustawienia Dostosowanie

Access the menu settings to customize various parameters:

• Rozdzielczość wideo: Adjust the recording resolution for each channel.
• Czas trwania nagrywania w pętli: Set the length of video segments (1/2/3 minutes).
• Czułość czujnika G: Adjust the sensitivity of the G-sensor to prevent accidental emergency recordings or ensure proper detection.
• Monitor parkowania: Enable/disable and configure parking monitor settings.
• Data/Godzina Śwamp: Aby zapewnić dokładność dokumentacji, upewnij się, że ustawiono prawidłową datę i godzinę.
• Nagrywanie dźwięku: Włącz lub wyłącz nagrywanie dźwięku.
• Język: Wybierz preferowany język interfejsu menu.

Konserwacja

• Formatowanie karty pamięci: Regularly format your micro SD card (e.g., once a month) using the dash cam's format function. This helps maintain card health and prevents data corruption. Back up any important files przed formatowaniem.
• Czyszczenie: Use a soft, dry cloth to clean the dash cam's lenses and screen. Avoid using abrasive cleaners or solvents that could damage the device.
• Aktualizacje oprogramowania układowego: Periodically check the Pruveeo official website for any available firmware updates. Firmware updates can improve performance, add new features, or fix bugs. Follow the instructions provided with the firmware update carefully.
• Zagadnienia dotyczące temperatury: Avoid exposing the dash cam to extreme temperatures for prolonged periods. While the supercapacitor offers better heat resistance, prolonged exposure to direct sunlight in a hot car can still affect its lifespan.

Rozwiązywanie problemów

Specyfikacje

Gwarancja i wsparcie

Pruveeo products are designed and manufactured to the highest quality standards. For specific warranty information regarding your D90 dash cam, please refer to the warranty card included in your product packaging or visit the official Pruveeo webGwarancja zazwyczaj obejmuje wady produkcyjne przez określony czas od daty zakupu.

For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact Pruveeo customer service through the contact information provided on their official website or the product packaging. When contacting support, please have your product model (D90) and purchase details readily available.
