Wstęp
This manual provides essential information for the installation, operation, and maintenance of your Swiss Madison Hugo Smart Toilet. Please read all instructions carefully before beginning installation or use to ensure proper function and safety.
Ważne informacje dotyczące bezpieczeństwa
Always follow basic safety precautions when installing or using this product to reduce the risk of fire, electric shock, or injury. Keep these instructions for future reference.
- Ensure household water pressure is within 40-60 PSI for best operation.
- Jeśli nie jesteś pewien któregokolwiek kroku, instalację powinien wykonać wykwalifikowany specjalista.
- Do not attempt to repair or modify the product yourself. Contact customer support for assistance.
- This product requires batteries for operation. Ensure correct battery type and installation.
Co jest w pudełku?
Przed rozpoczęciem instalacji sprawdź, czy wszystkie komponenty są obecne:
- Hugo Tankless Toilet (SM-ST040)
- Czujnik ścienny
- Install Kit (Floor Anchor Kit, Screws, etc.)
- Zawór kątowy
- Wąż dopływowy
- Kołnierz uszczelniający
- Skrzynka na baterie
Konfiguracja i instalacja
The Swiss Madison Hugo Smart Toilet is designed for straightforward installation. Ensure you have all necessary tools and components before starting.
Dimensions and Rough-in
The toilet dimensions are approximately 27.5"D x 16.5"W x 19"H. The comfort height is between 17-19 inches. Refer to the provided diagrams for detailed measurements and rough-in requirements.

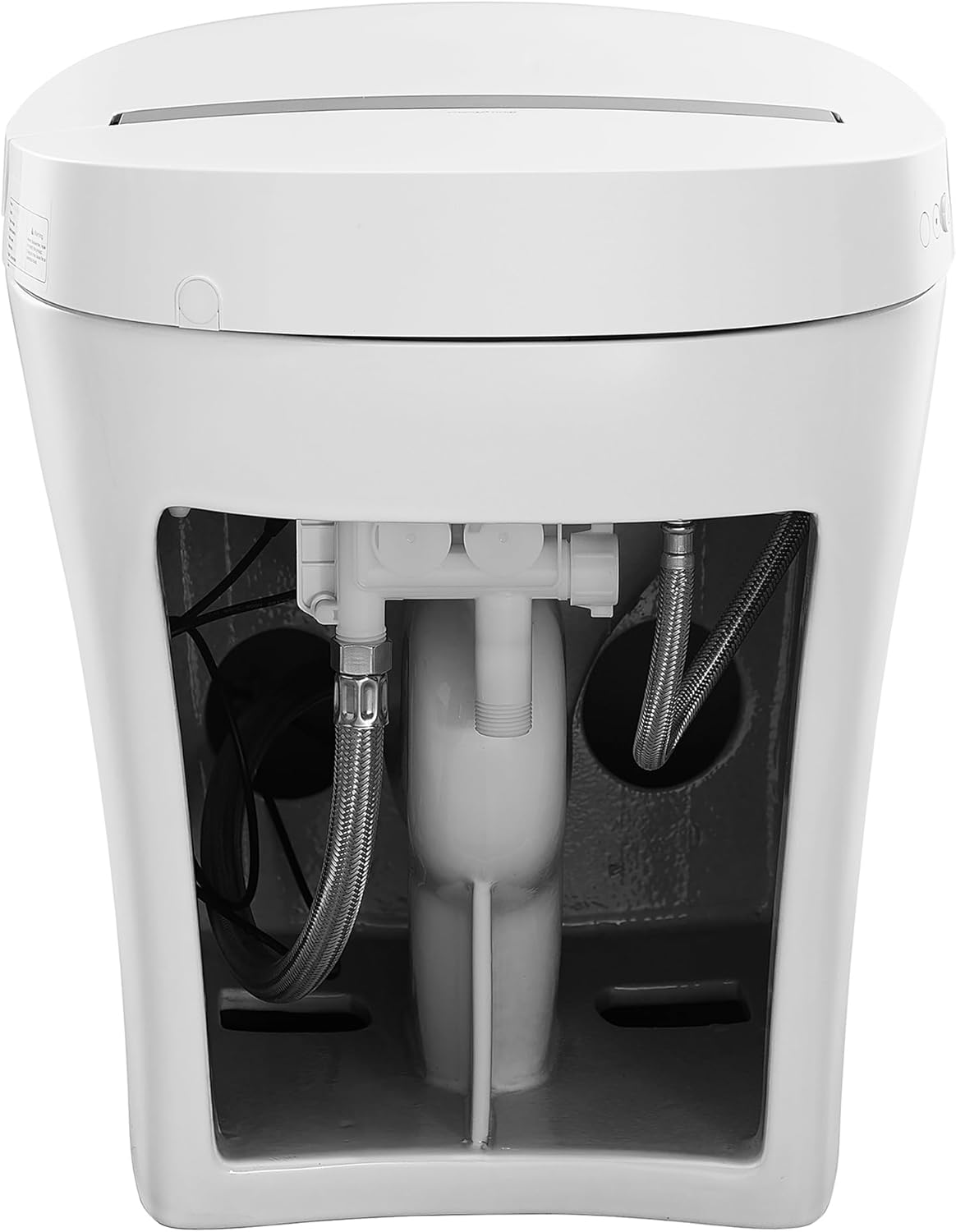

Podłączanie dopływu wody
The tankless design connects directly to your water line. Use the provided inlet hose and angle valve. Ensure all connections are secure to prevent leaks.
Powering the Toilet
This intelligent toilet operates entirely on batteries. Install the required batteries into the battery box as per the instructions provided in the installation kit. No electrical hookup is required for the main flush mechanism.
Wall Sensor Installation
Mount the wall sensor in a convenient location near the toilet. This sensor enables touchless flushing functionality.
Film instruktażowy dotyczący instalacji
Instrukcja obsługi
The Hugo Smart Toilet offers multiple convenient flushing options:

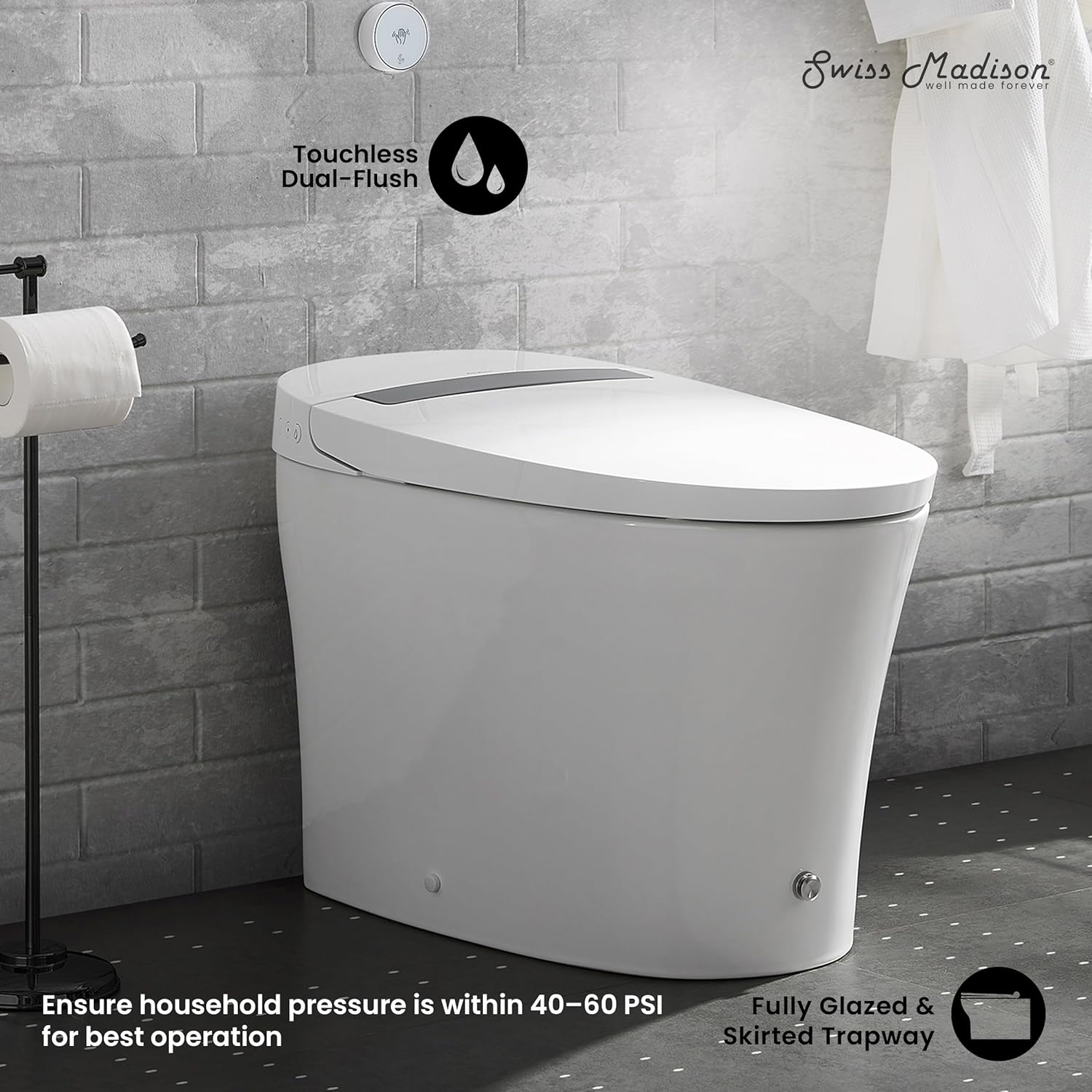

- Touchless Wall-Mounted Motion Sensor: Hold your hand in front of the sensor for a 1.6 GPF (gallons per flush) flush. Wave your hand for a 1.1 GPF flush.
- Foot Kick Flush Button: A button located at the base of the toilet allows for a convenient foot-activated flush.
- Automatyczne spłukiwanie: The toilet can be set to automatically flush upon standing.
- Manual Side Button: A discreet button on the side of the toilet provides a traditional manual flush option.
Dual Vortex Flush System
The Dual Vortex Flush system utilizes powerful, dual nozzles to create a cyclonic rinsing action, ensuring superior waste disposal and a cleaner bowl with each flush. This system is designed for water efficiency, offering both 1.1 GPF and 1.6 GPF options.
Siedzisko z funkcją cichego zamykania
The elongated seat features tensioned hinges that ensure a soft and silent closing mechanism, preventing slamming and adding convenience.
Konserwacja
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Hugo Smart Toilet.
Czyszczenie
The minimalistic design with a fully glazed and skirted trapway makes cleaning easy. Use mild, non-abrasive cleaners and a soft cloth. Avoid harsh chemicals that could damage the ceramic or electronic components.
Wymiana baterii
The toilet operates on batteries. If the flushing mechanism becomes unresponsive or weak, it may be time to replace the batteries in the battery box. Refer to the installation guide for specific battery type and replacement instructions.
Rozwiązywanie problemów
If you encounter issues with your Hugo Smart Toilet, try the following steps:
- No Flush/Weak Flush: Check the batteries in the battery box. Ensure the water supply valve is fully open. Verify water pressure is within the recommended 40-60 PSI range.
- Sensor Unresponsive: Ensure the wall sensor is clean and unobstructed. Check its battery if applicable.
- Wycieki: Turn off the water supply immediately. Check all water connections (inlet hose, angle valve) for tightness. Ensure the sealing flange is correctly installed.
For persistent issues, contact Swiss Madison customer support.
Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Numer modelu | SM-ST040 |
| Kolor | Błyszcząca biel |
| Wymiary produktu | 27.5" gł. x 16.5" szer. x 19" wys. |
| Tworzywo | Ceramiczny |
| Waga przedmiotu | 80 funtów |
| Typ instalacji | Montaż na podłodze |
| Typ spłukiwania | Dual Vortex Flush (1.1/1.6 GPF) |
| Technologia spłukiwania | Touchless (Wall Sensor), Foot Kick, Automatic, Manual Side Button |
| Typ miejsca siedzącego | Elongated, Soft-Close |
| Źródło zasilania | Battery Operated (Batteries Required: Yes, Batteries Included: No) |
| Ciśnienie wody | Recommended 40-60 PSI |
Gwarancja i wsparcie
The Swiss Madison Hugo Smart Toilet comes with a 1-letnia ograniczona gwarancja producenta. For technical support, warranty claims, or any questions regarding your product, please refer to the contact information provided in your product packaging or visit the official Swiss Madison webstrona.
