Hoffen Digital Electronic LCD Personal Weight Machine HO-18-Red User Manual

Wstęp

This manual provides essential instructions for the safe and efficient use of your Hoffen Digital Electronic LCD Personal Weight Machine (Model HO-18-Red). Please read this manual thoroughly before operation and retain it for future reference. This product is proudly Wyprodukowano w Indiach.

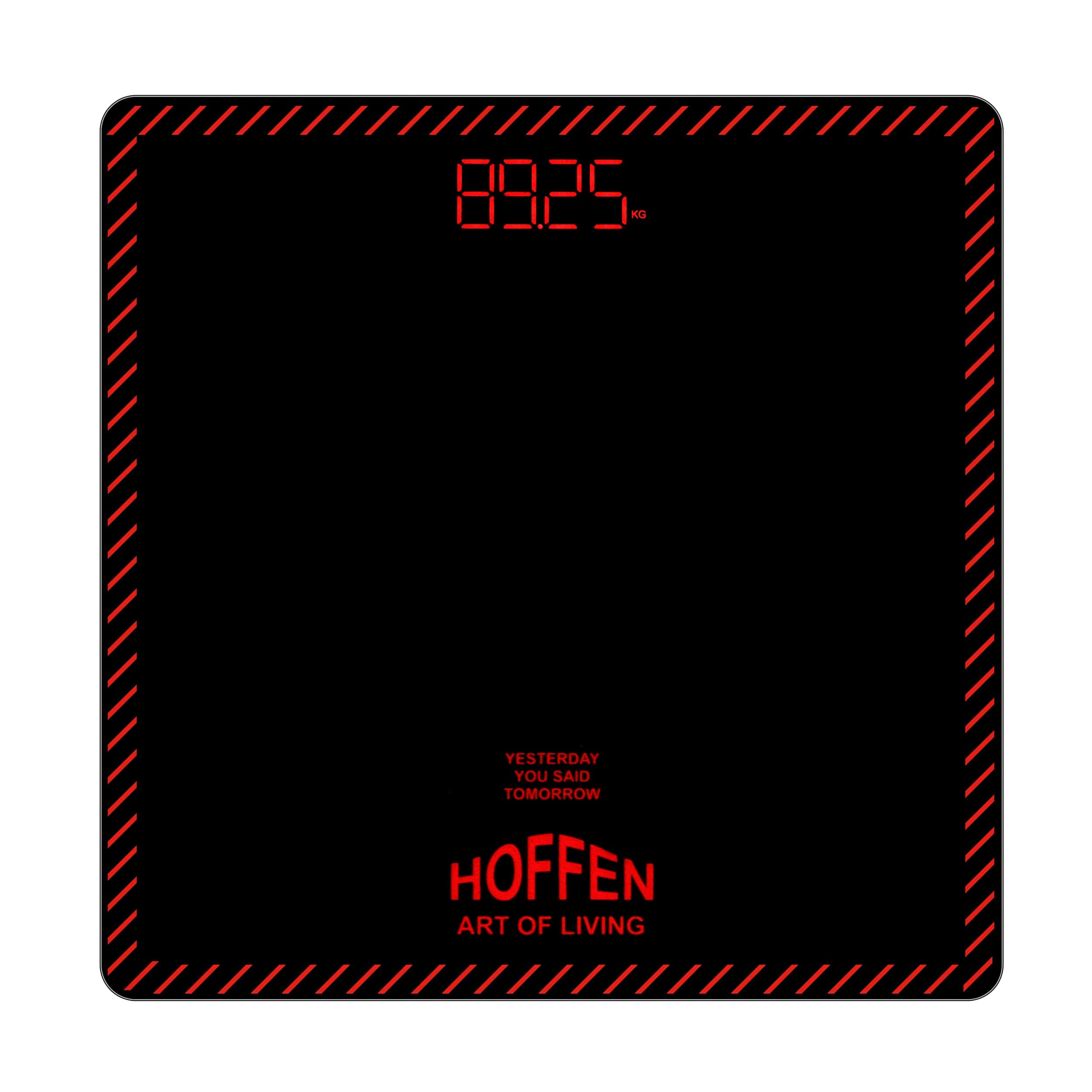

Figure 1: Hoffen HO-18-Red Digital Electronic LCD Personal Weight Machine.

1. Instrukcje konfiguracji

1.1 Instalacja baterii

Your Hoffen HO-18-Red scale requires 2 AAA batteries (included). Locate the battery compartment on the underside of the scale. Insert the batteries, ensuring correct polarity (+/-). Close the battery compartment cover securely.

Figure 2: The scale's features, including battery indicator.

1.2 Wstępna kalibracja

For the most accurate results, place the scale on a hard, flat surface. Avoid carpets or uneven surfaces. Initialize the scale by pressing one foot on it to see random numbers on the screen. Remove your foot as the display returns to zero (0.0). The scale is now calibrated and ready for use. This calibration should be performed each time the scale is moved.

2. Instrukcja obsługi

2.1 Procedura ważenia

After initial calibration, step onto the scale with both feet, standing still in the center. Your weight will be displayed on the LCD screen. For consistent results, it is recommended to weigh yourself at the same time each day, preferably in the morning on an empty stomach and without footwear.

Figure 3: The scale displaying a weight measurement.

2.2 Konwersja jednostek

The scale can display weight in kilograms (kg), pounds (lb), or stones (st). To change the unit of measurement, locate the unit switch button on the back of the scale. Press the button to cycle through the available units until your desired unit is displayed.

2.3 Wyświetlacz temperatury pokojowej

In addition to weight, the scale also displays the room temperature in degrees Celsius (°C) on its LCD screen.

Figure 4: The scale displaying room temperature.

2.4 Automatyczne włączanie/wyłączanie

The scale features an automatic on/off function. It will turn on when you step on it and turn off automatically after a period of inactivity to conserve battery life.

3. Konserwacja

To maintain your Hoffen HO-18-Red scale, wipe the surface with a soft, damp cloth. Do not use abrasive cleaners or immerse the scale in water. Keep the scale dry and store it in a cool, dry place when not in use. The tempered glass surface is durable but should be handled with care to avoid damage.

Rysunek 5: Kątowy view of the Hoffen HO-18-Red scale, highlighting its sleek design.

4. Rozwiązywanie Problemów

If you encounter any issues with your scale, refer to the following indicators:

• "LO": Indicates low battery. Replace the AAA batteries.
• "OL": Indicates overload. The maximum weight capacity of the scale is 180 kg (396 lbs). Remove excess weight.
• "ERR": Indicates an error in the reading. Step off the scale, wait for it to reset to 0.0, and then re-weigh. Ensure the scale is on a flat, hard surface.

Rysunek 6: Góra view of the Hoffen HO-18-Red scale.

5. Specyfikacje

Figure 7: Dimensions of the Hoffen HO-18-Red scale.

6. Gwarancja i wsparcie

The Hoffen Digital Electronic LCD Personal Weight Machine comes with a Roczna gwarancja wymiany against any manufacturing defects (battery not included). To register for your warranty, please scan the QR code provided on the warranty card included with your product.

For any issues or support, you can contact Hoffen customer service:

• Telefon: 8432788147 (between 10:30 AM to 5:30 PM)
• E-mail: support@aceincorporation.com
