Wciągarka linowa WilTec o udźwigu 1600 kg i maksymalnej wysokości podnoszenia 20 m, średnica 11 mm. Instrukcja obsługi

1. Wprowadzenie

This manual provides essential information for the safe and effective use of your WilTec Cable Winch, Model 62569. This manual winch is designed for a maximum load capacity of 1600 kg, making it suitable for various hauling, lifting, and towing tasks. Please read these instructions carefully before operating the winch to ensure proper function and safety.

2. Instrukcje bezpieczeństwa

Twoje bezpieczeństwo jest najważniejsze. Zawsze przestrzegaj poniższych zasad bezpieczeństwa:

• Nośność: Never exceed the maximum load capacity of 1600 kg. Overloading can lead to equipment failure and serious injury.
• Shear Pin: The winch is equipped with a shear pin designed to protect against overloads. If the shear pin breaks, it indicates an overload condition. Replace it only with an original WilTec shear pin of the correct specification. Do not use makeshift replacements.
• Bezpieczne kotwiczenie: Always ensure the winch is securely anchored to a stable and appropriate point before applying any load.
• Kontrola kabla: Regularly inspect the steel cable for signs of wear, fraying, kinks, or damage. Do not use the winch if the cable is damaged.
• Bezpieczeństwo haka: Ensure the load hook's integrated lock is properly engaged before lifting or pulling. Never use a damaged or bent hook.
• Wyczyść obszar: Keep hands, feet, and other body parts clear of the cable, drum, and moving parts during operation. Ensure bystanders are at a safe distance.
• Stabilne podłoże: Maintain stable footing and balance when operating the crank.
• Sudden Release: Be aware that a sudden release of tension can cause the handle to move rapidly. Always maintain a firm grip.
• Warunki środowiskowe: While the winch is weather-resistant, avoid operating it in extreme conditions that could compromise safety, such as severe storms or unstable ground.

3. Koniec produktuview i komponenty

The WilTec Cable Winch is a robust manual device designed for heavy-duty pulling and lifting. Key components include:

• Winch Body: Constructed from durable steel and aluminum for longevity and resistance to corrosion.
• Stalowy kabel: A 20-meter long, 11 mm diameter resistant steel cable for reliable traction.
• Load Hook: Features an integrated safety lock to secure loads.
• Shear Pin: A safety mechanism that breaks under overload to prevent damage to the winch.
• Uchwyt operacyjny: An ergonomic crank handle for manual operation.
• Auto-Locking Mechanism: Ensures the cable remains in position when the handle is not actively being operated.

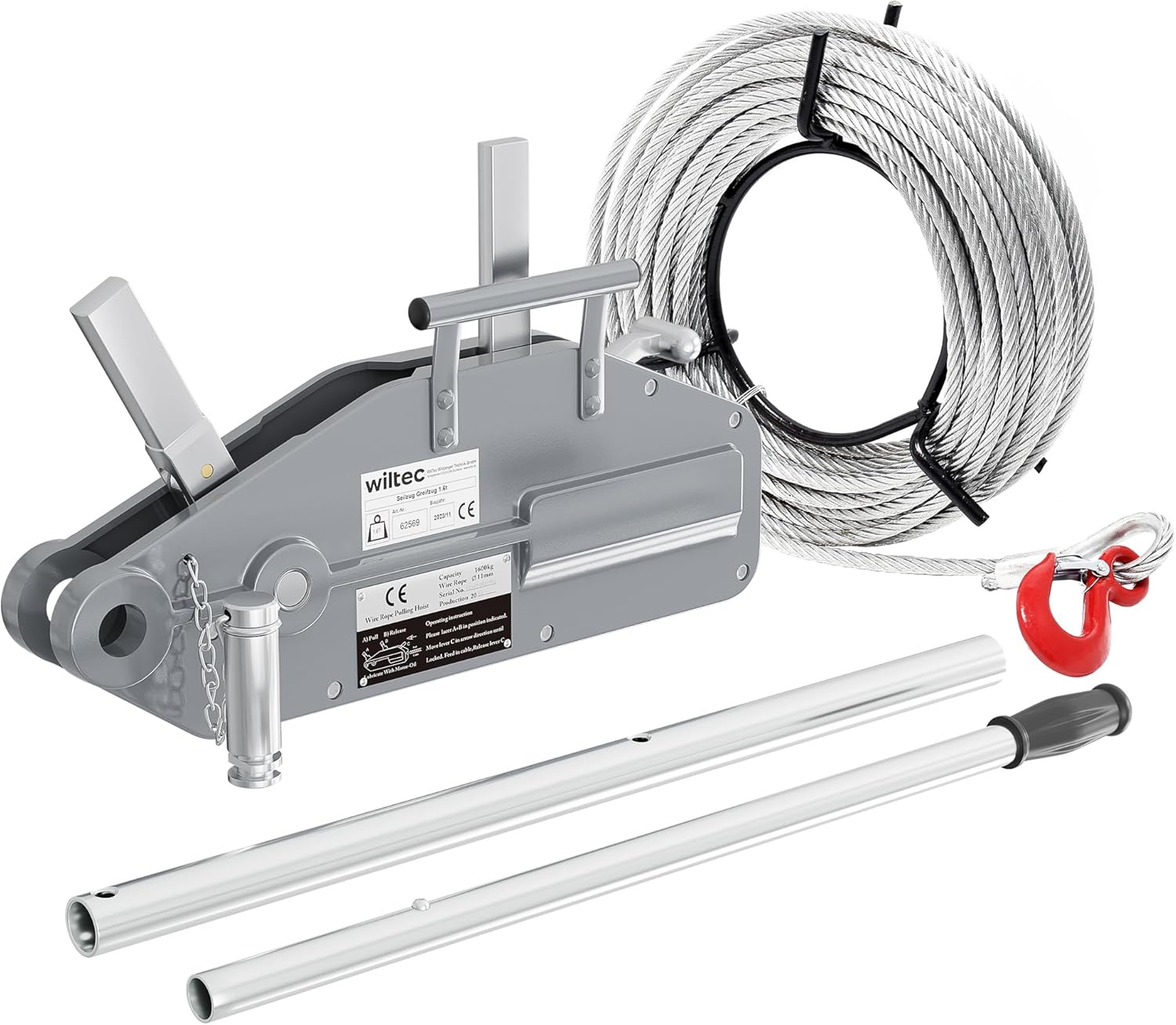

Rysunek 1: Koniecview of the WilTec Cable Winch, including the main unit, steel cable, and operating handle.

Rysunek 2: Szczegółowy view of the special steel cable, showing the crimping sleeve, thimble eye, and robust load hook with safety latch.

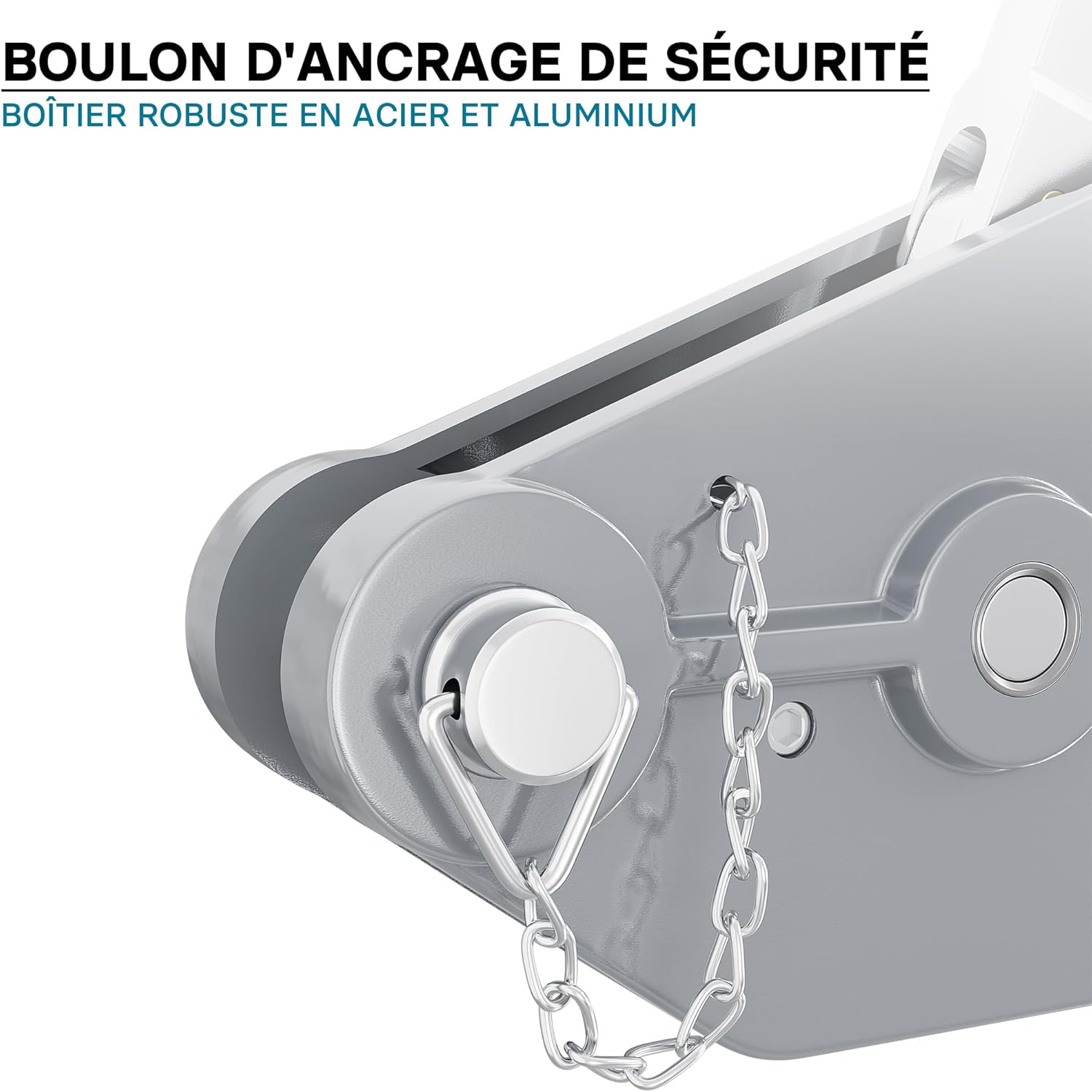

Figure 3: Detail of the safety anchor bolt, which secures the winch to an anchoring point.

Figure 4: The auto-locking mechanism ensures the cable is held securely when not actively being wound or unwound.

4. Konfiguracja

1. Rozpakować: Ostrożnie wyjmij wszystkie elementy z opakowania. Sprawdź, czy wszystkie części są obecne i nieuszkodzone.
2. Montaż uchwytu: Connect the sections of the operating handle if they are separate. Ensure they are securely fastened.
3. Anchor the Winch: Select a strong, stable anchoring point capable of withstanding the intended load. Securely attach the winch to this point using the safety anchor bolt or other appropriate means. Ensure the winch is stable and will not shift during operation.
4. Przygotuj kabel: Uncoil the steel cable, ensuring it is free of kinks or twists.
5. Podłącz ładunek: Connect the load hook securely to the item you intend to move. Ensure the safety latch on the hook is fully closed and engaged.

5. Instrukcja obsługi

The WilTec Cable Winch operates manually, providing control for precise movements.

1. Mechanizm włączania: Depending on the winch design, there will be levers or mechanisms to engage the pulling or releasing action. Familiarize yourself with these before starting.
2. Pulling/Lifting: Insert the operating handle into the designated socket. Apply steady, even pressure to the handle to crank the cable, pulling or lifting the load. The auto-locking mechanism will hold the cable in place when you pause.
3. Releasing/Lowering: To release or lower the load, use the appropriate lever or mechanism to disengage the pulling action and engage the release. Carefully control the handle to slowly unwind the cable. Never release the handle abruptly under load.
4. Obciążenie monitora: Continuously monitor the load, cable, and anchoring points during operation. Stop immediately if you observe any unusual sounds, movements, or signs of stress.
5. Unikaj przeciążenia: If the shear pin breaks, it indicates an overload. Do not attempt to continue operation without reducing the load and replacing the shear pin.

Rysunek 5: Example of the WilTec Cable Winch in use, demonstrating its application for vehicle recovery.

Zastosowania: This winch is versatile and suitable for various tasks, including:

• Vehicle recovery and towing
• Boat trailer launching and retrieval
• Forestry work (hauling logs)
• Construction site material handling
• General lifting and pulling in outdoor or remote environments

Figure 6: Diverse applications of the WilTec Cable Winch, highlighting its utility in different sectors.

6. Konserwacja

Regular maintenance ensures the longevity and safe operation of your winch:

• Czyszczenie: After each use, especially in dirty or wet conditions, clean the winch body and cable to remove dirt, mud, and debris.
• Smarowanie: Periodically apply a light lubricant to moving parts and the cable to prevent rust and ensure smooth operation. Consult a specialist if unsure about specific lubrication points.
• Kontrola kabla: Before and after each use, thoroughly inspect the entire length of the steel cable for any signs of damage, such as fraying, broken strands, kinks, or corrosion. Replace the cable immediately if any damage is found.
• Kontrola haka: Check the load hook and its safety latch for deformation, cracks, or wear. Ensure the latch operates freely and securely.
• Składowanie: Store the winch in a clean, dry place, protected from extreme temperatures and direct weather exposure.
• Shear Pin Replacement: Always keep spare shear pins. Replace a broken shear pin with an original WilTec part.

7. Rozwiązywanie Problemów

Oto kilka typowych problemów i ich rozwiązań:

• Winch Not Pulling/Lifting:
  • Check if the shear pin is broken. If so, replace it and reduce the load.
  • Ensure the operating mechanism is correctly engaged for pulling/lifting.
  • Verify the load is within the 1600 kg capacity.
• Cable Not Releasing/Lowering:
  • Ensure the release mechanism is correctly engaged.
  • Check for any obstructions preventing the cable from unwinding.
• Excessive Resistance During Operation:
  • The load might be too heavy. Reduce the load.
  • The cable or moving parts might require lubrication.
  • Inspect the cable for damage or kinks.
• Winch Body or Cable Corrosion:
  • Ensure proper cleaning and lubrication after use, especially in corrosive environments.
  • Store the winch in a dry environment.

If problems persist, contact WilTec customer support or a qualified technician.

8. Specyfikacje

Figure 7: Dimensional drawing of the WilTec Cable Winch, including the handle and hook.

9. Gwarancja i wsparcie

Specific warranty details are not provided in the product information. For warranty claims, technical support, or spare parts, please contact WilTec customer service directly through their official website or the retailer from whom the product was purchased. Always provide your model number (62569) and purchase date when seeking support.

10. Oficjalne filmy o produktach

W udostępnionych danych nie znaleziono oficjalnych filmów produktu od sprzedawcy. Prosimy o zapoznanie się ze zdjęciami i instrukcjami tekstowymi.
