Pyramid Plastics Kawasaki Ninja 250R Hugger Installation and Maintenance Manual

1. Wprowadzenie

This manual provides detailed instructions for the proper installation, operation, and maintenance of your Pyramid Plastics Rear Hugger for the Kawasaki Ninja 250R (2008-2013 models). This product is designed to protect the rear shock absorber, undertray, and other components from road debris, water spray, and dirt, enhancing the longevity and cleanliness of your motorcycle.

Please read this manual thoroughly before beginning installation to ensure correct fitting and to prevent damage to the product or your motorcycle. Keep this manual for future reference.

2. Informacje dotyczące bezpieczeństwa

Always observe the following safety precautions during installation and maintenance:

• Ensure the motorcycle is stable and securely supported on a stand before commencing any work.
• Allow the engine and exhaust system to cool down completely before touching any components to avoid burns.
• Należy nosić odpowiedni sprzęt ochrony osobistej, obejmujący rękawice i okulary ochronne.
• Use the correct tools for each step to prevent damage to fasteners or components.
• Jeśli masz jakiekolwiek wątpliwości, skonsultuj się z wykwalifikowanym mechanikiem motocyklowym.
• Do not modify the product or motorcycle components in any way not described in this manual.
• Keep all small parts and tools away from children and pets.

3. Zawartość opakowania

Before installation, verify that all components are present and undamaged. If any parts are missing or damaged, contact your supplier immediately.

• 1x Pyramid Plastics Rear Hugger (Model 07301B)
• 1x Fitting Kit (includes bolts, washers, spacers, and any necessary brackets)
• 1x Installation Instructions (this manual)

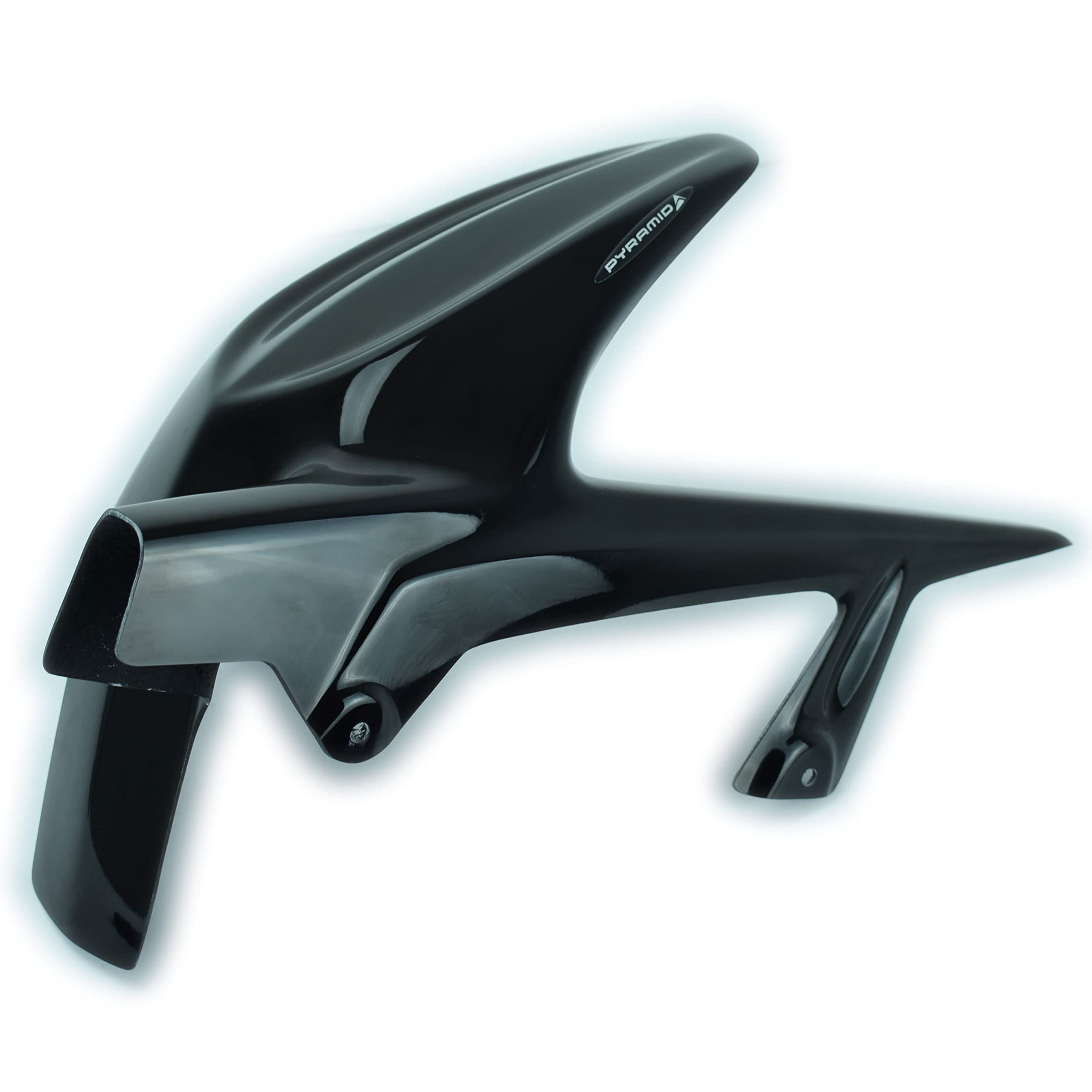

Image 3.1: Main component of the Pyramid Plastics Rear Hugger, Gloss Black finish.

4. Instrukcja instalacji

This section outlines the steps required to install the Pyramid Plastics Rear Hugger on your Kawasaki Ninja 250R. Ensure you have all necessary tools before starting.

Wymagane narzędzia:

• Zestaw kluczy nasadowych
• Zestaw kluczy imbusowych (klucze imbusowe)
• Klucz dynamometryczny (zalecany)
• Czysta ściereczka
• Stojak motocyklowy

Kroki instalacji:

1. Przygotuj motocykl: Place your Kawasaki Ninja 250R on a suitable stand to lift the rear wheel off the ground. Ensure the motorcycle is stable. Allow the exhaust to cool.
2. Zlokalizuj punkty montażowe: Identify the existing mounting points on the swingarm or chain guard area where the hugger will attach. These typically involve existing bolt holes.
3. Wyczyść obszar: Thoroughly clean the swingarm, chain guard, and surrounding areas to remove any dirt, grease, or debris. This ensures a clean fit and prevents contamination.
4. Position the Hugger: Carefully position the Pyramid Plastics hugger against the swingarm, aligning its mounting holes with the motorcycle's attachment points.
5. Montaż elementów złącznych: Using the provided fitting kit, insert the bolts with appropriate washers and spacers through the hugger's mounting holes and into the motorcycle's attachment points. Do not fully tighten yet.
6. Dostosuj i wyrównaj: Gently adjust the hugger to ensure it is centered and has adequate clearance from the tire, chain, and any moving parts. Ensure there is no contact with the tire at full suspension compression.
7. Dokręć elementy złączne: Once properly aligned, progressively tighten all fasteners. Refer to your motorcycle's service manual for specific torque specifications for the mounting points, if available. Do not overtighten.
8. Kontrola końcowa: After tightening, visually inspect the hugger for secure attachment, proper alignment, and sufficient clearance. Rotate the rear wheel manually to confirm no rubbing or interference.

Obraz 4.1: Example of a rear hugger properly installed, showing clearance around the tire and chain.

5. Konserwacja

Regular maintenance of your Pyramid Plastics Rear Hugger will ensure its longevity and continued performance.

• Czyszczenie: Clean the hugger regularly with mild soap and water, using a soft cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Kontrola: Periodically check all mounting bolts for tightness. Vibrations from riding can sometimes loosen fasteners. Inspect the hugger for any signs of cracks, damage, or excessive wear.
• Kontrola czystości: Ensure the hugger maintains adequate clearance from the tire and chain, especially after long rides or if the suspension has been adjusted.
• Szkoda: If the hugger sustains significant damage, consider replacing it to maintain optimal protection and aesthetic appeal.

6. Rozwiązywanie Problemów

Oto kilka typowych problemów i ich potencjalne rozwiązania:

7. Specyfikacje

• Nazwa produktu: Pyramid Plastics Rear Hugger
• Numer modelu: 07301B
• Zgodność: Kawasaki Ninja 250R (Years: 2008-2013)
• Tworzywo: Wysokiej jakości tworzywo ABS
• Skończyć: Czarny połysk
• Waga przedmiotu: Około 2.5 kg (według danych produktu)
• Producent: Piramidowe tworzywa sztuczne

8. Gwarancja i pomoc techniczna

Pyramid Plastics products are manufactured to high standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official Pyramid Plastics website. In case of any issues or for technical support, please contact your retailer or Pyramid Plastics customer service directly.

Informacje kontaktowe:

• Webstrona: www.pyramidplastics.co.uk (byłyample link, rzeczywisty link może się różnić)
• E-mail: support@pyramidplastics.co.uk (examp(e-mail)
