Hayward AquaNaut 400 Suction Pool Cleaner Instruction Manual

1. Wprowadzenie

This manual provides essential information for the safe and efficient operation and maintenance of your Hayward AquaNaut 400 4-Wheel Suction Pool Cleaner. Please read all instructions carefully before installation and use.

Figure 1: Hayward AquaNaut 400 4-Wheel Suction Pool Cleaner. This image shows the complete cleaner unit with its four wheels and suction port.

2. Konfiguracja i instalacja

Proper installation is crucial for the optimal performance of your AquaNaut 400. Follow these steps for initial setup:

1. Rozpakuj komponenty: Carefully remove all items from the packaging. Verify that all parts, including the cleaner unit, hose sections, and accessories, are present.
2. Montaż węża: Connect the provided hose sections to achieve the appropriate length for your pool. Ensure secure connections to prevent air leaks.
3. Connect to Cleaner: Attach one end of the assembled hose to the suction port on the AquaNaut 400 cleaner.
4. Odkurzacz zanurzeniowy: Place the pool cleaner into the pool, ensuring it is fully submerged and free to move. Allow it to sink to the bottom.
5. Connect to Suction Line: Connect the other end of the hose to your pool's dedicated suction line or skimmer port.
6. Adjust Pump Flow: Adjust your pool pump's flow as needed to achieve optimal suction for the cleaner. Refer to your pool pump's manual for specific flow adjustment instructions.

Figure 2: Quick Start Accessories. This image displays various accessories included with the AquaNaut 400, such as hose sections, adapters, and flow regulators, used for connecting the cleaner to the pool's suction system.

3. Instrukcja obsługi

The Hayward AquaNaut 400 is designed for efficient, automatic cleaning of in-ground pools up to 20 x 40 ft, including those with deep ends. It operates using your pool's existing pump system.

3.1. Rozpoczęcie działania

1. Ensure the cleaner is properly installed and connected as described in the Setup section.
2. Turn on your pool pump. The AquaNaut 400 will begin to move across the pool floor and walls, collecting debris.
3. Monitor the cleaner's movement to ensure it covers all areas of the pool. The 4-wheel drive capability and rugged tire treads provide superior climbing power and maneuverability on various surfaces like concrete, gunite, vinyl, fiberglass, tile, and pebble.

3.2. Key Features for Operation

• Napęd na 4 koła: Provides enhanced traction and stability for comprehensive cleaning.
• V-Flex Technology: Patented self-adjusting variable vanes maximize suction power and minimize clogging, allowing the cleaner to handle large debris effectively.
• Pre-programmed Steering: Multiple sequences ensure thorough end-to-end coverage, including pool walls.
• Adjustable Roller Skirt: Maintains optimal suction even on uneven pool surfaces.

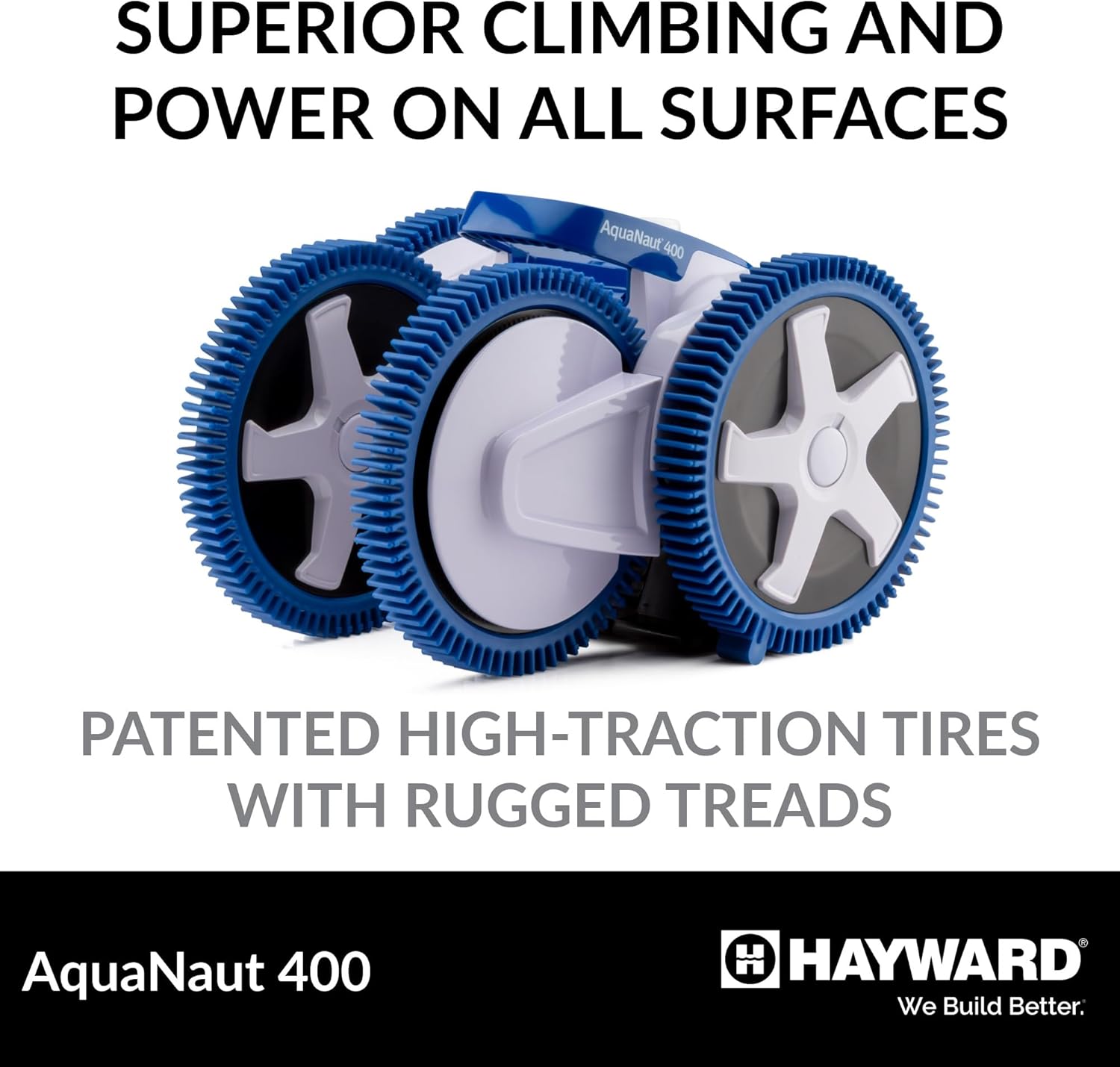

Figure 3: Rugged Tire Treads. This image highlights the durable, textured tire treads of the AquaNaut 400, designed for superior grip and climbing ability on various pool surfaces.

Figure 4: V-Flex Variable Vane Turbine Technology. This cutaway image illustrates the internal V-Flex turbine, showing how it processes debris and maintains powerful suction.

4. Konserwacja

Regular maintenance ensures the longevity and efficiency of your Hayward AquaNaut 400.

• Spłucz po każdym użyciu: After each cleaning cycle, remove the cleaner from the pool and rinse it thoroughly with fresh water to remove any chemical residue or debris.
• Clean Internal Components: Periodically, disassemble the cleaner to clean internal components, such as the turbine and debris chamber. Refer to the detailed diagrams in the full user manual for disassembly and reassembly instructions.
• Sprawdź węże i połączenia: Regularly check hoses for cracks, kinks, or blockages. Ensure all connections are tight and free of leaks.
• Check Wheels and Skirt: Inspect the rugged tire treads and adjustable roller skirt for wear or damage. Replace parts as necessary to maintain optimal performance.

5. Rozwiązywanie Problemów

If your AquaNaut 400 is not performing as expected, consult the following common issues and solutions:

• Odkurzacz nie porusza się lub porusza się powoli:
  • Check for blockages in the suction line or the cleaner's intake.
  • Verify that the pool pump is operating at the correct flow rate.
  • Inspect the hose for air leaks or kinks.
• Cleaner is getting stuck:
  • Ensure the hose length is appropriate for your pool size, allowing full coverage without excessive slack.
  • Check for obstacles in the pool that might be trapping the cleaner.
  • Verify the adjustable roller skirt is properly positioned.
• Poor debris collection:
  • Confirm adequate suction from the pool pump.
  • Clean the pool filter and pump basket.
  • Inspect the V-Flex turbine for any obstructions.

6. Specyfikacje

7. Informacje o gwarancji

The Hayward AquaNaut 400 Suction Pool Cleaner comes with a Ograniczona gwarancja. For detailed information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product or visit the official Hayward webZachowaj dowód zakupu na wypadek roszczeń gwarancyjnych.

8. Obsługa klienta

For further assistance, technical support, or to purchase replacement parts, please contact Hayward customer service. You can find contact information on the official Hayward webmiejscu lub w opakowaniu produktu.

Urzędnik Haywarda Webstrona: www.hayward-pool.com
