Instrukcja obsługi telefonu stacjonarnego VTech TELVTC50

Wstęp

This manual provides comprehensive instructions for the installation, operation, and maintenance of your VTech TELVTC50 Corded Telephone. Please read this manual thoroughly before using your new telephone to ensure proper function and to take full advantage jego funkcji.

Zawartość opakowania

Upewnij się, że w przesyłce znajdują się wszystkie elementy:

• VTech TELVTC50 Corded Telephone Unit
• Zwinięty przewód słuchawki
• Przewód telefoniczny

Produkt ponadview

Familiarize yourself with the components of your VTech TELVTC50 telephone.

Rycina 1: Przód View of the Telephone. This image shows the telephone's keypad, LCD display, and function buttons including UP, DOWN, BACK, SET/FLASH, RD/PAUSE, and DEL/EXIT.

Figure 2: Top-Down View of the Telephone. This perspective highlights the compact design and the arrangement of the handset and base unit.

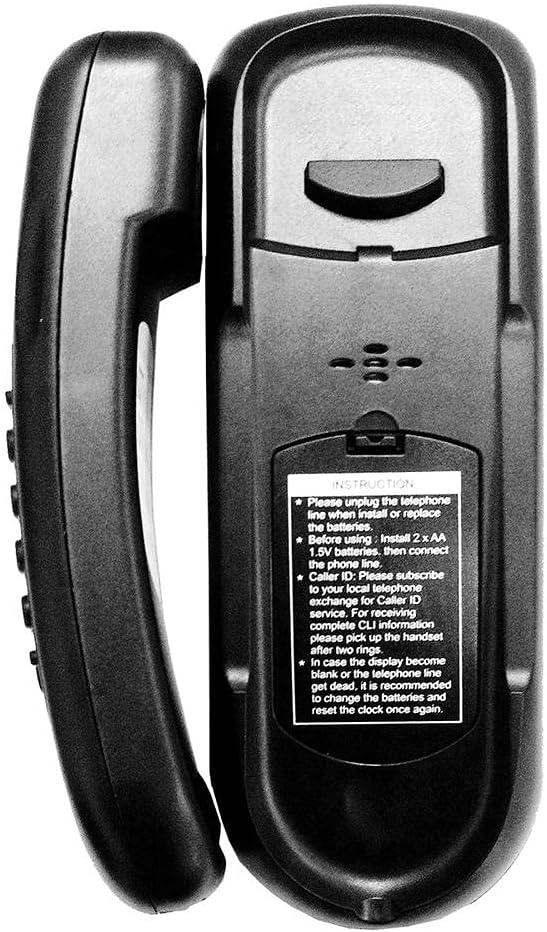

Rysunek 3: Tył View of the Telephone. This image displays the battery compartment cover, wall-mount slots, and a label with important instructions regarding battery installation for Caller ID functionality and clock reset.

Figure 4: Product Packaging. The packaging highlights key features such as DTMF/FSK Caller ID LCD display, date and time maintenance, wall-mountable design, operation without external electric power, Tone or Pulse dialing mode, and programmable Flash time.

Organizować coś

Follow these steps to set up your VTech TELVTC50 telephone.

1. Battery Installation (for Caller ID and Display)

While the telephone functions for basic calls without batteries, 2 AA 1.5V batteries are required for Caller ID display and maintaining the clock/date. Refer to Figure 3 for the battery compartment location.

1. Locate the battery compartment on the back of the telephone unit.
2. Otwórz pokrywę komory baterii.
3. Insert 2 AA 1.5V batteries, observing the correct polarity (+ and -).
4. Dokładnie zamknij pokrywę komory baterii.

2. Podłączenie linii telefonicznej

1. Connect one end of the coiled handset cord to the handset and the other end to the jack on the side of the telephone base unit.
2. Connect one end of the telephone line cord to the TEL LINE jack on the back of the telephone unit.
3. Connect the other end of the telephone line cord to a standard telephone wall jack.

3. Wall Mounting or Desk Placement

Your VTech TELVTC50 telephone can be placed on a desk or mounted on a wall.

Umiejscowienie biurka:

Simply place the telephone on a flat, stable surface.

Montaż na ścianie:

The telephone features integrated wall-mount slots on the back (refer to Figure 3). You will need two screws (not included) spaced appropriately to align with these slots on your wall plate.

1. Ensure the telephone line cord is connected.
2. Align the wall-mount slots on the back of the telephone with the screws on your wall plate.
3. Slide the telephone down to secure it in place.

4. Initial Clock and Date Setting

After installing batteries, the display may show an incorrect date or time. Use the SET/FLASH przycisk i GÓRA/DÓŁ buttons to adjust the clock and date as needed. Consult the operating instructions for detailed steps on setting the time and date.

Instrukcja obsługi

Wykonywanie połączenia

1. Podnieś słuchawkę.
2. Posłuchaj sygnału wybierania.
3. Wybierz żądany numer telefonu za pomocą klawiatury.
4. Poczekaj, aż połączenie zostanie nawiązane.
5. When finished, place the handset back on the base.

Odbieranie połączenia

1. When the telephone rings, pick up the handset.
2. Rozpocznij rozmowę.
3. When finished, place the handset back on the base.

Using Caller ID

To utilize Caller ID features, you must subscribe to Caller ID service from your local telephone provider. For complete Caller ID information, it is recommended to pick up the handset after two rings.

ReviewHistoria połączeń:

Użyj UP I W DÓŁ buttons to scroll through the stored incoming call numbers. The telephone stores up to 30 incoming numbers.

Deleting Call History:

Chwila viewing a call entry, press the DEL/EXIT button to delete the current entry.

Funkcja lampy błyskowej

Ten SET/FLASH button is used to activate call waiting or transfer calls if you have these services from your telephone provider. The flash time is programmable.

Redial/Pause Function

Ten RD/PAUSE button is used to redial the last number dialed. It can also be used to insert a pause during dialing, which is useful for accessing external lines or voicemail systems.

Tone/Pulse Dialing Mode

Your telephone supports both Tone and Pulse dialing modes. The default setting is typically Tone. If you need to change this, consult your telephone service provider for the correct setting for your line. Instructions for changing this setting are usually found within the phone's menu system, accessed via the SET/FLASH przycisk.

Konserwacja

Czyszczenie telefonu

To keep your telephone clean, wipe it with a soft, slightly damp cloth. Do not use harsh chemicals or abrasive cleaners, as these can damage the finish.

Wymiana baterii

If the display becomes blank or the clock/date resets frequently, it is recommended to replace the 2 AA batteries. Refer to the "Battery Installation" section for instructions.

Rozwiązywanie problemów

If you experience issues with your VTech TELVTC50 telephone, try the following solutions:

Specyfikacje

• Model: TELVTC50
• Marka: VTech
• Typ: Telefon przewodowy
• Opcje montażu: Wall or Table
• Źródło zasilania: Electric with cable (no external power adapter needed for basic function)
• Batteries (for Caller ID/Display): 2 x AA 1.5V (brak w zestawie)
• Tworzywo: Plastikowy
• Kolor: Czarny
• Wymiary (dł. x szer. x wys.): 30 x 10 x 7 cm (około 11.8 x 3.9 x 2.8 cala)
• Waga: Około 0.5 kg (500 gramów)
• Tryb wybierania: Tone/Pulse selectable
• Identyfikator dzwoniącego: DTMF/FSK compatible (subscription required)
• Call History Storage: Up to 30 incoming numbers, 9 outgoing numbers
• Kod UPC: 183420003681

Gwarancja i wsparcie

Aby uzyskać informacje dotyczące gwarancji i pomocy technicznej, zapoznaj się z dokumentacją dołączoną do zakupionego produktu lub odwiedź oficjalną stronę internetową VTech webZachowaj paragon jako dowód zakupu.

For further assistance, you may contact VTech customer service directly.
