1. Wprowadzenie
This instruction manual provides detailed guidance for the installation, operation, and maintenance of your ELEGANT BFH32 32x72 inch Bi-Fold Glass Shower Door. Please read all instructions carefully before beginning installation or use to ensure proper function and safety. Keep this manual for future reference.

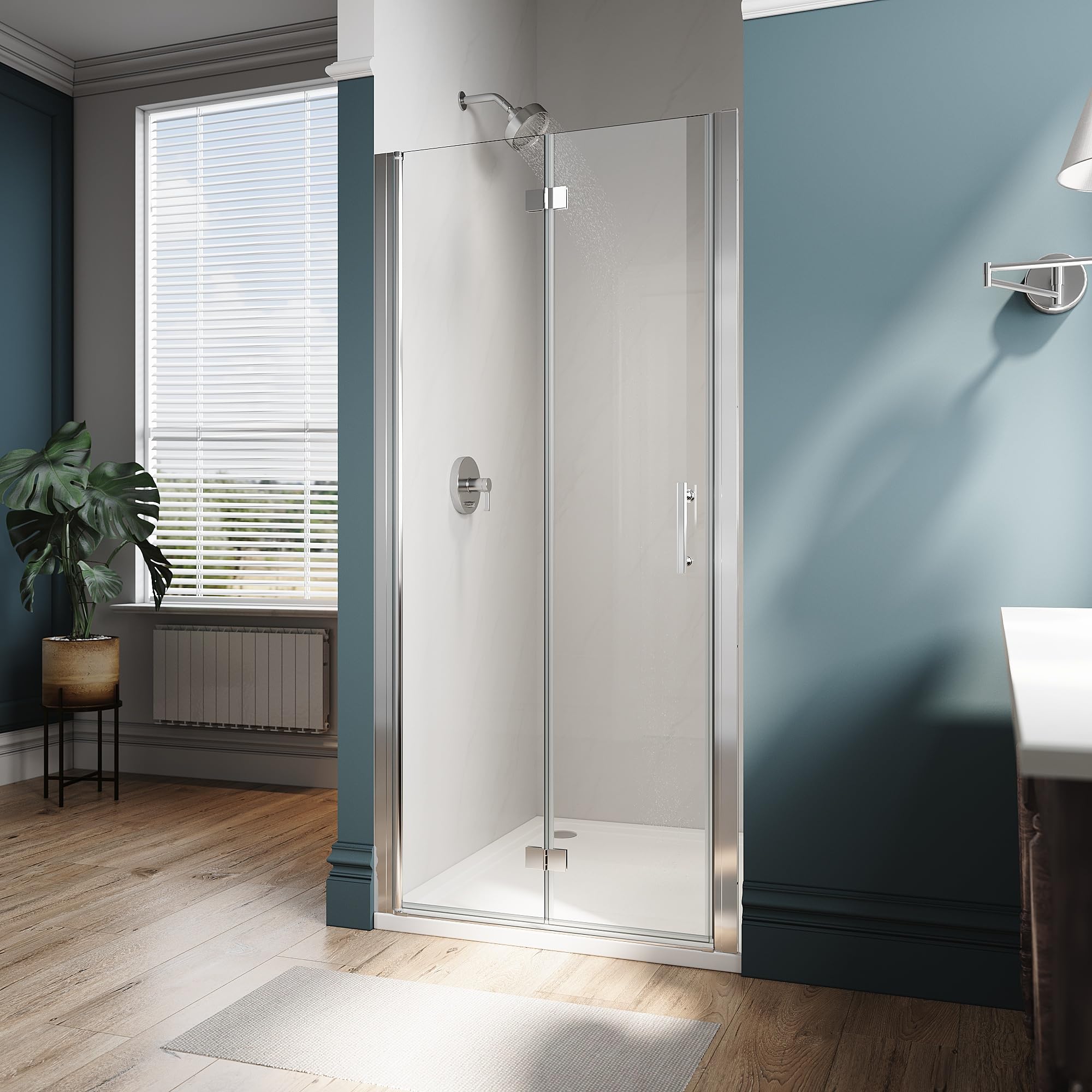

Image: ELEGANT BFH32 32x72 inch Bi-Fold Glass Shower Door in a modern bathroom setting.
2. Informacje dotyczące bezpieczeństwa
Always follow basic safety precautions to reduce the risk of injury during installation and use. Professional installation is recommended.
- Należy nosić odpowiedni sprzęt ochrony osobistej, obejmujący okulary ochronne i rękawice.
- Z panelami szklanymi należy obchodzić się niezwykle ostrożnie. Szkło hartowane, choć wytrzymałe, może pęknąć, jeśli uderzy się je w krawędzie.
- Ensure the installation surface (wall, floor) is structurally sound and level.
- Use appropriate tools and fasteners for your wall type.
- Nie dokręcaj śrub zbyt mocno, ponieważ może to spowodować uszkodzenie podzespołów lub szkła.
- Przed użyciem prysznica należy odczekać, aż uszczelniacz silikonowy całkowicie stwardnieje (zazwyczaj 24 godziny).
- Trzymaj dzieci i zwierzęta domowe z dala od miejsca instalacji.
3. Zawartość opakowania
Verify that all parts are included and undamaged before beginning assembly. Refer to the diagram below for component identification.
Wideo: Rozpakowywanie i koniecview of the ELEGANT Bi-Fold Corner Shower Door components.
The video above provides a visual guide to the package contents and initial setup steps.
| Część | Opis | Ilość |
|---|---|---|
| Panele szklane | 1/4 inch clear tempered glass | 2 |
| Ściana Profiles | Aluminum frame for wall mounting | 2 |
| Zawiasy | Stainless steel bi-fold hinges | 2 zestawów |
| Uchwyty | Stainless steel door handles | 1 zestaw |
| Paski magnetyczne | For door closure and sealing | 2 |
| Water Retaining Strips | Vinyl seals for water retention | Różny |
| Fasteners & Covers | Screws, wall plugs, washers, screw covers | Różny |
| Bottom Water Retaining Bar | Aluminum bar for bottom seal | 1 |
4. Wymagane narzędzia (nie dołączone)
- Drill with appropriate drill bits (e.g., 6mm for wall plugs)
- Taśma miernicza
- Ołówek
- Poziom
- Młotek gumowy
- Śrubokręt (z główką Phillipsa)
- Pistolet do uszczelniania
- Silicone Sealant (waterproof, mold-resistant)
- Nóż uniwersalny
5. Instrukcja instalacji
Follow these steps carefully for a successful installation. It is recommended to have two people for certain steps involving heavy glass panels.
5.1. Przygotuj miejsce instalacji
- Ensure the shower tray or floor is level using a spirit level.
- Clean the wall surfaces where the shower door will be installed.
5.2. Install Wall Profiles
- Position a wall profile (S01) on the wall, ensuring it is plumb (vertical) with a level. Mark the drill holes with a pencil.
- Wywierć otwory w zaznaczonych miejscach za pomocą wiertła o średnicy 6 mm.
- Insert wall plugs (S02) into the drilled holes using a rubber mallet.
- Zamocuj ścienne profile to the wall using screws (S03).
- Repeat steps 3-6 for the second wall profile po przeciwnej stronie.
Image: The wall profiles allow for up to 0.75 inches (20mm) of width adjustment on each side to accommodate varying shower opening sizes.
5.3. Assemble Glass Panels and Hinges
- Lay the glass panels on a soft, flat surface.
- Install the water retaining strips (S06, S08, S09) along the bottom edge of each glass panel.
- Attach the bi-fold hinges (S07) to connect the two glass panels. Ensure the hinges are correctly oriented for the desired folding direction (inward or outward).
Image: The flexible hinges allow for 180-degree rotation, providing versatile folding options.
5.4. Mount the Shower Door
- Carefully lift the assembled glass panels and insert them into the installed wall profiles.
- Secure the panels to the wall profiles with screws (S04, S05).
- Cover the screw heads with the decorative screw covers.
5.5. Install Seals and Handles
- Insert the magnetic profile (S15) into the wall profile on the closing side to ensure a secure seal.
- Install the bottom water retaining bar (S17, S18) along the bottom edge of the shower door opening.
- Install the magnetic retaining strips (S10) along the vertical edges of the glass panels where they meet when closed.
- Attach the stainless steel handles (S20) to the designated holes on the glass panels.
Image: Magnetic strips provide a secure closure and prevent water leakage.
Image: Durable stainless steel handle for easy opening and closing.
5.6. Sealing and Final Adjustments
- Apply a continuous bead of silicone sealant along the outside edges of the wall profiles where they meet the wall and along the bottom edge of the shower door where it meets the shower tray/floor.
- Allow the silicone sealant to cure for at least 24 hours before using the shower.
- Check for smooth operation of the bi-fold panels. If the door does not close properly or keeps opening, adjust the frame by pushing in or pulling out the wall profile slightly to achieve the correct alignment and tension for the magnetic seal.
Image: Adjusting the frame for optimal door closure and seal.
6. Instrukcja obsługi
The ELEGANT BFH32 bi-fold shower door is designed for flexible access and space-saving. To open the door, gently pull the handle to disengage the magnetic seal, then fold the panels inward or outward as desired. The hinges allow for a 180-degree rotation, providing ample entry space, especially beneficial for smaller bathrooms.
Image: Full folding glass doors provide free access regardless of space restrictions.
Image: The bi-fold design allows for both inward and outward folding.
7. Konserwacja
Regular cleaning and maintenance will prolong the life and appearance of your shower door.
- Czyszczenie szkła: Use a soft cloth or sponge with a non-abrasive glass cleaner. Avoid harsh chemicals or abrasive pads that can scratch the glass or damage protective coatings.
- Rama i osprzęt: Wipe down chrome and stainless steel components with a soft, damp cloth. Dry thoroughly to prevent water spots and mineral buildup. Avoid abrasive cleaners.
- Foki: Regularly inspect and clean the vinyl water retaining strips and magnetic seals. Remove any soap scum or mildew to maintain their effectiveness. Replace worn or damaged seals promptly.
- Zawiasy: Periodically check hinges for tightness. If they become loose, gently tighten the screws. Do not overtighten.
8. Rozwiązywanie Problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Water leakage from bottom or sides | Improperly installed seals, insufficient silicone, uneven shower base. | Ensure all vinyl and magnetic seals are correctly seated. Reapply silicone sealant where gaps are present. Check shower base level. |
| Door does not close securely or keeps opening | Misaligned wall profiles, weak magnetic seal. | Adjust the wall profiles by pushing in or pulling out to ensure the magnetic strips align and engage properly. Check for obstructions. |
| Door feels stiff or difficult to fold | Hinges need lubrication or adjustment. | Apply a small amount of silicone-based lubricant to the hinge pivots. Check for any debris obstructing movement. |
| Rysy na szkle | Użyto materiałów czyszczących o właściwościach ściernych. | Avoid abrasive cleaners and pads. For minor scratches, consult a glass repair specialist. |
9. Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Numer modelu | BFH32 |
| Wymiary | 32" W x 72" H (0.25 x 32 x 72 inches) |
| Grubość szkła | 1/4 inch (6mm) clear tempered glass |
| Tworzywo | Aluminum frame, Stainless Steel hinges and handles |
| Skończyć | Chrom |
| Otwarcie bez umawiania się | 26 cali |
| Regulacja szerokości | Adjustable 19mm (0.75 inches) on each side |
| Typ drzwi | Bi-Fold Pivot Swing, Semi-Frameless |
| Waga przedmiotu | 55 funtów |
| Wymagany montaż | Tak |
10. Gwarancja i wsparcie
ELEGANT products are designed for quality and durability. For any questions, concerns, or warranty claims, please contact Elegant Home Supply Inc. customer service.
- Zasady zwrotu: 30-day easy returns (refund/replacement).
- Obsługa klienta: For online orders, please tap "Your Account" - "Order Detail" - "Message Center" on the platform where you purchased the product.
- Producent: Elegant Home Supply Inc.
ELEGANT is committed to providing products with enhanced experience and comfort for your personal space. We have over 20 years of brand history and numerous patents, with each product undergoing thousands of tests to ensure high quality and durability.
