GTW Light Kit for Yamaha G29/Drive Golf Cart Models

Wstęp

This manual provides comprehensive instructions for the installation, operation, and maintenance of your GTW Halogen Headlight & LED Taillight Kit, designed specifically for Yamaha G29/Drive golf cart models manufactured between 2007 and 2016. This kit enhances visibility and updates the aesthetic of your golf cart.

Informacje dotyczące bezpieczeństwa

• Always disconnect the golf cart's battery before beginning any electrical installation or maintenance to prevent electrical shock or short circuits.
• Podczas instalacji należy nosić odpowiedni sprzęt ochrony osobistej, obejmujący okulary ochronne i rękawice.
• Ensure all wiring connections are secure and properly insulated to prevent fire hazards.
• For electric golf carts, a voltage converter or reducer is required for 12-volt applications to prevent damage to the light kit.
• Halogen headlights can become very hot during operation. Avoid touching them immediately after use.
• Jeśli masz wątpliwości co do któregokolwiek etapu instalacji, skonsultuj się z wykwalifikowanym technikiem.

Zawartość opakowania

Verify that all components listed below are present in your package before beginning installation:

• Halogen Headlights (2 units)
• LED Taillights (2 units)
• Basic Wiring Harness
• Włącznik / wyłącznik kołyskowy
• Sprzęt montażowy
• Step-by-Step Installation Instructions (refer to manufacturer's provided document)

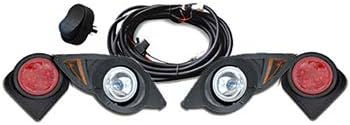

Rysunek 1: Koniecview of the GTW Light Kit components. This image displays the two halogen headlights, two LED taillights, the main wiring harness, and a small black switch or relay.

Konfiguracja i instalacja

This light kit is designed for a factory fit, meaning the housing dimensions are similar to OEM light kits, requiring minimal trimming if replacing an existing factory kit. For new installations, some cutting of the golf cart body will be necessary.

Wymagane narzędzia (nie dołączone):

• Wiertarka
• Rotary Tool (e.g., Dremel) for cutting openings
• Szczypce do zdejmowania izolacji/zaciskarki
• Basic Hand Tools (screwdrivers, wrenches)
• Multimeter (recommended for electrical checks)

Kroki instalacji:

1. Prepare the Golf Cart: Disconnect the golf cart's battery. Clean the areas where the lights will be installed.
2. Cut Openings (if necessary): Use the provided templates (if included with your kit) to mark and carefully cut the openings for the headlights and taillights. A rotary tool is highly recommended for precise cuts.
3. Install Headlights: Insert the halogen headlights into the prepared front openings. Secure them using the provided mounting hardware.

Rysunek 2: Tył view of the headlights, showing the wiring connections and quality control stickers. Note the different connector types for each light.
4. Install Taillights: Insert the LED taillights into the prepared rear openings. Secure them using the provided mounting hardware.

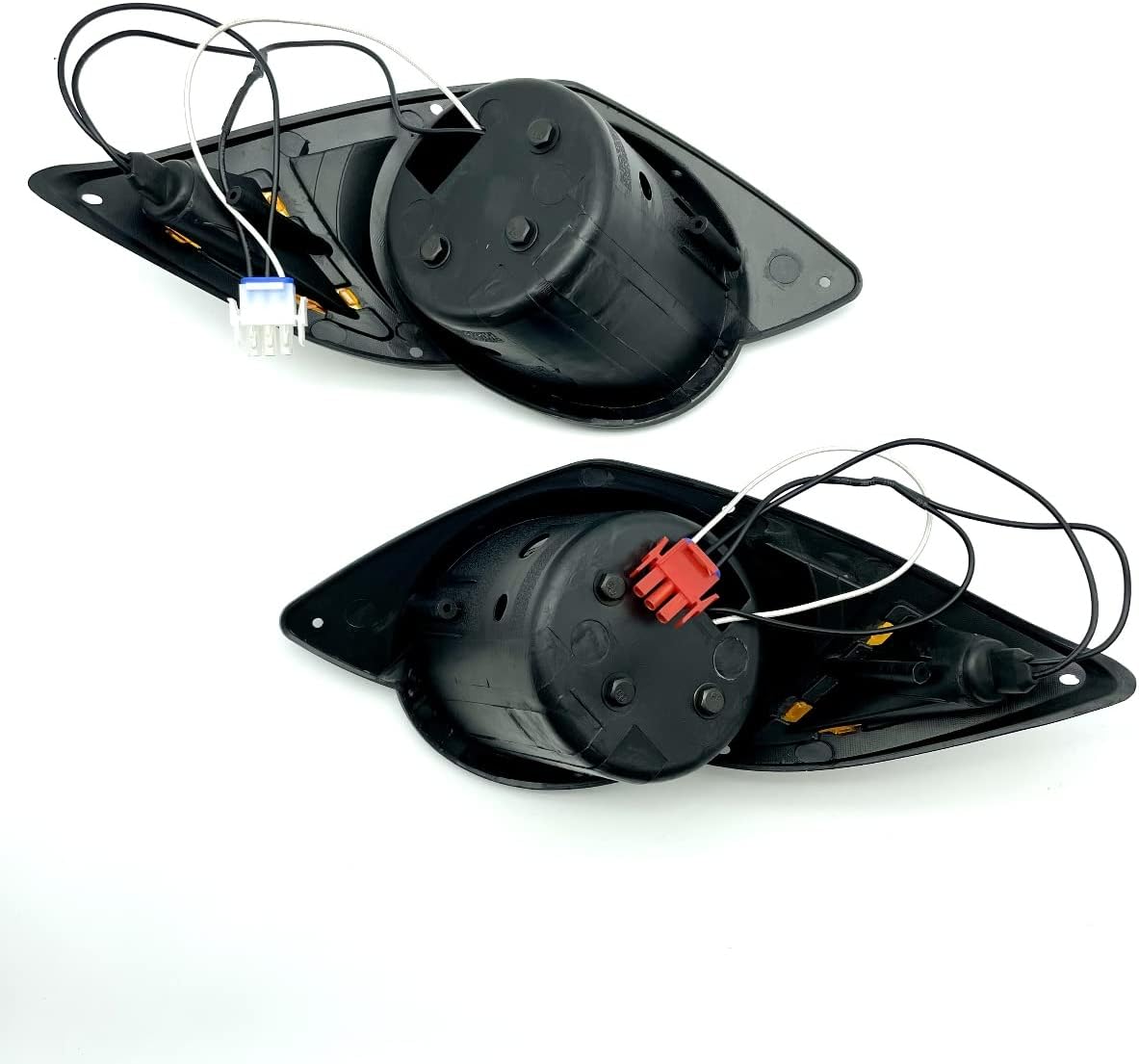

Rysunek 3: Tył view of the taillights, illustrating the wiring and connectors. One light has a white connector, the other a red.

5. Route Wiring Harness: Carefully route the basic wiring harness from the front to the rear of the golf cart, ensuring it is secured away from moving parts and heat sources.


Figure 4: The unrolled wiring harness, showing its full length and various connection points, including a fuse holder.

6. Connect Lights to Harness: Connect the headlight and taillight wires to the corresponding connectors on the main wiring harness. Ensure a firm connection.


   Figure 5: A close-up of one of the red three-pin connectors used for connecting the lights to the harness.


   Rysunek 6: Szczegółowy view of a white multi-pin connector, part of the main wiring harness.

7. Install On/Off Rocker Switch: Mount the rocker switch in a convenient location on the dashboard or control panel. Connect the switch wires to the harness as per the manufacturer's instructions.
8. Podłącz do zasilania: For electric golf carts, connect the wiring harness to a 12-volt power source via a voltage converter or reducer (sold separately). For gas golf carts, connect directly to the 12-volt battery. Ensure correct polarity.
9. Funkcjonalność testu: Reconnect the golf cart battery. Test the headlights and taillights using the rocker switch. Verify that all lights illuminate correctly.

Note: The headlights illuminate in the center ONLY. The side lights are designed for turn signal indicators and will only function when connected to a GTW Turn Signal Switch Upgrade kit (sold separately).

Instrukcja obsługi

• Włączanie/wyłączanie świateł: Use the installed On/Off rocker switch to activate or deactivate the light kit.
• Funkcja reflektora: The halogen headlights provide forward illumination for driving in low-light conditions.
• Taillight Function: The LED taillights provide rear visibility.
• Turn Signal Function (Optional): If you have installed the GTW Turn Signal Switch Upgrade kit, operate the turn signals as per that kit's instructions. The side sections of the headlights will flash as indicators.

Konserwacja

• Czyszczenie: Clean the light lenses regularly with a soft cloth and mild soap solution to maintain optimal light output. Avoid abrasive cleaners.
• Bulb Replacement (Headlights): If a halogen headlight bulb burns out, replace it with a compatible 12-volt halogen bulb. Ensure the golf cart's power is off before replacement.
• Kontrola okablowania: Periodically inspect all wiring and connections for signs of wear, fraying, or corrosion. Secure any loose connections.
• Wodoodporna funkcja: The kit is designed to be waterproof, but avoid direct high-pressure washing of the light assemblies.

Rozwiązywanie problemów

Specyfikacje

Informacje o gwarancji

Specific warranty details for the GTW Light Kit are typically provided by the manufacturer at the time of purchase or included with the product packaging. Please refer to any documentation supplied with your light kit for comprehensive warranty terms and conditions. For further inquiries regarding warranty, please contact GTW directly.

Wsparcie

For technical assistance, replacement parts, or additional product information, please visit the official GTW website or contact their customer support. You can also find more information and products from GTW by visiting their Amazon store:
