1. Wprowadzenie i koniecview
This manual provides comprehensive instructions for the proper installation, operation, and maintenance of your Solus S1721-BK Black Aluminum Wing Clip Post Top Fitter. This product is designed to securely mount globes and acorns with a 5.25-inch neckless opening onto a 3-inch post.
Obraz 1.1: Zbliżenie view of the Solus S1721-BK Post Top Fitter, highlighting its internal components and design.
2. Funkcje produktu
- Wszechstronny projekt: Compatible with both globes and acorns featuring 5.25-inch neckless openings.
- Commercial Quality: Constructed from corrosion-resistant cast aluminum for enhanced durability and longevity.
- Łatwa instalacja: Engineered for straightforward attachment to compatible globes/acorns and 3-inch posts.
- Odporny na korozję: Features a powder-coated finish to resist environmental wear.
- Standard Post Fit: Designed specifically for use with 3-inch diameter posts.
3. Informacje dotyczące bezpieczeństwa
Please read and understand all safety instructions before installing or maintaining the Solus S1721-BK Post Top Fitter. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Odłączenie zasilania: Always disconnect the electrical power supply at the circuit breaker or fuse box before beginning any installation, maintenance, or repair work.
- Wykwalifikowany personel: Jeśli nie masz pewności co do sposobu okablowania, skonsultuj się z wykwalifikowanym elektrykiem.
- Bezpieczne połączenia: Ensure all electrical connections are tight and properly insulated to prevent short circuits or electrical hazards.
- Sprzęt bezpieczeństwa: Podczas instalacji należy nosić odpowiedni sprzęt ochrony osobistej, taki jak okulary ochronne i rękawice.
- Kompatybilność produktu: Use this fitter only with 3-inch posts and 5.25-inch neckless globes or acorns as specified.
4. Zawartość opakowania
Przed rozpoczęciem instalacji sprawdź, czy wszystkie komponenty są obecne:
- 1 x Solus S1721-BK Black Aluminum Wing Clip Post Top Fitter
- 2 x Wire Nuts (may be included for electrical connections)
Note: Post, globe, acorn, and additional mounting hardware (e.g., screws for securing to post) are not included.
5. Konfiguracja i instalacja
Follow these steps to properly install your Solus S1721-BK Post Top Fitter:
- Odłącz zasilanie: Before starting, ensure the electrical power supply to the post is completely turned off at the main circuit breaker or fuse box.
- Prepare Post: Confirm that the existing post has a 3-inch diameter and is clean and free of debris.
- Mount Fitter to Post: Carefully place the Solus S1721-BK fitter onto the top of the 3-inch post. Secure the fitter to the post using appropriate screws (not supplied) through the designated holes in the fitter base. Ensure it is stable and level.
- Okablowanie (jeśli dotyczy): If your installation includes a light socket, connect the electrical wires from the post to the fitter's socket wires. Use the provided wire nuts (if included) or other approved connectors. Match black to black (live), white to white (neutral), and green/bare copper to ground. Refer to local electrical codes for proper wiring practices.
- Attach Globe/Acorn: Position your 5.25-inch neckless globe or acorn onto the fitter. The internal wing clips are designed to hold the globe securely. Gently press the globe down until it is seated firmly and evenly within the fitter.
- Przywróć zasilanie: Once all connections are secure and the globe is properly installed, restore electrical power to the post.
Obraz 5.1: Example of the Solus S1721-BK Fitter installed on a post with a compatible globe. Note: Post and globe are not included with the fitter.
6. Instrukcja obsługi
The Solus S1721-BK Post Top Fitter is a passive component designed to provide a stable and secure mounting point for compatible globes and acorns on a 3-inch post. Once correctly installed, its primary function is to hold the lighting fixture in place. Operation of the light source itself (e.g., turning on/off) is controlled by the external electrical system to which it is connected.
7. Konserwacja
To ensure the longevity and optimal performance of your Solus S1721-BK Post Top Fitter, periodic maintenance is recommended:
- Regularna kontrola: Periodically inspect the fitter for any signs of physical damage, corrosion, or loose connections.
- Czyszczenie: Clean the exterior surface of the fitter with a soft, damp cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the powder-coated finish.
- Bezpieczne elementy złączne: Check that all mounting screws securing the fitter to the post remain tight. Retighten if necessary, but do not overtighten.
- Globe Stability: Ensure the globe or acorn remains securely seated within the fitter's wing clips.
8. Rozwiązywanie Problemów
If you encounter issues with your Solus S1721-BK Post Top Fitter, refer to the following troubleshooting guide:
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Globe/Acorn is loose or falls out. | Incorrect globe size; globe not properly seated; wing clips not engaged. | Verify the globe has a 5.25-inch neckless opening. Ensure the globe is pressed firmly into the fitter until the wing clips secure it. |
| Fitter is unstable on the post. | Fitter not properly secured to the post; incorrect post diameter. | Ensure the post has a 3-inch diameter. Tighten all mounting screws that secure the fitter to the post. |
| Light fixture (if installed) is not working. | No power; faulty bulb; incorrect wiring. | Check the circuit breaker. Replace the light bulb. Verify all electrical connections are correct and secure (refer to Section 5). |
9. Specyfikacje
- Marka: Solus
- Model: S1721-BK
- Tworzywo: Odlew aluminiowy
- Kolor: Czarny
- Wymiary produktu: 6 cala (szerokość) x 2.87 cala (wysokość)
- Waga przedmiotu: Około 1.01 funtów
- Rodzaj wykończenia: Malowane proszkowo
- Dodatek specjalny: Odporny na korozję
- Post Compatibility: Designed for 3-inch diameter posts
- Globe/Acorn Compatibility: Fits 5.25-inch neckless openings

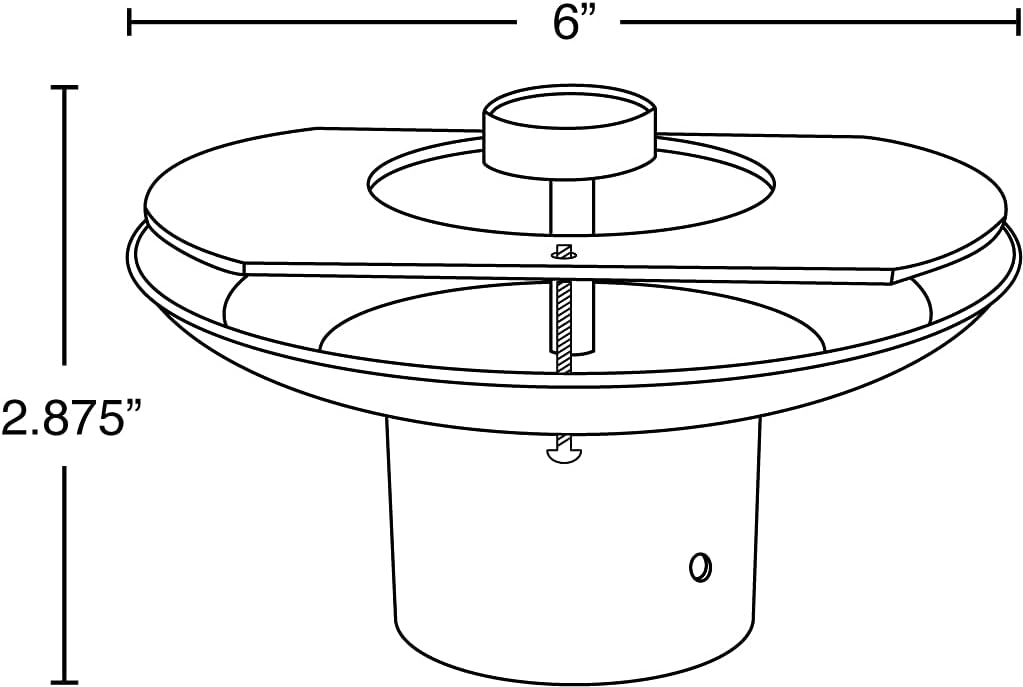

Image 9.1: Dimensional drawing of the Solus S1721-BK Fitter.
10. Gwarancja i wsparcie
Roczna gwarancja: The Solus S1721-BK Black Aluminum Wing Clip Post Top Fitter is covered by a one-year limited warranty from the date of purchase, covering defects in materials and workmanship under normal use.
Obsługa klienta: For technical assistance, warranty claims, or any questions regarding your product, please contact our dedicated customer support team. Our US manufacturing facility provides 24/7 support to ensure your satisfaction.
Please visit the official Solus webodwiedź witrynę lub zapoznaj się z dokumentacją zakupu, aby uzyskać dane kontaktowe.
