Instrukcja obsługi szczotek węglowych Buildalot

Wstęp

This manual provides essential information for the safe and effective installation, operation, and maintenance of your Buildalot Carbon Brushes, model 1699_Hitachi_G 23SEY. These carbon brushes are specifically designed for use with the HITACHI G 23SEY Grinder and feature an automatic stop function for enhanced motor protection.

Carbon brushes are critical components in electric motors, facilitating the transfer of electrical current to the rotating armature. Regular inspection and timely replacement ensure optimal performance and longevity of your power tool.

Informacje dotyczące bezpieczeństwa

Zawsze priorytetowo traktuj bezpieczeństwo podczas pracy z elektronarzędziami i elementami elektrycznymi. Nieprzestrzeganie tych zasad bezpieczeństwa może skutkować porażeniem prądem, pożarem lub poważnymi obrażeniami.

• Odłącz zasilanie: Before attempting any installation, maintenance, or repair, always unplug the power tool from the electrical outlet to prevent accidental startup.
• Noś środki ochrony indywidualnej (PPE): Use safety glasses, gloves, and other appropriate PPE to protect against dust, debris, and electrical hazards.
• Use Correct Replacement Parts: Only use carbon brushes specifically designed for your tool's make and model. Incorrect brushes can cause damage or unsafe operation.
• Pracuj w dobrze wentylowanym pomieszczeniu: Ensure adequate ventilation, especially when cleaning dust from the motor housing.
• Utrzymuj miejsce pracy w czystości: Cluttered work areas increase the risk of accidents.
• Szukaj pomocy profesjonalisty: If you are unsure about any step or encounter difficulties, consult a qualified technician.

Produkt ponadview

The Buildalot Carbon Brushes (Model: 1699_Hitachi_G 23SEY) are high-quality replacement parts for the HITACHI G 23SEY Grinder. Each brush measures 7x17x23mm (approximately 2.8x6.7x9.1 inches) and is equipped with an automatic stop feature. This feature is designed to automatically shut off the motor when the carbon brush wears down to a critical level, preventing damage to the motor's commutator.

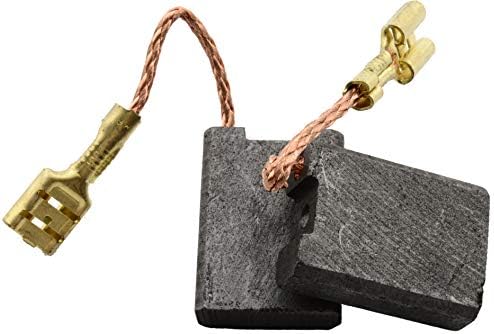

Figure 1: Buildalot Carbon Brushes for HITACHI G 23SEY Grinder. These brushes feature copper wires and brass terminals for electrical connection.

Rysunek 2: Szczegółowy view of a Buildalot carbon brush, highlighting its construction and connection components.

Konfiguracja i instalacja

Replacing carbon brushes is a common maintenance task for power tools. Follow these steps carefully to ensure proper installation:

1. Przygotuj narzędzie:
   • Ensure the HITACHI G 23SEY Grinder is completely unplugged from the power source.
   • Szlifierkę należy ustawić na stabilnej i czystej powierzchni roboczej.
2. Zlokalizuj nasadki szczotek:
   • Identify the brush caps on the motor housing. These are typically plastic or metal caps, often with a slot for a screwdriver or a hex head. There are usually two caps, one for each brush.
3. Usuń stare szczotki:
   • Carefully unscrew or unclip the brush caps.
   • Gently pull out the old carbon brushes. Note the orientation of the brushes and their springs.
   • Inspect the commutator (the copper segments on the motor's armature) for excessive wear or damage. Clean any carbon dust from the brush holders.
4. Zainstaluj nowe szczotki:
   • Insert the new Buildalot carbon brushes into the brush holders. Ensure they slide in smoothly and are oriented correctly, with the copper wire facing the appropriate connection point.
   • The automatic stop feature means the brush will have a specific design to disengage when worn. Ensure it is seated properly.
5. Bezpieczne nasadki na szczotki:
   • Replace and securely fasten the brush caps. Do not overtighten.
6. Początkowe docieranie:
   • After installation, plug the grinder back into the power source.
   • Run the tool at a low speed without load for a few minutes. This allows the new brushes to seat properly against the commutator, creating an optimal contact surface. Slight sparking during this initial period is normal.

Figure 3: Schematic diagram illustrating the structure of a carbon brush, useful for understanding its components during installation.

Rozważania operacyjne

Once the new carbon brushes are installed and the initial run-in period is complete, the grinder is ready for normal operation. The automatic stop feature of these brushes will protect your motor by stopping the tool when the brushes are excessively worn, indicating it's time for replacement.

Konserwacja

Regular maintenance ensures the longevity and efficiency of your power tool.

• Sprawdź szczotki: Periodically check the carbon brushes for wear. The automatic stop feature will indicate when replacement is necessary, but visual inspection can help anticipate this.
• Clean Motor Vents: Utrzymuj otwory wentylacyjne silnika w czystości, bez kurzu i zanieczyszczeń, aby zapobiec przegrzaniu.
• Stan komutatora: If replacing brushes, briefly inspect the commutator for excessive grooving or discoloration. Minor wear is normal, but severe damage may require professional servicing.

Rozwiązywanie problemów

If your grinder exhibits issues after carbon brush replacement, consider the following:

Specyfikacje

• Marka: Buildalot
• Numer modelu: 1699_Hitachi_G 23SEY
• Zgodność: HITACHI G 23SEY Grinder
• Wymiary pędzla: 7 mm x 17 mm x 23 mm (0.7 x 1.7 x 2.3 cm)
• Funkcja: Automatyczne zatrzymanie
• Waga przedmiotu: Około 20 g (dla pary)
• Ilość w opakowaniu: 2 (jedna para)

Gwarancja i wsparcie

For warranty information or technical support regarding your Buildalot Carbon Brushes, please refer to the original purchase documentation or contact the seller directly. Ensure you have your model number (1699_Hitachi_G 23SEY) and purchase details available when seeking assistance.

For general information about Buildalot products, you may visit the Strona marki Buildalot na Amazon.
