Ariete 4145 XVAPOR CONFORT Multi-Purpose Steam Cleaner

Wstęp

Thank you for choosing the Ariete 4145 XVAPOR CONFORT Multi-Purpose Steam Cleaner. This appliance is designed to provide deep and chemical-free cleaning for various surfaces in your home, effectively eliminating 99.9% of germs and bacteria using only steam. Please read this manual carefully before using the appliance to ensure safe and optimal performance. Keep this manual for future reference.

Figure 1: Ariete 4145 XVAPOR CONFORT Steam Cleaner main unit.

This image shows the main unit of the Ariete 4145 XVAPOR CONFORT steam cleaner, featuring its compact design with a handle, hose, and wheels for easy maneuverability. The unit is white and dark grey with light blue accents.

Informacje dotyczące bezpieczeństwa

Always observe the following basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury:

• Przed użyciem należy przeczytać wszystkie instrukcje.
• Nie pozostawiaj urządzenia bez nadzoru, gdy jest podłączone do zasilania.
• Nie używaj urządzenia, jeśli przewód lub wtyczka są uszkodzone.
• Podczas pracy urządzenia należy trzymać dzieci i zwierzęta domowe z dala od niego.
• Nie kieruj pary na ludzi, zwierzęta ani urządzenia elektryczne.
• Always unplug the appliance before filling with water or cleaning.
• Use only clean tap water. Do not add detergents, perfumes, or other chemicals to the water tank.
• Pozostaw urządzenie do całkowitego ostygnięcia przed przechowywaniem.

Produkt ponadview i funkcje

The Ariete XVAPOR CONFORT is designed for efficient and versatile steam cleaning. Key features include:

• Moc 1500W: Ensures quick heating and powerful steam output.
• 1.2L Boiler Capacity: Provides extended cleaning time.
• Ciśnienie 5 BAR: Delivers strong steam for effective dirt removal.
• Kontrolka gotowości na parę: Indicates when the appliance is ready for use.
• 45 Minutes Autonomy: Allows for continuous cleaning sessions.
• Kocioł ze stali nierdzewnej: Trwałe i długotrwałe.
• Nasadka bezpieczeństwa: Prevents opening while under pressure.
• Przycisk włączania/wyłączania: For easy control.

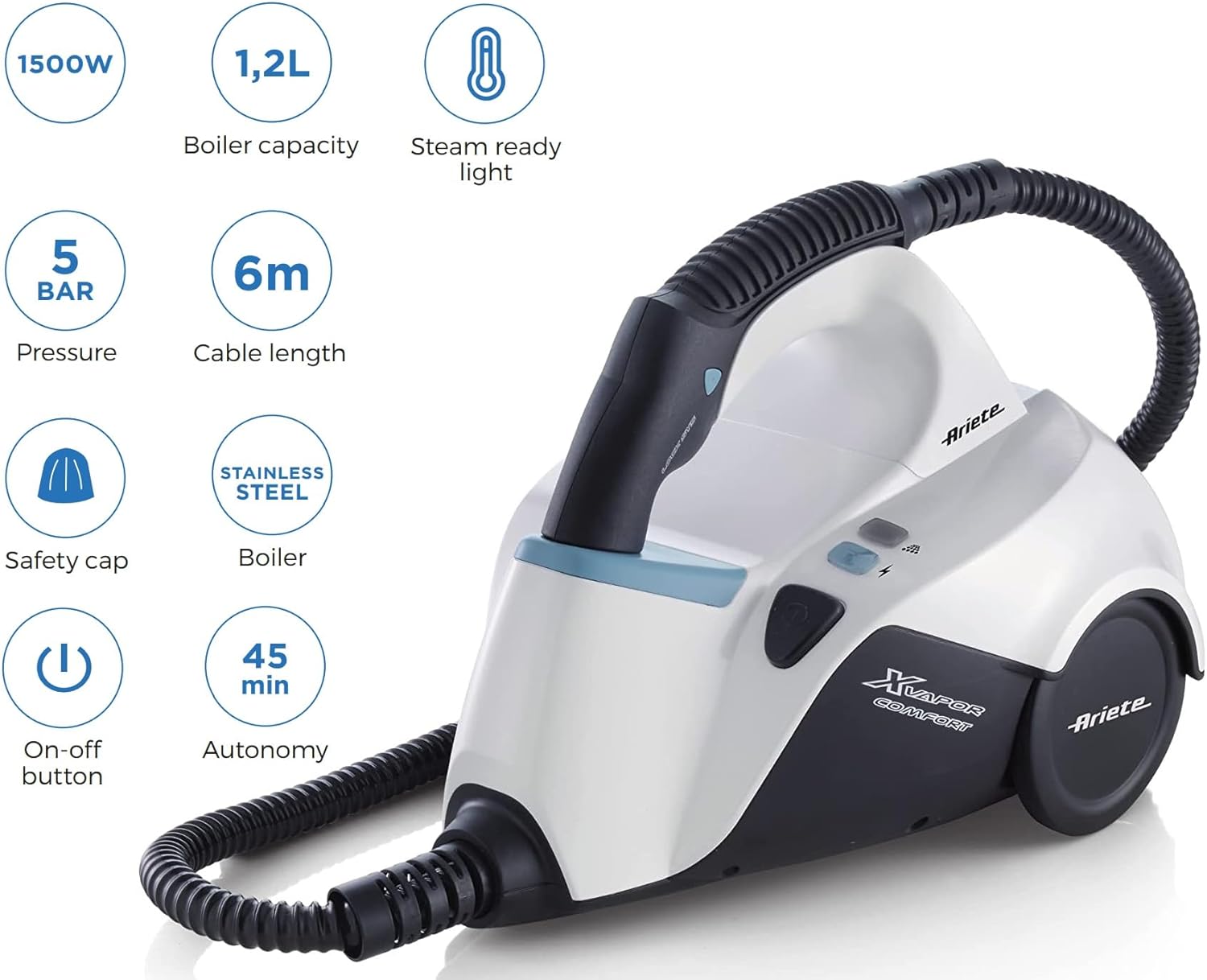

Figure 2: Key features of the Ariete 4145 XVAPOR CONFORT.

This image highlights the main specifications of the steam cleaner, including its 1500W power, 1.2L boiler capacity, steam ready light, 5 BAR pressure, 6m cable length, safety cap, on-off button, 45 minutes autonomy, and stainless steel boiler.

Zawartość zestawu:

The Ariete 4145 XVAPOR CONFORT comes with various accessories to tackle different cleaning tasks:

• Główna jednostka czyszcząca parą
• Flexible Hose with Steam Gun
• Szczotka do podłogi
• Rury przedłużające
• Okrągły pędzel
• Dysza 90°
• Glass/Window Cleaning Nozzle
• Fabric Accessory with Cloth
• Funnel and Measuring Cup

Organizować coś

1. Rozpakowywanie: Ostrożnie wyjmij wszystkie elementy z opakowania. Zachowaj opakowanie do przechowywania lub transportu w przyszłości.
2. Napełnianie zbiornika na wodę:
   • Upewnij się, że urządzenie jest odłączone od zasilania i ostygnięte.
   • Odkręć nakrętkę zabezpieczającą w kierunku przeciwnym do ruchu wskazówek zegara.
   • Using the provided measuring cup and funnel, fill the boiler with up to 1.2 liters of clean tap water. Do not overfill.
   • Dokładnie dokręć nakrętkę zabezpieczającą, obracając ją zgodnie z ruchem wskazówek zegara, aż będzie dobrze dokręcona.
3. Dołączanie akcesoriów:
   • Connect the flexible hose to the main unit by aligning the connectors and twisting until it locks into place.
   • Attach the desired cleaning accessory (e.g., round brush, 90° nozzle, floor brush with extension tubes) to the steam gun or extension tube by pushing and twisting until secure.
4. Podłączenie zasilania: Podłącz przewód zasilający do odpowiedniego uziemionego gniazdka elektrycznego (230 V).

Instrukcja obsługi

1. Włączanie: Press the On/Off button. The steam ready indicator light will illuminate, signaling that the appliance is heating up.
2. Czas nagrzewania: Allow approximately 8-10 minutes for the water to heat and steam to build pressure. The steam ready light will turn off or change color when the appliance is ready for use.
3. Wydanie Steam: Press the steam trigger on the steam gun to release steam. For continuous steam, engage the lock on the trigger.
4. Czyszczenie powierzchni:
   • Round Brush for Dirty Surfaces: Ideal for scrubbing stubborn dirt on tiles, grout, and other hard surfaces.


     Figure 3: Using the round brush on tiled surfaces.

     This image shows a hand holding the steam gun with the round brush attachment, directing steam onto a tiled wall to clean dirty surfaces.
   • 90° Nozzle for Hard-to-Reach Areas: Perfect for corners, crevices, and fixtures like sinks and faucets.


     Figure 4: Cleaning a sink with the 90° nozzle.

     This image illustrates the use of the 90-degree nozzle attachment to direct steam into the tight corners and crevices of a stainless steel kitchen sink, demonstrating its effectiveness for hard-to-reach areas.

   • Glass and Window Cleaning Nozzle: Do czyszczenia okien, luster i innych powierzchni szklanych bez smug.


     Figure 5: Using the glass and window cleaning nozzle.

     This image shows a hand holding the steam gun with the glass and window cleaning nozzle attached, applying steam to a window for deep cleaning.

   • Dodatek materiałowy: Use with the cloth cover for refreshing and sanitizing upholstery, curtains, and garments.


     Figure 6: Cleaning a sofa with the fabric accessory.

     This image depicts the fabric accessory being used to steam clean a blue upholstered sofa, demonstrating its utility for refreshing and sanitizing soft furnishings.
   • Szczotka podłogowa: Attach extension tubes for cleaning floors. Move the brush slowly over the surface to allow steam to penetrate.
5. Refilling (if needed): If steam output decreases significantly or stops, the water tank may be empty. Unplug the unit, allow it to cool for a few minutes, then carefully unscrew the safety cap and refill as per setup instructions.
6. Wyłączone: When finished, release the steam trigger, press the On/Off button to turn off the unit, and unplug it from the electrical outlet.

Konserwacja

Regularna konserwacja zapewnia długowieczność i optymalną wydajność Twojego parownika.

• Czyszczenie urządzenia: After each use, ensure the unit is unplugged and cool. Wipe the exterior with a damp płótno.
• Akcesoria do czyszczenia: Wash removable accessories (brushes, nozzles, cloths) with water and mild detergent. Allow them to dry completely before storing.
• Odwapnianie: Depending on water hardness in your area, mineral deposits may build up in the boiler. Descale the unit periodically (e.g., every 3-6 months) using a descaling solution specifically designed for steam cleaners, following the product's instructions. Alternatively, a solution of white vinegar and water can be used (consult manufacturer guidelines for specific ratios and procedures).
• Składowanie: Store the steam cleaner and its accessories in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the water tank is empty before storage.

Rozwiązywanie problemów

Specyfikacje

Gwarancja i wsparcie

For warranty information, please refer to the warranty card included with your product or contact Ariete customer service. Keep your proof of purchase for warranty claims.

If you encounter any issues not covered in the troubleshooting section, or require further assistance, please contact Ariete customer support. Contact details can typically be found on the manufacturer's webmiejscu lub na opakowaniu produktu.

Zasoby internetowe: For additional tips, FAQs, and product registration, visit the official Ariete webstrona.
