hansgrohe 26725000

hansgrohe Crometta S 240 Overhead Shower

Model: 26725000

Instrukcja obsługi

1. Wprowadzenie

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your hansgrohe Crometta S 240 Overhead Shower. This overhead shower features a 240 mm spray face, delivering a comfortable rainfall spray pattern. It is designed for low-pressure systems (minimum 0.2 bar) and includes QuickClean technology for easy limescale removal. The shower head is fully chrome-plated and suitable for both ceiling and wall installations.

Przed instalacją należy dokładnie przeczytać niniejszą instrukcję i zachować ją do wykorzystania w przyszłości.

2. Informacje dotyczące bezpieczeństwa

  • Ensure all installation work is performed by a qualified professional to prevent water damage or injury.
  • Verify that the water supply is turned off before beginning any installation or maintenance.
  • Chronić produkt przed mrozem.
  • Do not use abrasive cleaners or scouring pads, as these can damage the chrome finish.
  • Always check water temperature before use to avoid scalding.

3. Zawartość opakowania

The package includes the hansgrohe Crometta S 240 Overhead Shower, designed for low-pressure systems, featuring a single spray type and a chrome finish.

4. Konfiguracja i instalacja

The hansgrohe Crometta S 240 Overhead Shower is designed for either ceiling-mounted or wall-mounted installation. It connects via a standard G 1/2 connection. Professional installation is recommended to ensure proper function and to comply with local plumbing codes.

Kroki instalacji (wskazówki ogólne):

  1. Wyłącz główne doprowadzenie wody.
  2. Prepare the ceiling or wall connection point (G 1/2 thread).
  3. Apply thread sealant to the shower arm or pipe threads.
  4. Screw the shower arm/pipe into the wall/ceiling connection.
  5. Attach the Crometta S 240 Overhead Shower to the shower arm/pipe, ensuring a secure, watertight connection.
  6. Otwórz dopływ wody i sprawdź, czy nie ma przecieków.
Installed hansgrohe Crometta S 240 Overhead Shower

Rysunek 4.1: Example of an installed hansgrohe Crometta S 240 Overhead Shower.

Technical drawing with dimensions for hansgrohe Crometta S 240 Overhead Shower

Figure 4.2: Technical drawing showing dimensions and G 1/2 connection for the shower head.

5. Instrukcja obsługi

The hansgrohe Crometta S 240 Overhead Shower features a single, luxurious Rain spray pattern. To operate, simply turn on your shower's water supply. The 240 mm spray face is designed to provide a wide, enveloping rainfall experience, even with low water pressure (minimum 0.2 bar).

There are no adjustable spray settings; the shower delivers a consistent, full Rain spray.

6. Konserwacja

To ensure the longevity and optimal performance of your shower head, regular cleaning is recommended. The hansgrohe Crometta S 240 is equipped with Technologia QuickClean for easy limescale removal.

Kroki czyszczenia:

  1. Gently rub the flexible silicone nozzles on the spray face with your fingertips. This will dislodge any limescale buildup.
  2. For general cleaning of the chrome surface, use a soft cloth and a mild, non-abrasive cleaning agent.
  3. Dokładnie spłucz czystą wodą i osusz miękką ściereczką, aby zapobiec powstawaniu plam wodnych.
  4. Avoid using cleaners containing hydrochloric acid, formic acid, chlorine bleach, or acetic acid, as these can cause significant damage.

7. Rozwiązywanie Problemów

Problem Możliwa przyczyna Rozwiązanie
Zmniejszony przepływ wody Osadzanie się kamienia w dyszach Use QuickClean technology: rub silicone nozzles to remove limescale.
Water dripping after use Residual water in the shower head This is normal for overhead showers; it will stop after a short period.
Wyciek w punkcie połączenia Loose connection or damaged seal Ensure connection is tight. Check and replace rubber seals if necessary. Consult a professional.
No water or very low flow Water supply off or extremely low pressure Check main water supply. Ensure minimum pressure of 0.2 bar is met.

8. Specyfikacje

  • Marka: hansgrohe
  • Numer modelu: 26725000
  • Styl: Low Pressure min 0.2 bar
  • Kształt: Okrągły
  • Tworzywo: Plastikowy
  • Rodzaj wykończenia: Chrom
  • Typ instalacji: Ceiling Mounted or Wall Mounted
  • Kolor: Chrom
  • Number of Spray Settings: 1 (Rain)
  • Shower Head Size: 240 mm (9.45 cali)
  • Efektywność: 2.5 GPM
  • Cechy szczególne: Functional at low water pressure, QuickClean function
  • Waga przedmiotu: 1.26 funta
  • Wymiary produktu: 9.45 x 9.45 x 2.36 cala

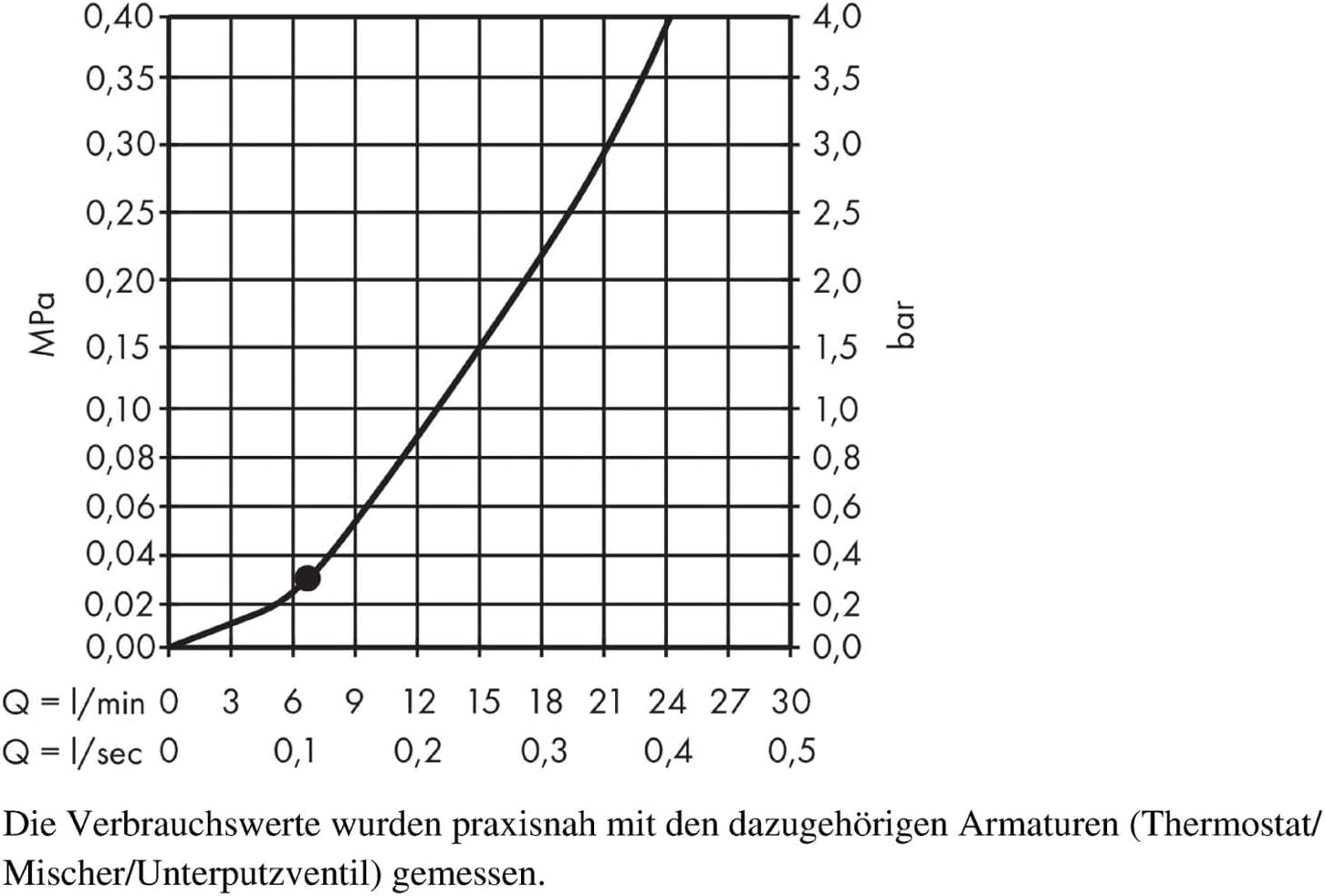

Water flow rate and pressure curve for hansgrohe shower heads

Figure 8.1: Performance curve illustrating flow rate (Q) versus pressure (bar/MPa) for hansgrohe shower heads. This model is optimized for low pressure.

9. Informacje o gwarancji

The hansgrohe Crometta S 240 Overhead Shower comes with a 5-letnia gwarancja, covering manufacturing defects and material faults. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, please refer to the official hansgrohe webodwiedź witrynę lub skontaktuj się z działem obsługi klienta.

10. Wsparcie

W celu uzyskania dalszej pomocy, wsparcia technicznego lub informacji o częściach zamiennych prosimy o kontakt z działem obsługi klienta Hansgrohe. Dane kontaktowe można znaleźć na oficjalnej stronie Hansgrohe. webna stronie internetowej lub u lokalnego sprzedawcy.
