Hyundai i30 Tourer Aluminium Roof Bars (A6210ADE10AL) User Manual

1. Koniec produktuview

The Hyundai i30 Tourer Aluminium Roof Bars (Model A6210ADE10AL) are robust and lightweight accessories designed to provide a secure platform for transporting various roof boxes and carriers on your vehicle. These roof bars are engineered for quick installation and removal, offering convenience and versatility for your transport needs.

• Kod produktu: A6210ADE10AL
• Zgodność: Specifically designed for the Hyundai i30 Tourer models from 2012 onwards.
• Ważna uwaga: These roof bars are nie nadaje się for vehicles without existing roof rails. An alternative solution is not available for vehicles without roof rails.

Image 1: Hyundai i30 Tourer equipped with the A6210ADE10AL Aluminium Roof Bars, demonstrating a bicycle mounted for transport. This illustrates the practical application of the roof bar system.

2. Konfiguracja i instalacja

Follow these steps for the correct installation of your Hyundai i30 Tourer Aluminium Roof Bars. Ensure your vehicle is parked on a level surface and the engine is off before beginning installation.

1. Sprawdź zgodność pojazdu: Confirm that your vehicle is a Hyundai i30 Tourer model from 2012 onwards and is equipped with factory-installed roof rails. These roof bars are designed to attach directly to these existing rails.
2. Zidentyfikuj punkty montażowe: Locate the designated mounting points on your vehicle's roof rails. These points are typically marked or indicated in your vehicle's owner's manual.
3. Pozycja relingów dachowych: Carefully place the roof bars onto the roof rails, aligning them with the identified mounting points. Ensure the front and rear bars are correctly oriented as per any directional markings.
4. Secure with U-Bolts: Utilize the provided U-bolt mounting hardware to firmly attach the roof bars to the roof rails. Tighten all fasteners evenly, ensuring a snug fit without over-tightening, which could damage the rails or bars. Refer to the torque specifications in your vehicle's manual if available.
5. Stabilność testu: After installation, gently shake each roof bar to confirm it is securely fastened and does not exhibit any excessive movement. Re-check all fasteners after the first short drive.

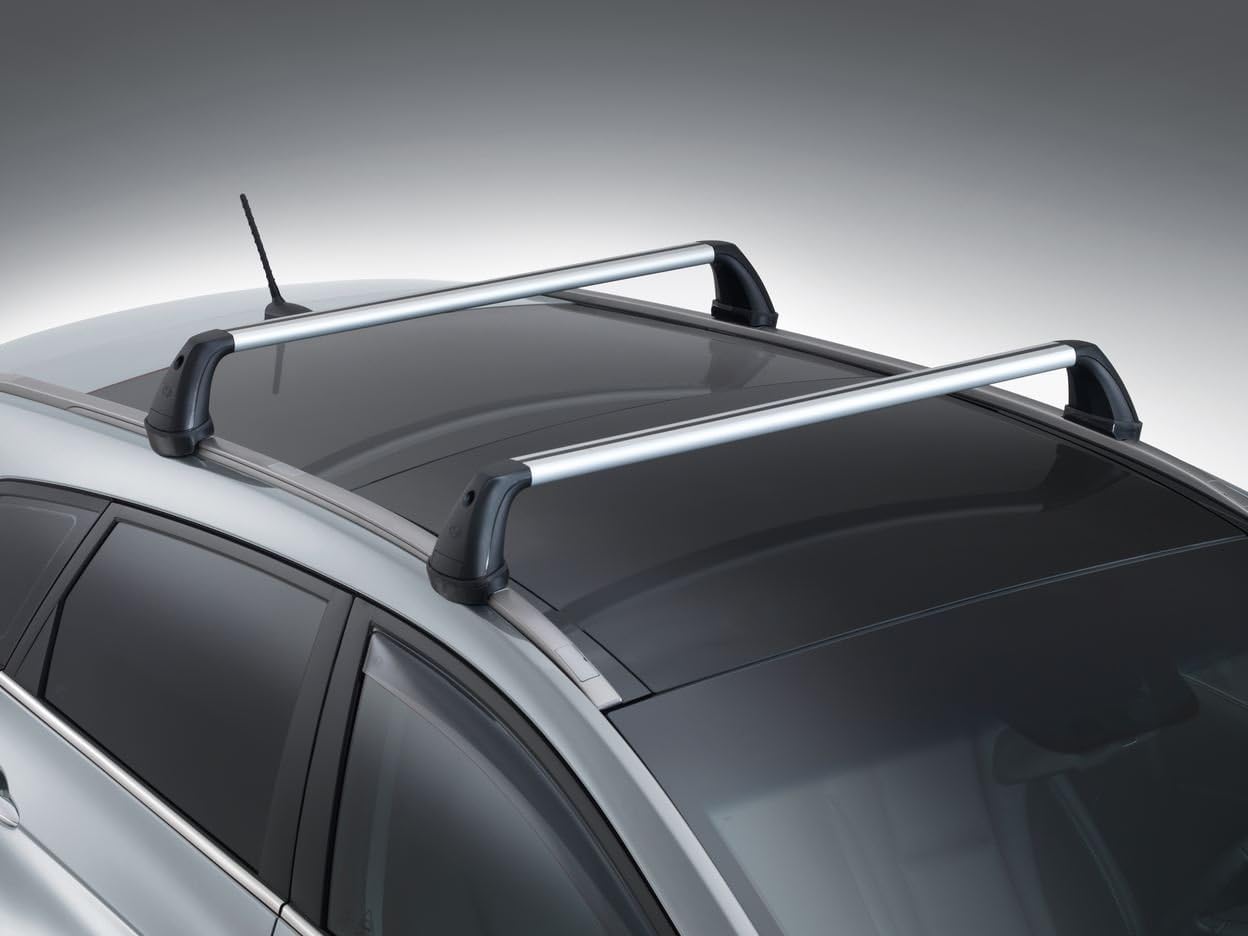

Rysunek 2: Szczegółowy view of the Hyundai i30 Tourer's roof, showcasing the installed aluminium roof bars. This image highlights the secure attachment mechanism to the vehicle's existing roof rails.

3. Instrukcja obsługi

Once installed, the Hyundai i30 Tourer Aluminium Roof Bars provide a versatile platform for carrying additional cargo. Observe the following guidelines for safe operation:

• Rozkład obciążenia: Always distribute the weight of your cargo evenly across the roof bars. Avoid concentrating heavy items on one side.
• Limit wagowy: Adhere strictly to the maximum load capacity specified in your vehicle's owner's manual for the roof. Exceeding this limit can compromise vehicle stability and safety.
• Bezpieczny ładunek: Ensure all items, such as roof boxes, bicycle carriers, or other cargo, are securely fastened to the roof bars using appropriate straps or locking mechanisms. Check tightness before and during your journey.
• Korekty podczas jazdy: Be aware that carrying cargo on the roof can affect your vehicle's handling, braking, and fuel consumption. Drive cautiously, especially in windy conditions or when cornering.
• Wysokość prześwitu: Remember the increased height of your vehicle with roof bars and cargo, especially when entering garages, car washes, or low-clearance areas.

4. Konserwacja

Regular maintenance ensures the longevity and safe operation of your roof bars.

• Czyszczenie: Clean the aluminium bars and plastic components regularly with mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish.
• Kontrola: Periodically inspect all mounting hardware, bolts, and straps for signs of wear, corrosion, or loosening. Tighten any loose fasteners as necessary.
• Składowanie: If the roof bars are removed for extended periods, store them in a dry, protected area to prevent damage and corrosion.

5. Rozwiązywanie Problemów

Should you encounter any issues with your roof bars, consider the following:

• Loose Bars: If the roof bars feel loose, re-check all U-bolts and mounting points. Ensure they are tightened securely according to installation instructions.
• Excessive Noise/Whistling: Ensure all components are correctly installed and tightened. Check for any gaps or misalignments that could cause wind noise. Adjusting the position of the bars slightly might help.
• Problemy ze zgodnością: Remember, these roof bars are exclusively for Hyundai i30 Tourer models (from 2012) with existing roof rails. If your vehicle does not meet these criteria, the bars are not compatible.

6. Specyfikacje

7. Informacje o gwarancji

Specific warranty details for the Hyundai i30 Tourer Aluminium Roof Bars (A6210ADE10AL) may vary. For comprehensive information regarding warranty coverage, duration, and terms, please consult your original retailer or an authorized Hyundai dealer at the time of purchase. Retain your proof of purchase for any warranty claims.

8. Wsparcie i kontakt

For technical assistance, installation queries, or any other support related to your Hyundai i30 Tourer Aluminium Roof Bars, please contact your local authorized Hyundai dealer or the customer service department of the retailer from whom you purchased the product. Provide your product model number (A6210ADE10AL) and vehicle details for efficient service.
