APS N19-C67456G Horizontal Billet Grille Insert Installation Manual

1. Wprowadzenie

This manual provides detailed instructions for the proper installation, maintenance, and care of your APS N19-C67456G Premium Stainless Steel Chrome Horizontal Billet Grille Insert. Please read all instructions carefully before beginning the installation process to ensure a correct and secure fit. This grille insert is designed to enhance the aesthetic appearance of your vehicle.

2. Koniec produktuview

The APS N19-C67456G grille insert is crafted from premium stainless steel with a polished chrome finish, offering durability and a refined look. It features a horizontal billet design and is engineered for a precise fit. This product is an insert only and does not include the vehicle's original logo, emblem, frame, or outer shell.

Obraz 2.1: Przód view of the APS N19-C67456G Horizontal Billet Grille Insert.

Obraz 2.2: Tył view of the grille insert, illustrating the attachment points for installation.

Image 2.3: Visual comparison highlighting the clean finish of the APS grille compared to alternatives with visible weld ends.

Image 2.4: Comparison illustrating the robust 5/16-inch bar thickness of the APS grille against thinner 1/8-inch bars found in other products.

3. Zgodność

This APS N19-C67456G Horizontal Billet Grille Insert is specifically designed for:

• Pojazd: GMC Savana
• Lata modelowe: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026

This is a 1-piece main upper grille insert. It is designed as a bolt-over/overlay/bolt-on installation, meaning it attaches over your existing Original Equipment (OE) grille shell. You must retain your OE grille shell for proper installation.

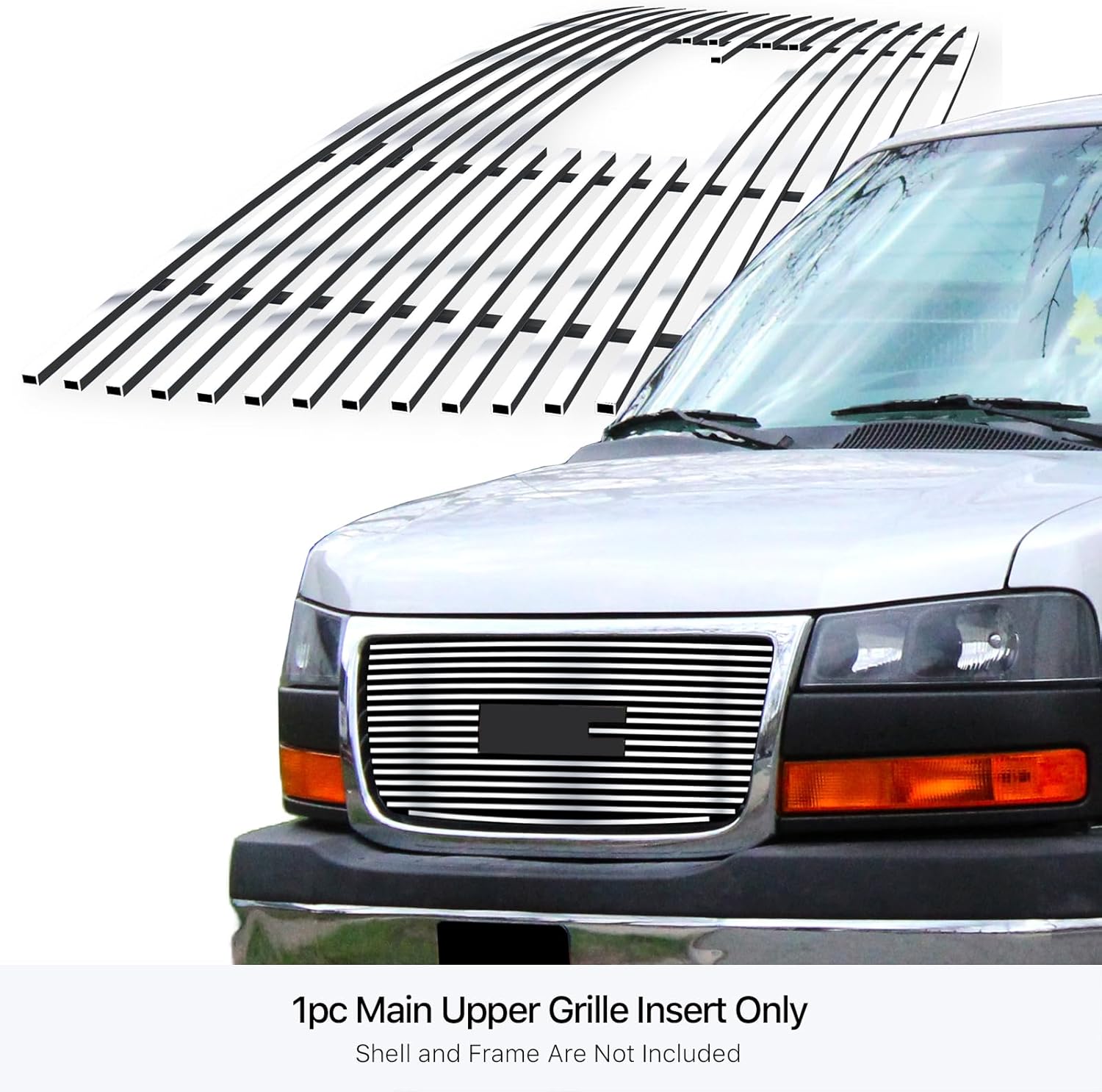

Image 3.1: The APS grille insert shown installed on a compatible GMC Savana vehicle.

4. Zawartość opakowania

Po otwarciu przesyłki sprawdź, czy wszystkie elementy są obecne i nieuszkodzone:

• 1 x APS N19-C67456G Main Upper Horizontal Billet Grille Insert
• Installation Hardware (bolts, clips, brackets as required)
• Instrukcja obsługi (ten dokument)

Note: This package contains the grille insert only. The vehicle's original logo, emblem, grille frame, or outer shell are NOT included and must be retained from your vehicle.

5. Wymagane narzędzia

The following tools are typically required for a successful installation. Specific tools may vary slightly depending on your vehicle's exact configuration:

• Basic Hand Tool Set (e.g., screwdrivers, wrenches, sockets)
• Trim Removal Tool (plastic, to prevent scratching)
• Taśma miernicza
• Cleaning Supplies (mild soap, water, soft cloth)

Drilling is NOT required for this installation.

6. Środki ostrożności

Always prioritize safety during any vehicle modification. Please observe the following precautions:

• Należy nosić odpowiedni sprzęt ochrony osobistej, obejmujący okulary ochronne i rękawice.
• Ensure the vehicle is parked on a level surface, the engine is off, and the parking brake is engaged.
• Allow the engine and surrounding components to cool down before working.
• Do not overtighten fasteners, as this can damage components.
• If you are unsure about any step, consult a professional automotive technician.

7. Instrukcje instalacji

Follow these steps carefully for the installation of your APS N19-C67456G grille insert. This is a bolt-over/overlay installation, meaning the new grille insert will attach directly over your existing factory grille shell.

1. Przygotuj pojazd: Park your GMC Savana on a flat, stable surface. Turn off the engine and engage the parking brake. Allow the front end of the vehicle to cool down if it has been recently driven.
2. Clean the Existing Grille Area: Thoroughly clean the surface of your existing factory grille shell where the new insert will be mounted. Remove any dirt, debris, or wax to ensure a secure attachment.
3. Test Fit the Grille Insert: Carefully position the APS grille insert over your factory grille shell. Ensure it aligns correctly and sits flush. This step helps identify any potential fitment issues before permanent attachment.
4. Secure the Grille Insert: Using the provided hardware (bolts, clips, or brackets), attach the new grille insert to your existing grille shell. Follow the specific attachment points on the back of the grille insert. Tighten all fasteners securely, but do not overtighten.
5. Check Alignment and Security: Once secured, gently tug on the grille insert to ensure it is firmly in place and does not rattle. Verify that the alignment is even and aesthetically pleasing. Make any minor adjustments as needed.
6. Kontrola końcowa: Double-check all connections and ensure no tools or loose parts are left in the engine bay or around the grille area.

Image 7.1: Illustrates a typical method for securing the grille insert using provided hardware.

Obraz 7.2: Example of a vehicle's appearance before and after the installation of an APS grille insert.

8. Konserwacja

To maintain the polished chrome finish and longevity of your APS grille insert, follow these simple maintenance guidelines:

• Regularne czyszczenie: Wash the grille regularly with mild automotive soap and water. Use a soft cloth or sponge to avoid scratching the surface.
• Unikaj silnych środków chemicznych: Do not use abrasive cleaners, steel wool, or harsh chemical solvents, as these can damage the chrome finish.
• Wysuszenie: Dry the grille immediately after washing to prevent water spots, especially in hard water areas. A microfiber towel is recommended.
• Polerowanie (Opcjonalne): For an extra shine, you may use a chrome-specific polish periodically, following the product manufacturer's instructions.

Image 8.1: Demonstrates the grille being cleaned with water, highlighting ease of maintenance.

9. Rozwiązywanie Problemów

Jeśli w trakcie lub po instalacji napotkasz jakiekolwiek problemy, zapoznaj się z poniższymi wskazówkami dotyczącymi rozwiązywania problemów:

• Issue: Grille Insert Does Not Fit Properly.
  Rozwiązanie: Double-check that your vehicle's make, model, and year match the compatibility listed in this manual. Ensure the factory grille shell is correctly positioned and not damaged. Minor adjustments to the mounting tabs or the grille insert itself may be necessary for a perfect fit.
• Issue: Grille Insert Feels Loose or Rattles.
  Rozwiązanie: Re-examine all attachment points. Ensure all provided hardware is securely tightened. If clips or brackets are used, verify they are fully engaged.
• Issue: Missing or Damaged Hardware.
  Rozwiązanie: If any hardware is missing or appears damaged upon inspection, please contact APS customer support for assistance and replacement parts.
• Issue: Scratches or Damage During Installation.
  Rozwiązanie: Use protective tape on painted surfaces near the installation area. Exercise caution and use appropriate tools to prevent damage. Minor scratches may be buffed out with automotive polishing compounds, but deep scratches may require professional attention.

10. Specyfikacje

11. Gwarancja i wsparcie

For information regarding product warranty, returns, or technical support, please refer to the official APS website or contact APS customer service directly. Keep your purchase receipt as proof of purchase.

Informacje kontaktowe: Proszę odwiedzić Sklep APS na Amazon lub ich urzędnik webwitryna z najaktualniejszymi opcjami pomocy.
