1. Wprowadzenie
The SunSun CPF-380 Pressure Filter with integrated 11W UVC clarifier is an advanced filtration system designed to maintain clear and healthy water in your pond. This system combines mechanical and biological filtration with powerful UVC sterilization to effectively remove suspended particles, harmful bacteria, and floating algae, ensuring optimal water quality for your aquatic environment.
Figure 1: SunSun CPF-380 Pressure Filter Unit
This image shows the complete SunSun CPF-380 pressure filter unit, highlighting its compact design and the inlet/outlet connections on the top.
2. Główne cechy
- Integrated UVC Clarifier: Features an 11W UV-C lamp for effective sterilization, reducing harmful bacteria and eliminating floating algae.
- Multi-Stage Filtracja: Combines mechanical filtration (via 5 filter sponges) and biological filtration (via bio-balls) for comprehensive water purification.
- Duża pojemność: Suitable for ponds up to 12,000 liters (without fish) or 6,000 liters (with fish).
- Wysoki przepływ: Supports a maximum pump capacity of 10,000 liters per hour.
- Trwała konstrukcja: Robust construction with an IP44 rating for outdoor use.
- Łatwa instalacja: Designed for straightforward setup, either above ground or partially buried.
Figure 2: Internal Filtration System
This diagram illustrates the internal components of the CPF-380 filter, showing the water flow path through the UVC lamp and the multiple layers of mechanical filtration sponges.
Figure 3: 11W UVC Sterilization
Zbliżenie view of the powerful 11W UV-C lamp, which is crucial for sterilizing pond water by reducing harmful microorganisms and preventing algae blooms.
Figure 4: Mechanical and Biological Filtration Media
This image displays the filter sponges (mechanical filtration) and bio-balls (biological filtration), demonstrating how they work together to purify pond water by trapping debris and providing a surface for beneficial bacteria.
3. Konfiguracja i instalacja
Before installation, ensure all components are present and undamaged. The CPF-380 filter can be installed either above ground or partially buried, depending on your pond setup and aesthetic preference.
3.1 Umieszczenie
- Place the filter on a stable, level surface near your pond.
- Ensure it is at least 2 meters away from the water's edge to prevent accidental submersion.
- If burying, ensure the top of the filter remains accessible for maintenance.
Figure 5: Filter Placement by Pond
This image shows the CPF-380 filter correctly positioned next to a pond, demonstrating a typical installation scenario with the inlet and outlet hoses connected.
3.2 Połączenia węży
- Connect the pond pump's outlet hose to the filter's inlet (marked 'Entrée' or 'Inlet').
- Connect the filter's outlet (marked 'Sortie' or 'Outlet') to a return point in your pond, ensuring water flows back into the pond.
- The filter supports hose diameters of 20mm, 25mm, 32mm, and 38mm.

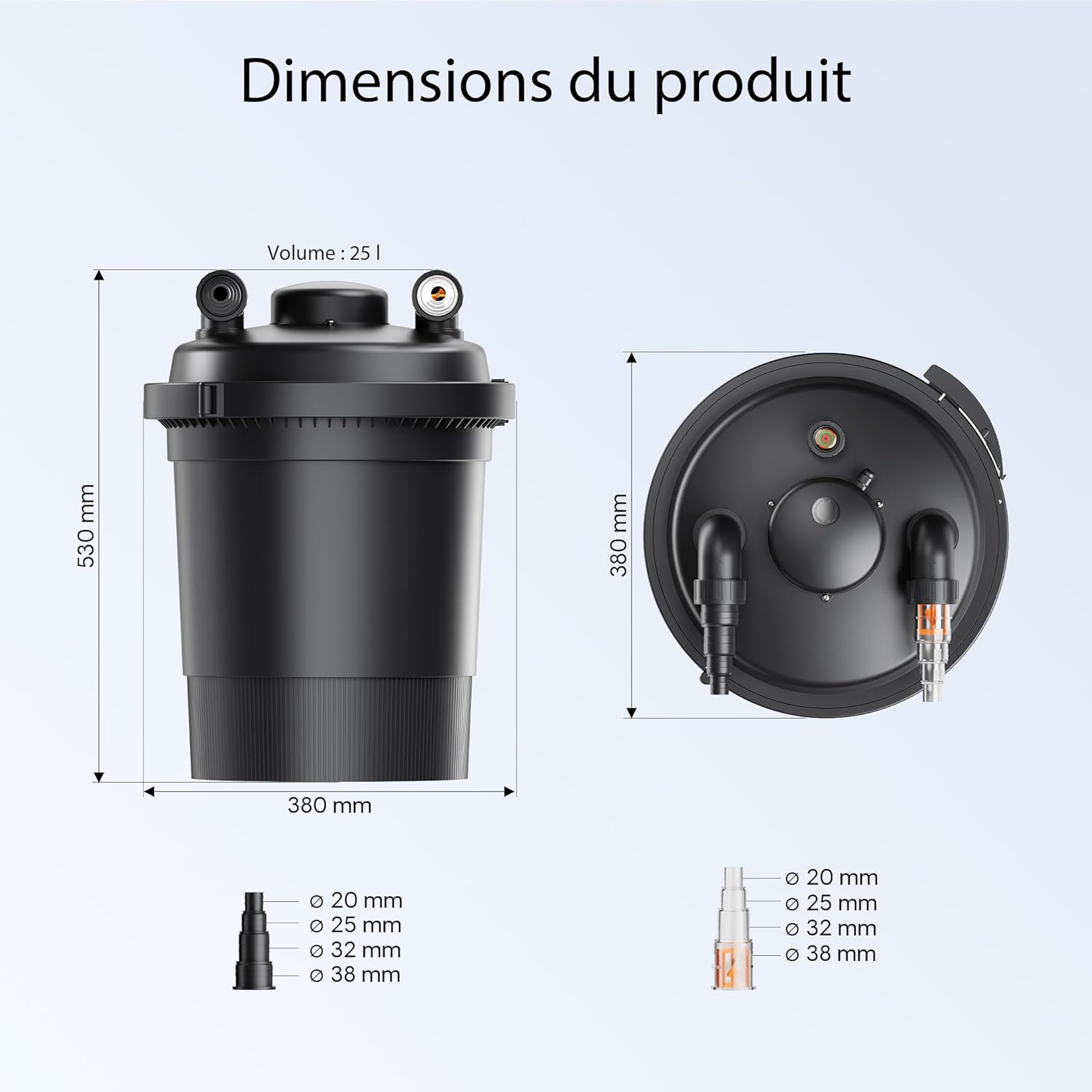

Figure 6: Product Dimensions and Connection Details
This image provides detailed dimensions of the CPF-380 filter and illustrates the various compatible hose diameters for both inlet and outlet connections.
3.3 Podłączenie elektryczne
- Ensure the filter is connected to a grounded power outlet with appropriate voltage (230 V).
- The power cable length is 5 meters.
- Always disconnect power before performing any maintenance or handling the unit.
4. Działanie
Once installed and connected, the filter operates continuously to purify your pond water. The UVC lamp works to clump fine particles and kill harmful microorganisms, while the mechanical and biological media remove physical debris and process dissolved waste.
4.1 Pierwsze uruchomienie
- Ensure all connections are secure and the filter is properly positioned.
- Turn on the pond pump first, allowing water to fill the filter.
- Then, connect the filter's power supply to activate the UVC lamp.
- It may take several days or weeks for the pond water to become completely clear, especially if it was very dirty initially.
Figure 7: Pond Water Clarity Transformation
This visual comparison demonstrates the effectiveness of the CPF-380 filter, showing a pond with murky, algae-laden water before use and clear, healthy water with reduced algae after the filter has been in operation.
5. Konserwacja
Regular maintenance is crucial for the optimal performance and longevity of your CPF-380 filter.
5.1 Cleaning Filter Sponges
- The filter sponges should be cleaned regularly, depending on the pond's dirt load.
- Disconnect the power supply to the filter and pump before opening the unit.
- Remove the filter lid and carefully take out the sponges.
- Rinse the sponges thoroughly with pond water (not tap water, to preserve beneficial bacteria) until clean.
- Złóż ponownie filtr, upewniając się, że wszystkie uszczelki są prawidłowo założone.
5.2 UVC-Lamp Wymiana
- UVC lamp has an effective lifespan of approximately 8,000 operating hours (about 1 year of continuous use).
- Wymień lamp annually, preferably at the start of the pond season, to ensure maximum sterilization efficiency.
- Always disconnect power and allow the lamp to cool before attempting replacement.
- Handle the new lamp by its ends to avoid touching the glass, as oils from your skin can reduce its effectiveness.
5.3 Czyszczenie tulei kwarcowej
- Periodically clean the quartz sleeve surrounding the UVC lamp to ensure maximum UV light penetration.
- Gently wipe the sleeve with a soft cloth to remove any mineral deposits or algae buildup.
6. Rozwiązywanie Problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Pond water remains cloudy | Clogged filter sponges; UVC lamp ineffective/burnt out; Pond too large for filter capacity; Insufficient pump flow. | Clean filter sponges; Replace UVC lamp; Verify filter capacity matches pond size; Check pump for blockages or insufficient power. |
| Woda nie przepływa przez filtr | Pump not working; Hoses kinked or blocked; Filter inlet/outlet blocked. | Check pump power and operation; Straighten hoses; Clear any blockages in hoses or filter connections. |
| UVC lamp nie zapala się | Lamp burnt out; Ballast faulty; Power supply issue. | Wymień UVC lamp; Check power connection; Consult a qualified electrician if ballast is suspected. |
7. Specyfikacje techniczne
| Specyfikacja | Wartość |
|---|---|
| Numer modelu | 51043 |
| Wymiary produktu (dł. x szer. x wys.) | Wymiary 38 x 38 x 52.5 cm |
| Waga | 6 kilograma |
| UVC lamp Moc | 11 W |
| Max. Przepływ | 10,000 litra na godzinę |
| Całkowite zużycie energii | 15 W |
| Tomtage | 230 wolty |
| Długość kabla | 5 metrów |
| Stopień ochrony IP | IP44 |
| Recommended Pond Size (No Fish) | Do 12,000 litrów |
| Recommended Pond Size (With Fish) | Do 6,000 litrów |
| Producent | WilTec |
| Kraj pochodzenia | Chiny |

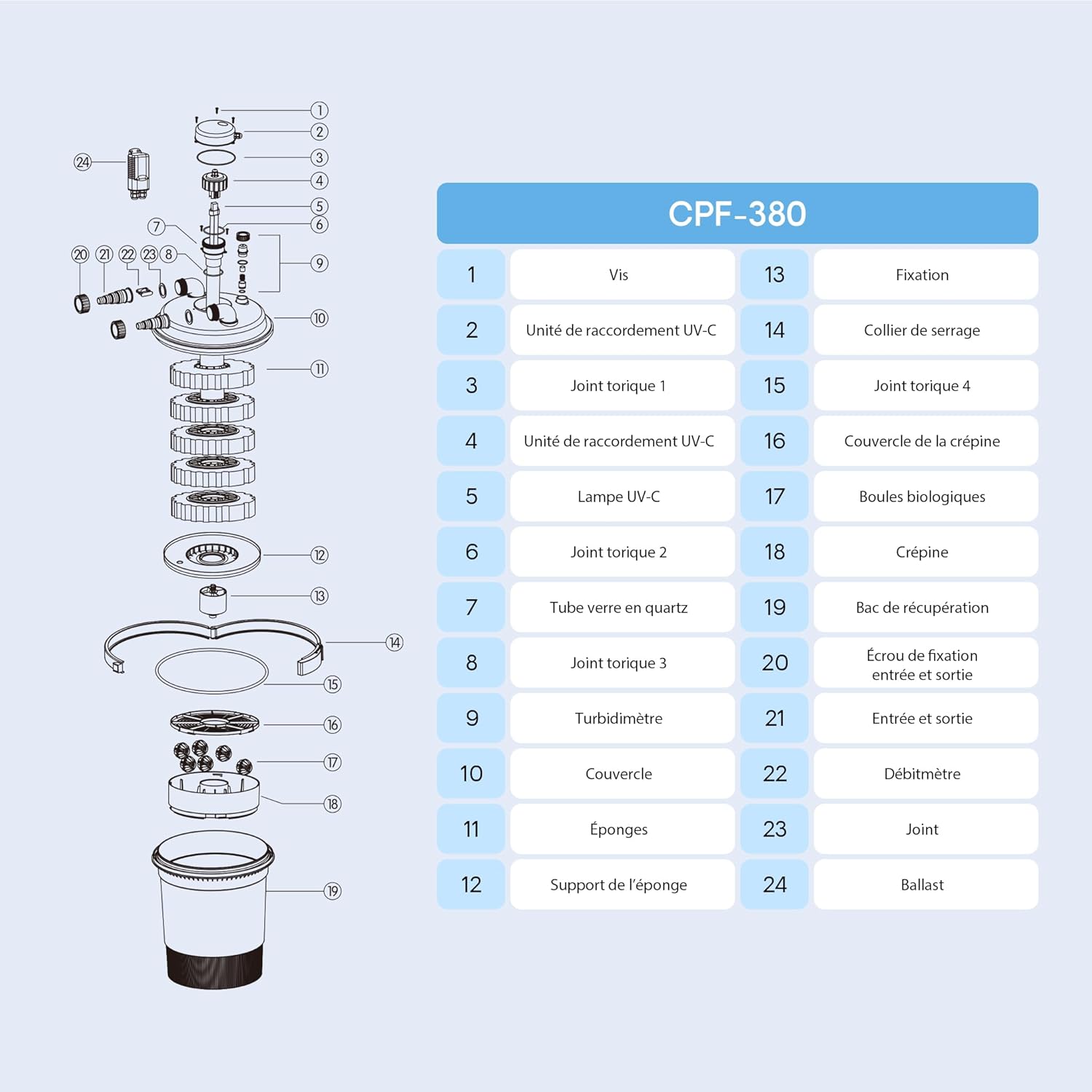

Rysunek 8: Eksplodowany View i wykaz części
Ten schemat przedstawia rozstrzelony view of the CPF-380 filter, detailing its individual components and their corresponding part numbers for identification and replacement purposes.
8. Gwarancja i wsparcie
This product is covered by a standard return policy allowing for refund or replacement within 30 days of purchase, as per Amazon's terms. For further support, technical assistance, or spare parts, please contact WilTec customer service or visit the official WilTec store on Amazon:
